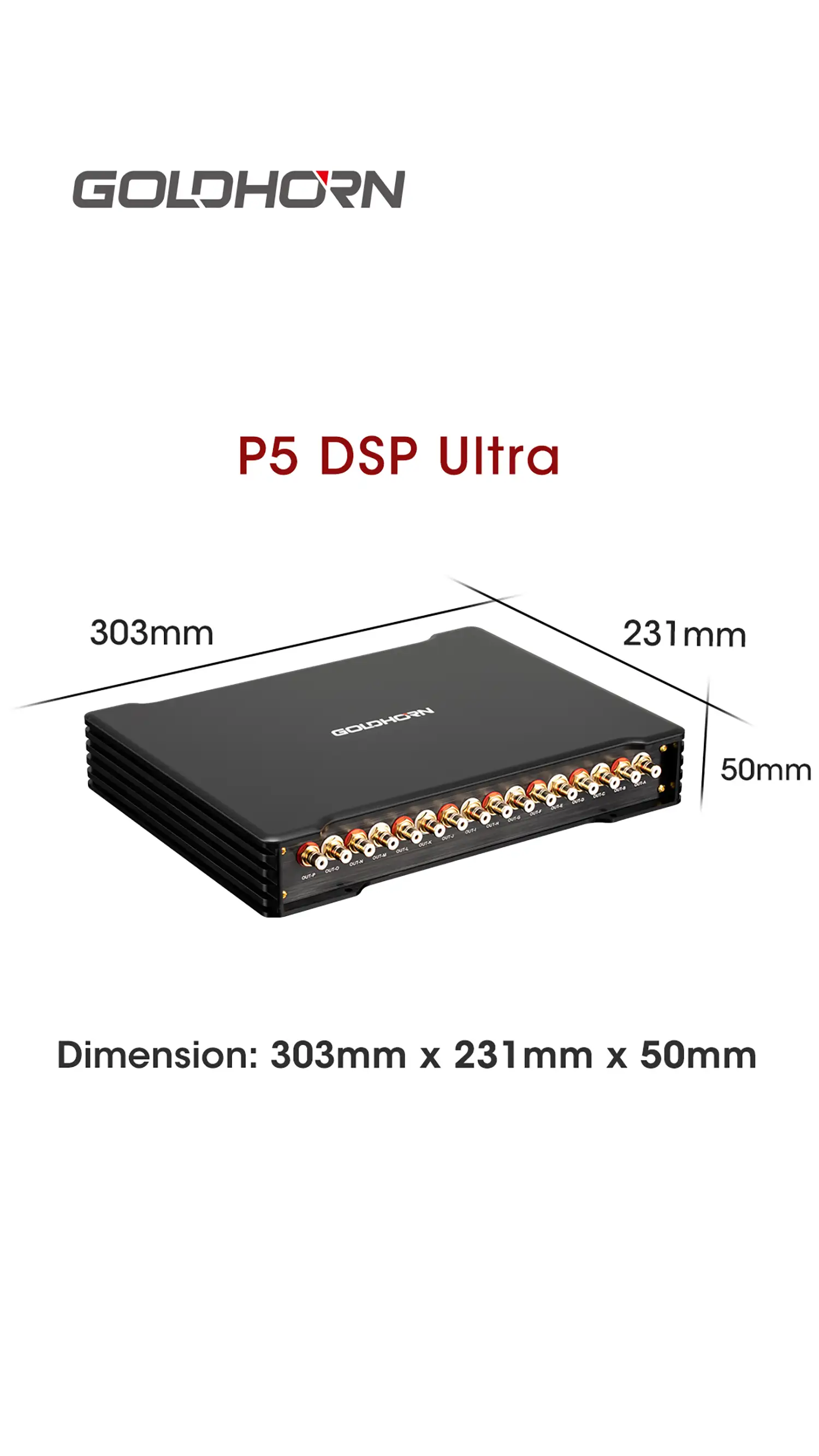

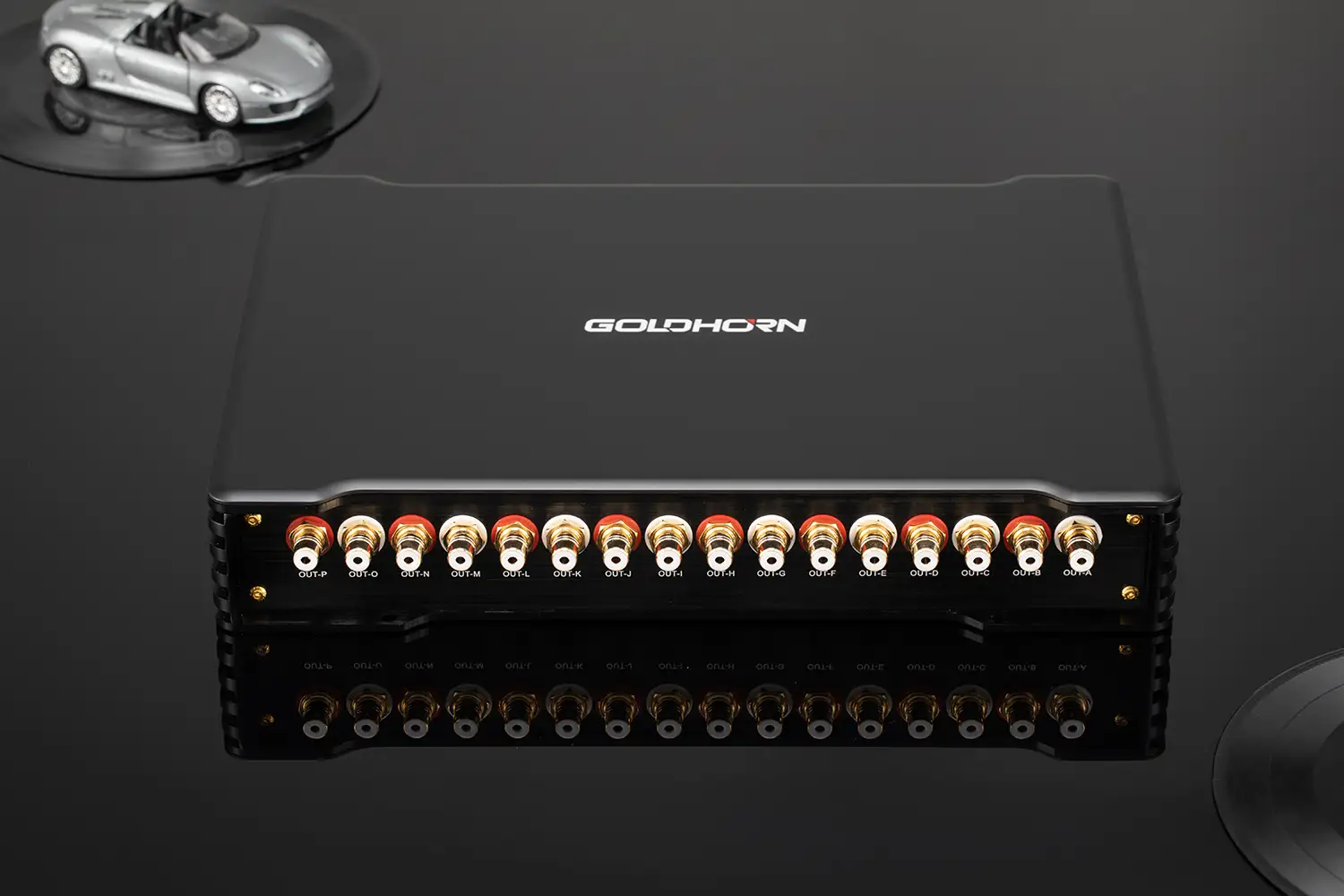

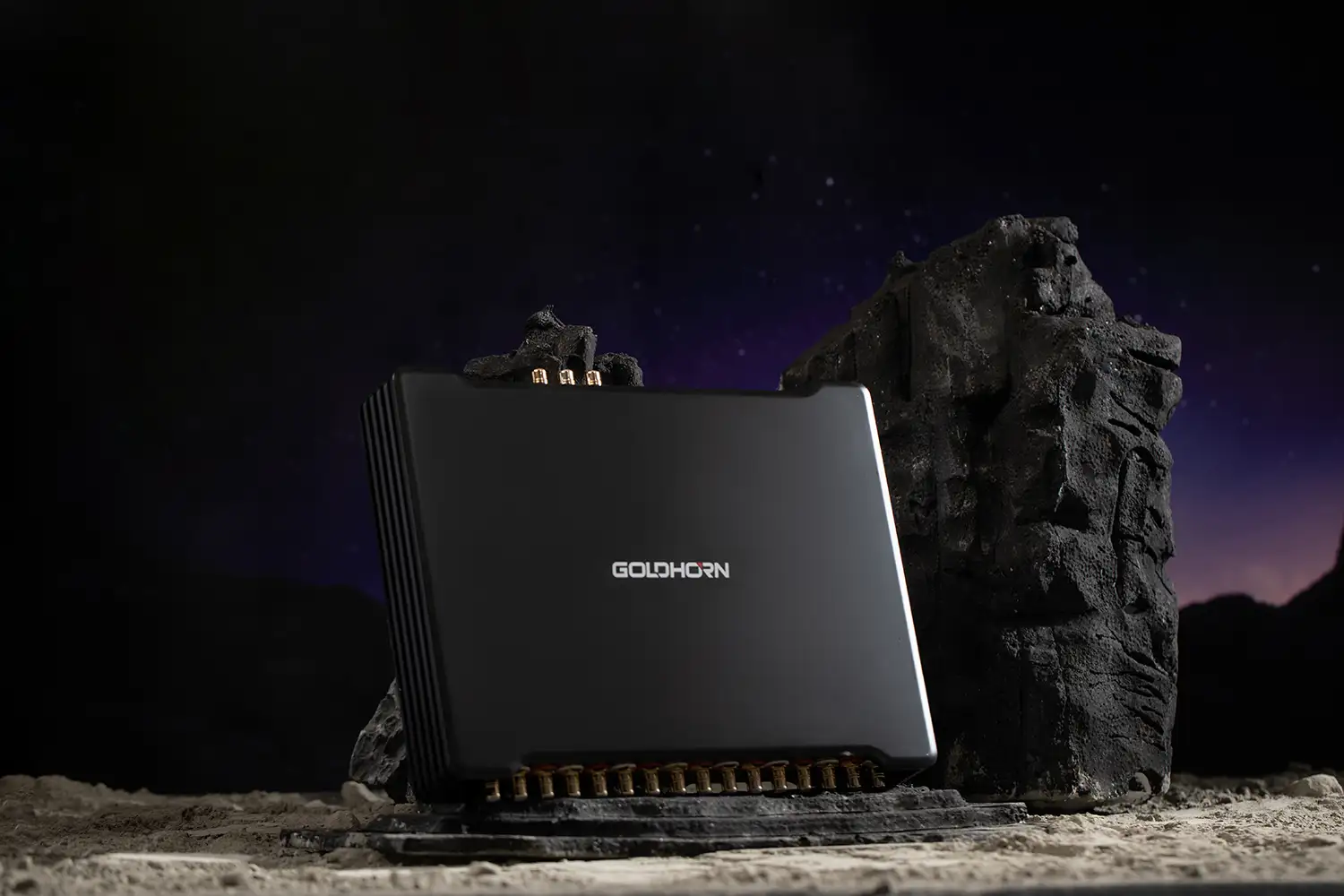

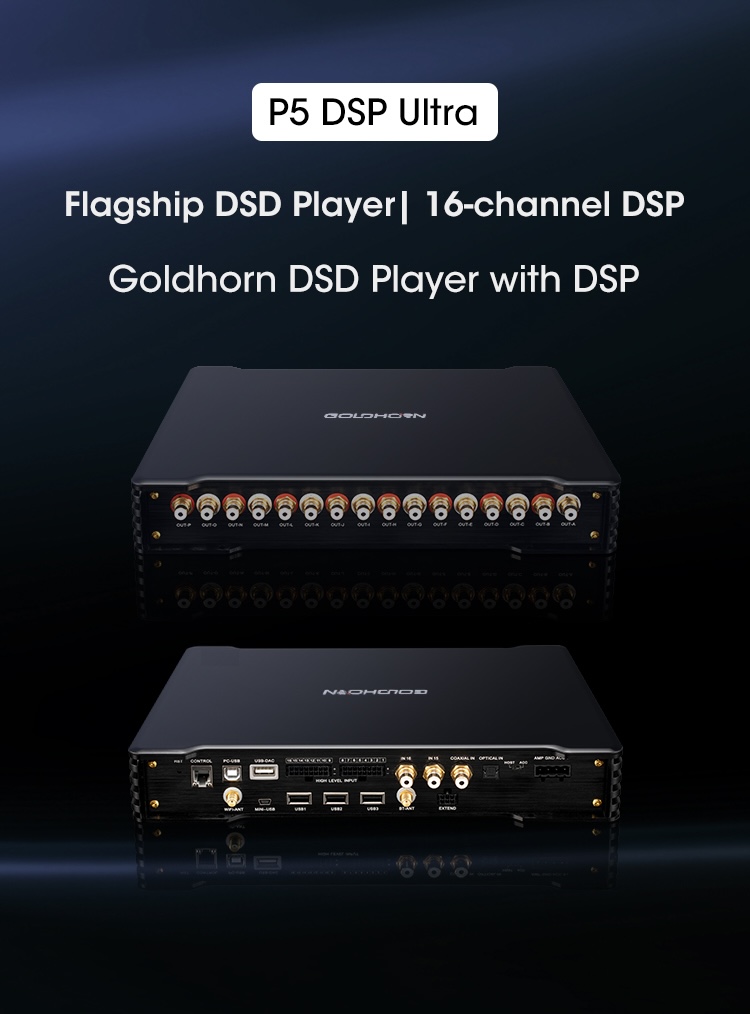

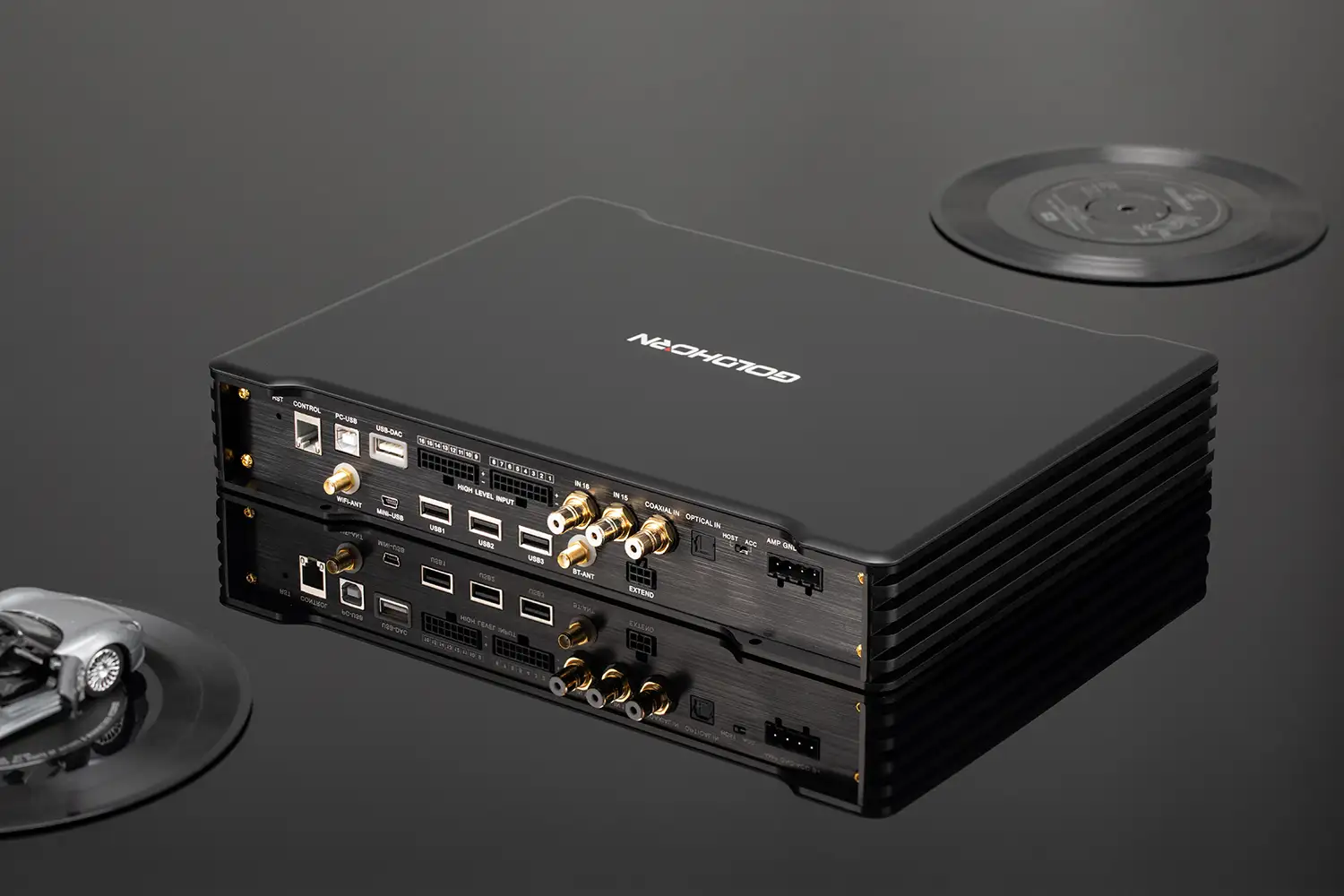

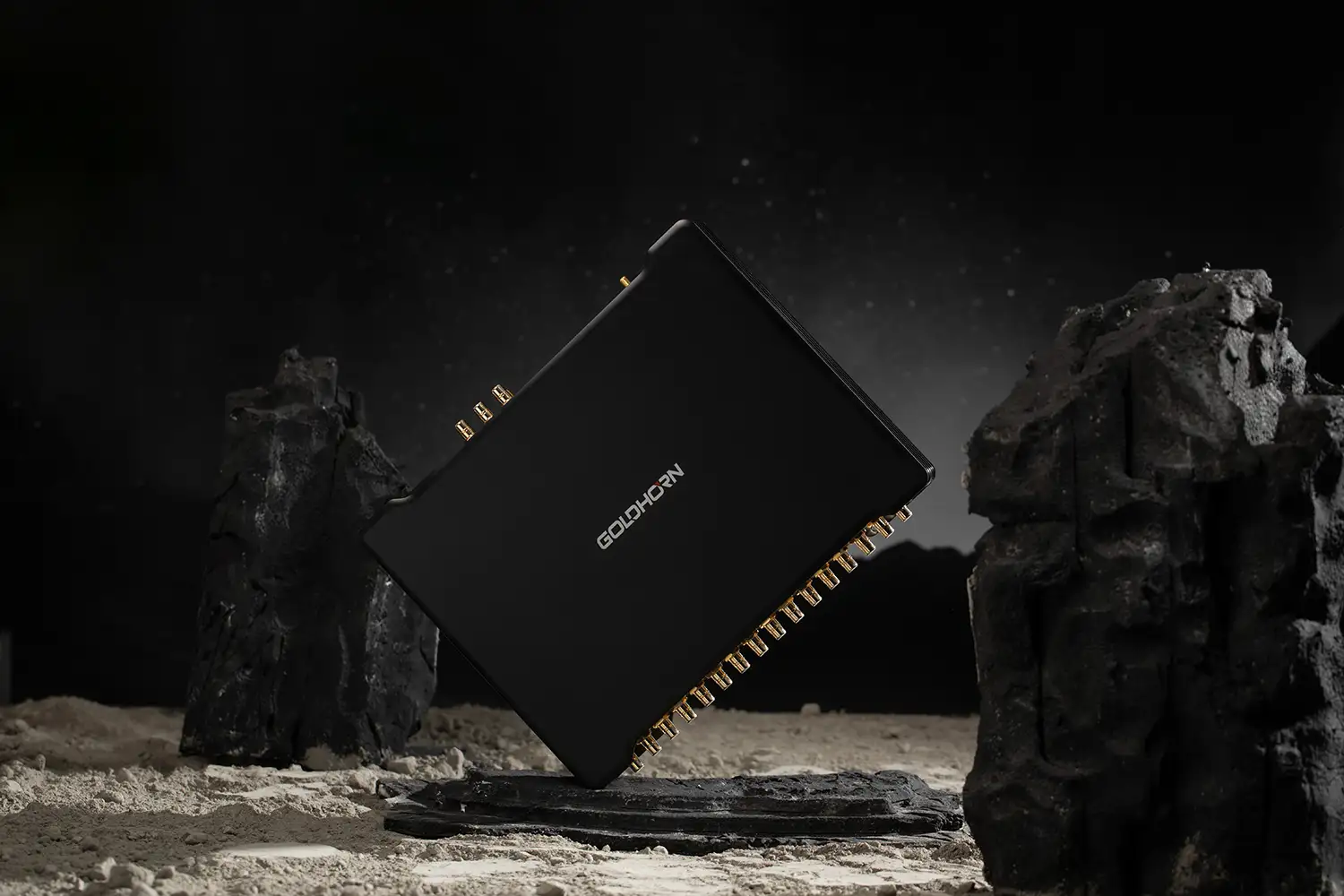

P5 DSP Ultra

Audiophile 16-Channel DSP with Built-In Hi-Res Player

P5 DSP Ultra is Goldhorn's latest flagship Player, .designed to redefine the essence of musical beauty. Equipped with two ESS flagship DAC chips, ES9038Pro, and a powerful triple-core DSP processor, it boasts an astonishing floating-point operation speed of up to 3.6 billion calculations per second. With an internal audio sampling rate reaching up to 192KHz, it delivers unrivaled audio fidelity. Featuring an incredibly precise 0.005ms delay stepping, setting an industry-leading standard, the P5 DSP Ultra embodies the pinnacle of sound aesthetics.

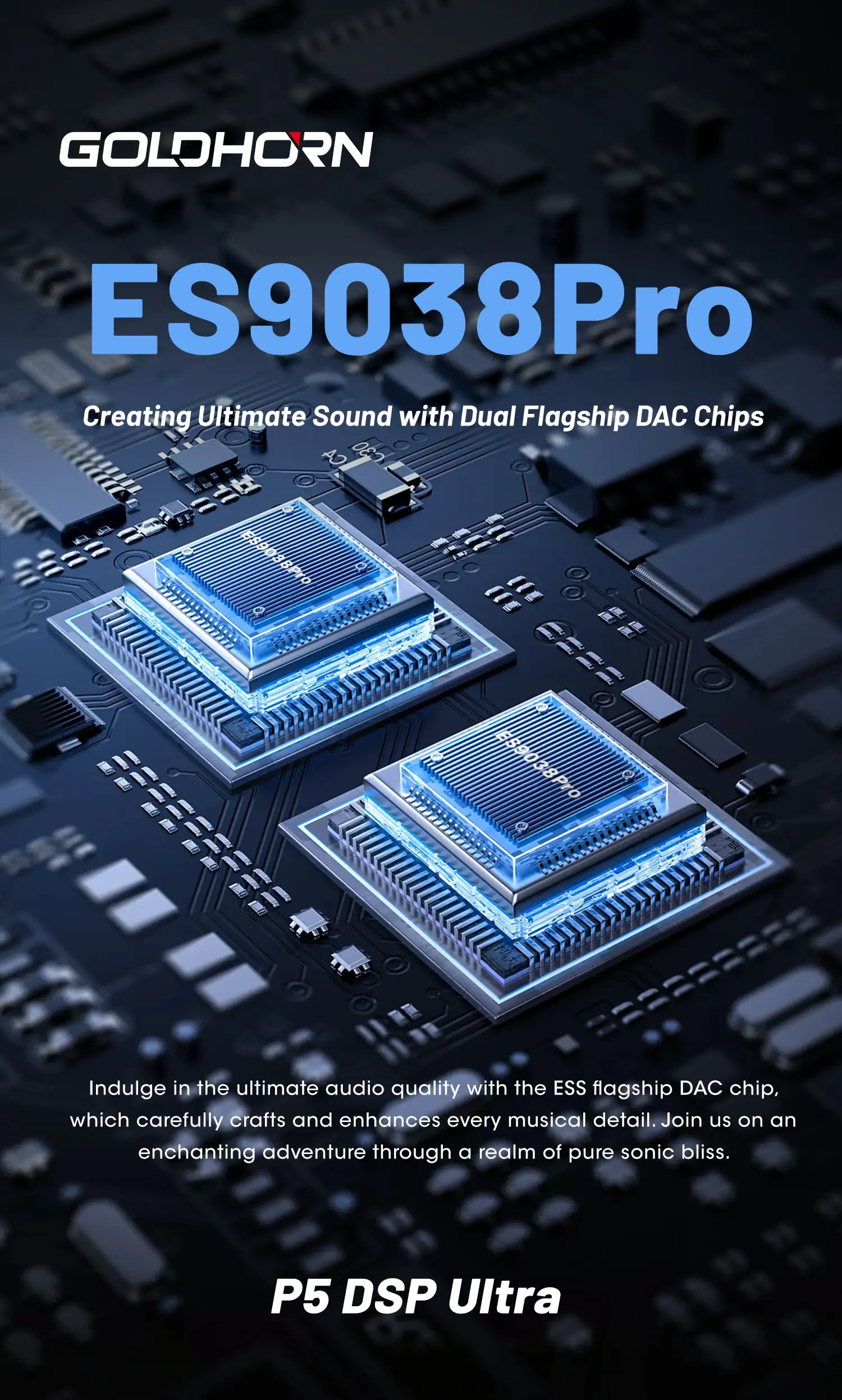

2 x ES9038Pro DAC (32-bit / 768 KHz PCM)

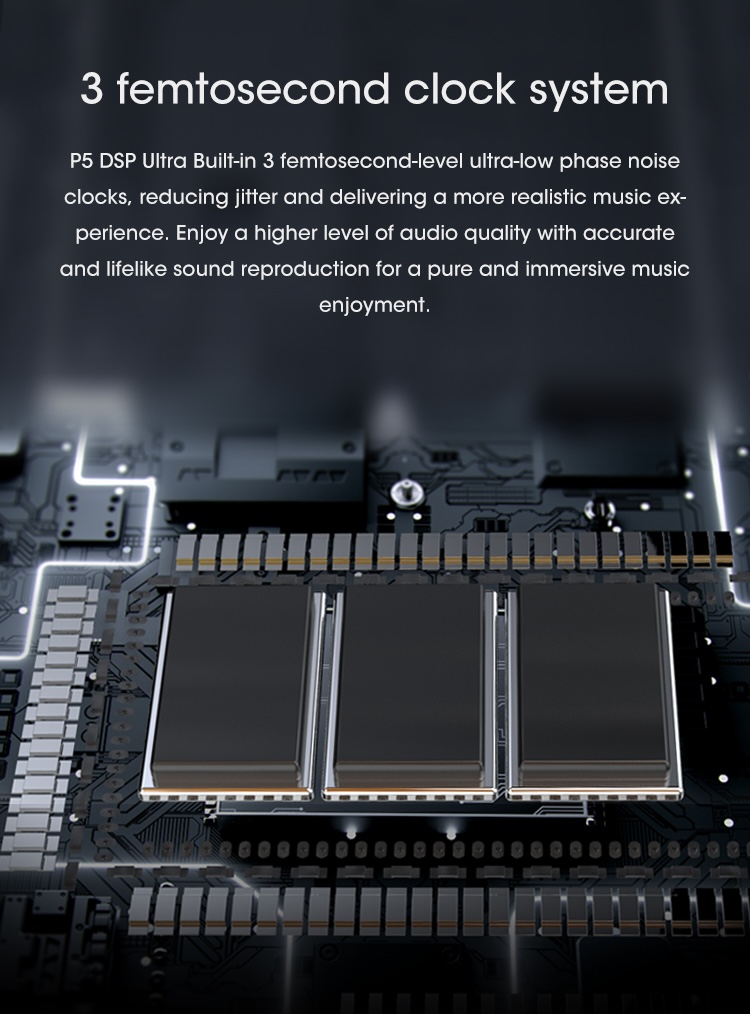

3 femtosecond clock system

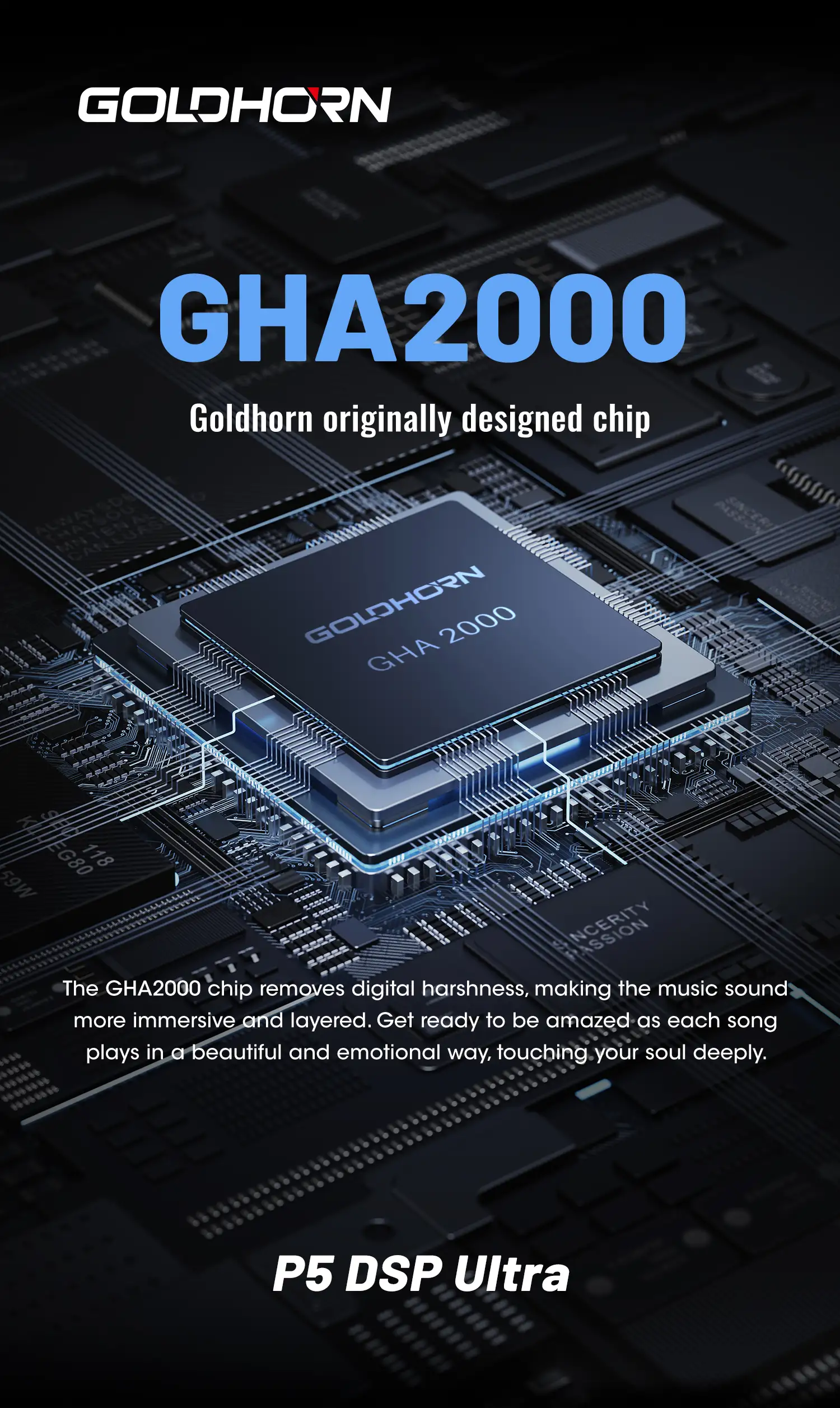

Goldhorn originally designed chip GHA2000
3-Core 295 MHz ADI chip
0.005ms delay step

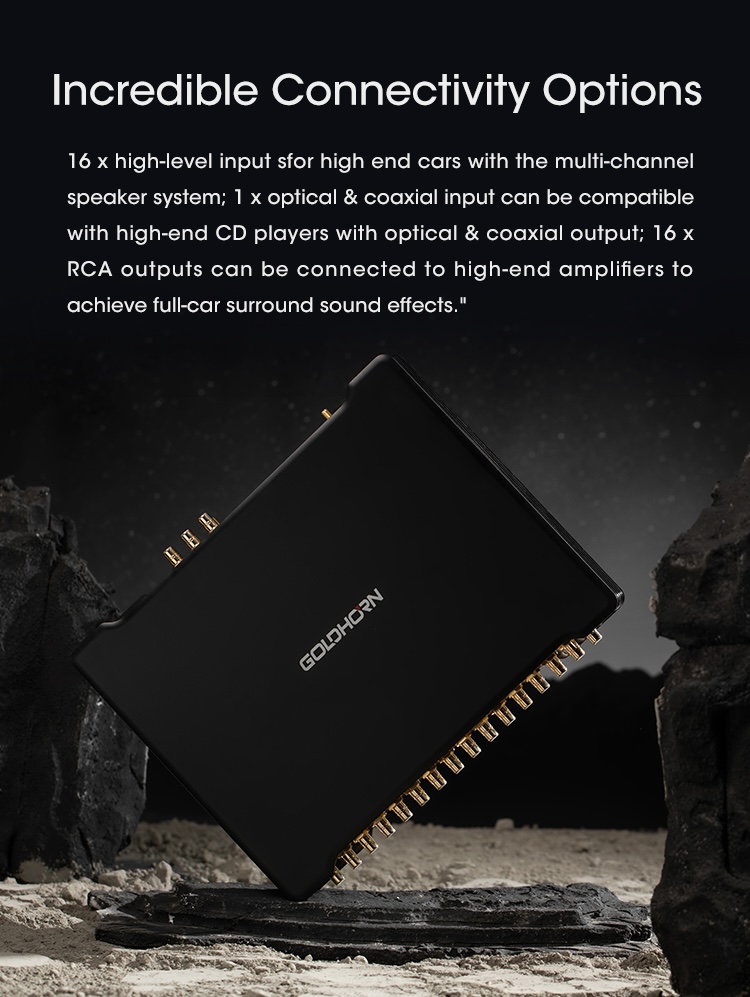

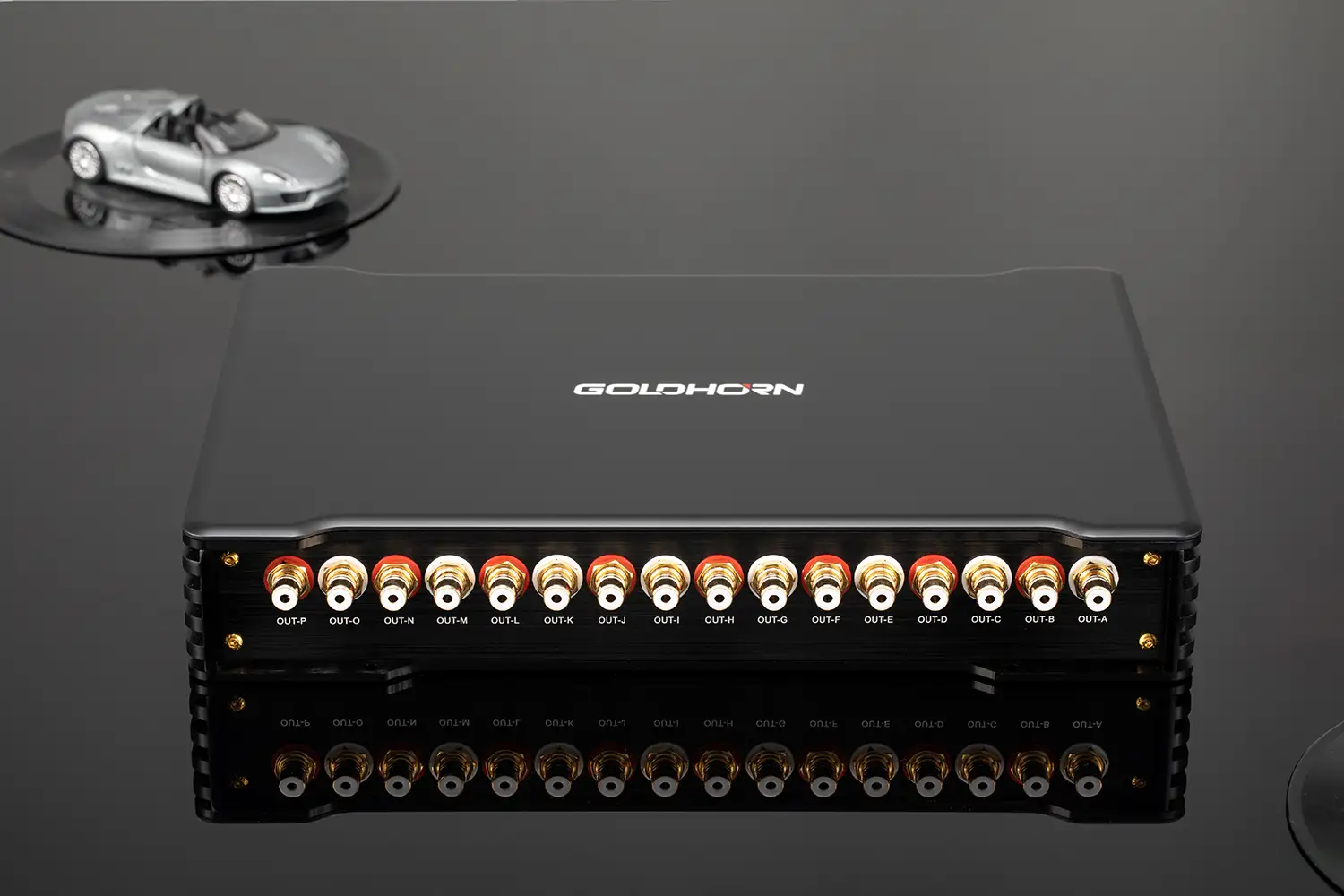

16 x High Level Inputs 16 x RCA Outputs

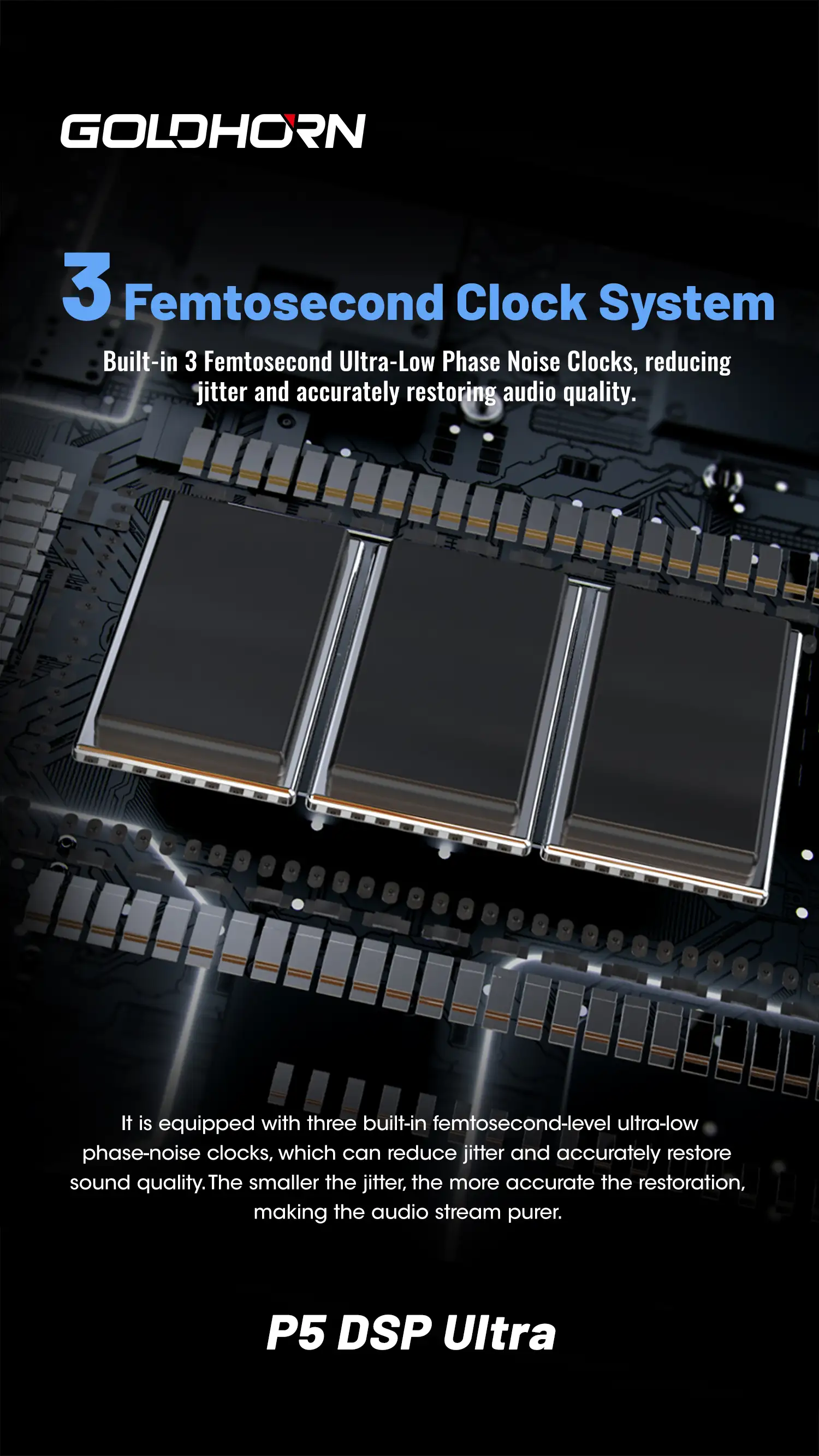

Femtosecond Clock Generator

Qualcomm aptX HD

GHA2000

2 x ES9038Pro DAC (32-bit / 768 KHz PCM)

3 x ADAU1463 ADI 295MHz DSP core, 192KHz Sampling Rate.

Hi-End Professional Op Amp

Find A Dealer

View Specs

No items found.

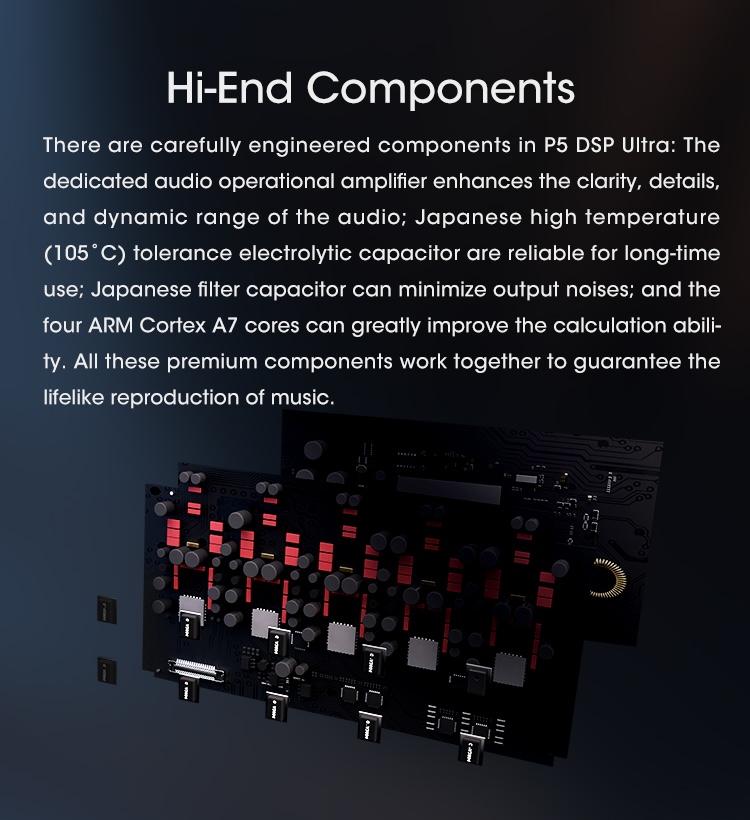

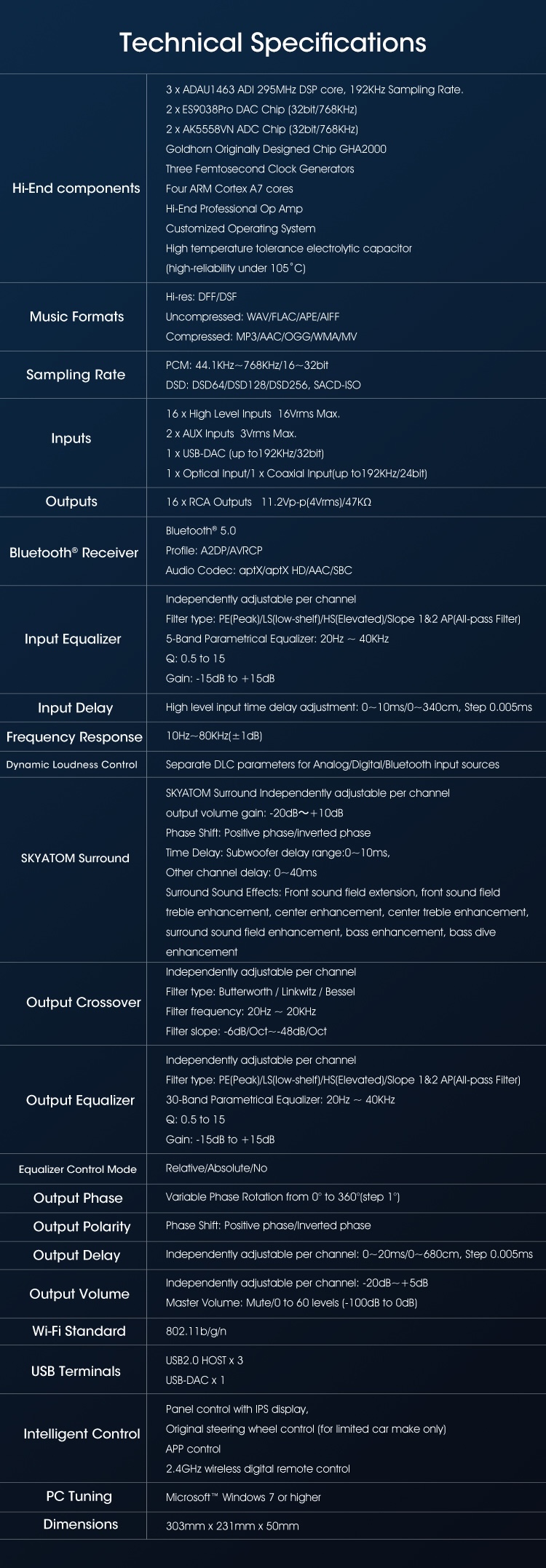

Hi-End Components

3 x ADAU1 463 ADI 295MHz DSP core, 192KHz Sampling Rate. 2 x ES9038Pro DAC Chip (32bit/768KHz) 2 x AK5558VN ADC Chip (32bit/768KHz) Goldhorn Originally Designed Chip GHA2000 Three Femtosecond Clock Generators Four ARM Cortex A7 cores Hi-End Professional Op Amp Customized Operating System High temperature tolerance electrolytic capacitor (high-reliability under 105°C)

Music Formats

Hi-res: DFF/DSF Uncompressed: WAV/FLAC/APE/AIFF Compressed: MP3/AAC/OGG/WMA/MV

Sampling rate

PCM: 44,1KHz~768KHz/16~32bit DSD: DSD64/DSD128/DSD256, SACD-ISO

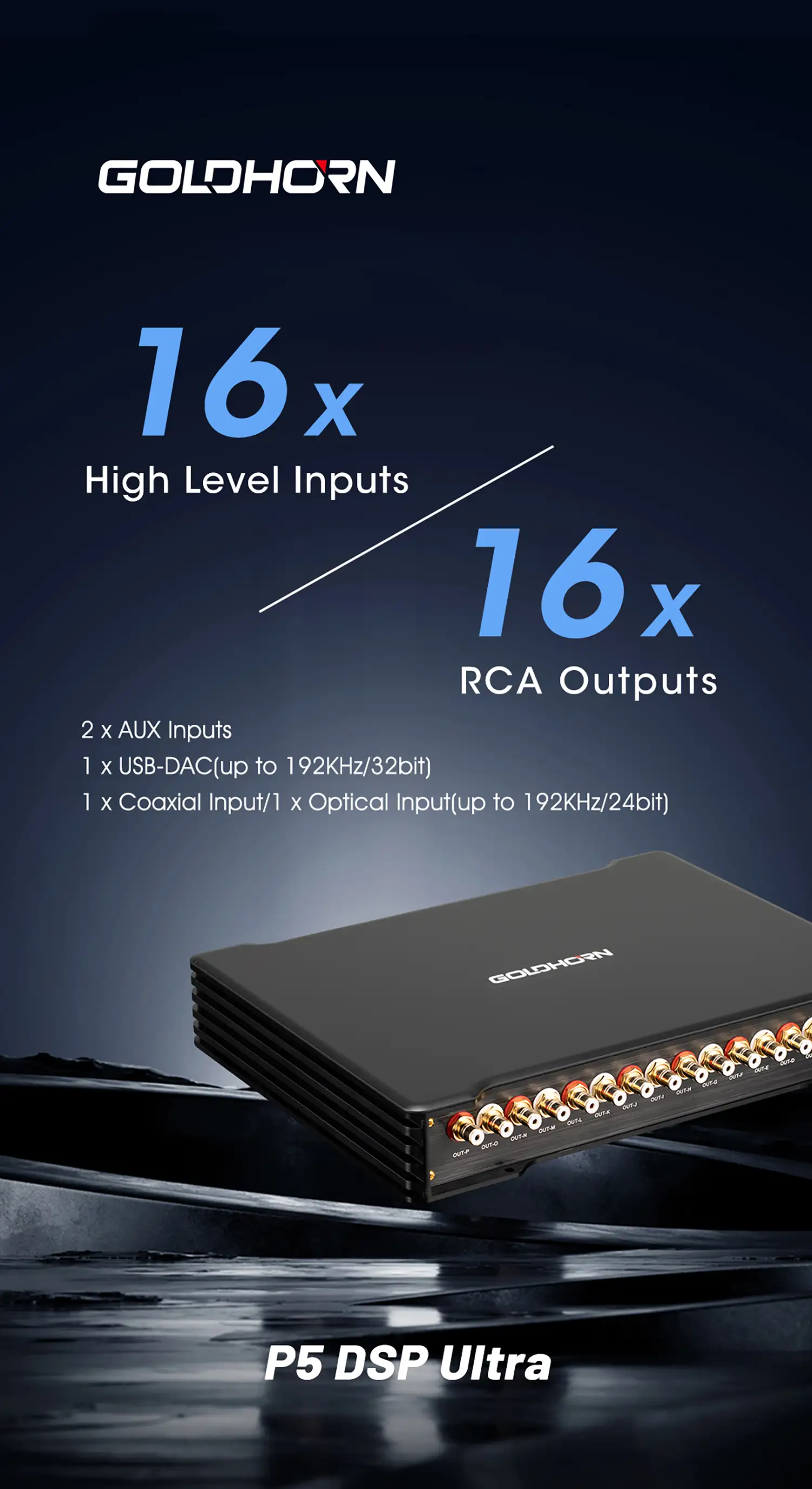

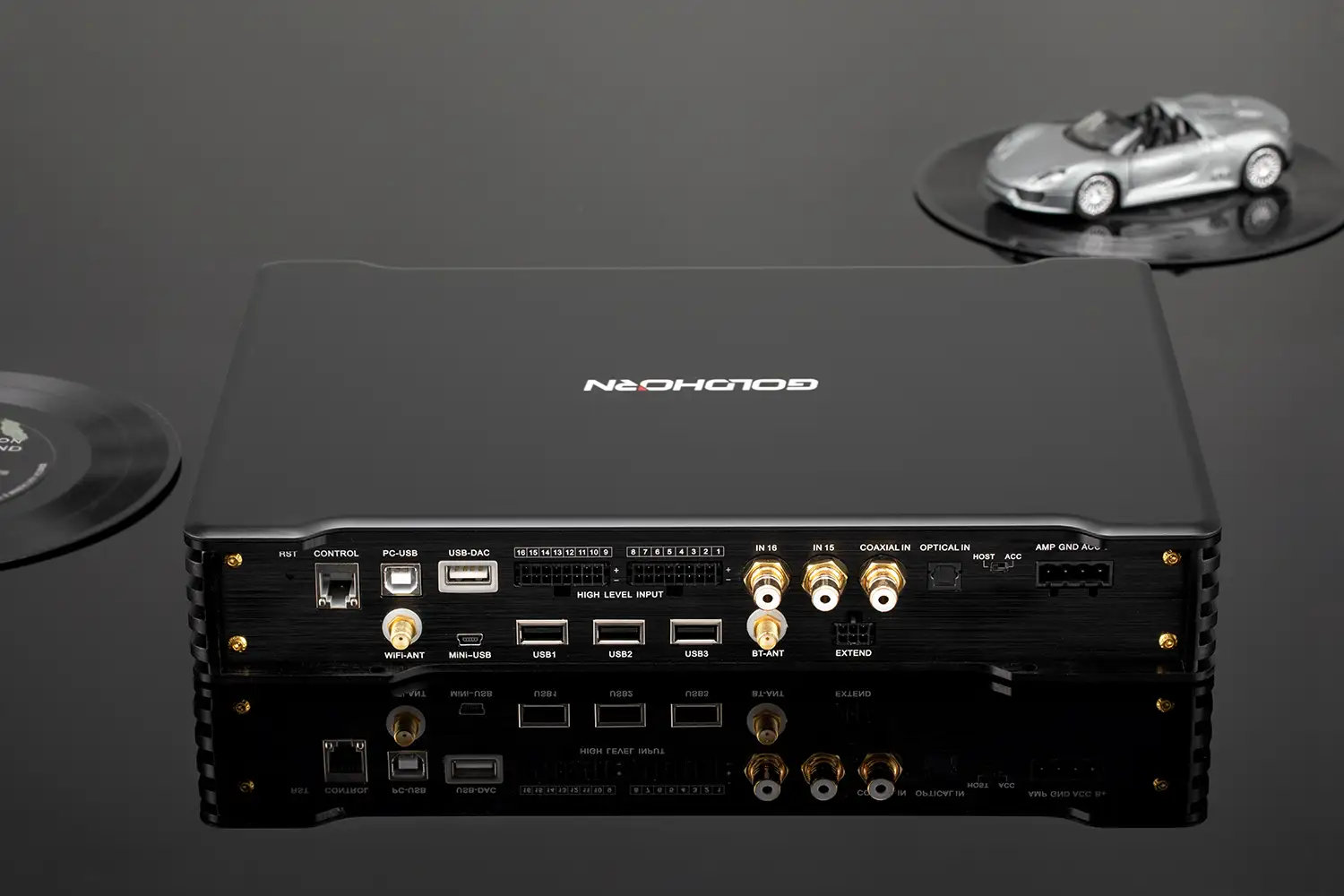

Inputs

16 x High Level Inputs 16Vims Max, 2 x AUX Inputs 3Vims Max. 1 x USB-DAC (up tol 92KHz/32bit) 1 x Optical Input/1 x Coaxial Input(up to 192KHz/24bit)

Outputs

16 x RCA Outputs 11.2Vp-p(4Vims)/47KOhm

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AVRCP Audio Codec: aptX/aptX HD/AAC/SBC

Input Equalizer

Independently adjustable per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/Slope 1&2 AP(All-pass Filter) 5-Band Parametrical Equalizer: 20Hz - 40KHz Q: 0.5 to 15 Gain: -15dB to + 15dB

Input Delay

High level input time delay adjustment: 0~ 10ms/0~340cm, 0.005ms Steps

Dynamic Loudness Control

Separate DLC parameters for Analog/Digital/Bluetooth input sources

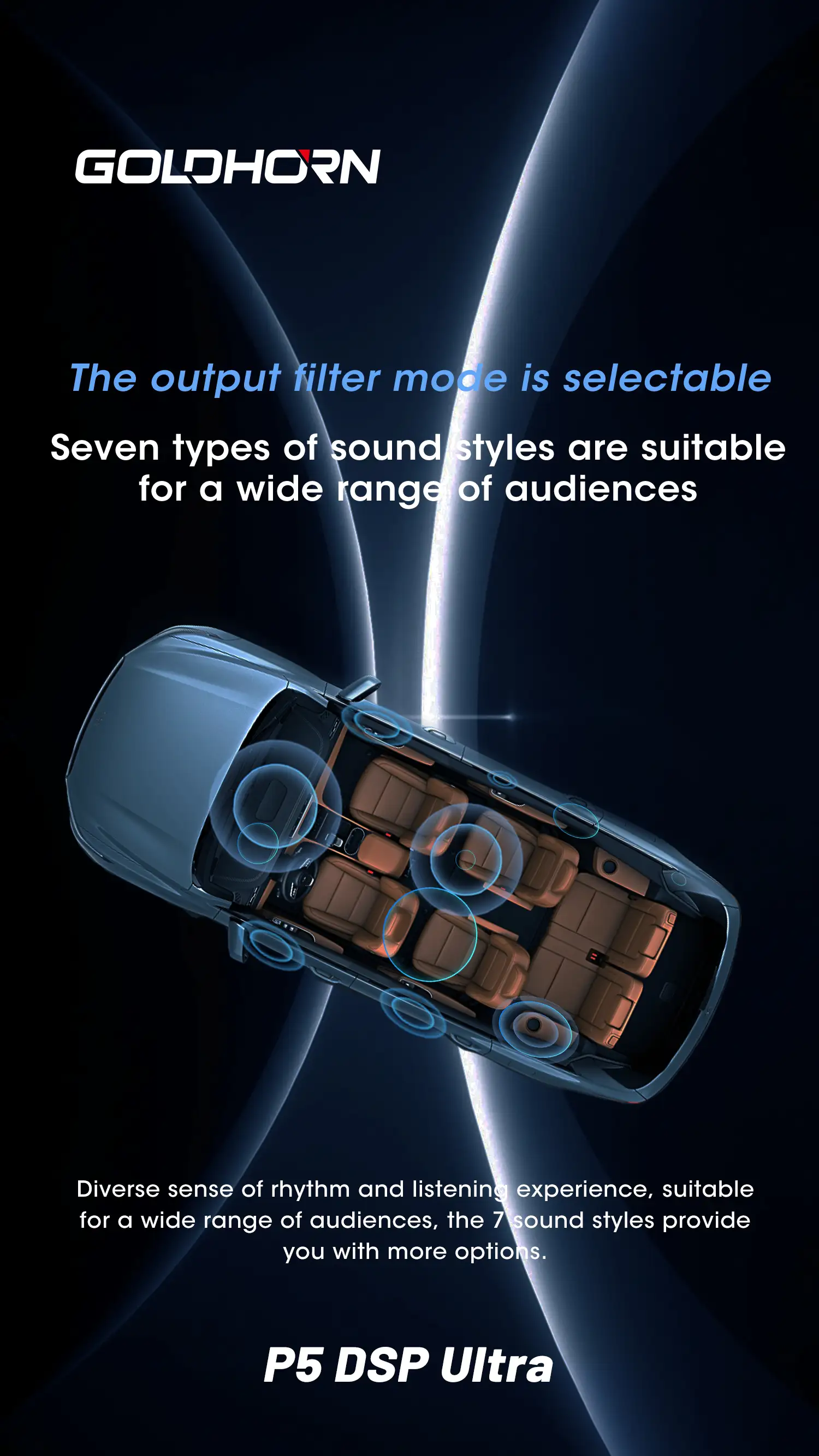

SKYATOM Surround

SKYATOM Surround Independently adjustable per channel output volume gain: -20dB~+ 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0-10ms. Other channel delay: 0-40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, surround sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz - 20KHz Filter slope: -6dB/Oct--48dB/Oct

Output Equalizer

Independently adjustable per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/Slope 1&2 AP(All-pass Filter) 30-Band Parametrical Equalizer: 20Hz ~ 40KHz Q: 0.5 to 15 Gain: -15dB to + 15dB
