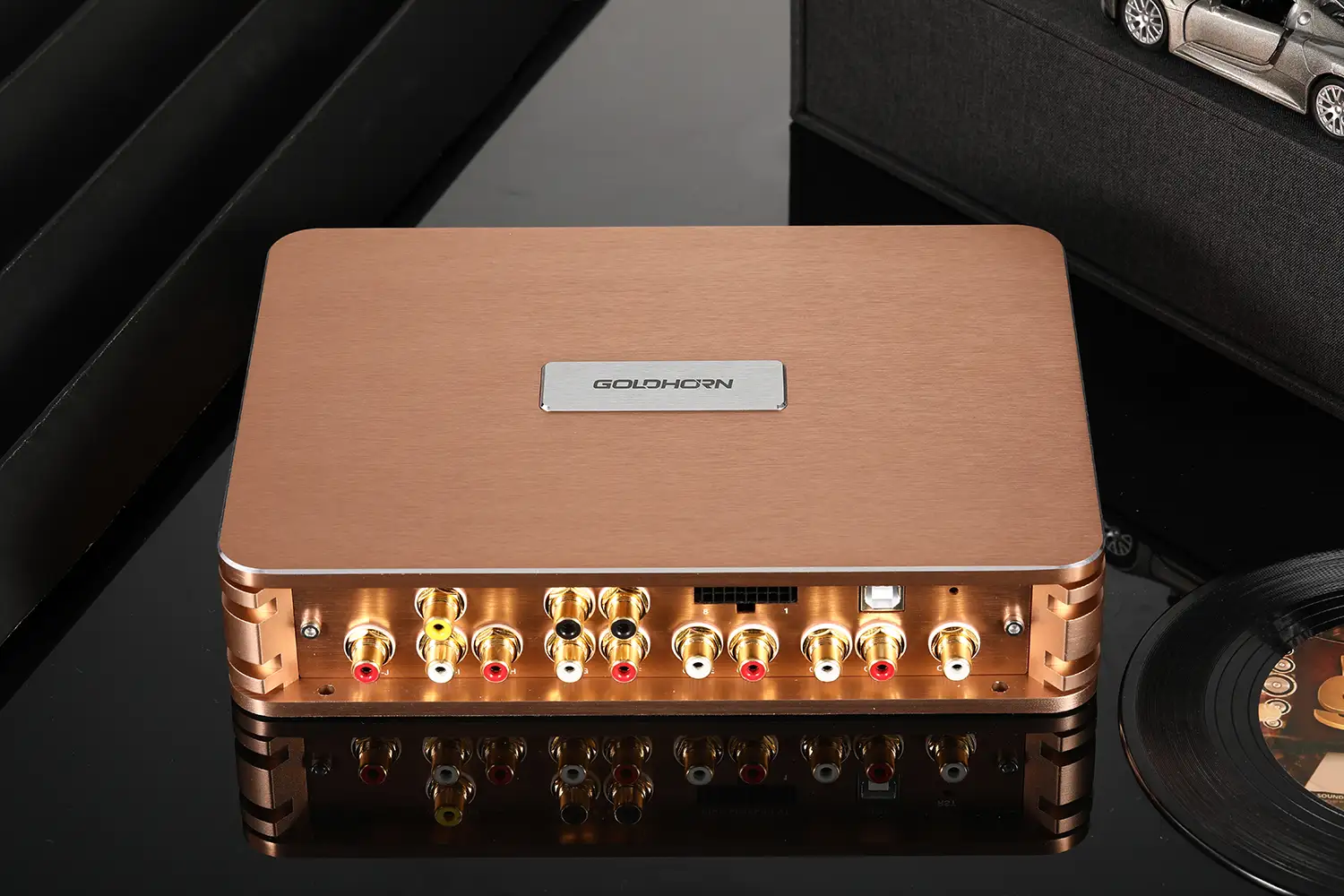

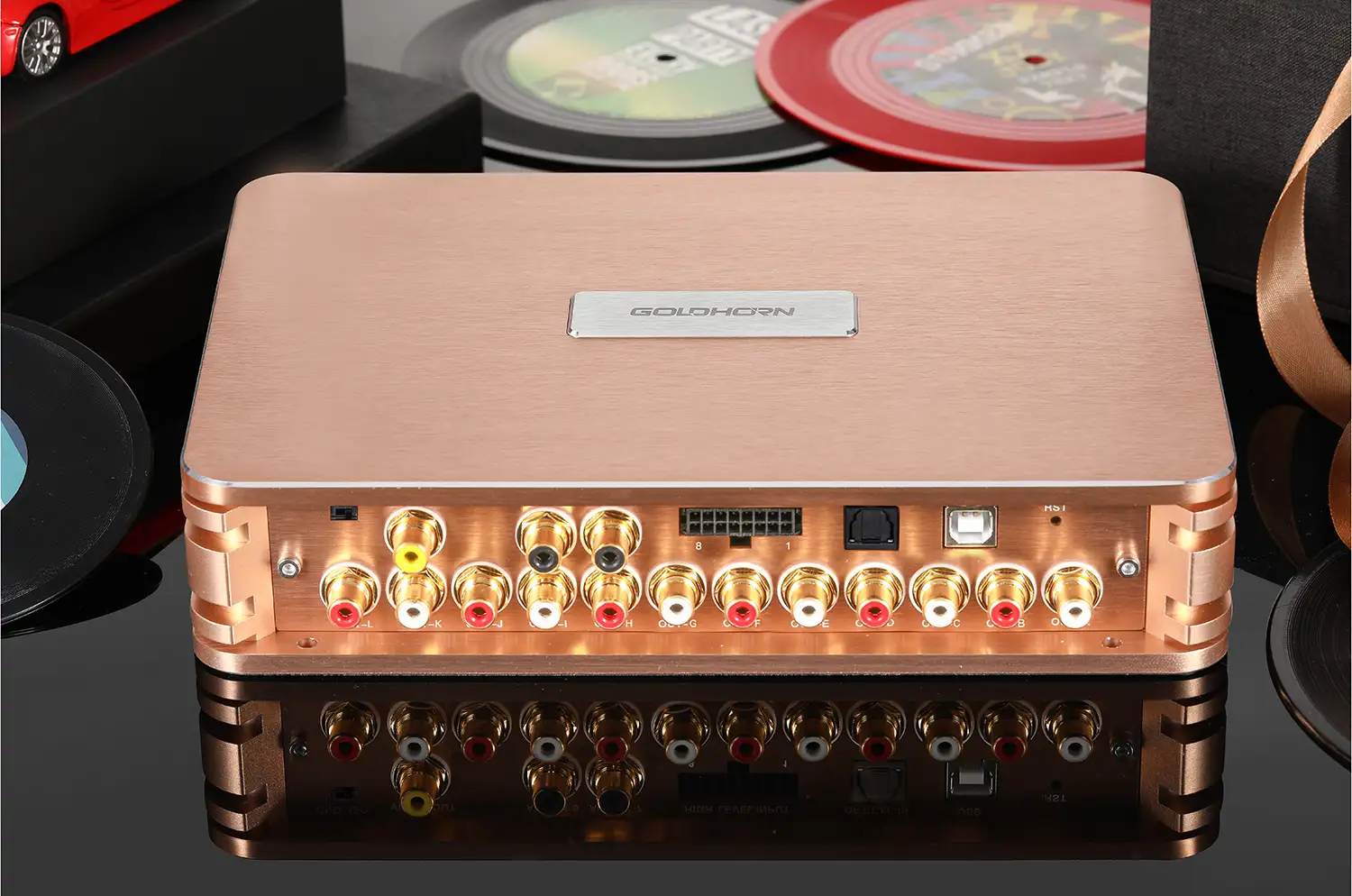

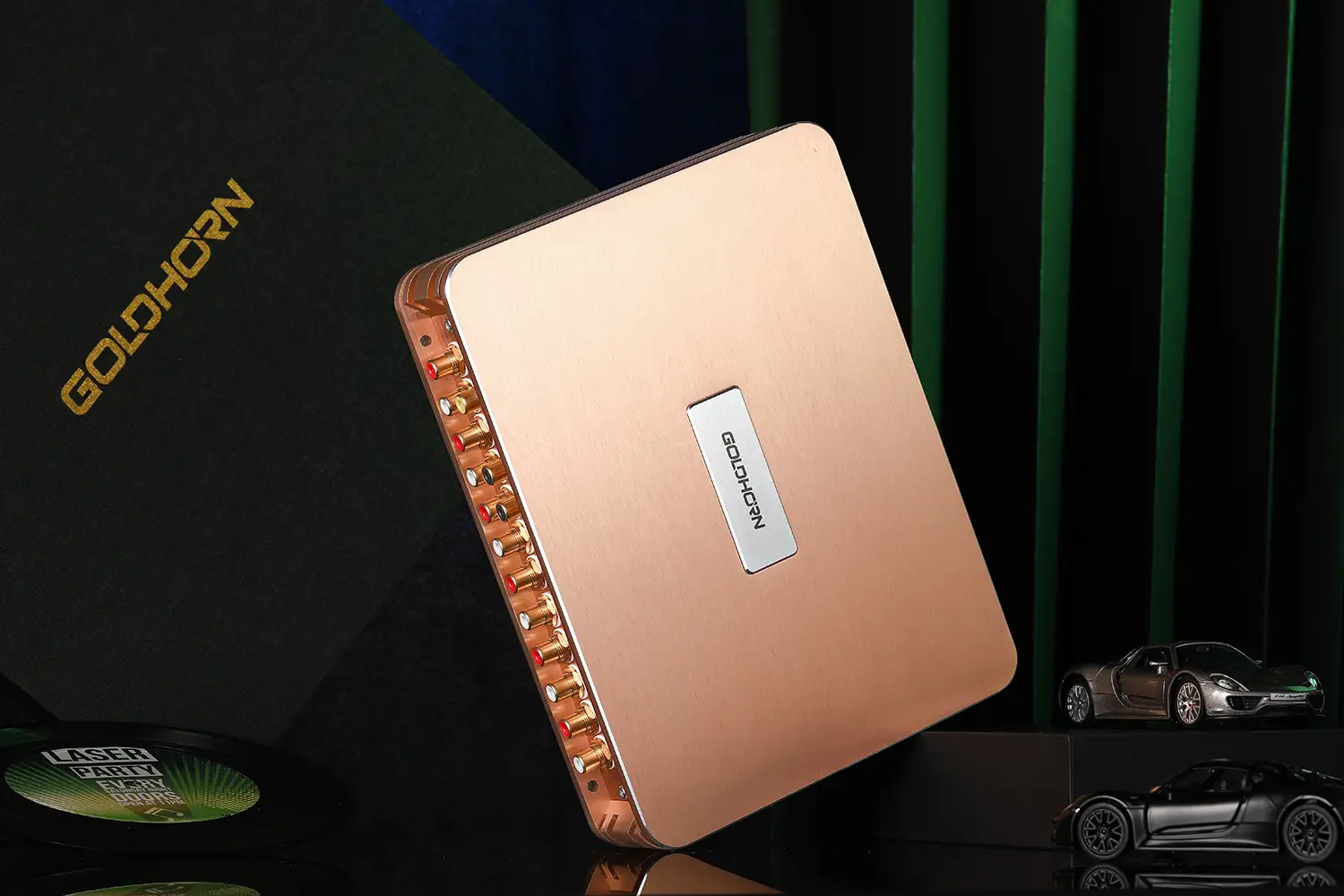

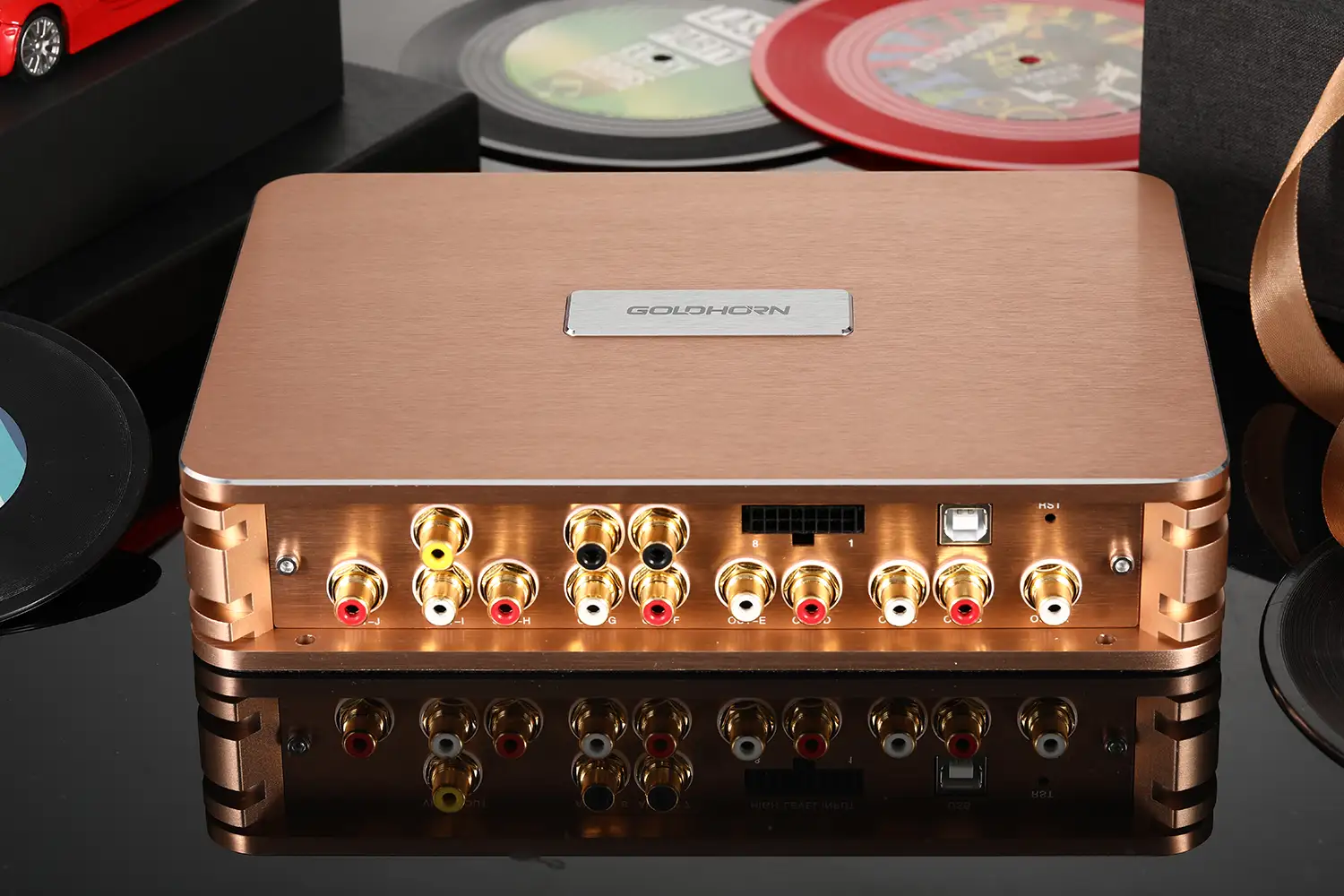

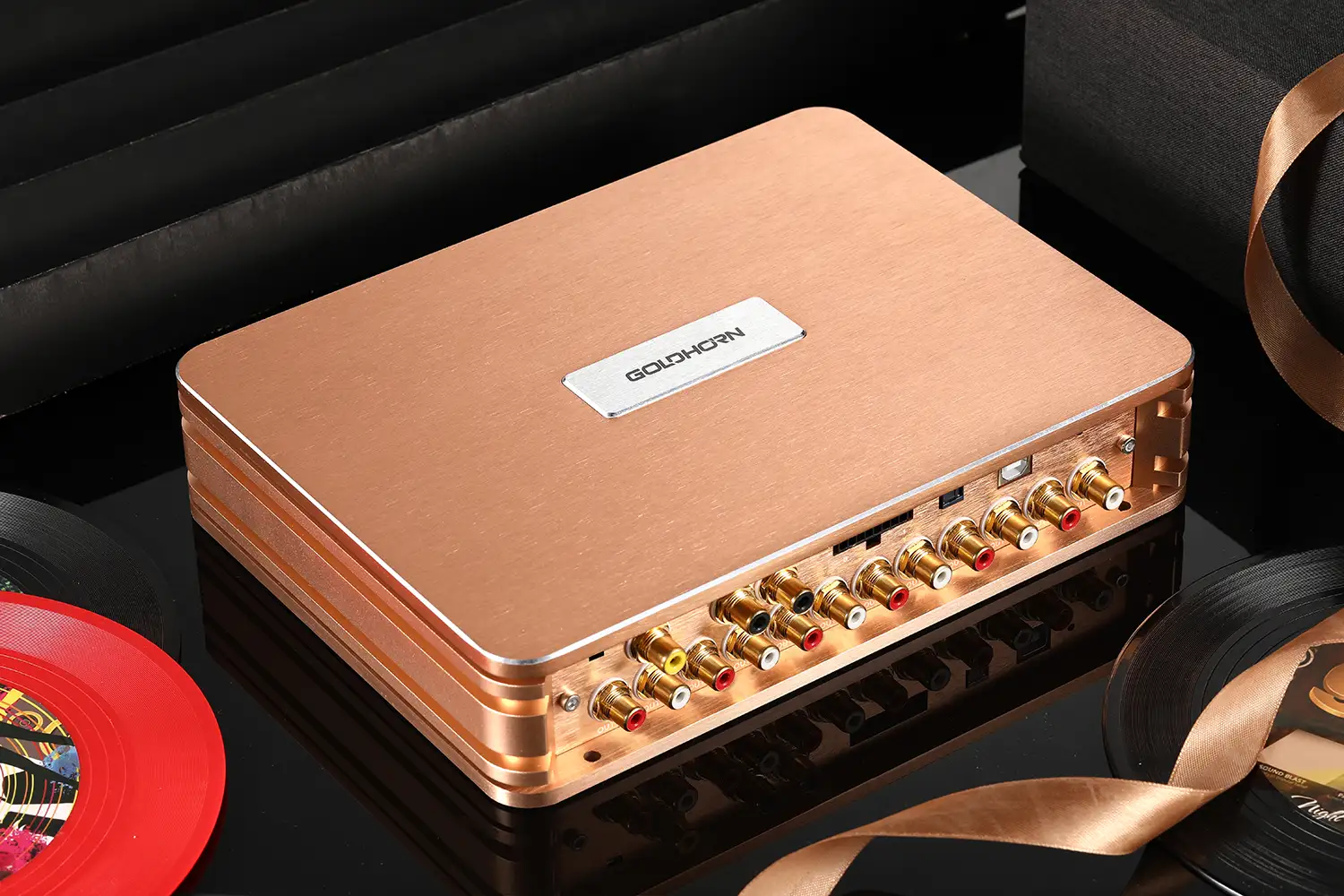

P2 DSP Pro

Advanced 16-Channel DSP with Built-In Hi-Res Player

Goldhorn P2 DSP PRO is a high end professional digital player, featuring six ES9038Q2M DAC chips. Its 12 channel RCA outputs can fit various upgrade plans, and its optical input makes it compatible with a Hi-End CD player. Besides, there is an integrated professional 31-band DSP in P2 DSP PRO, with phase arbitrarily rotating from 0° degree to 360°.

6 x ES9038Q2M DAC (32-bit / 768 kHz PCM)
1 x Optical Input (up to 96 kHz / 24 bit)
Goldhorn originally designed chip GHA1000
8 x High Level Inputs 2 x AUX Inputs
Variable Phase Rotation from 0° to 360° (step: 1°)

Femtosecond Clock Generator

Qualcomm aptX

GHA 1000

6 x ESSES9038Q2M DAC (32-bit / 768 kHz PCM)

Texas Instruments OPA2604 Operation Amp

Find A Dealer

View Specs

No items found.

Hi-End Components

Goldhorn originally designed chip GHA 1000 6 x ESSES9038Q2M DAC (32-bit / 768 kHz PCM) High precision dual femtosecond clock generators Customized operating system Texas Instruments OPA2604 Operation Amp High temperature tolerance electrolytic capacitor (high-reliability under 105 C) WIMA filter capacitor

Music Formats

Hi-res:DFF/DSF uncompressed:WAV/FLAC/APE/AIF compressed:MP3/AAC/OGG/WMA/MV

Sampling rate

PCM:44.1 KHz~768KHz/16~ 32bit DSD:DSD64/DSD128/DSD256

Inputs

8 x High Level Inputs - 16Vrms Max. 2 x RCA Inputs - 3Vrms Max. 1 x Optical Input

Frequency Combination

Supports up to 4 combined frequency high level input per channel

Outputs

12 x RCA Outputs - 11.2Vp-p(4Vrms) 47KOhm 1 x CVBS Video Output (NTSC)

Source Selection

Mix mode

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AVRCP Audio Codec: aptX/AAC/SBC

Input Equalizer

Independently 5-band EQ per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/AP(All-pass Filter) 5-Band Parametrical Equalizer: 20Hz ~ 20KHz Q: 0.5 to 15 Gain: - 15dB to + 15dB

Input Delay

High level input time delay adjustment: 0~ 10ms/0~340cm

Dynamic Loudness Control

Separate DLC parameters for Analog/Digital/Bluetooth input sources

SKYATOM Surround

SKYATOM Surround with independent adjustment per channel output volume gain: -20dB ~ + 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~ 10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, surround sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Filter type: PE/LS/HS/AP 31-Band Parametrical Equalizer: 20Hz ~ 20KHz Q: 0.5 to 15 Gain: -15dB to + 15dB

Equializer Control Mode

Relative/Absolute/No

Output Polarity

Variable Phase Rotation from 0° to 360°(step 1°)

Output Phase

Phase Shift: Positive phase/Inverted phase

Output Delay

Independently adjustable per channel: 0~20ms/0~680cm

Output Volume

Independently adjustable per channel: -20dB~+ 5dB Master Volume: Mute/0 to 60 levels (-100dB to OdB)

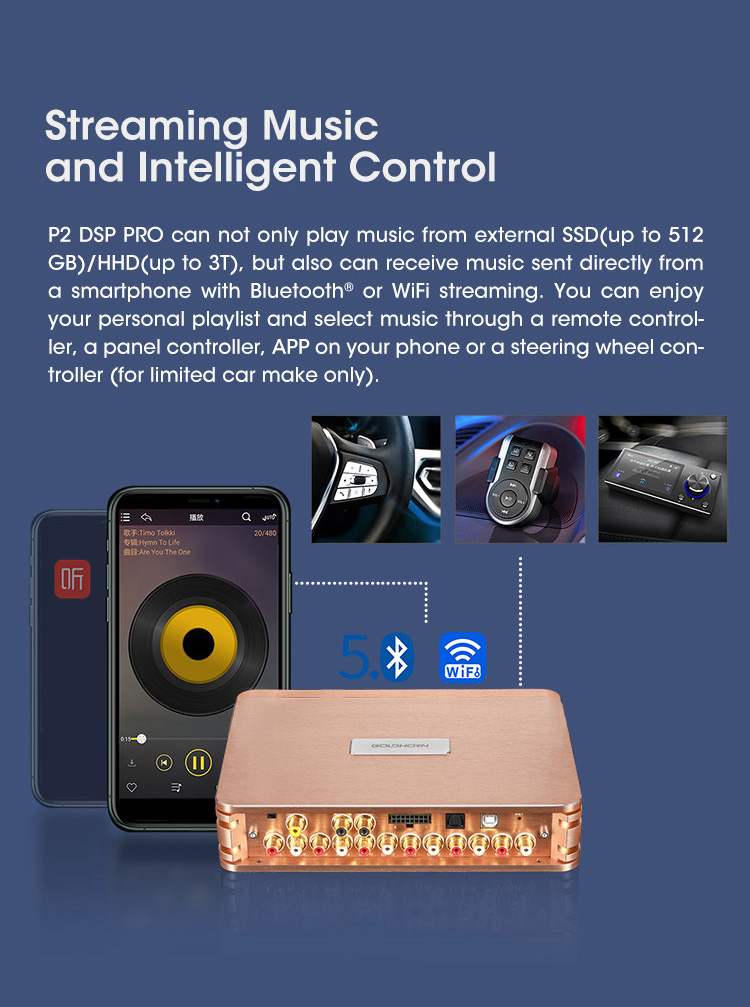

Intelligent Control

Panel control with IPS display; Wireless digital remote control; APP control steering wheel control (for limited car make only)

Wi-Fi Standard

802.11b/g/n

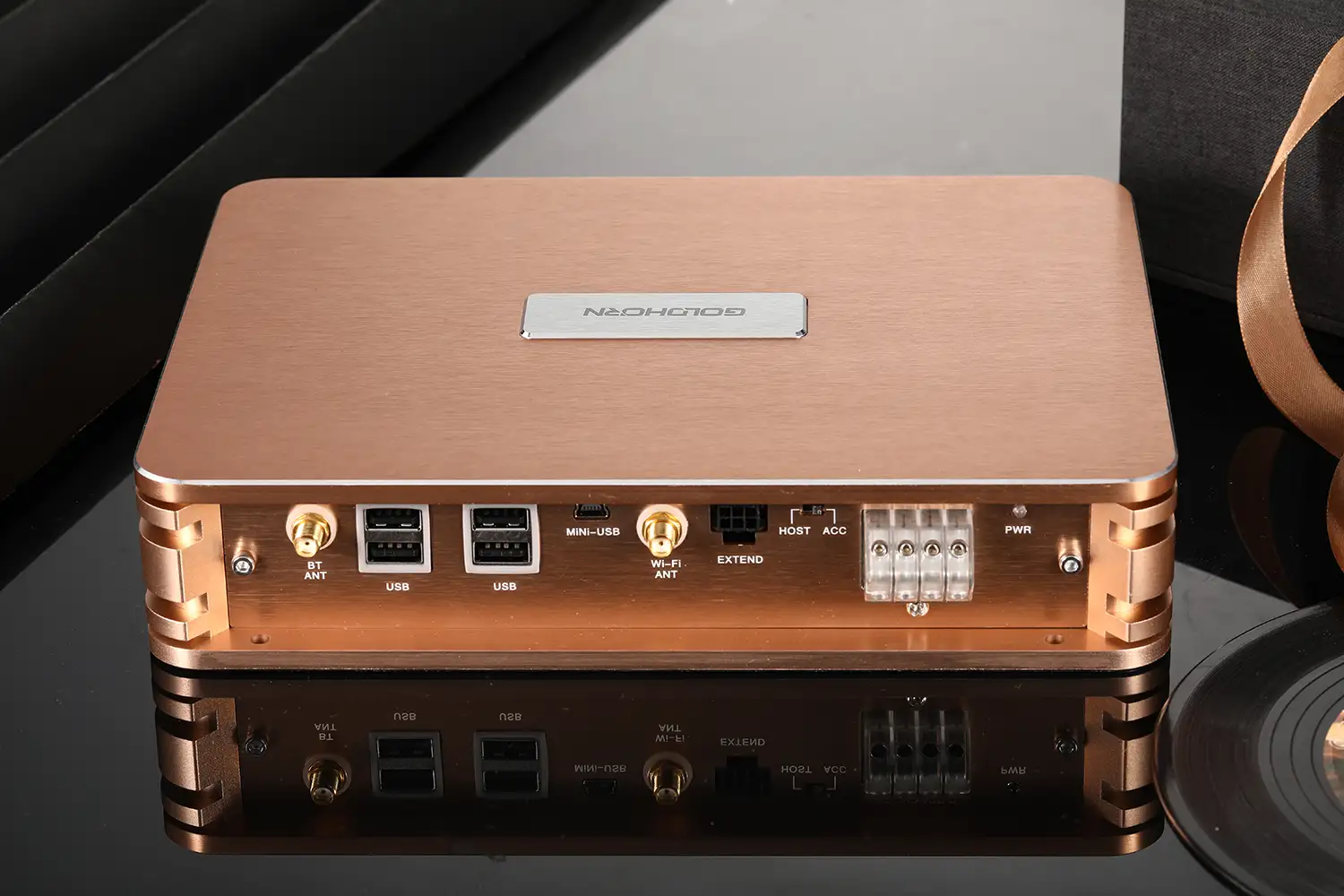

USB Terminals

USB2.0 HOST x 4 1 x USB type B for PC software

Extend

1 x Steering wheel controller terminal

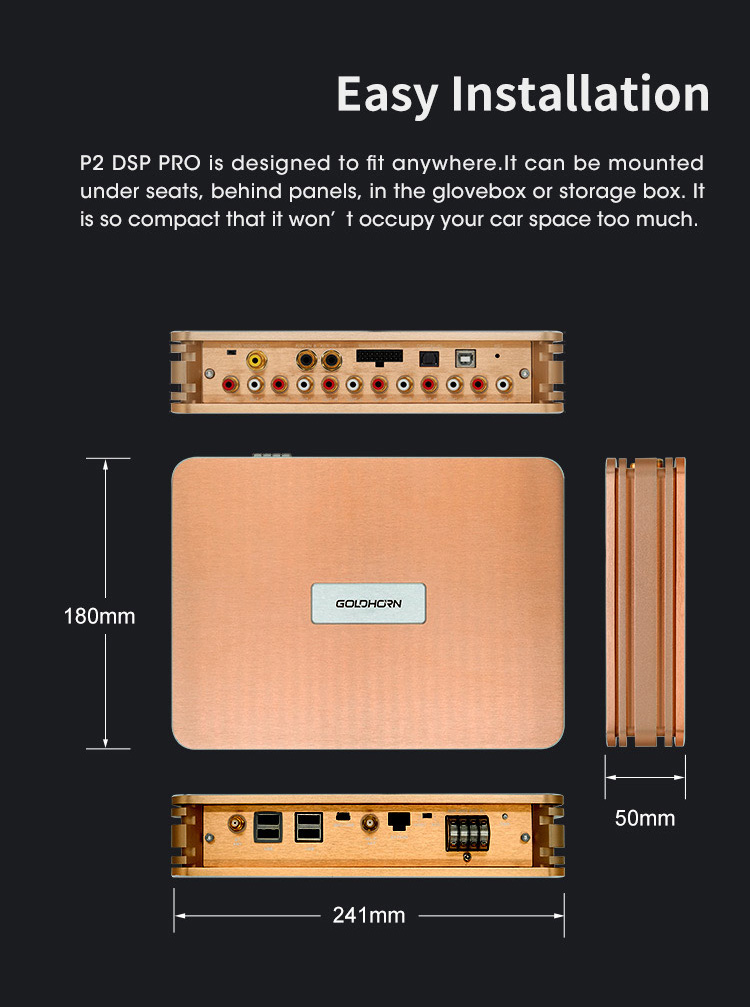

Dimensions

241mm x 180mm x 50mm
