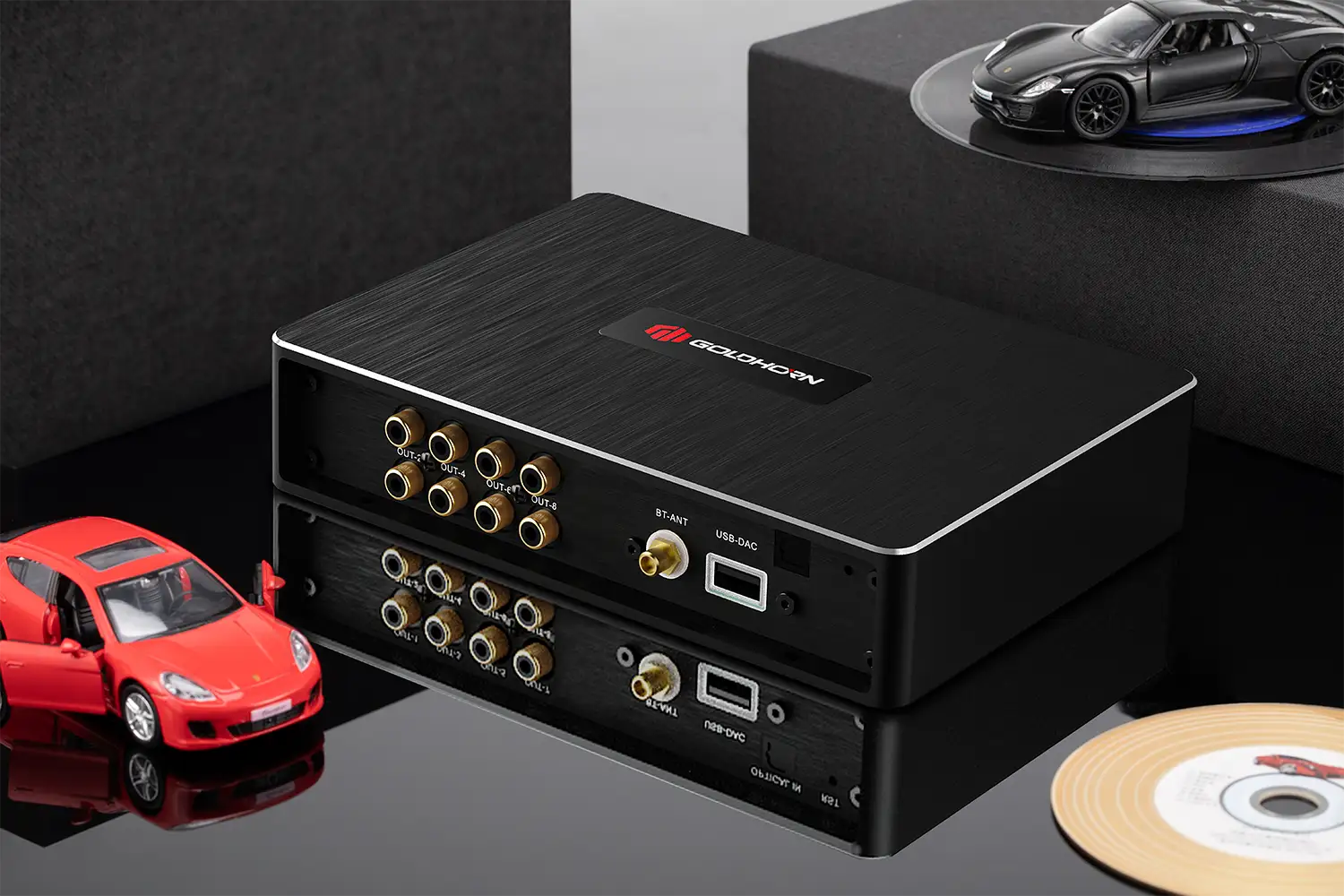

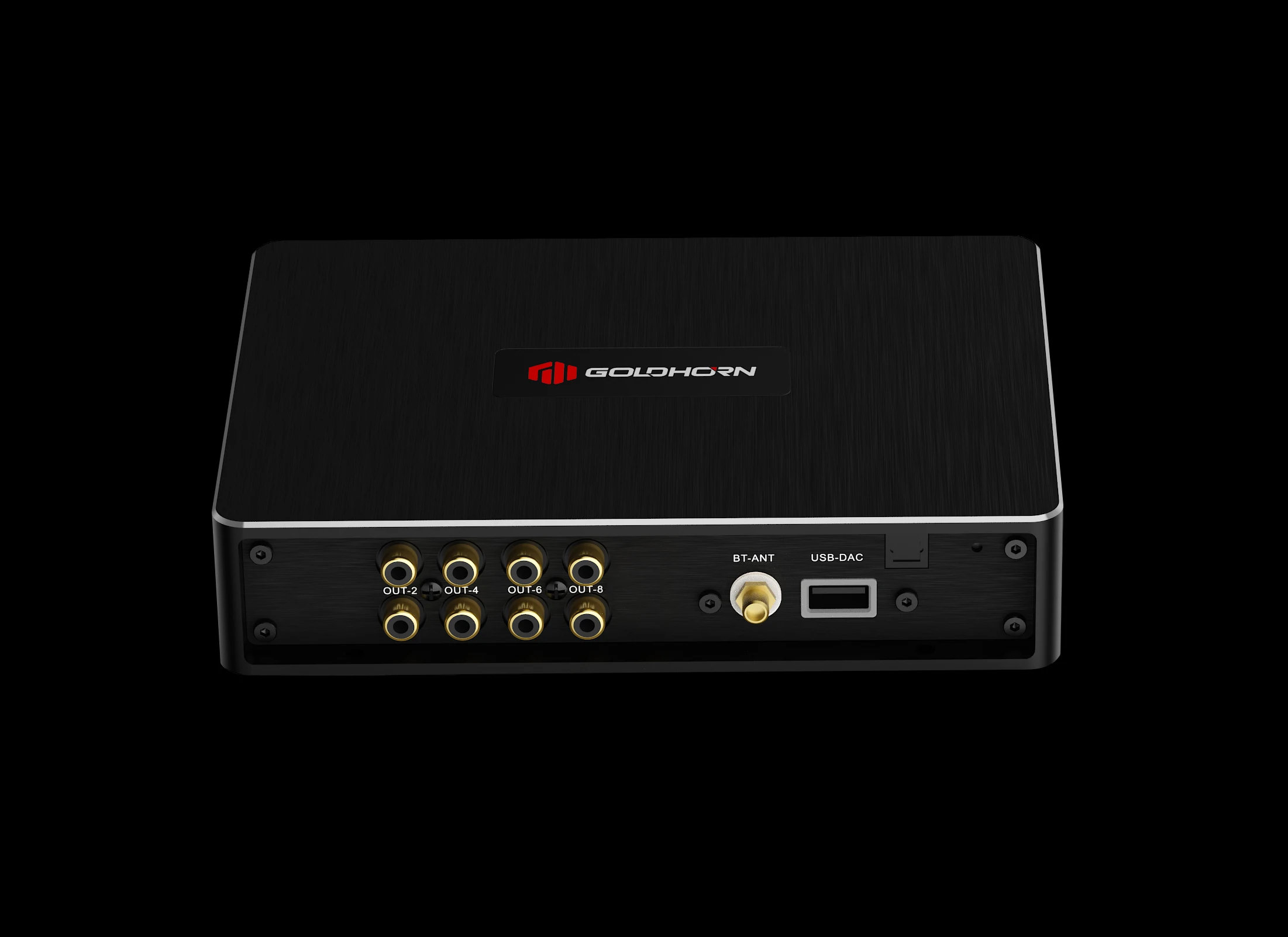

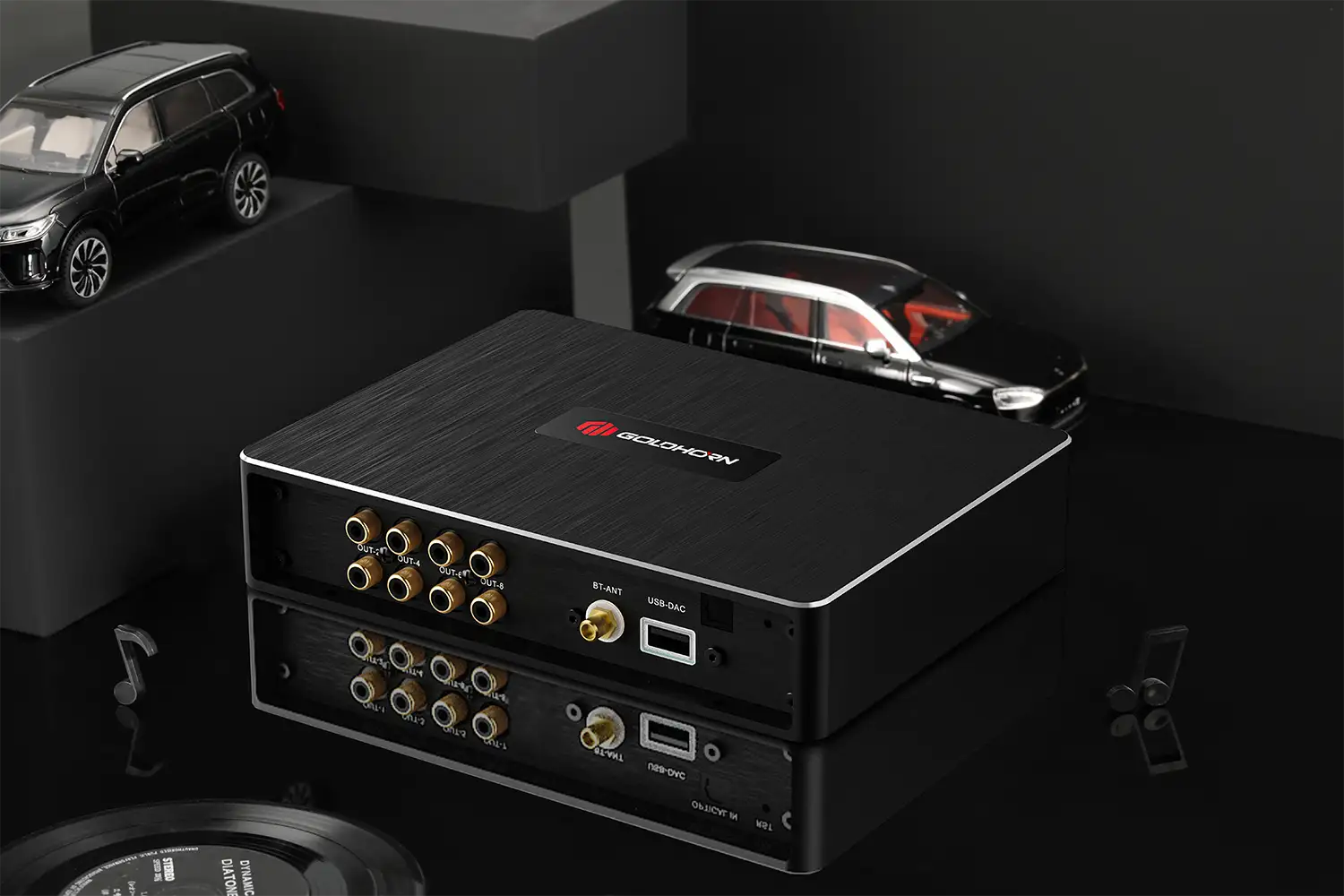

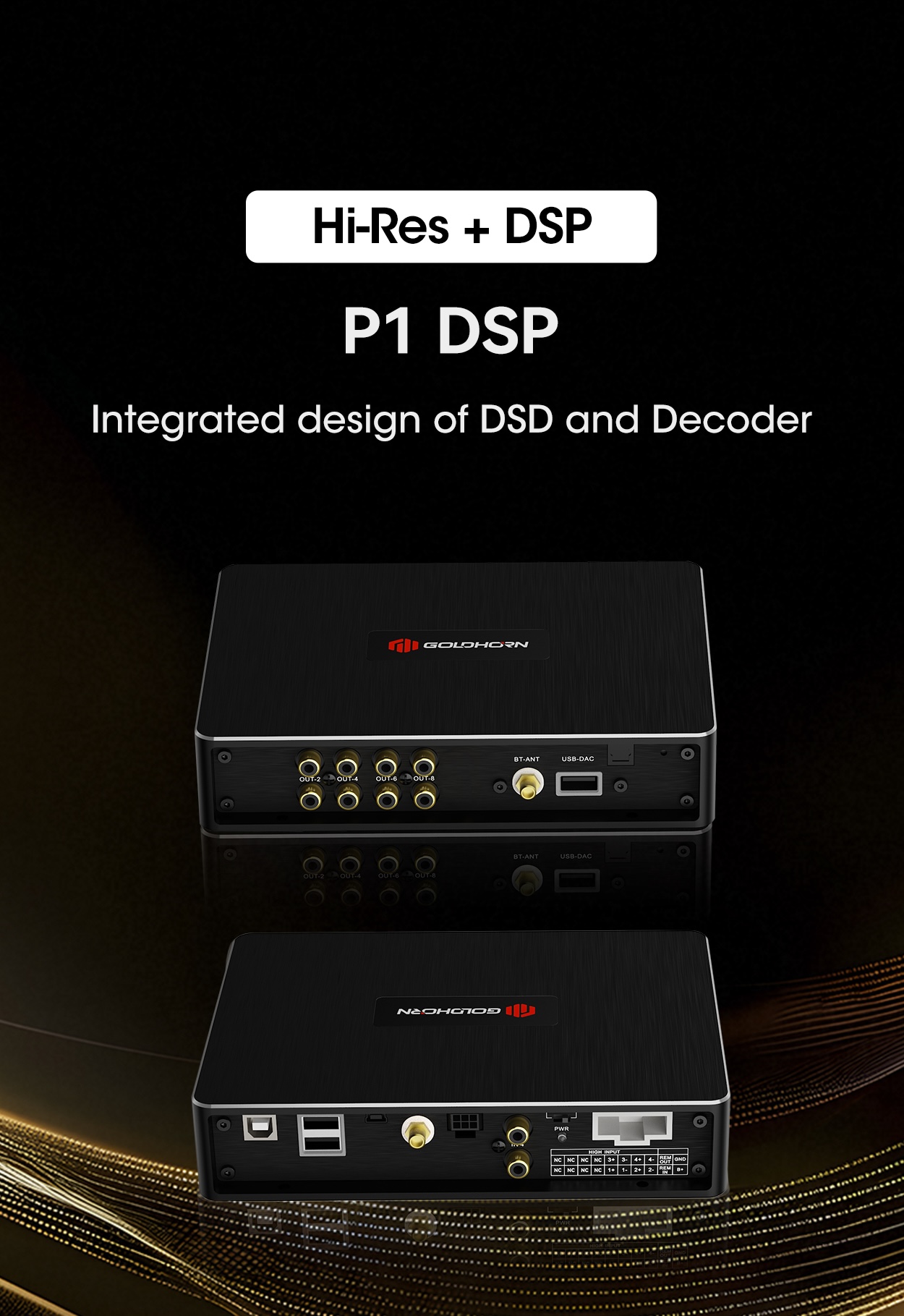

P1 DSP

Advanced 8-Channel DSP with Built-In Hi-Res Player

The P1 DSP adopts an integrated design of head unit and decoder to avoid transmission loss. It supports multiple inputs including 4 x high-level, 1 optical, and 1 OTG, with 8 RCA outputs for easy pairing with pure amplifiers. Combined with dynamic loudness and Skyatom surround sound, it delivers a competition-grade hi-fi audio system.

4 x High Level Inputs

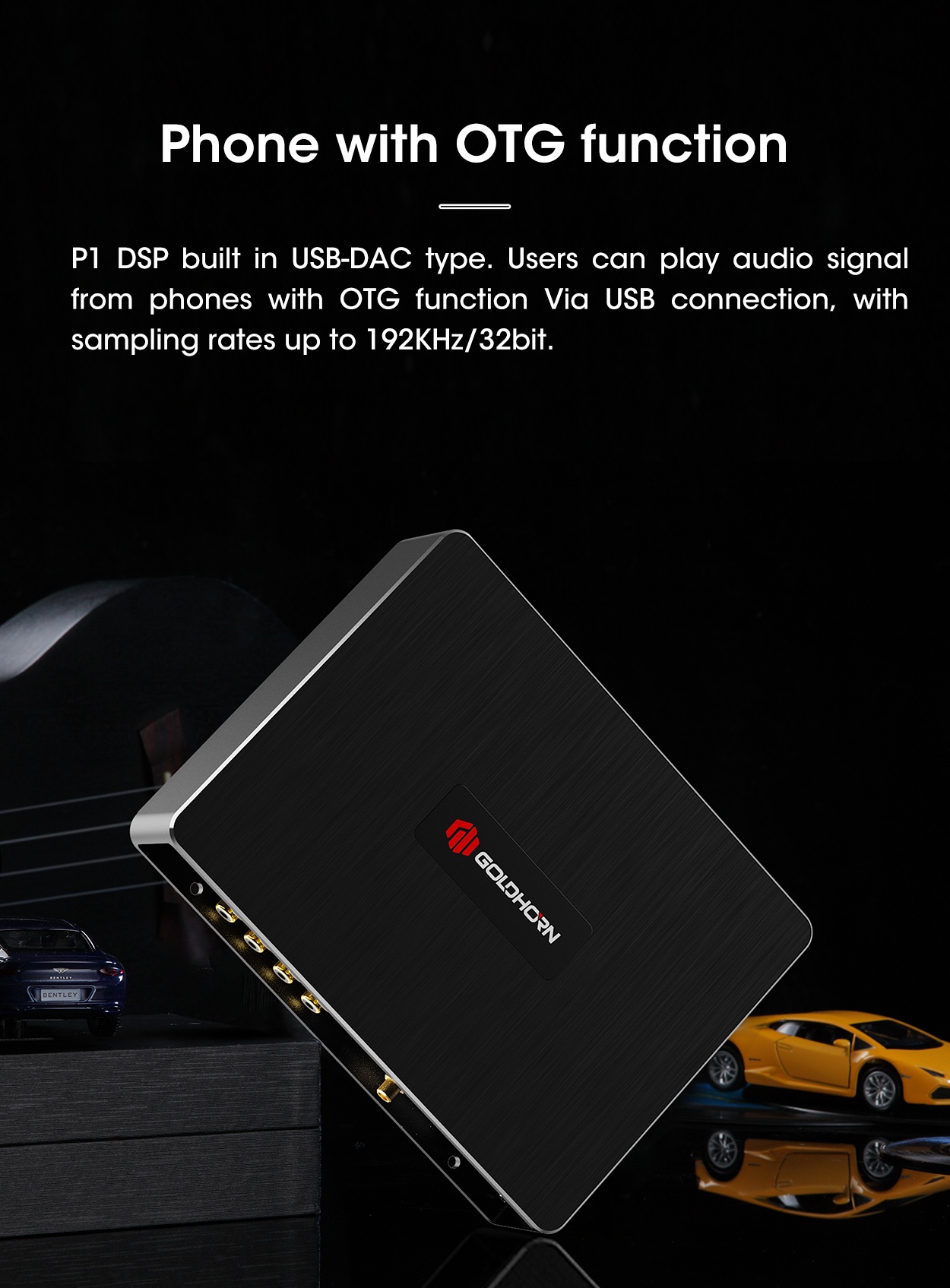

1 x USB-OTG Input
8 x RCA Outputs

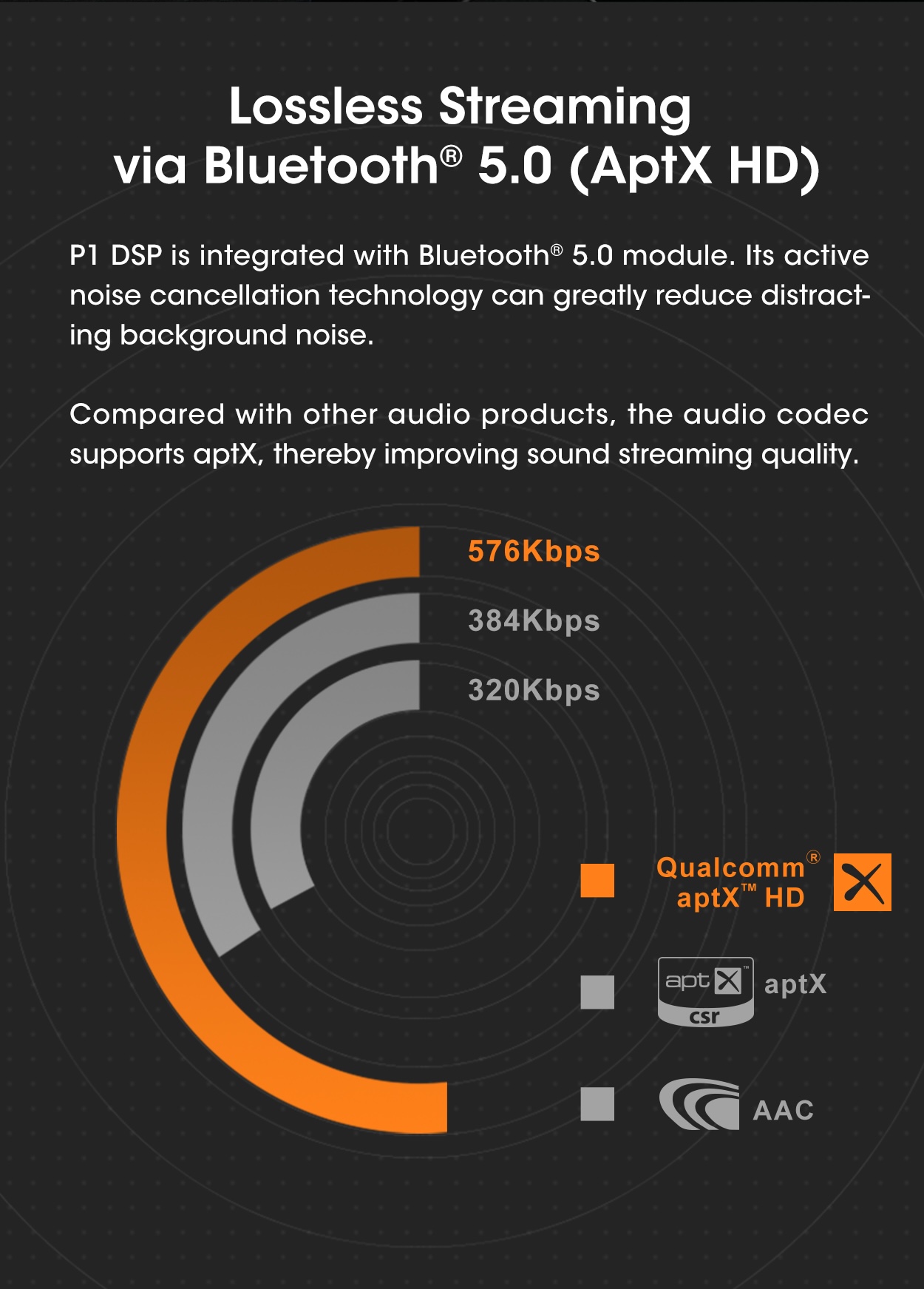

Bluetooth® 5.0 Audio Codec: aptX HD/aptX /AAC/SBC
Goldhron SKYATOM

‍

Qualcomm aptX HD

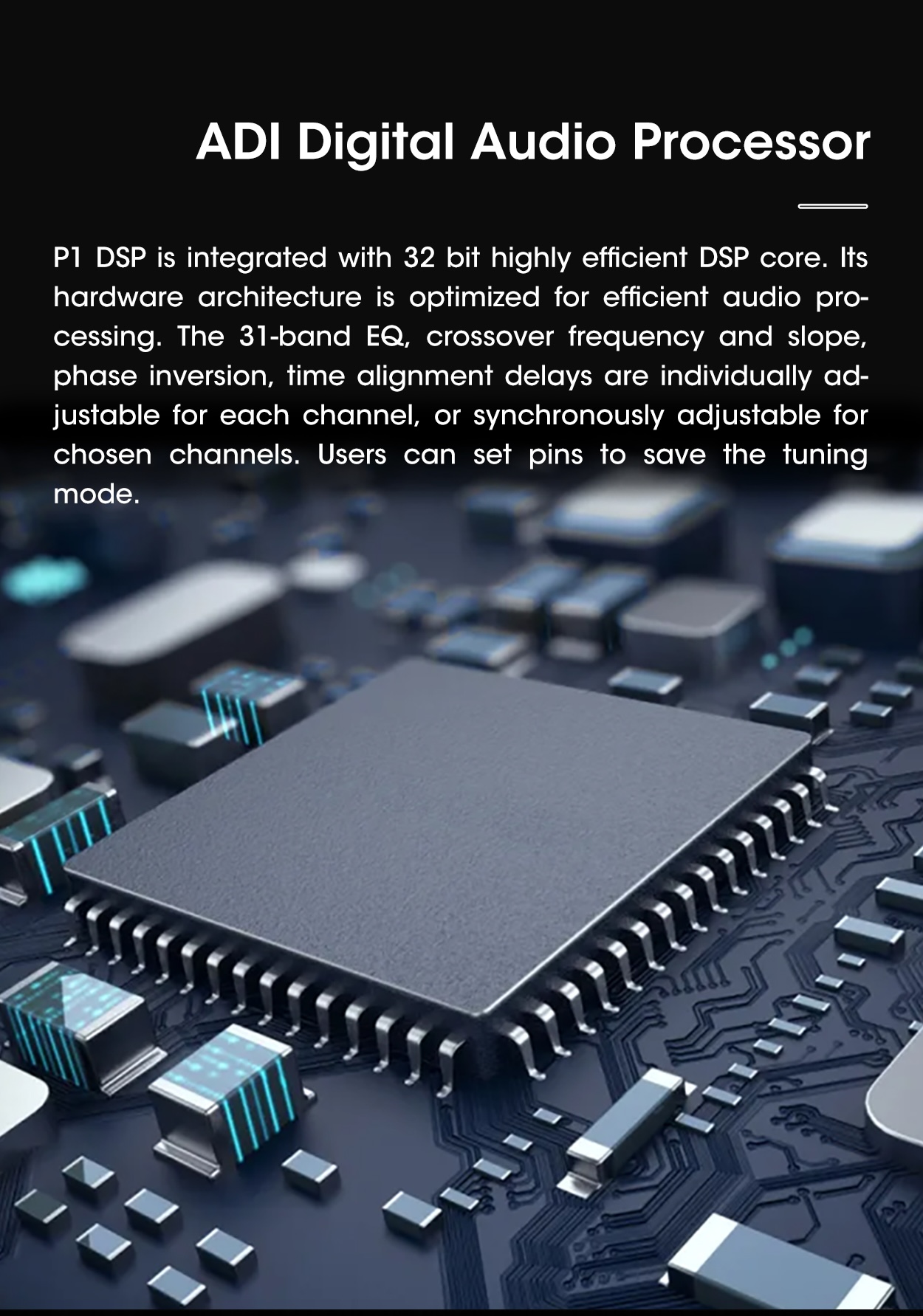

ADAU1 452 ADI DSP-Chip

AK5704 ADC-Chip (192KHz/24bit)

AK4438 DAC-Chip (768KHz/32bit)

NJM4580 & NJM5532 Op Amp

Find A Dealer

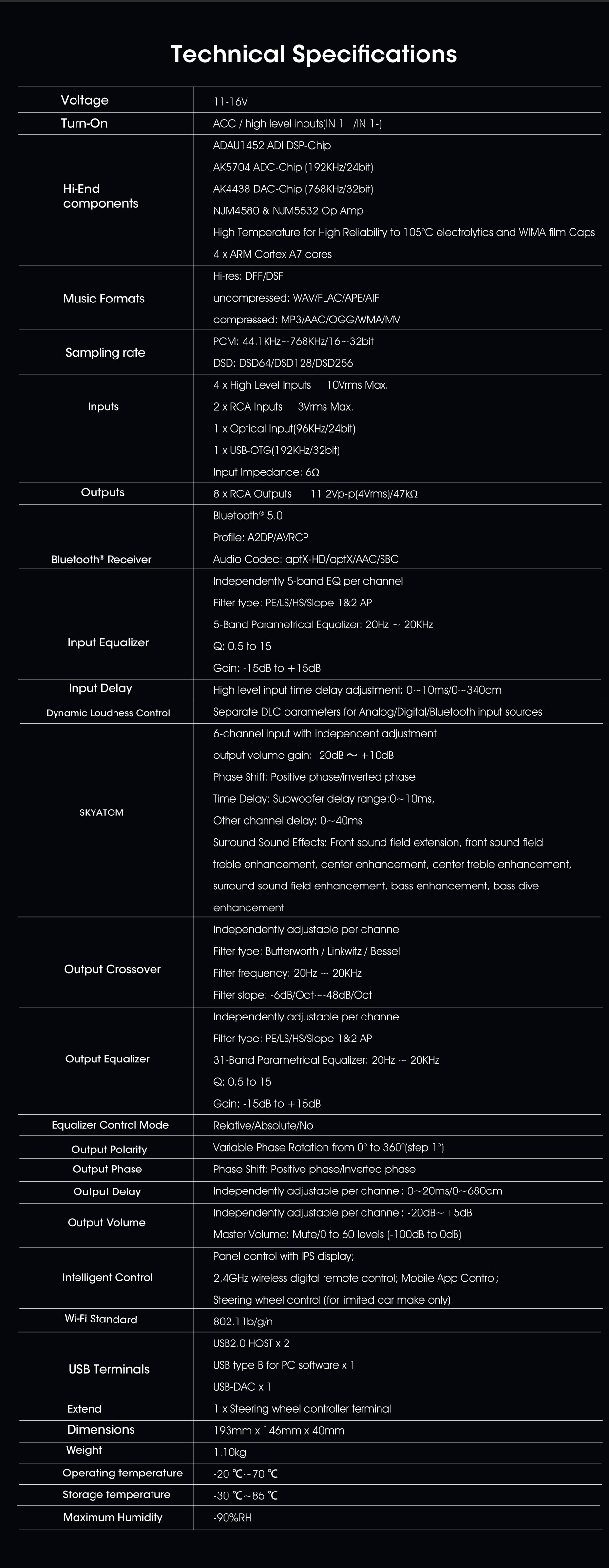

View Specs

No items found.

Voltage

11-16V

Turn-On

ACC / high level inputs(IN 1 +/IN 1-)

Hi-End Components

ADAU1452 ADI DSP-Chip AK5704 ADC-Chip (192KHz/24bit) AK4438 DAC-Chip (768KHz/32bit) NJM4580 & NJM5532 Op Amp High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps 4 x ARM Cortex A7 cores

Music Formats

Hi-res: DFF/DSF uncompressed: WAV/FLAC/APE/AIF compressed: MP3/AAC/OGGMMA/MV

Sampling rate

PCM: 44.1KHz~768KHz/16~32bit DSD: DSD64/DSD128/DSD256

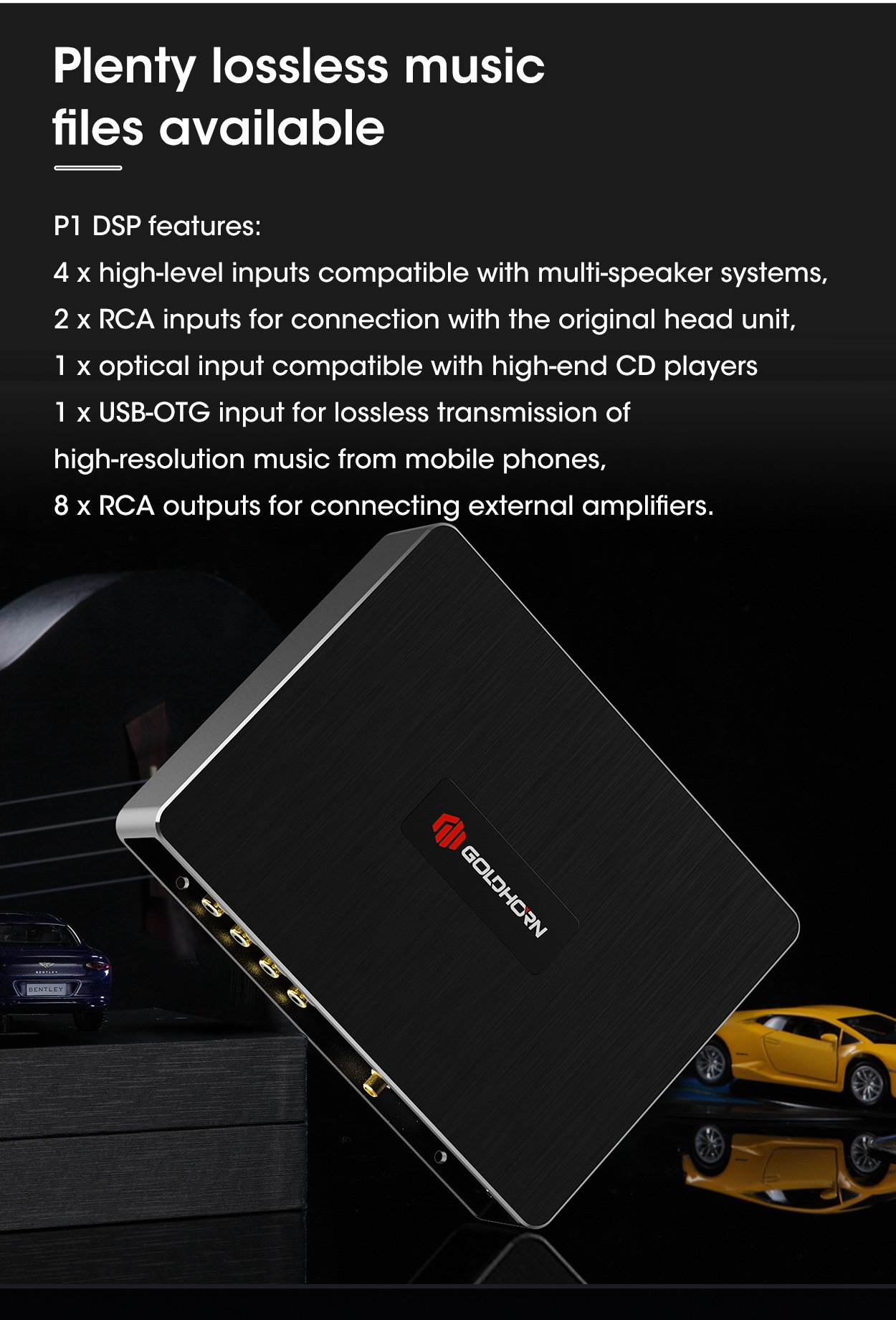

Inputs

4 x High Level Inputs 10Vrms Max. 2 x RCA Inputs 3Vrms Max. 1 x Optical Input(96KHz/24bit) 1 x USB-OTG(192KHz/32bit) Input Impedance: 6Ohm

Outputs

8 x RCA Outputs 11.2Vp-p(4Vrms)/47kΩ

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AVRCP Audio Codec: aptX-HD/aptX/AAC/SBC

Input Equalizer

Independently 5-band EQ per channel Filter type: PE/LS/HS/Slope 1&2 AP 5-Band Parametrical Equalizer: 20Hz ~ 20KHz Q: 0.5 to 15 Gain: - 15dB to + 15dB

Input Delay

High level input time delay adjustment: 0~10ms/0~340cm

Dynamic Loudness Control

Separate DLC parameters for Analog/Digital/Bluetooth input sources

SKYATOM Surround

6-channel input with independent adjustment output volume gain: -20dB ~ + 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~ 10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, surround sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Filter type: PE/LS/HS/Slope 1&2 AP 31-Band Parametrical Equalizer: 20Hz ~ 20KHz Q: 0.5 to 15 Gain: -15dB to + 15dB
