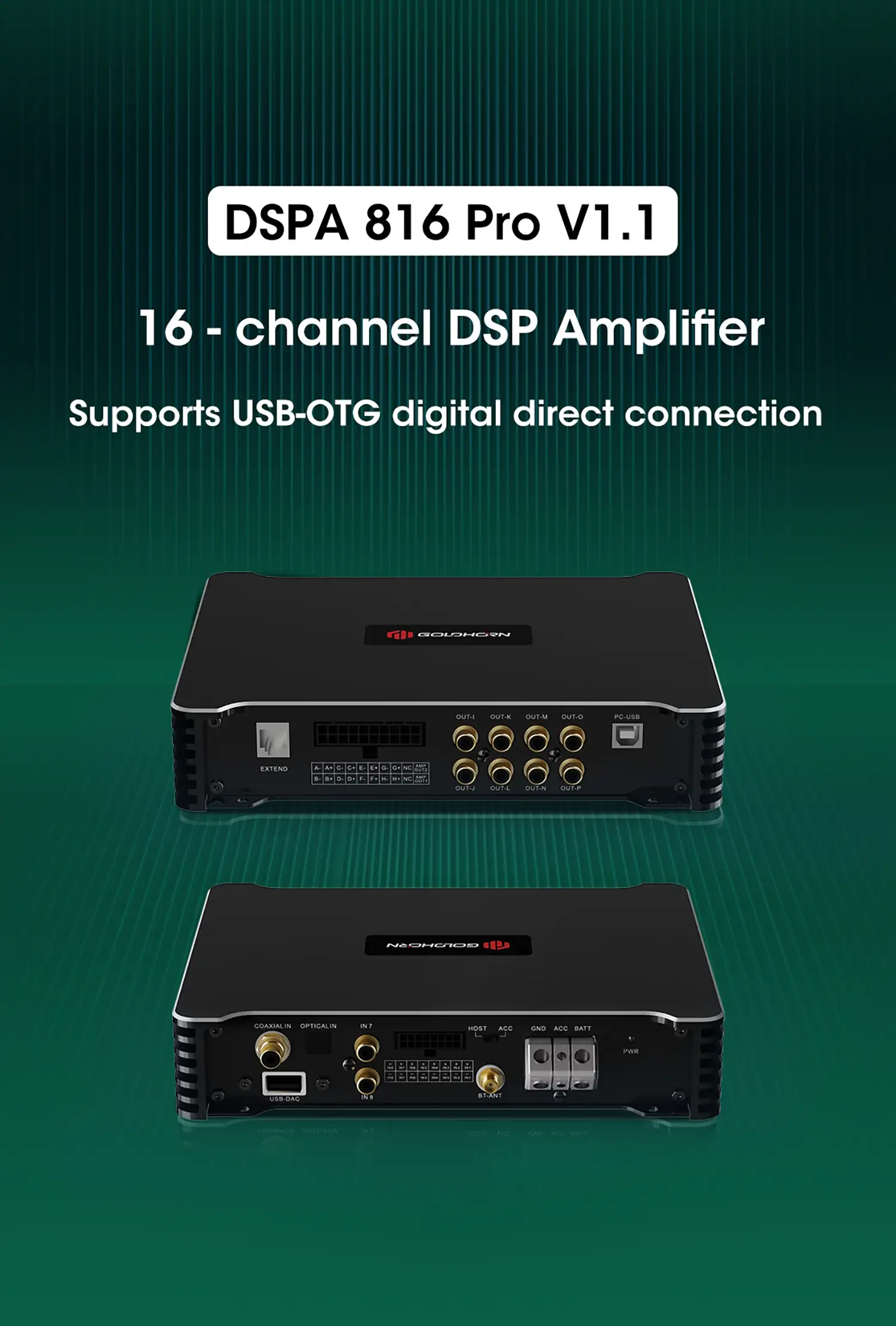

DSPA 816 Pro V1.1

8-Channel Entry Level Amplifier with Built-in 16 Channel DSP

DSPA 816 Pro V1.1 is a 31-band EQ professional DSP integrated with Class D amplifier. DSPA816 Pro V1.1 has 16-channel DSP outputs. 8-channel powerful amplifiers, with outputs up to 80W per channel, and 8-channel RCA outputs. Its overwhelming advantages, including high power, multiple channels and high-quality sound, make it the best choice for high-end vehicles.

Powerful 8 x 80W/4Ω Max. integrated Class D amplifier
Bluetooth® 5.0 Audio Codec: aptX HD/aptX/AAC/SBC
1 x Optical Input 1 x Coaxial Input (up to 192 kHz / 24 bit)
16-channel Outputs
EPS（Error Protection System）

Qualcomm aptX HD

ADAU1452 ADI DSP-Chip

2 x PCM1840 ADC-Chip

PCM1690 DAC-Chip

Find A Dealer

View Specs

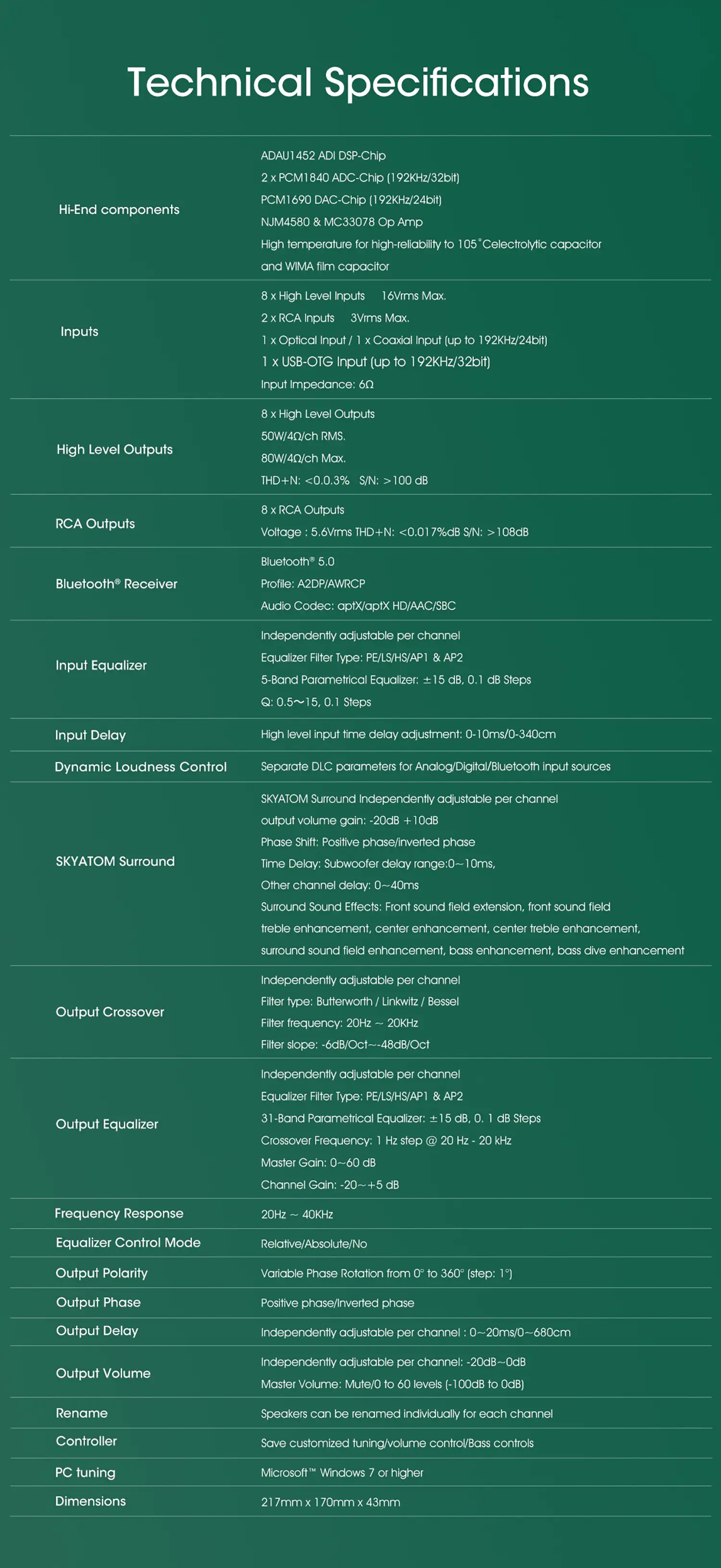

Hi-End Components

ADAU1452 ADI DSP-Chip 2 x PCM1840 ADC-Chip PCM1690 DAC-Chip NJM4580 & MC33078 Op Amp High temperature for high-reliability to 105° Celectrolytic capacitor and WIM film capacitor

Inputs

8 x High Level Inputs 16Vrms Max. 2 x RCA Inputs 3Vrms Max. 1 x Optical Input / 1 x Coaxial Input (up to 192kHz/24bit) 1 x USB-OTG Input (up to 192KHz/32bit) Input Impedance: 6Ω

High Level Outputs

8 x High Level Outputs 50W/4Ω/ch RMS. 80W/4Ω/ch Max. THD+N: <0.0.3% S/N: > 100 dB

RCA Outputs

8 x RCA Outputs Voltage: 5.6Vrms THD+N: <0.017%dB S/N: > 108dB

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AWRCP Audio Codec: aptX/aptX HD/AAC/SBC

Input Equalizer

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 5-Band Parametrical Equalizer: +/-15 dB, 0.1 dB Steps Q: 0.5~15, 0.1 Steps

Input Delay

High level input time delay adjustment: 0-10ms/0-340cm

Dynamic Loudness Control

Separate DLC parameters for Analog/Digital/Bluetooth input sources

SKYATOM Surround

SKYATOM Surround Independently adjustable per channel output volume gain: -20dB + 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, surround sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 31-Band Parametrical Equalizer: +15 dB, 0. 1 dB Steps Crossover Frequency: 1 Hz step @ 20 Hz - 20 kHz Master Gain: 0~60 dB Channel Gain: -20~ +5 dB
