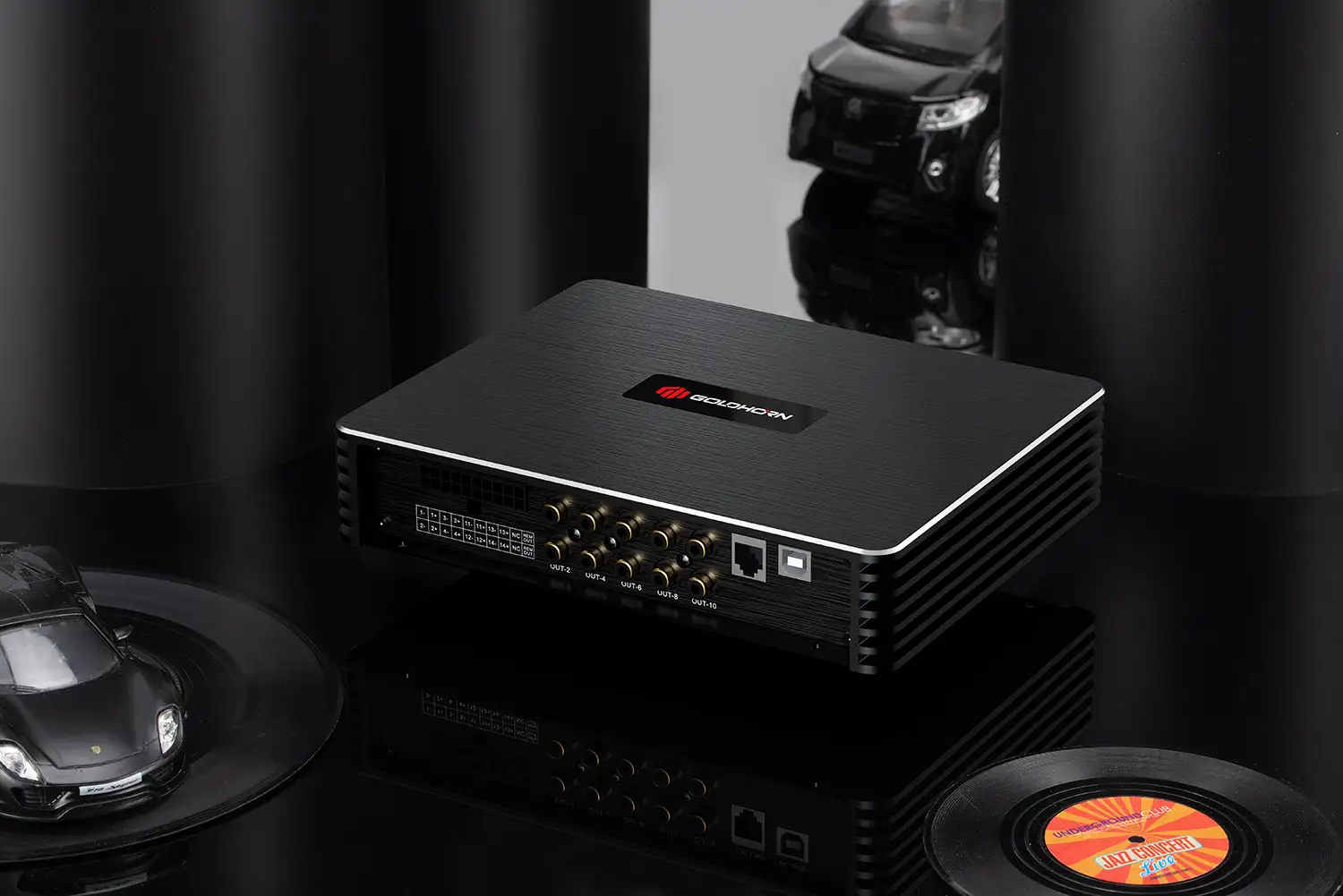

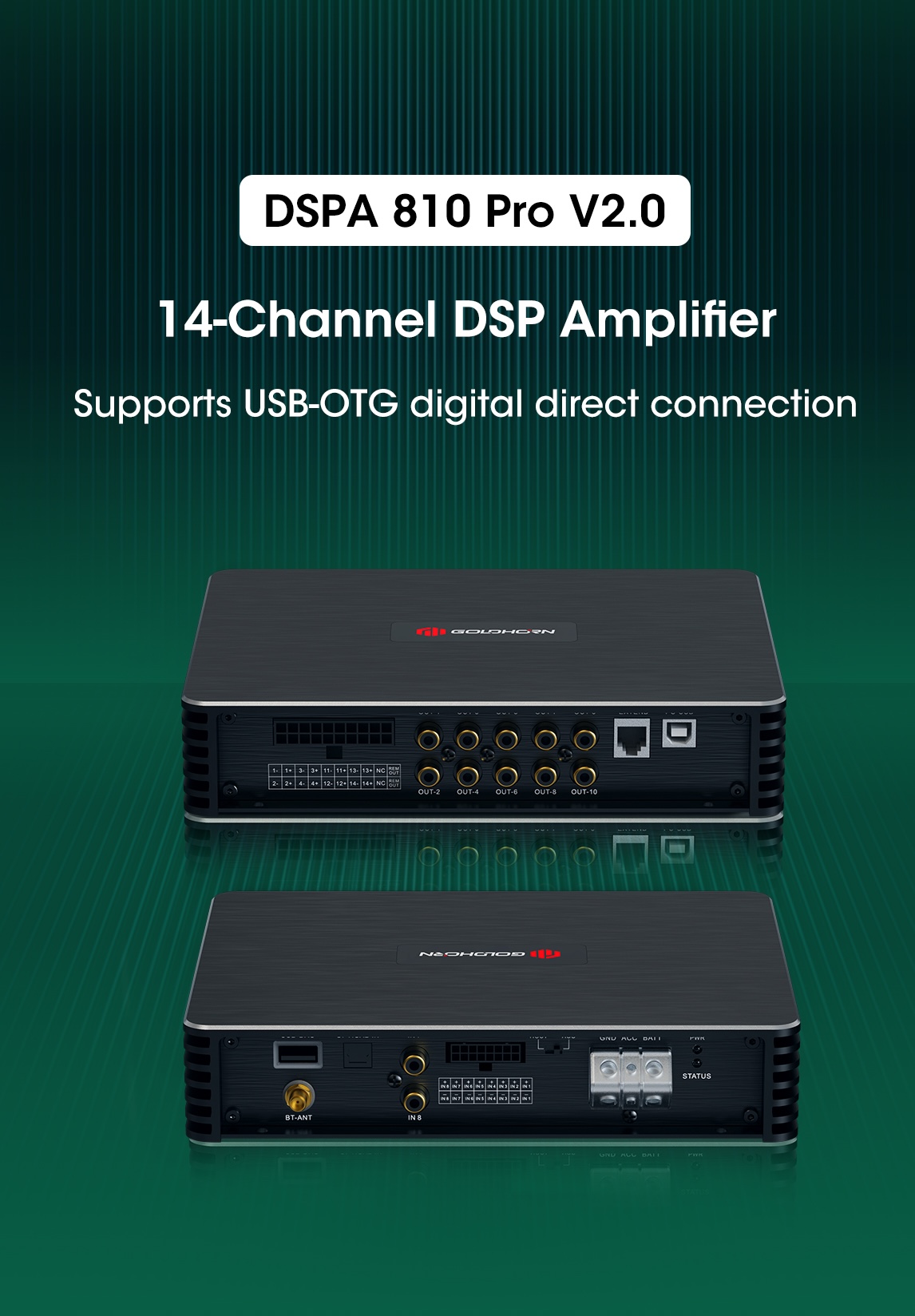

DSPA 810 Pro V2

8-Channel Entry Level Amplifier with Built-in 14-Channel DSP

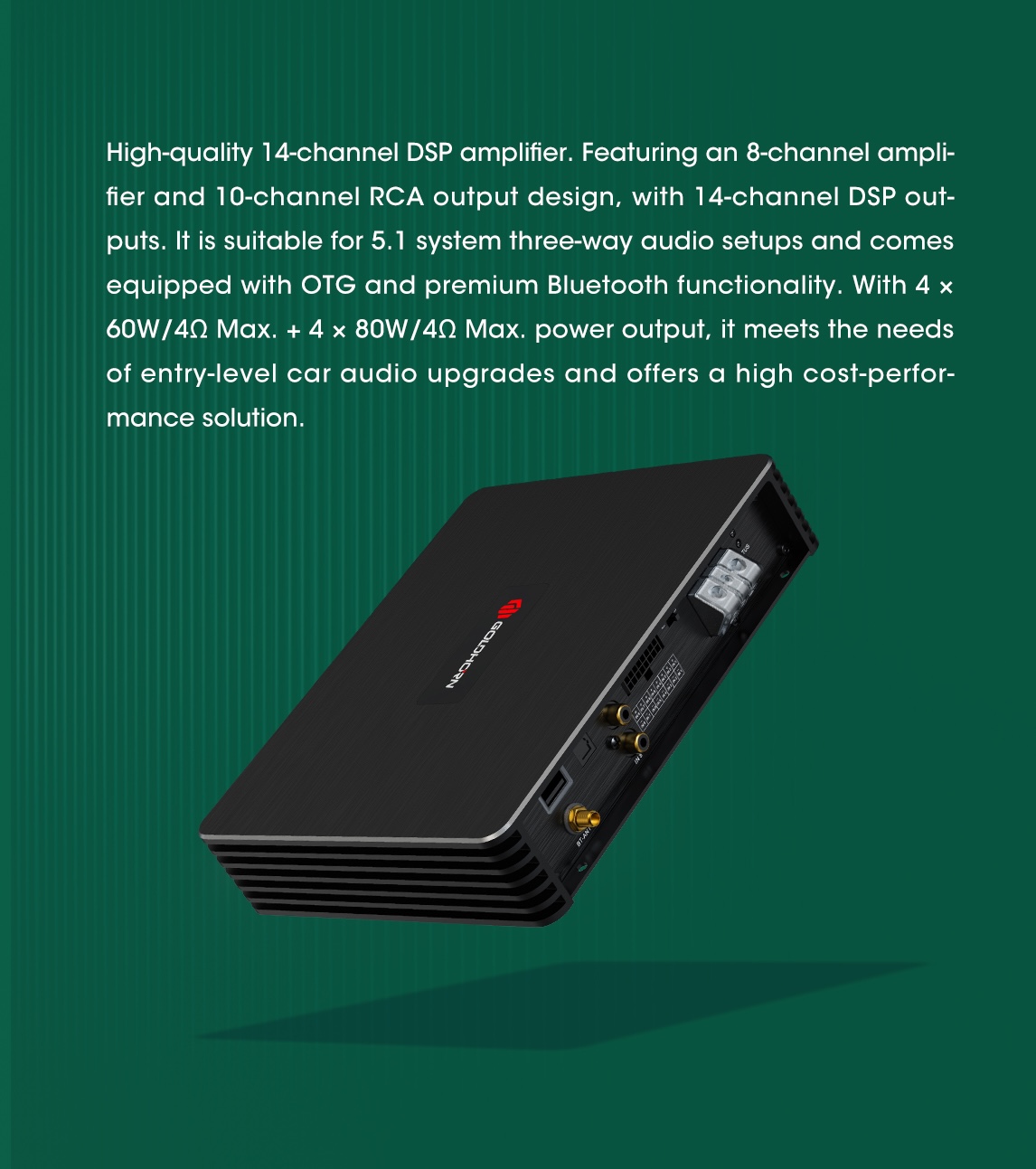

DSPA 810 Pro V2.0: High-quality 8-channel DSP amplifier. Featuring an 8-channel amplifier and 10-channel RCA output design, with 14-channel DSP outputs. It is suitable for 5.1 system three-way audio setups and comes equipped with OTG and premium Bluetooth functionality. With 4 ×60W/4Ω Max. + 4 ×80W/4Ω Max. power output, it meets the needs of entry-level car audio upgrades and offers a high cost-performance solution.

4 x 60W/4Ω Max. + 4 x 80W/4Ω Max.
1 x USB-OTG Input
10 x RCA Outputs 8 x High Level Outputs
Bluetooth® 5.0 Audio Codec: aptX HD/aptX /AAC/SBC

Qualcomm aptX HD

ADAU1452 ADI DSP-Chip

2 x AK5704 ADC-Chip

AK4438 + PCM1754 DAC-Chip

Find A Dealer

View Specs

No items found.

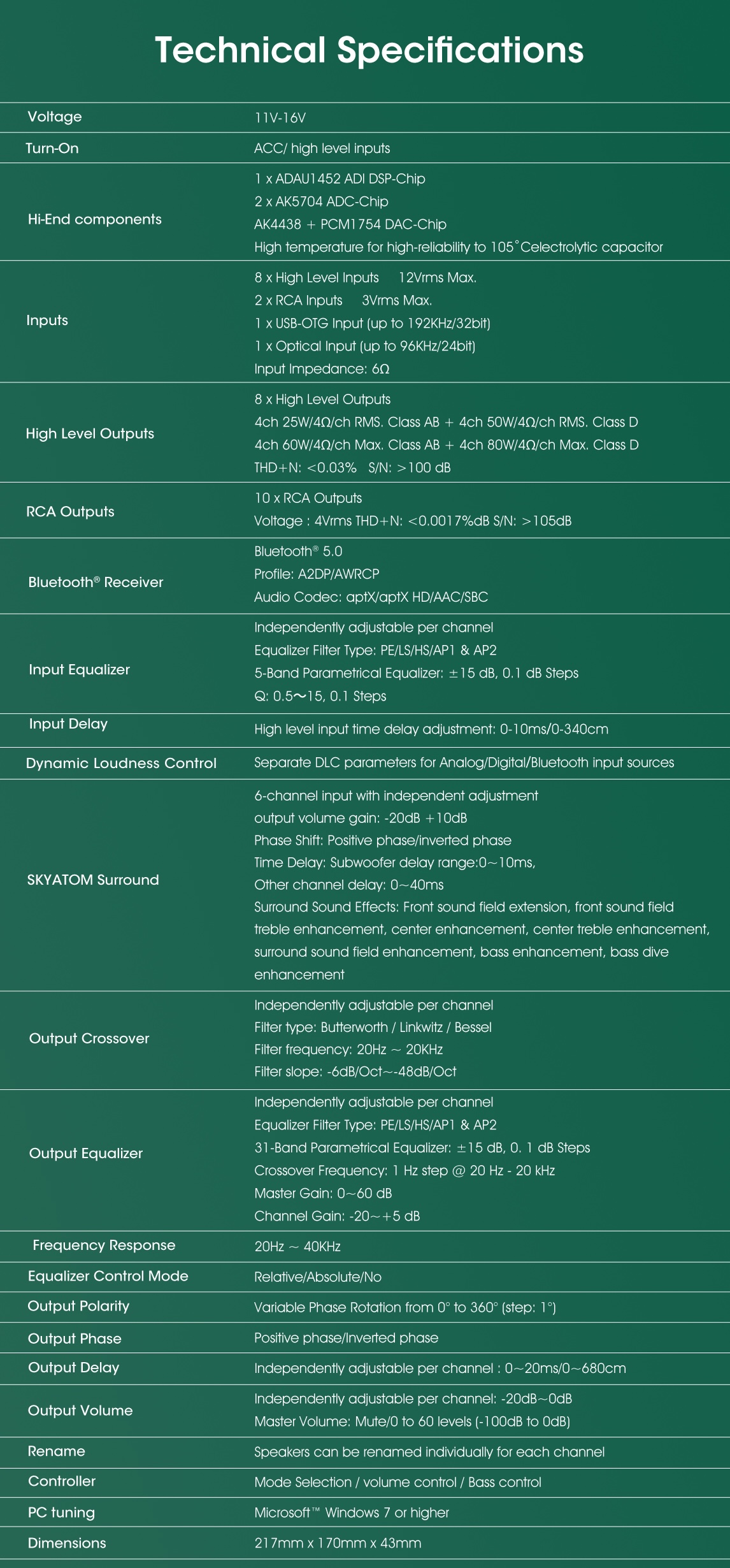

Voltage

11V-16V

Turn-On

ACC/ high level inputs

Hi-End Components

ADAU1452 ADI DSP-Chip 2 x AK5704 ADC-Chip AK4438 + PCM1754 DAC-Chip High temperature for high-reliability to 105° Celectrolytic capacitor

Inputs

8 x High Level Inputs 12Vrms Max. 2 x RCA Inputs 3Vrms Max. 1 x USB-OTG Input (up to 192KHz/32bit) 1 x Optical Input (up to 96KHz/24bit) Input Impedance: 6Ω

High Level Outputs

8 x High Level Outputs 4ch 25W/4Ω/ch RMS. Class AB + 4ch 50W/4Ω/ch RMS. Class D 4ch 60W/4Ω/ch Max. Class AB + 4ch 80W/4Ω/ch Max. Class D THD+N: <0.03% S/N: > 100 dB

RCA Outputs

10 x RCA Outputs Voltage: 4Vrms THD +N: <0.0017%dB S/N: > 105dB

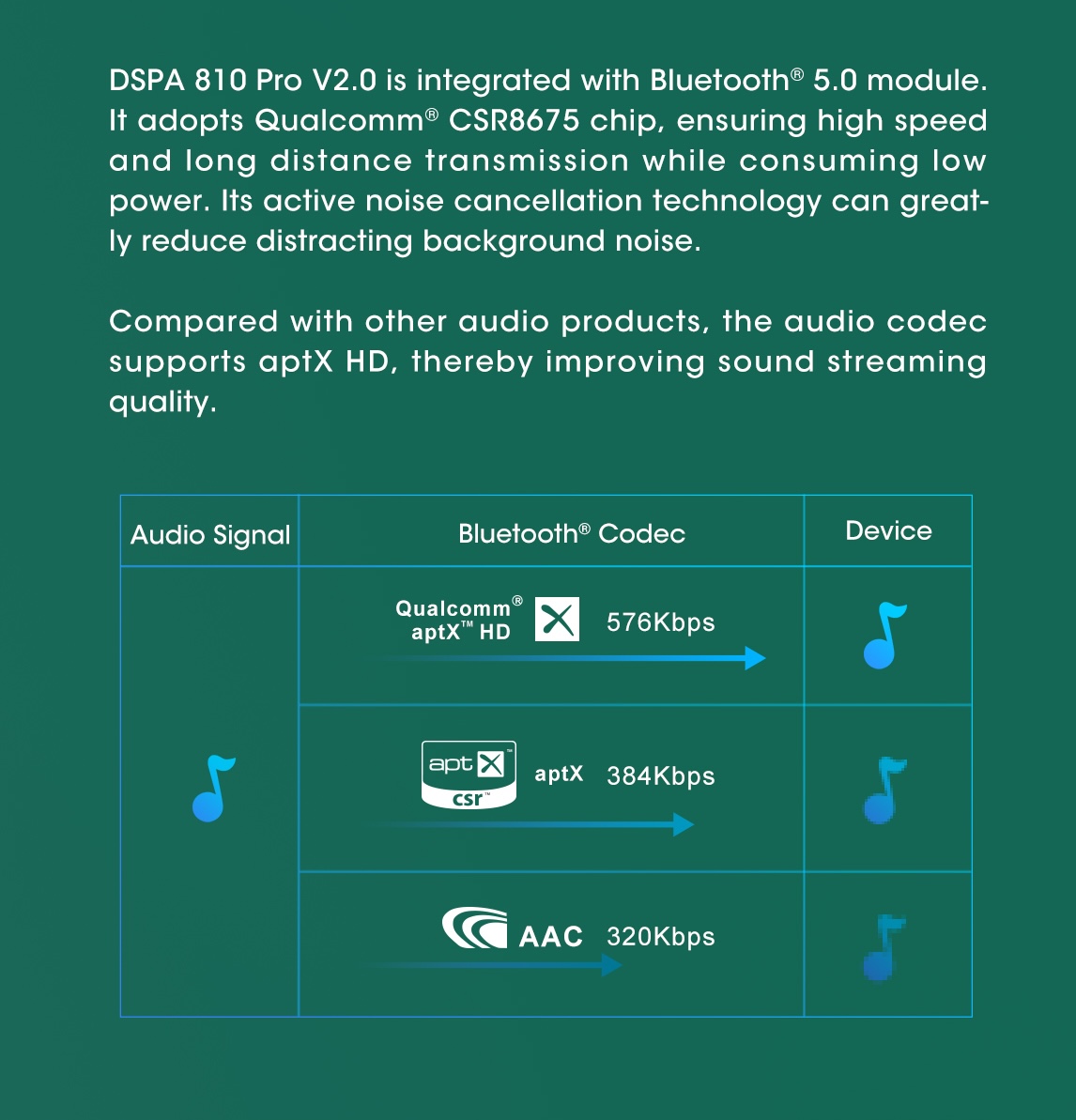

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AWRCP Audio Codec: aptX/aptX HD/AAC/SBC

Input Equalizer

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 5-Band Parametrical Equalizer: +/-15 dB, 0.1 dB Steps Q: 0.5~15, 0.1 Steps

Input Delay

High level input time delay adjustment: 0-10ms/0-340cm

Dynamic Loudness Control

Separate DLC parameters for Analog/Digital/Bluetooth input sources

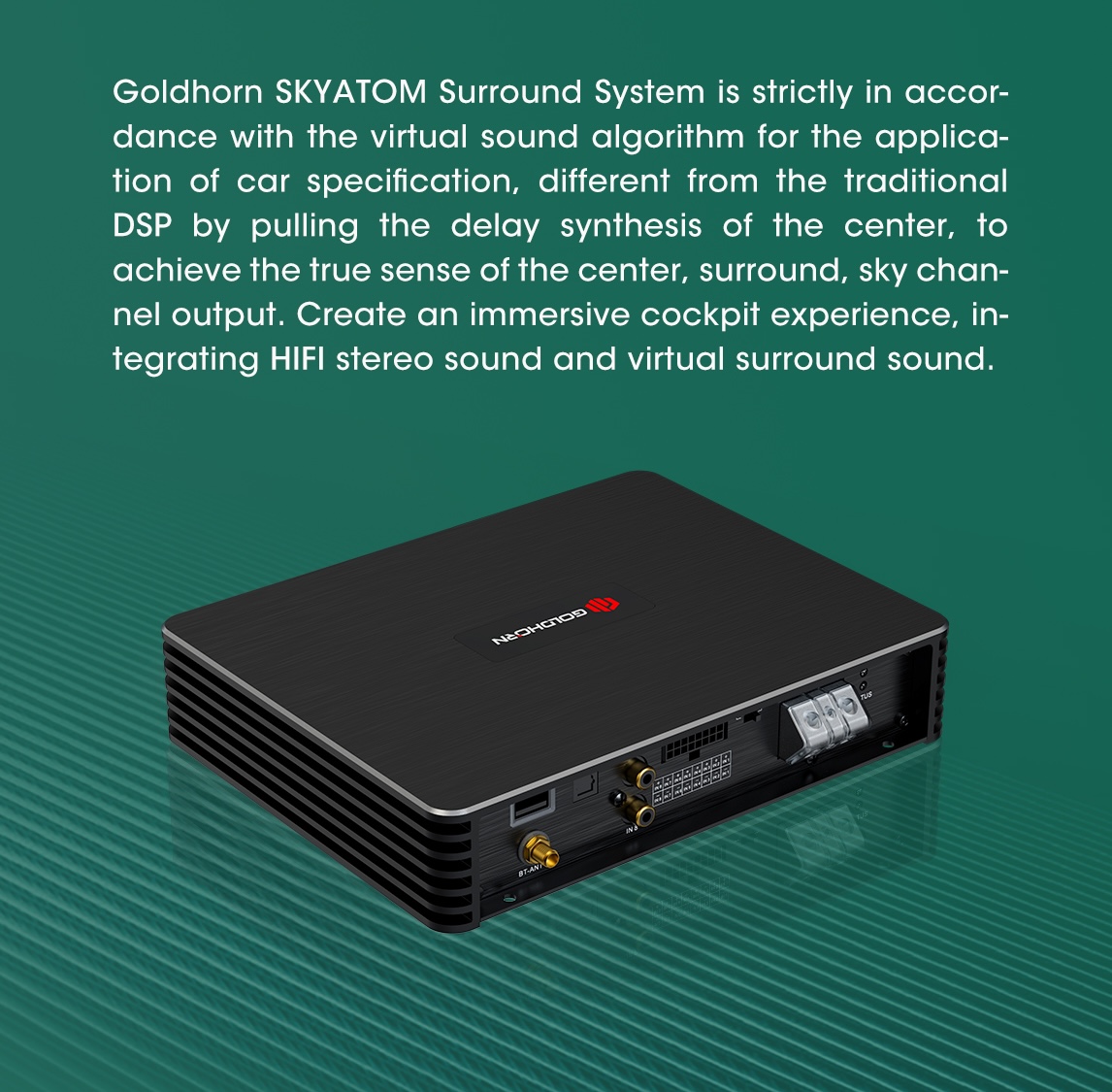

SKYATOM Surround

6-channel input with independent adjustment output volume gain: -20dB + 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~ 10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, surround sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 31-Band Parametrical Equalizer: 15 dB, 0. 1 dB Steps Crossover Frequency: 1 Hz step @ 20 Hz - 20 kHz Master Gain: 0~60 dB Channel Gain: -20 ~ +5 dB
