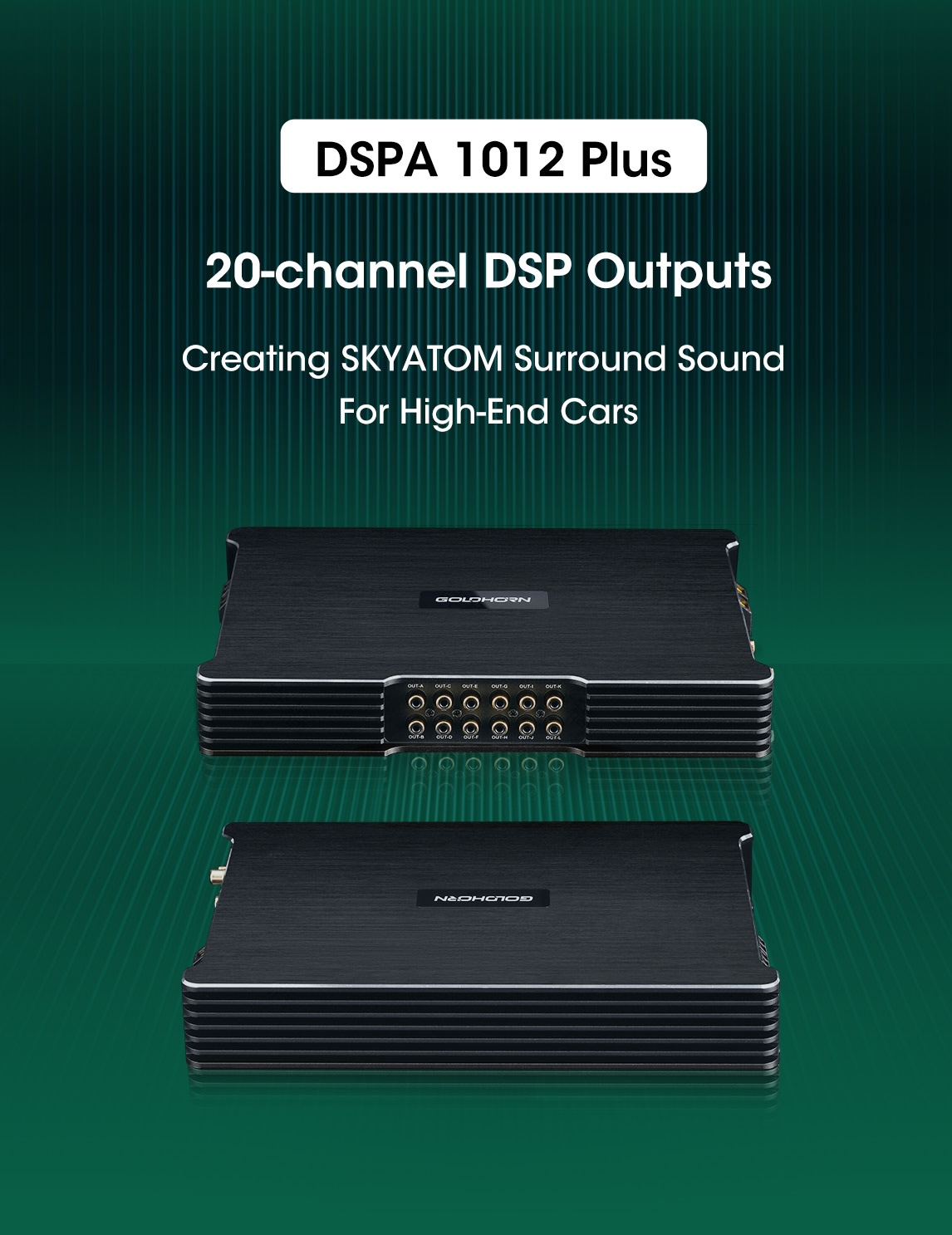

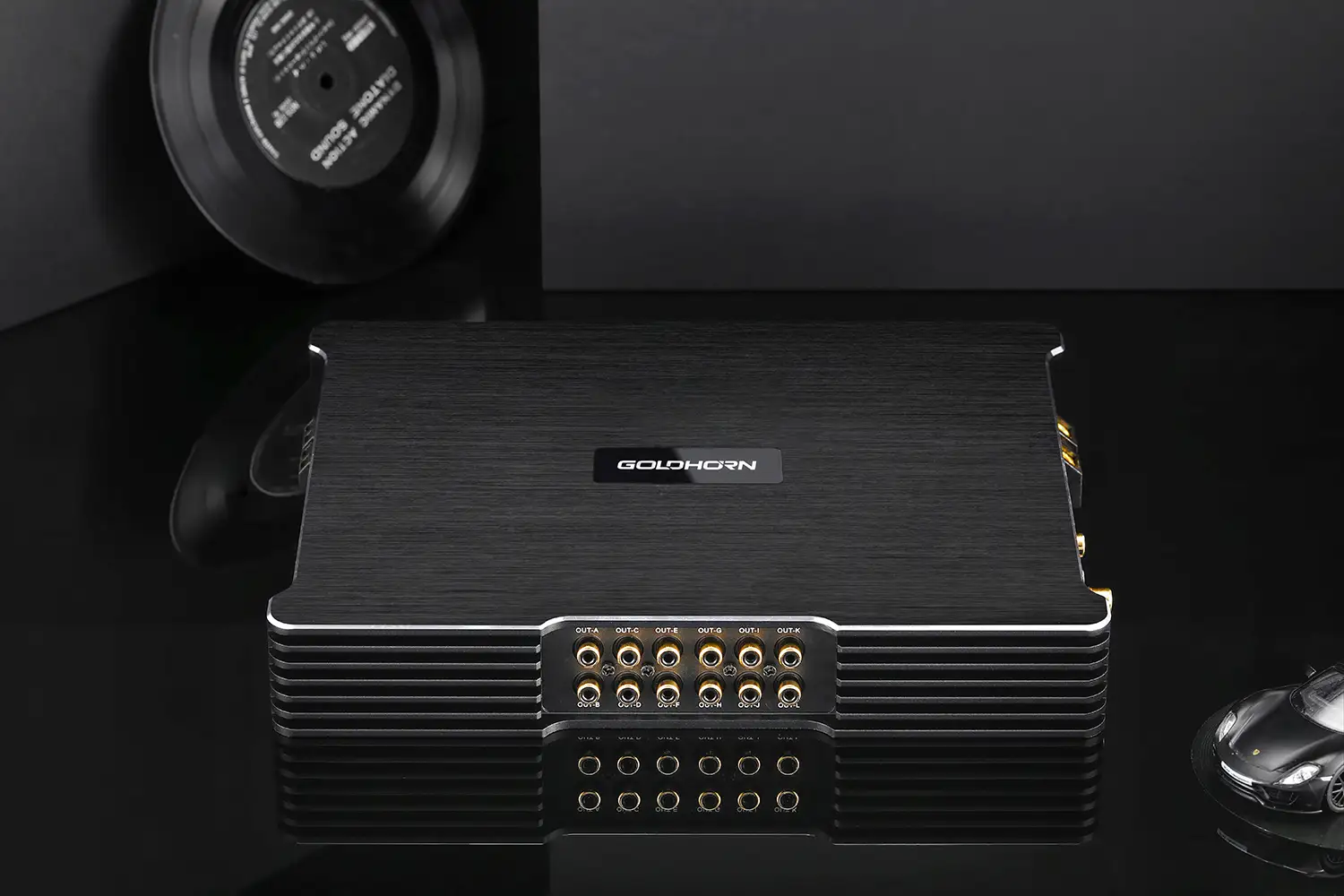

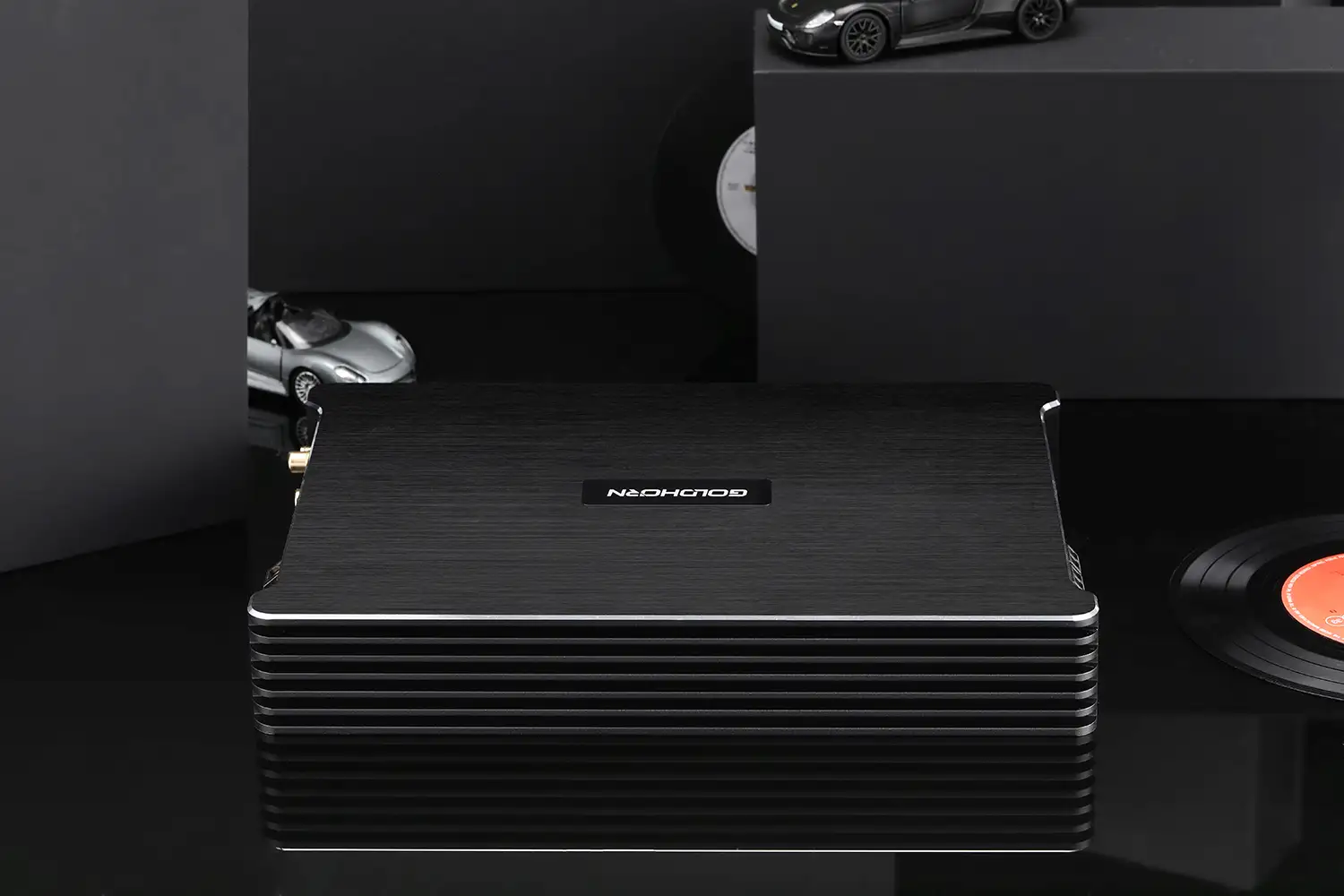

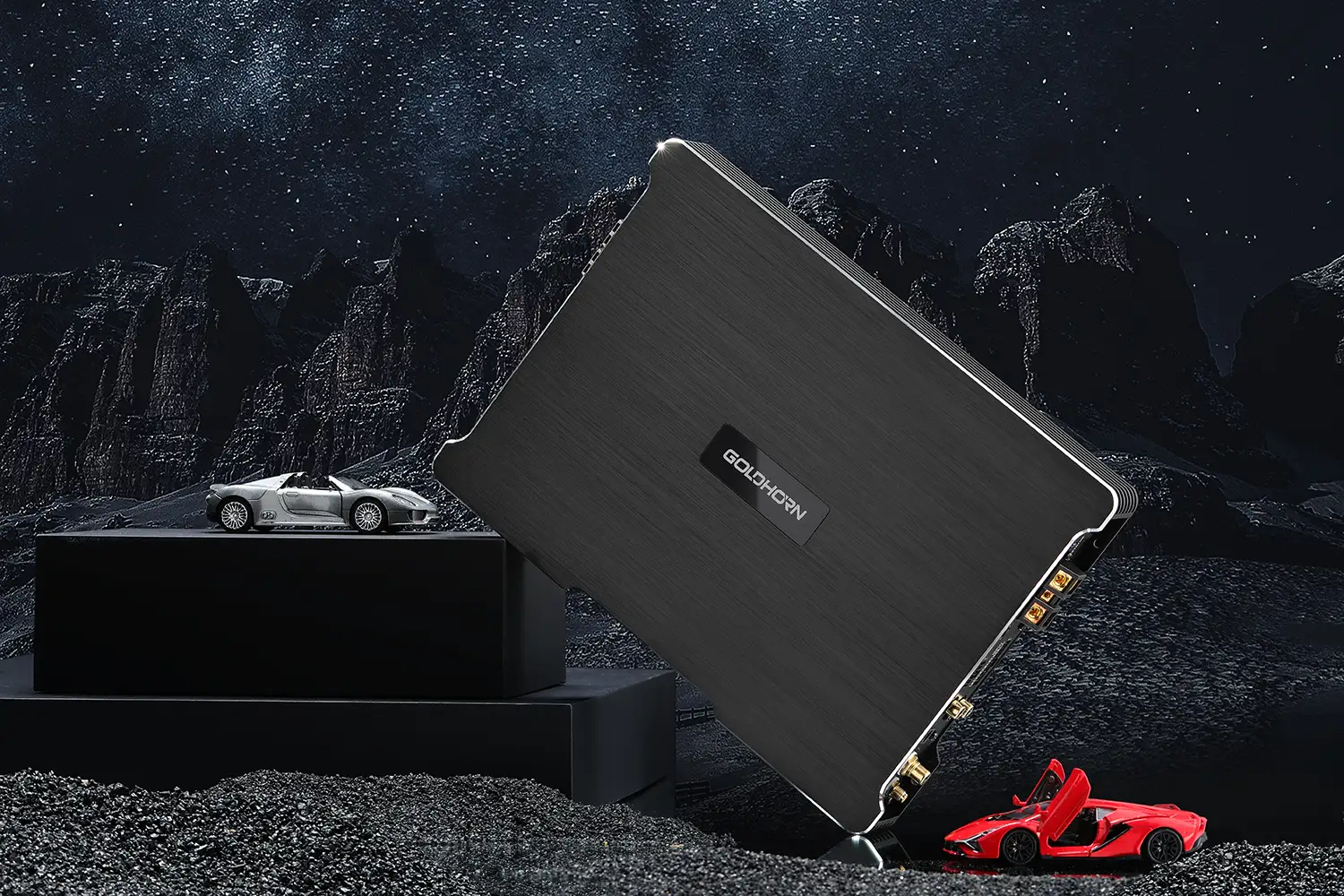

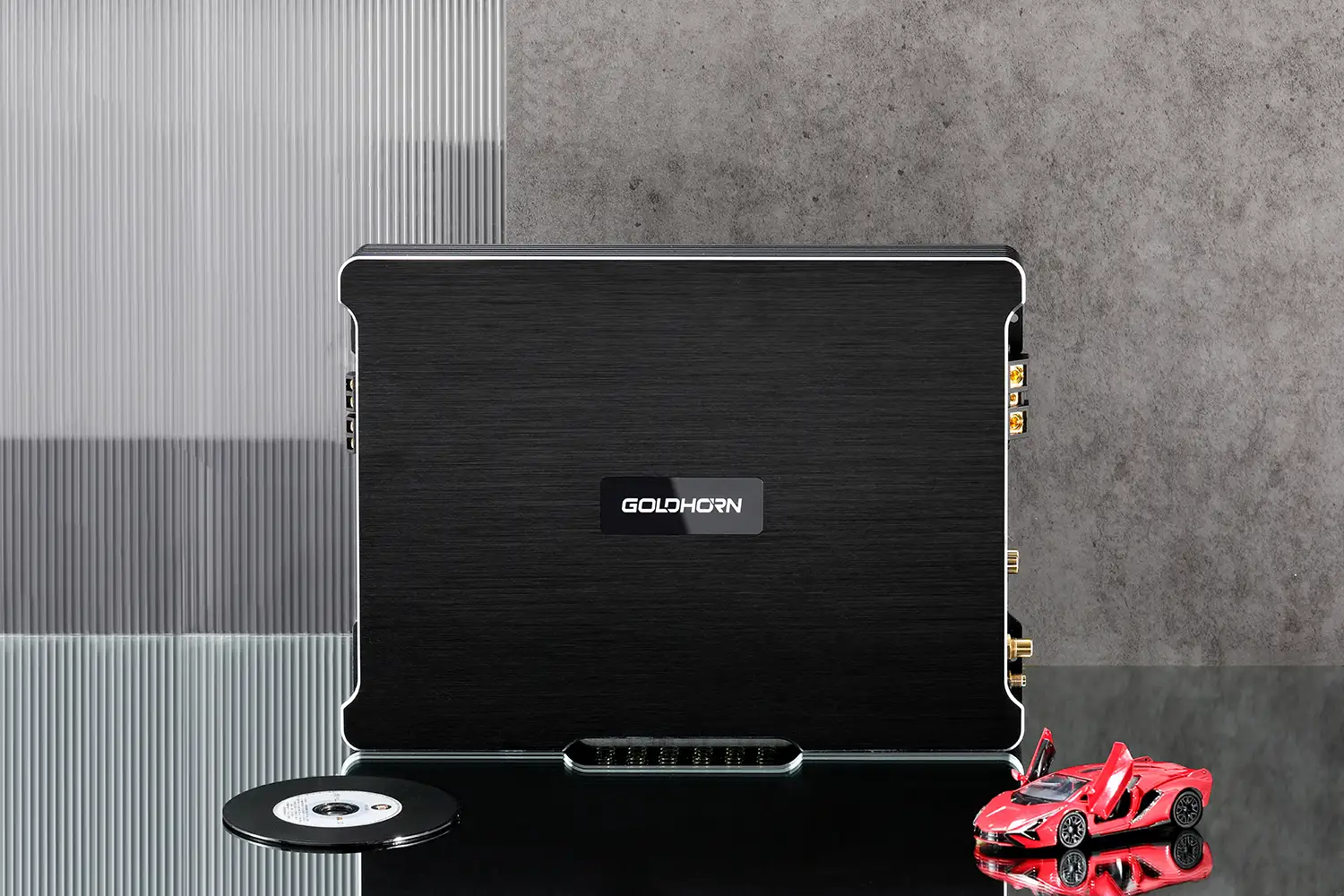

DSPA 1012 Plus

10-Channel Advanced Amplifier with Built-in 24-Channel DSP

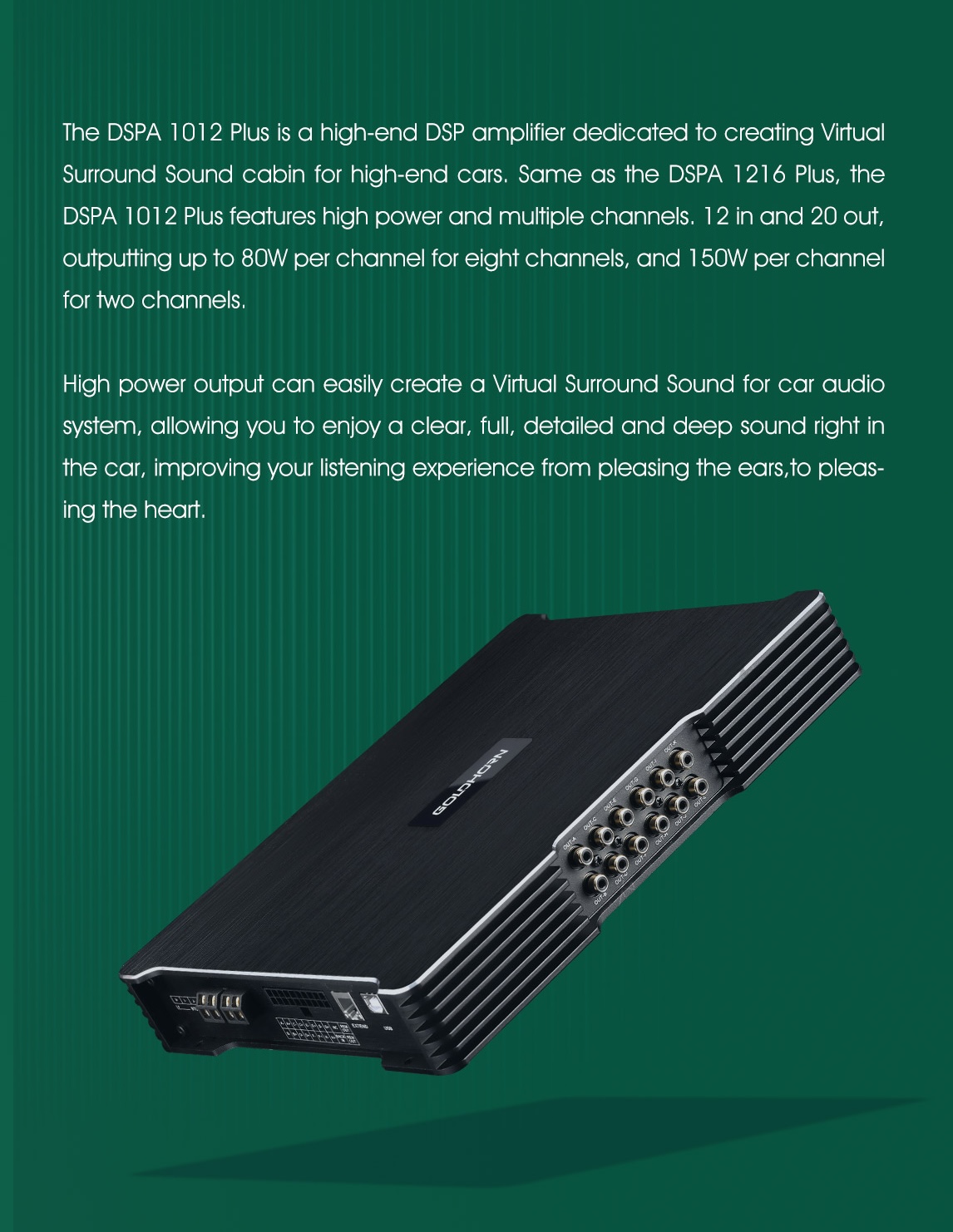

The Goldhorn DSPA 1012 PLUS is a high-end DSP amplifier dedicated to creating Virtual Surround Sound cabin for high-end cars.

Same as the DSPA 1216 PLUS, the DSPA 1012 PLUS features high power and multiple channels. 10 in and 20 out, outputting up to 80W per channel for eight channels, and 150W per channel for two channels. High power output can easily create a Virtual Surround Sound for car audio system, allowing you to enjoy a clear, full, detailed and deep sound right in the car, improving your listening experience from pleasing the ears, to pleasing the heart.

20-channel outputs
total 940W Powerful amplifier
8x80W/4Ω+2x150W/4Ω Max.
Designed for multi-channel high-end car
12xHigh level inputs 2xRCA inputs
10xHigh level outputs 12xRCA outputs

Qualcomm aptX HD

ADAU1463 ADI DSP-Chip

3 x PCM1 840 ADC-Chip (192KHz/32bit)

2 x PCM1 690 DAC-Chip (192KHz/24bit)

MC33078 Op Amp

Find A Dealer

View Specs

No items found.

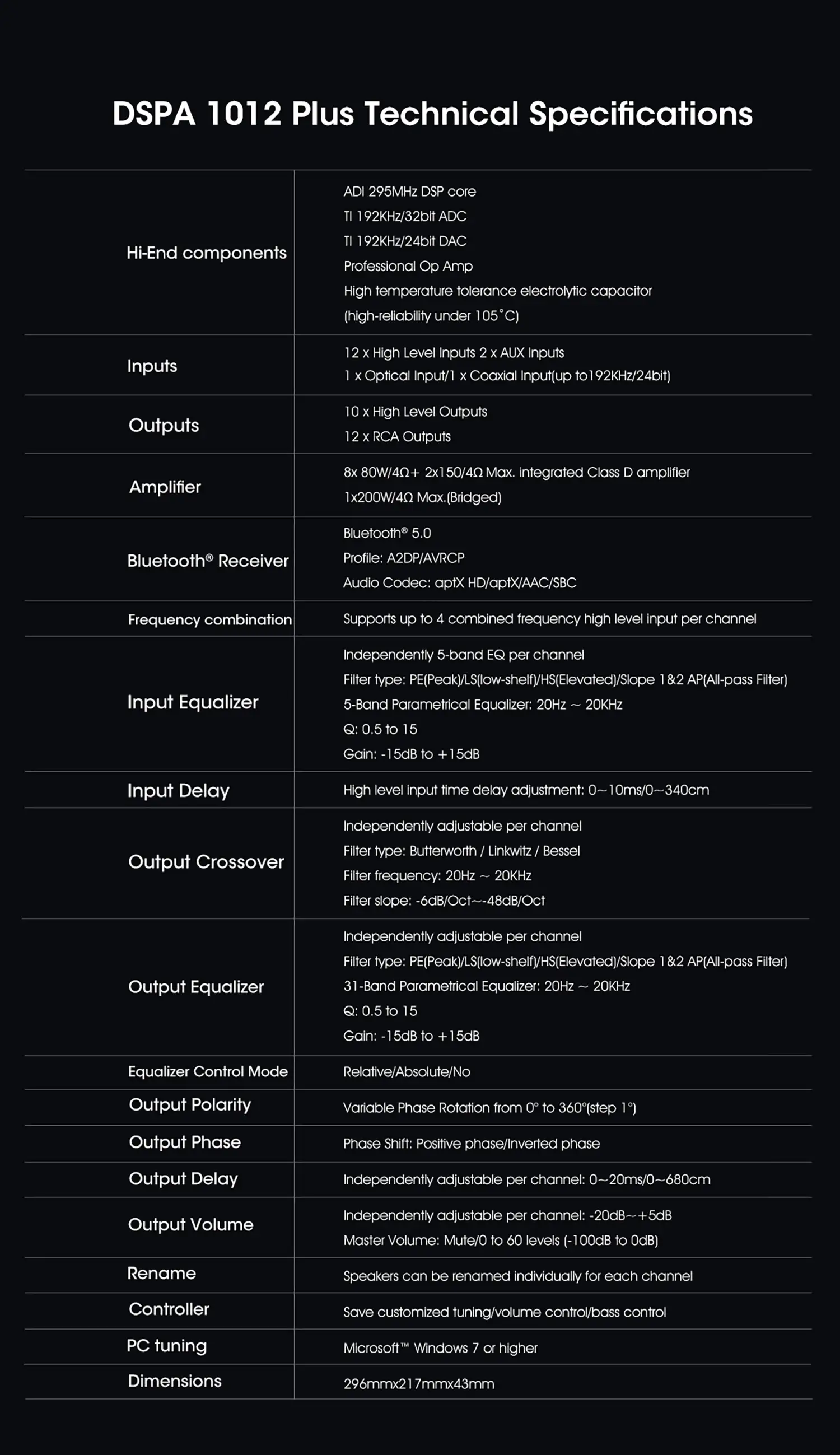

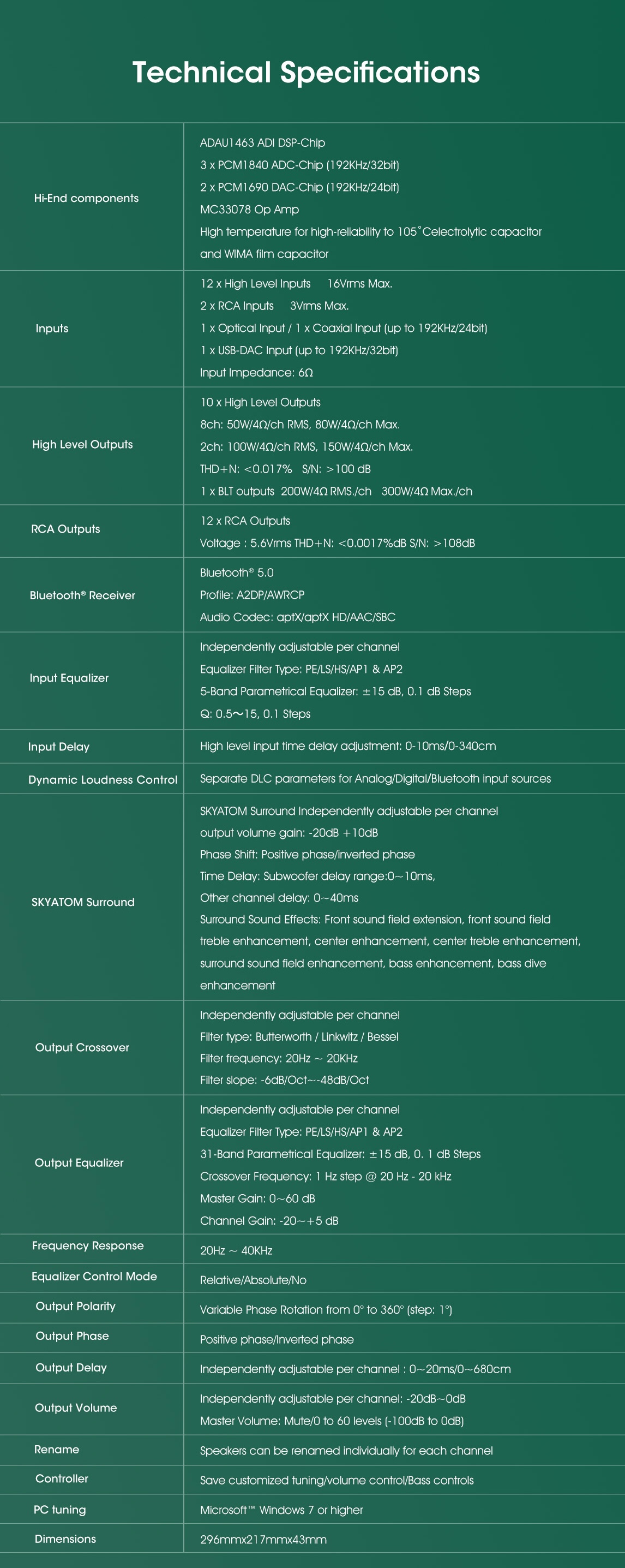

Hi-End Components

ADAU1463 ADI DSP-Chip 3 x PCM1 840 ADC-Chip (192KHz/32bit) 2 x PCM1 690 DAC-Chip (192KHz/24bit) MC33078 Op Amp High temperature for high-reliability to 105®Celectrolytic capacitor and WIMA film capacitor

Inputs

12 x High Level Inputs 16Vrms Max. 2 x RCA Inputs 3Vrms Max. 1 x Optical Input / 1 x Coaxial Input (up to 192KHz/24bit) 1 x USB-DAC Input (up to 192KHz/32bit) Input Impedance: 6Ω

High Level Outputs

10 x High Level Outputs 8ch: 50W/4Ω/ch RMS, 80W/4Ω/ch Max. 2ch: 100W/4Ω/ch RMS, 150W/4Ω/ch Max. THD+N: <0.017% S/N: > 100 dB 1 x BLT outputs 200W/4Ω RMS./ch 300W/4Ω Max./ch

RCA Outputs

12 x RCA Outputs Voltage: 5.6Vrms THD +N: <0.0017%dB S/N: > 108dB

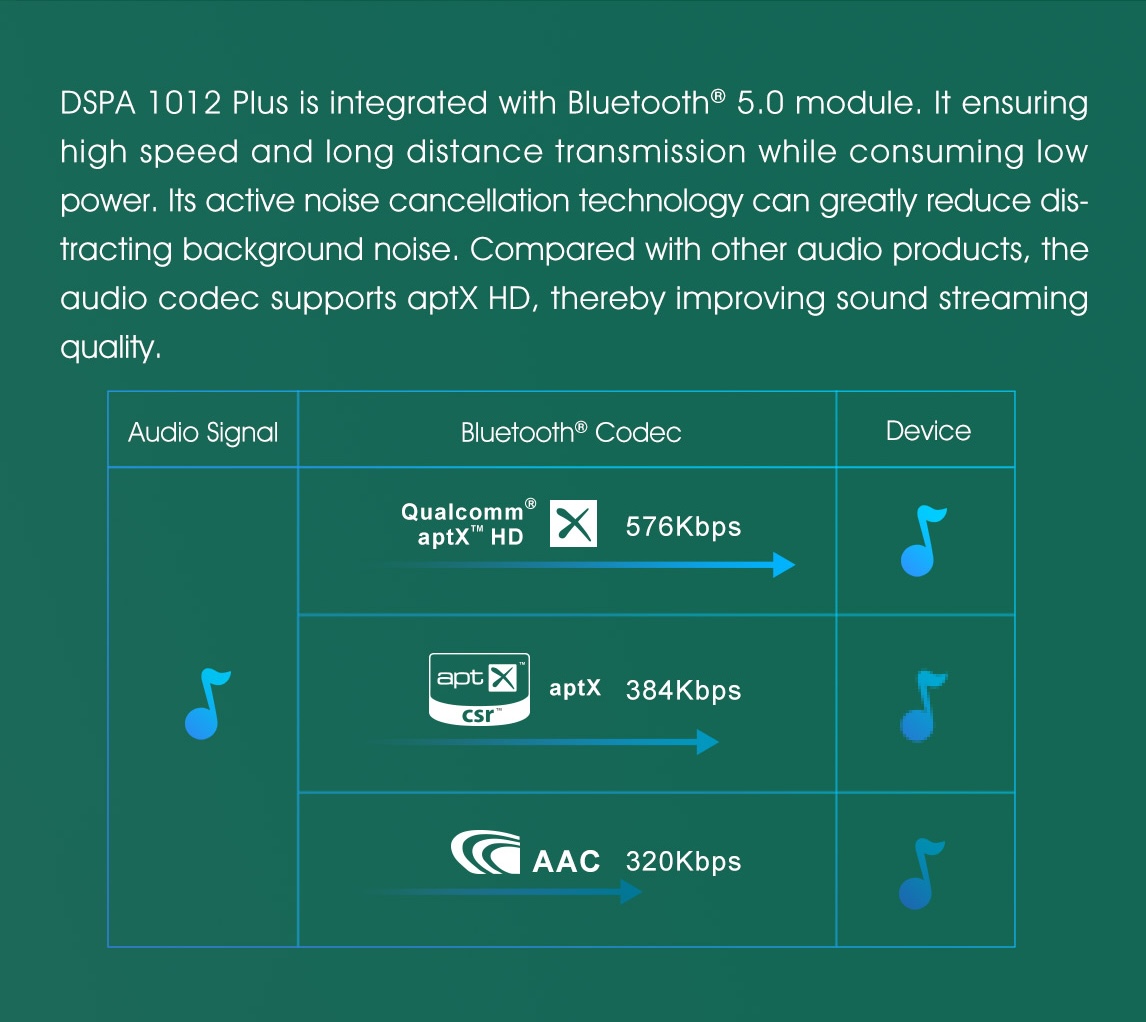

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AWRCP Audio Codec: aptX/aptX HD/AAC/SBC

Input Equalizer

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 5-Band Parametrical Equalizer: +/-15 dB, 0.1 dB Steps Q: 0.5~15, 0.1 Steps

Input Delay

High level input time delay adjustment: 0-10ms/0-340cm

Dynamic Loudness Control

Separate DLC parameters for Analog/Digital/Bluetooth input sources

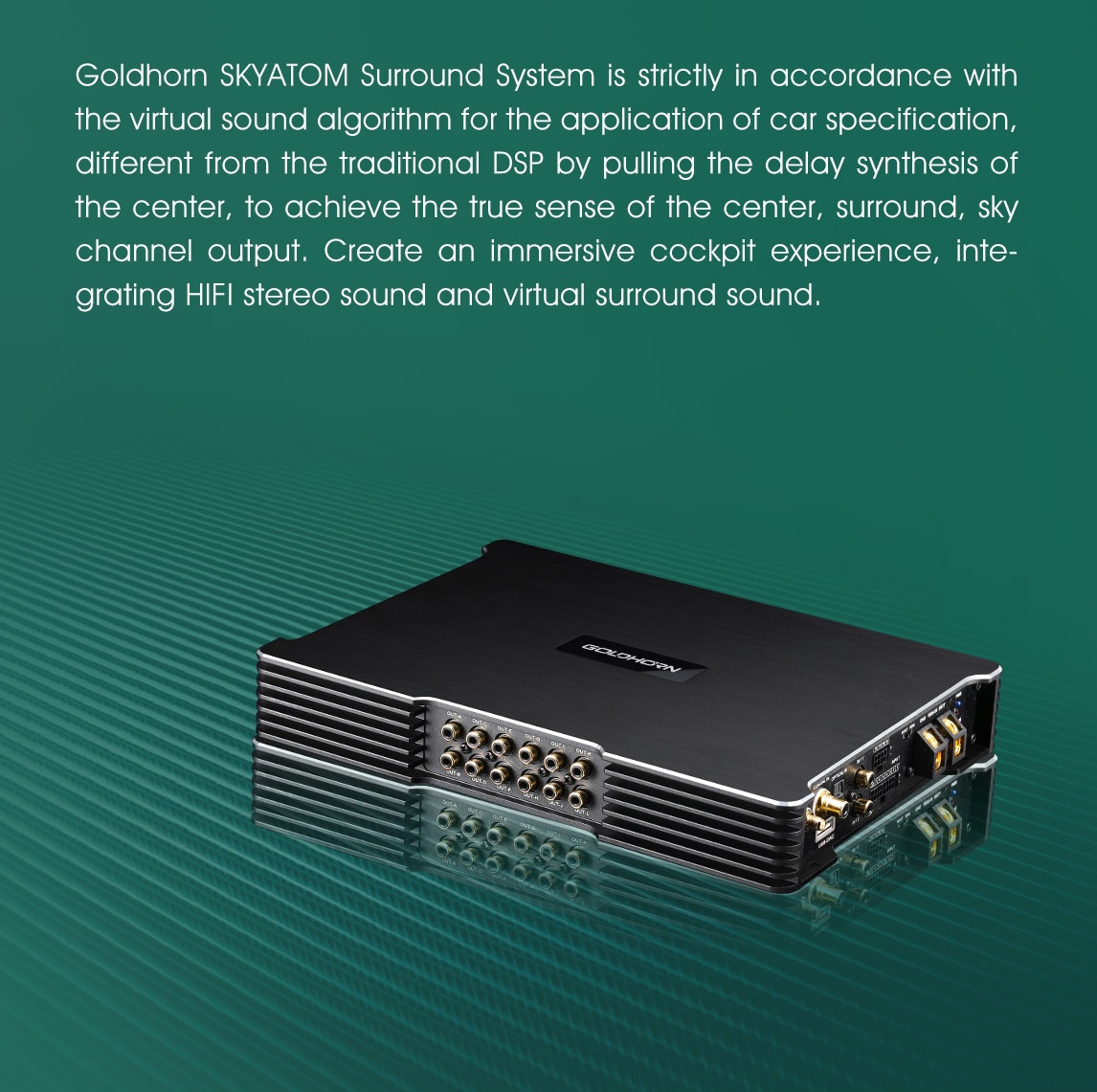

SKYATOM Surround

SKYATOM Surround Independently adjustable per channel output volume gain: -20dB + 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~ 10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, surround sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 31-Band Parametrical Equalizer: 15 dB, 0. 1 dB Steps Crossover Frequency: 1 Hz step @ 20 Hz - 20 kHz Master Gain: 0~60 dB Channel Gain: -20 ~ +5 dB
