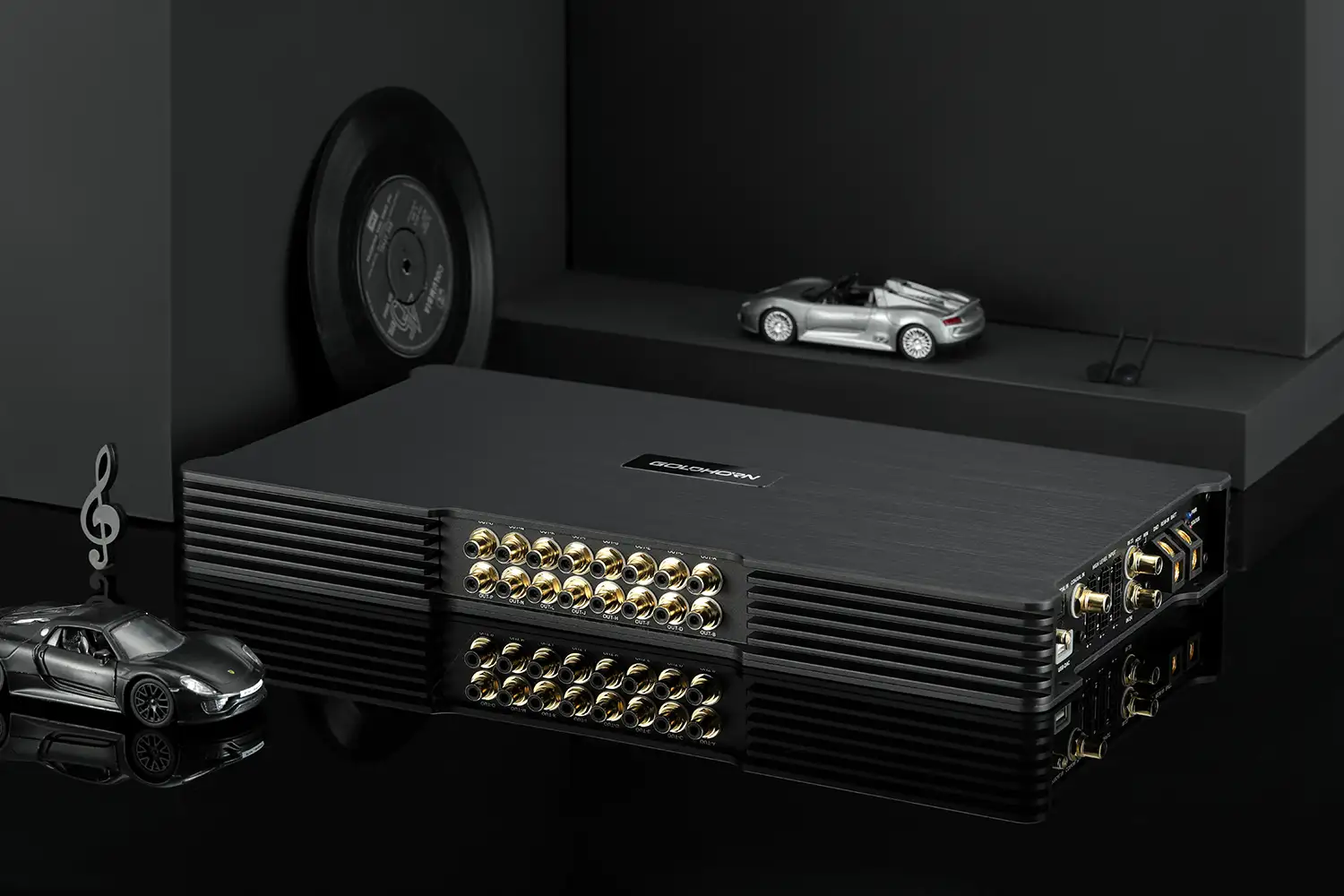

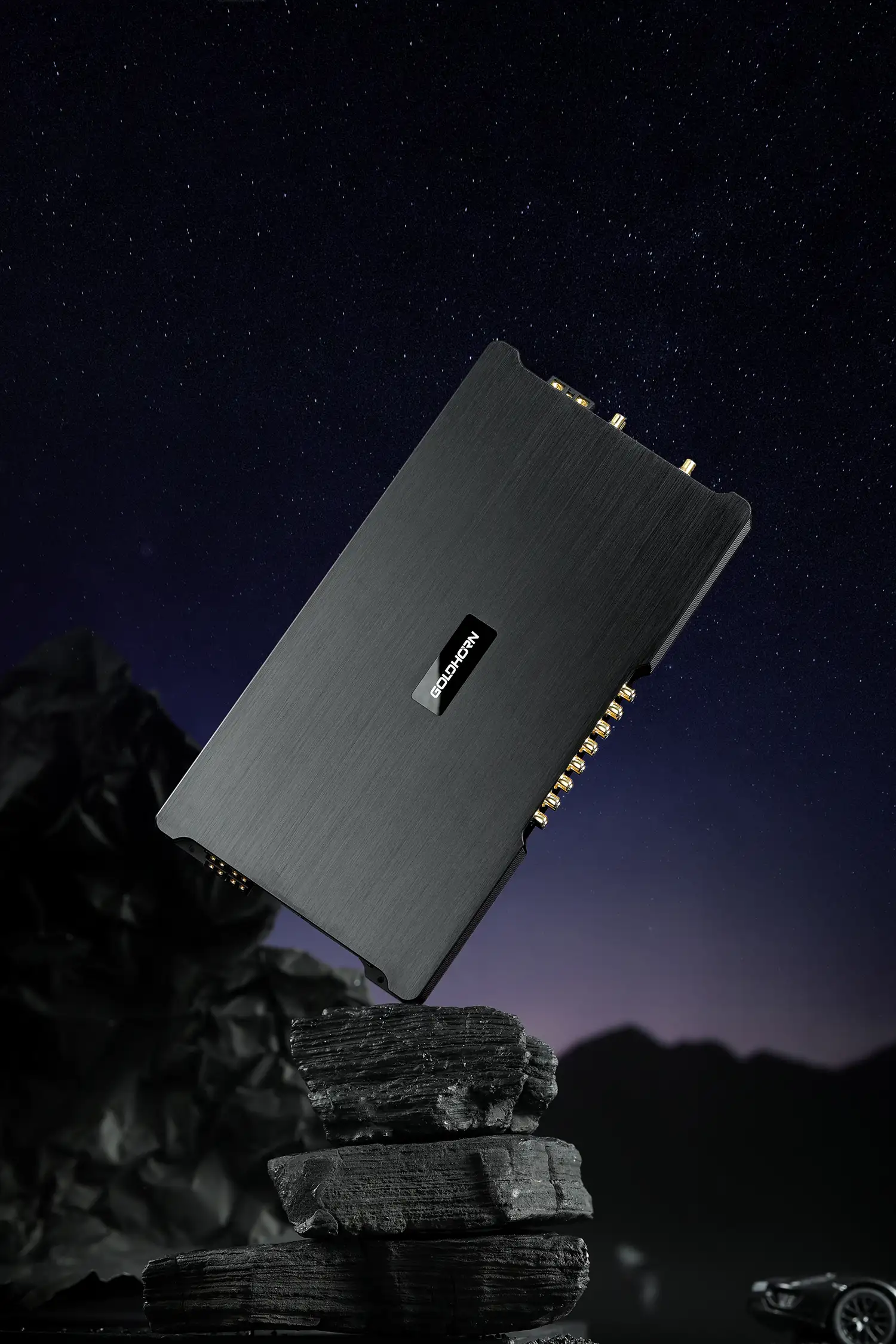

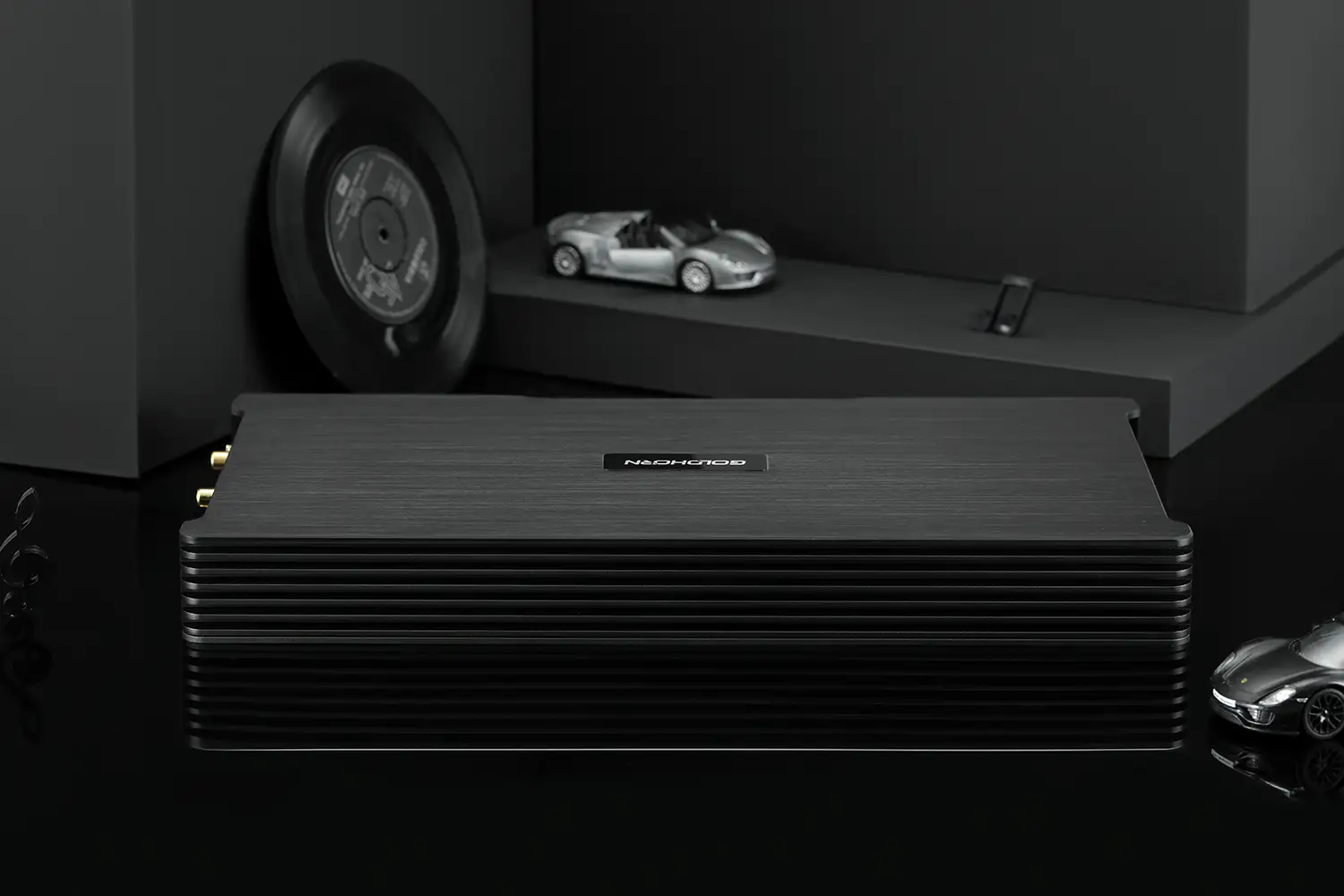

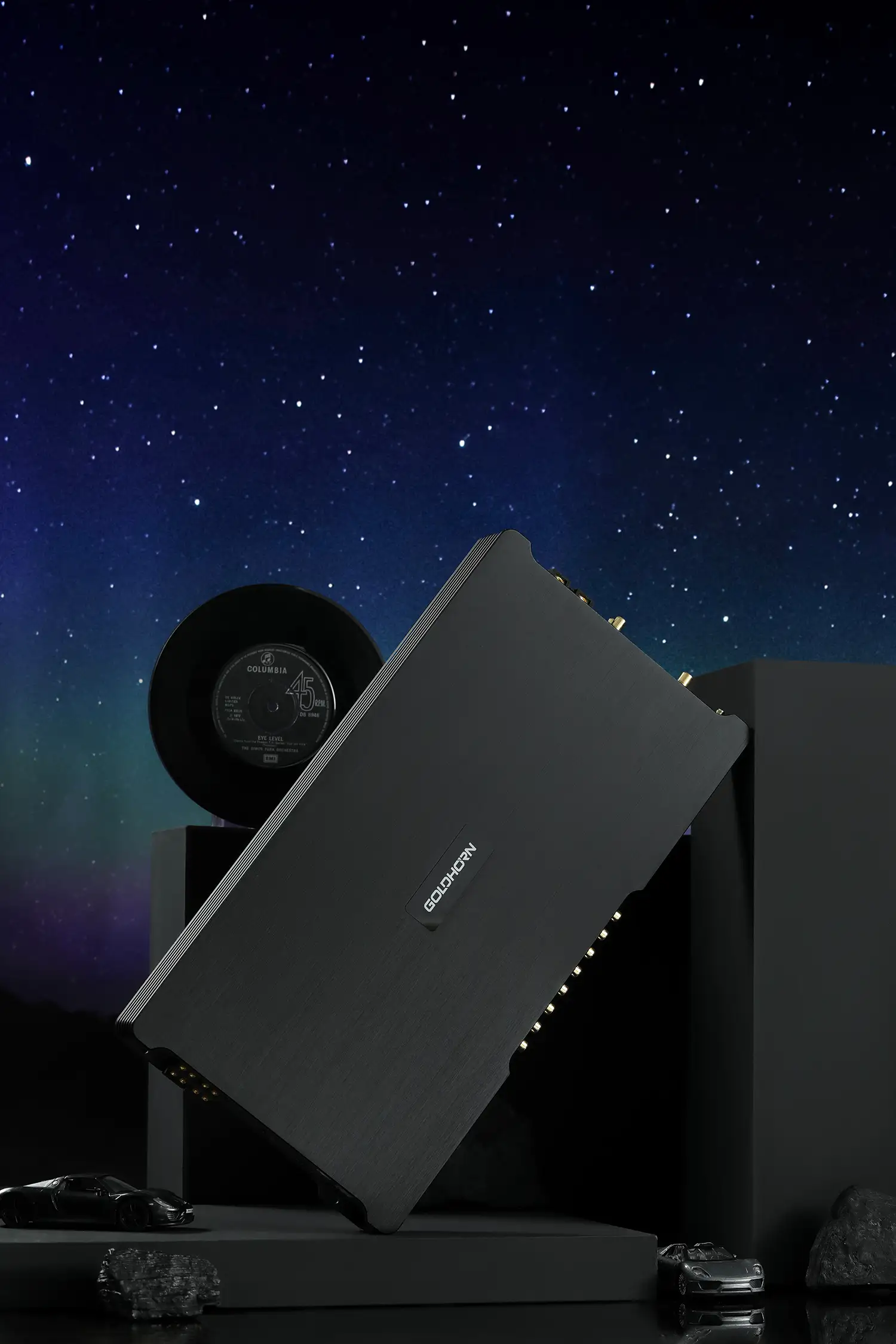

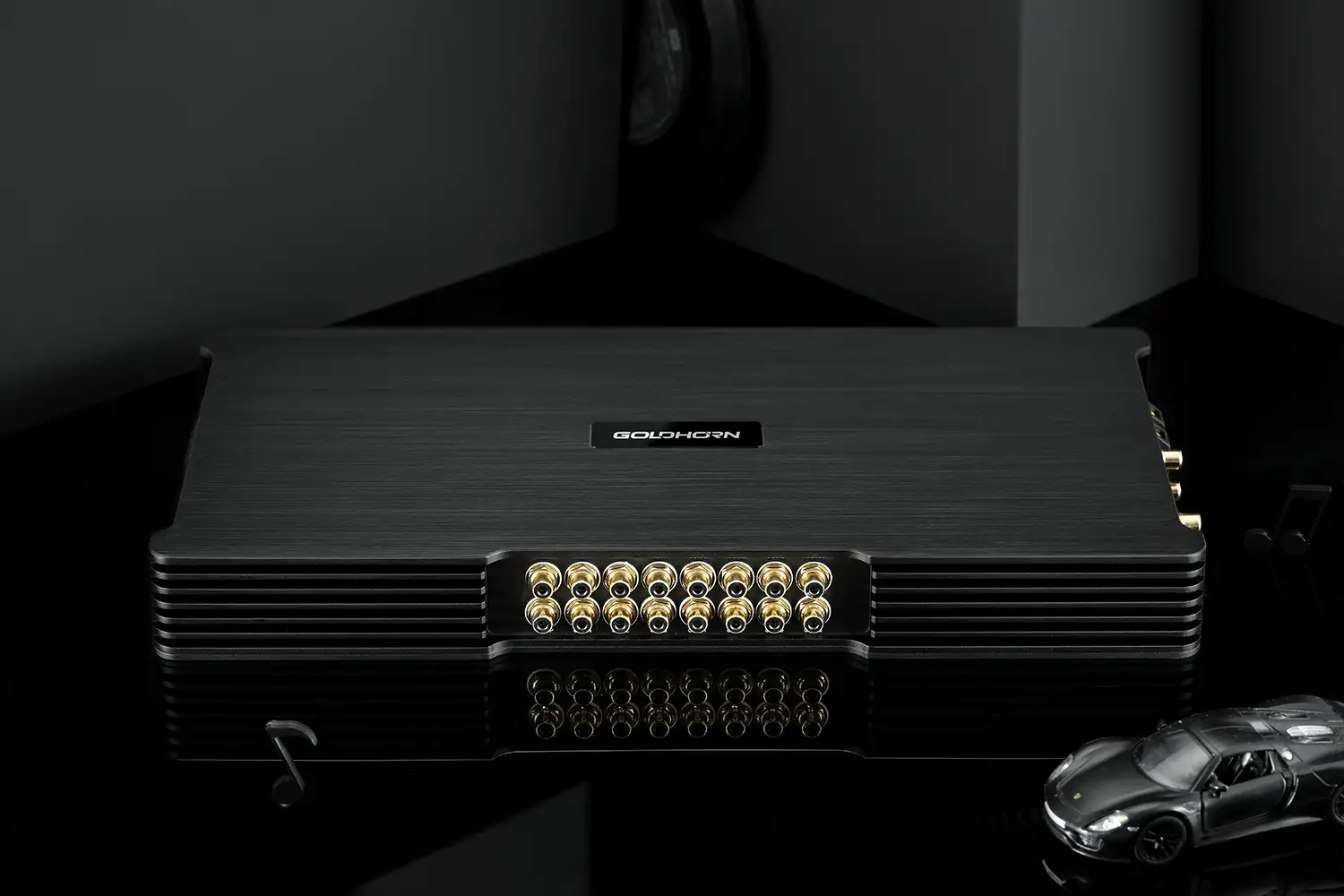

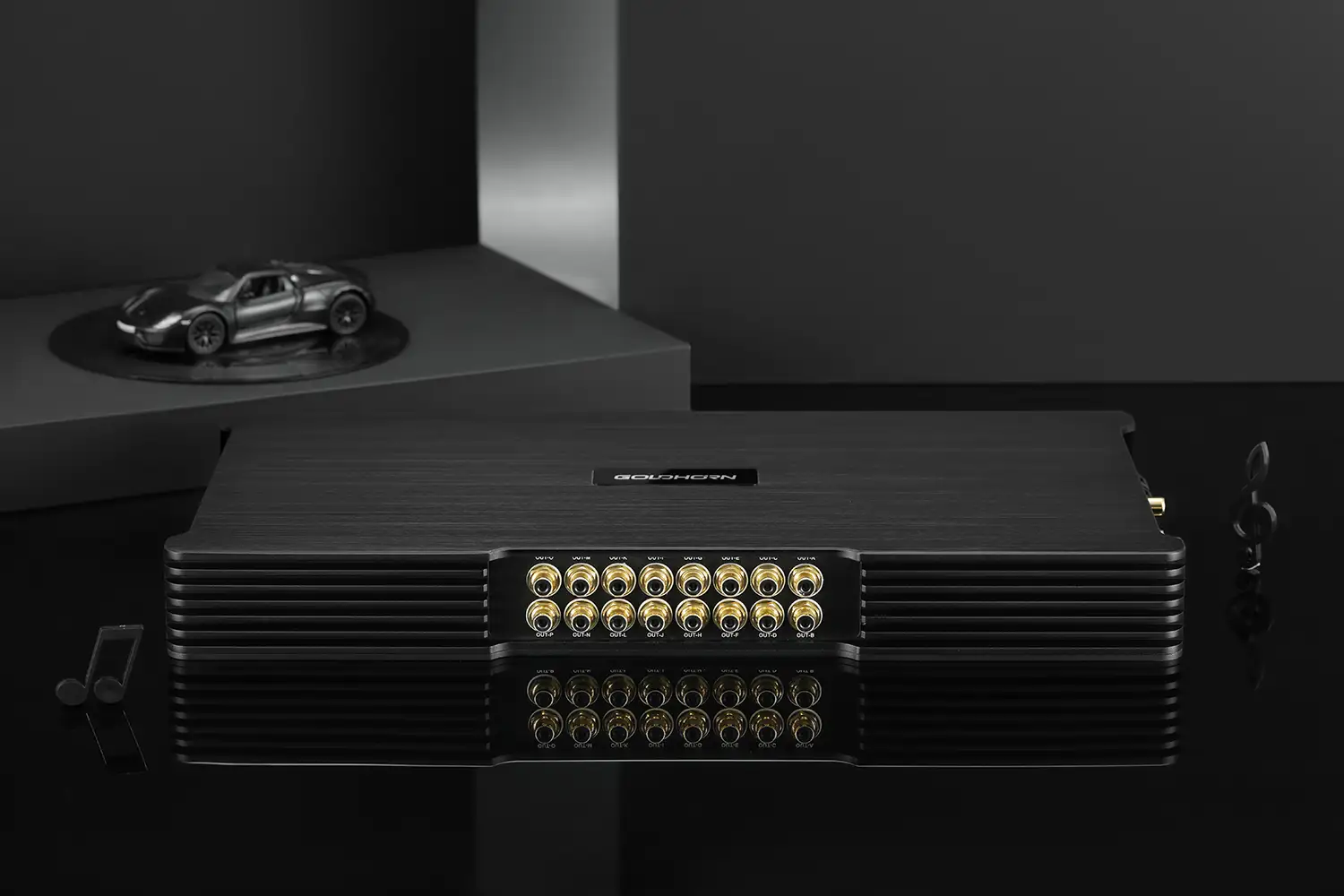

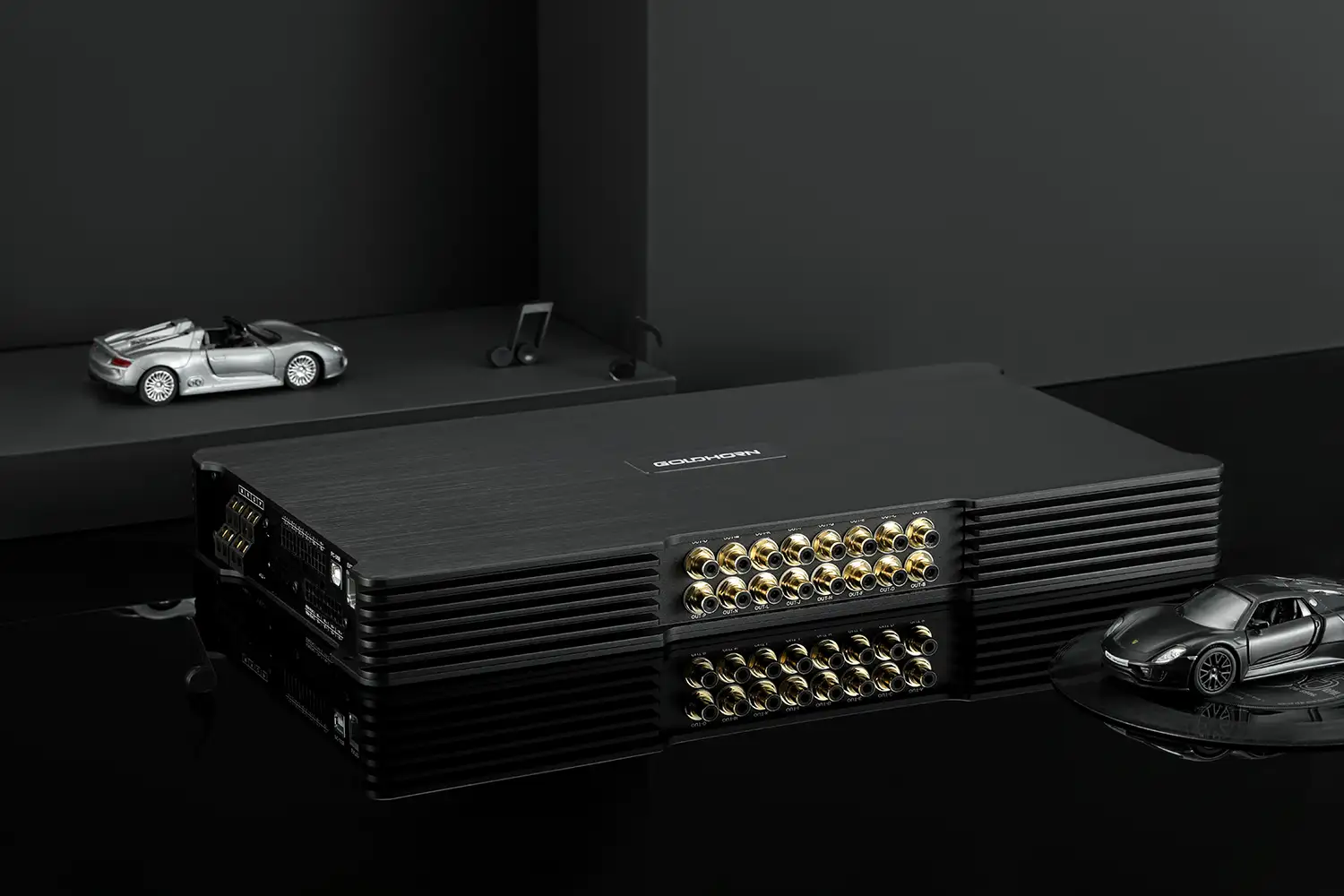

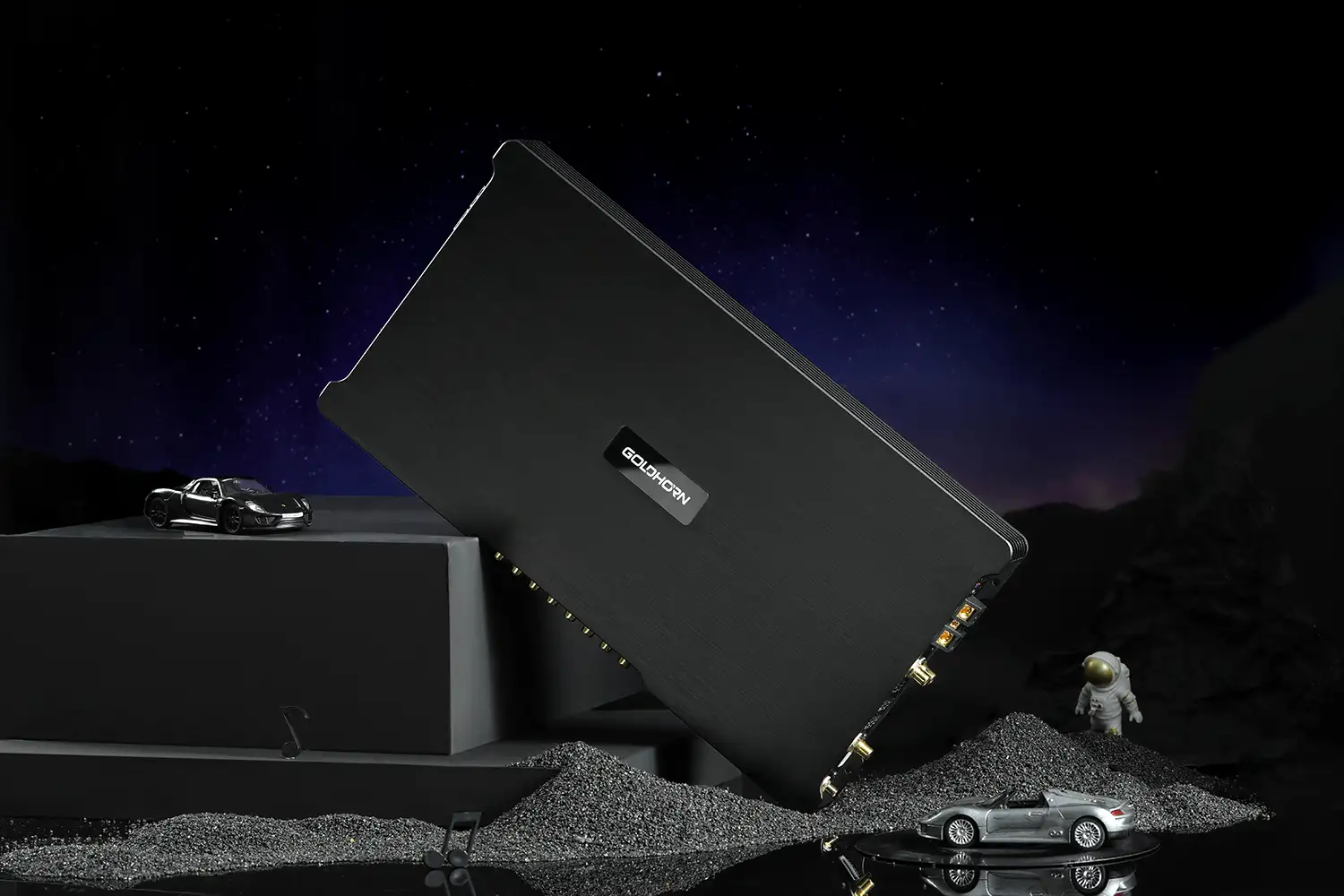

DSPA 2416 Ultra

24-Channel Advanced Amplifier with Built-in 36-Channel DSP

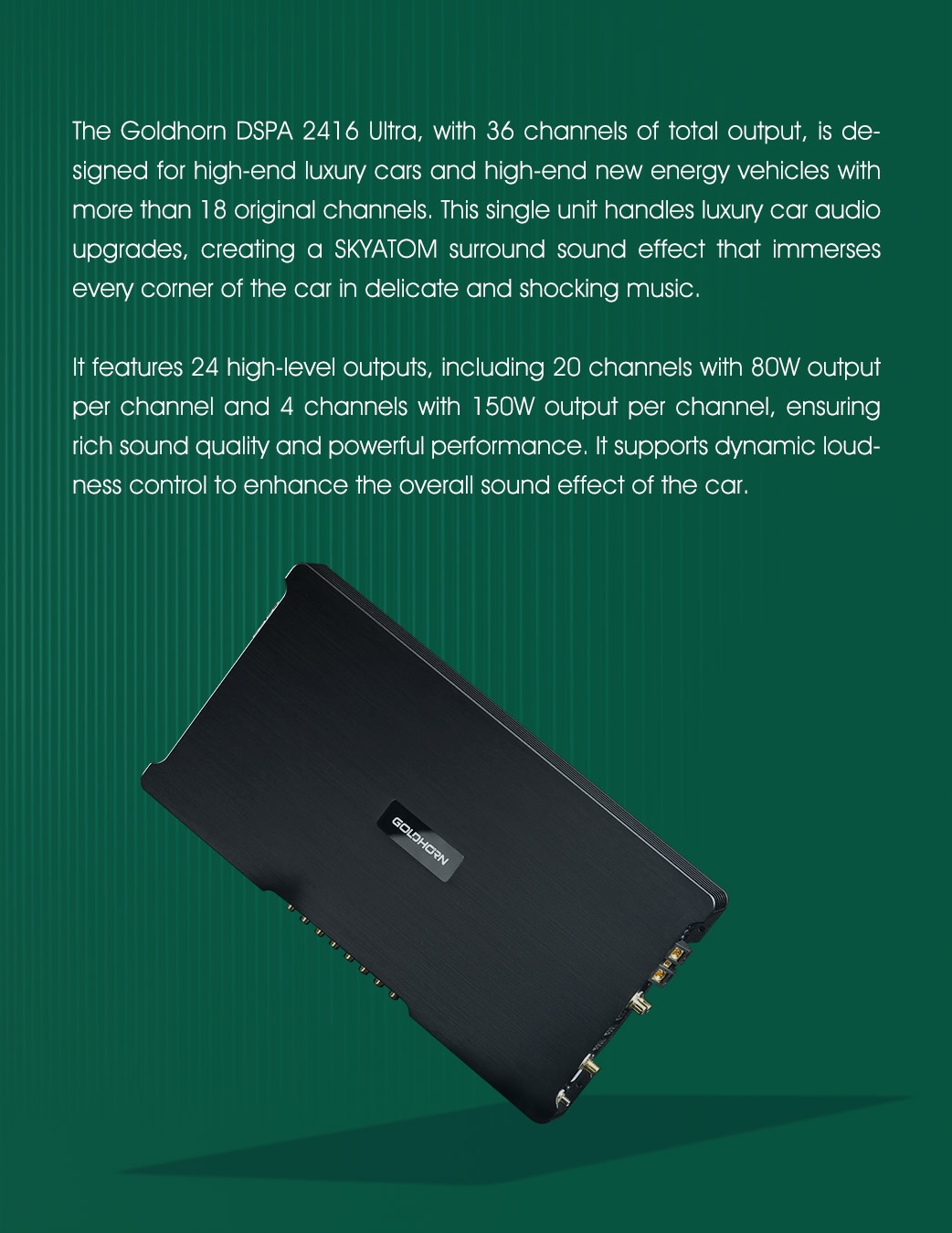

The Goldhorn DSPA 2416 Ultra, with 36 channels of total output, is designed for high-end luxury cars and high-end new energy vehicles with more than 18 original channels. This single unit handles luxury car audio upgrades, creating a SKYATOM surround sound effect that immerses every corner of the car in delicate and shocking music.

It features 24 high-level outputs, including 20 channels with 80W output per channel and 4 channels with 150W output per channel, ensuring rich sound quality and powerful performance. It supports Goldhorn dynamic loudness control to enhance the overall sound effect of the car.

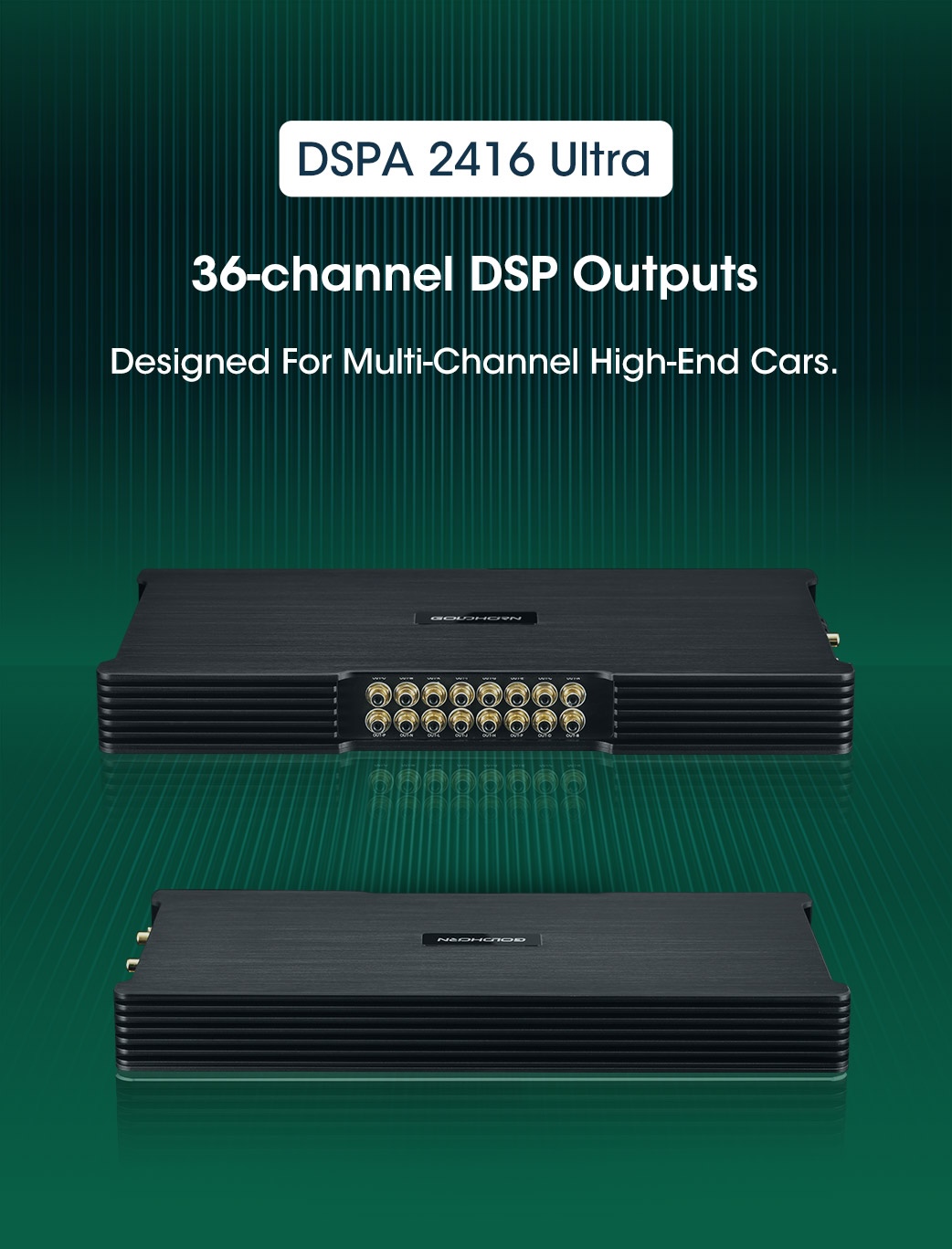

36-channel DSP outputs
20x80W/4Ω+4x150W/4Ω Max
Designed for multi-channel high-end car
24 x High level inputs 2 x RCA inputs
24 x High level outputs 16 x RCA outputs

Qualcomm aptX HD

2 x ADAU1 463 ADI DSP-Chip

3 x AK5558 ADC-Chip (768KHz/32bit)

2 x AK4458 DAC-Chip (768KHz/32bit)

Find A Dealer

View Specs

No items found.

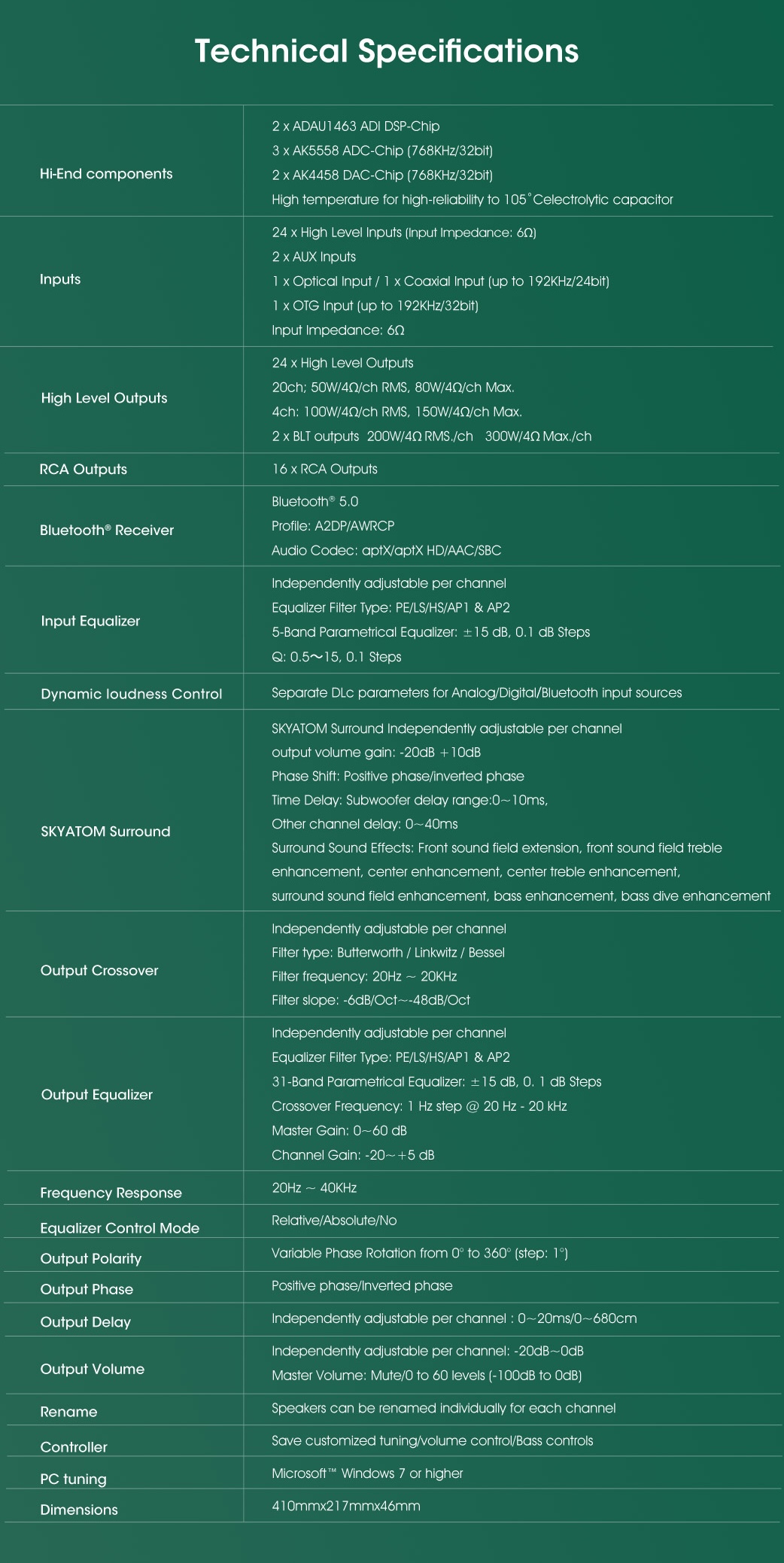

Hi-End Components

2 x ADAU1463 ADI DSP-Chip 3 x AK5558 ADC-Chip (768KHz/32bit) 2 x AK4458 DAC-Chip (768KHz/32bit) High temperature for high-reliability to 105° Celectrolytic capacitor and WIMA film capacitor

Inputs

24 x High Level Inputs (Input Impedance: 6Ω) 2 x AUX Inputs 1 x Optical Input / 1 x Coaxial Input (up to 192KHz/24bit) 1 x OTG Input (up to 192KHz/32bit) Input Impedance: 6Ω

High Level Outputs

24 x High Level Outputs 20ch: 50W/4Ω/ch RMS, 80W/4Ω/ch Max. 4ch: 100W/4Ω/ch RMS, 150W/4Ω/ch Max. 2 x BLT outputs 200W/4Ω/ RMS./ch 300W/4Ω/ Max./ch THD+N: <0.017% S/N: > 100 dB 2 x BLT outputs 200W/4Ω RMS./ch 300W/4Ω Max./ch

RCA Outputs

16 x RCA Outputs

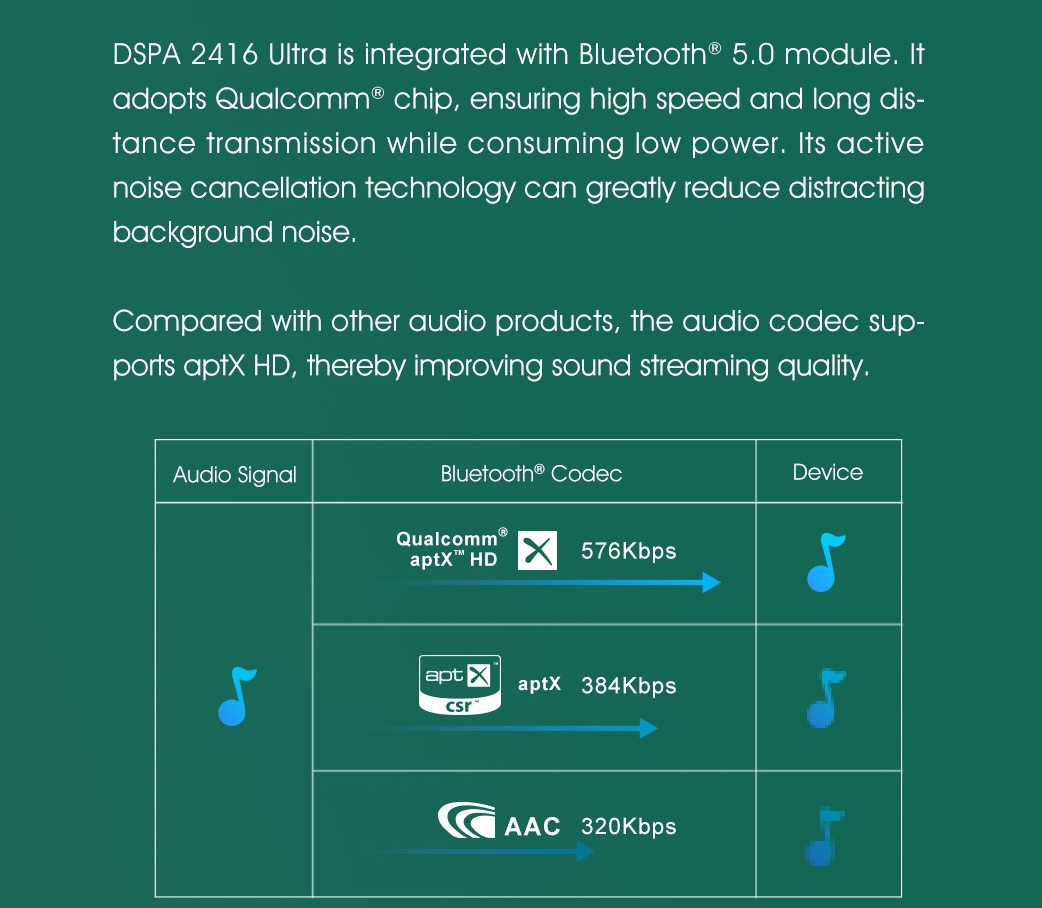

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AWRCP Audio Codec: aptX/aptX HD/AAC/SBC

Input Equalizer

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 5-Band Parametrical Equalizer: +/-15 dB, 0.1 dB Steps Q: 0.5~15, 0.1 Steps

Dynamic Loudness Control

Separate DLC parameters for Analog/Digital/Bluetooth input sources

SKYATOM Surround

SKYATOM Surround Independently adjustable per channel output volume gain: -20dB + 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~ 10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, surround sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 31-Band Parametrical Equalizer: 15 dB, 0. 1 dB Steps Crossover Frequency: 1 Hz step @ 20 Hz - 20 kHz Master Gain: 0~60 dB Channel Gain: -20 ~ +5 dB
