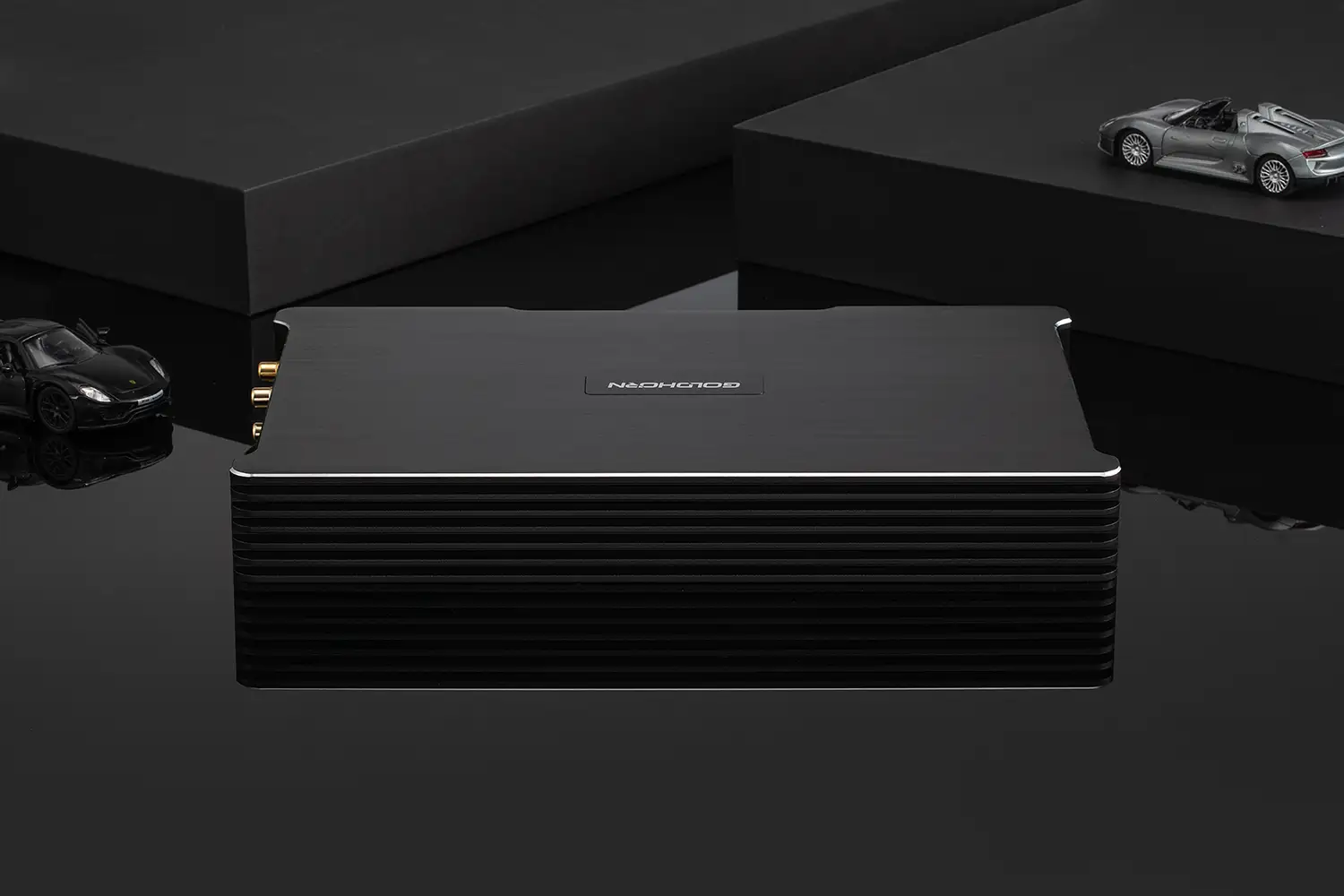

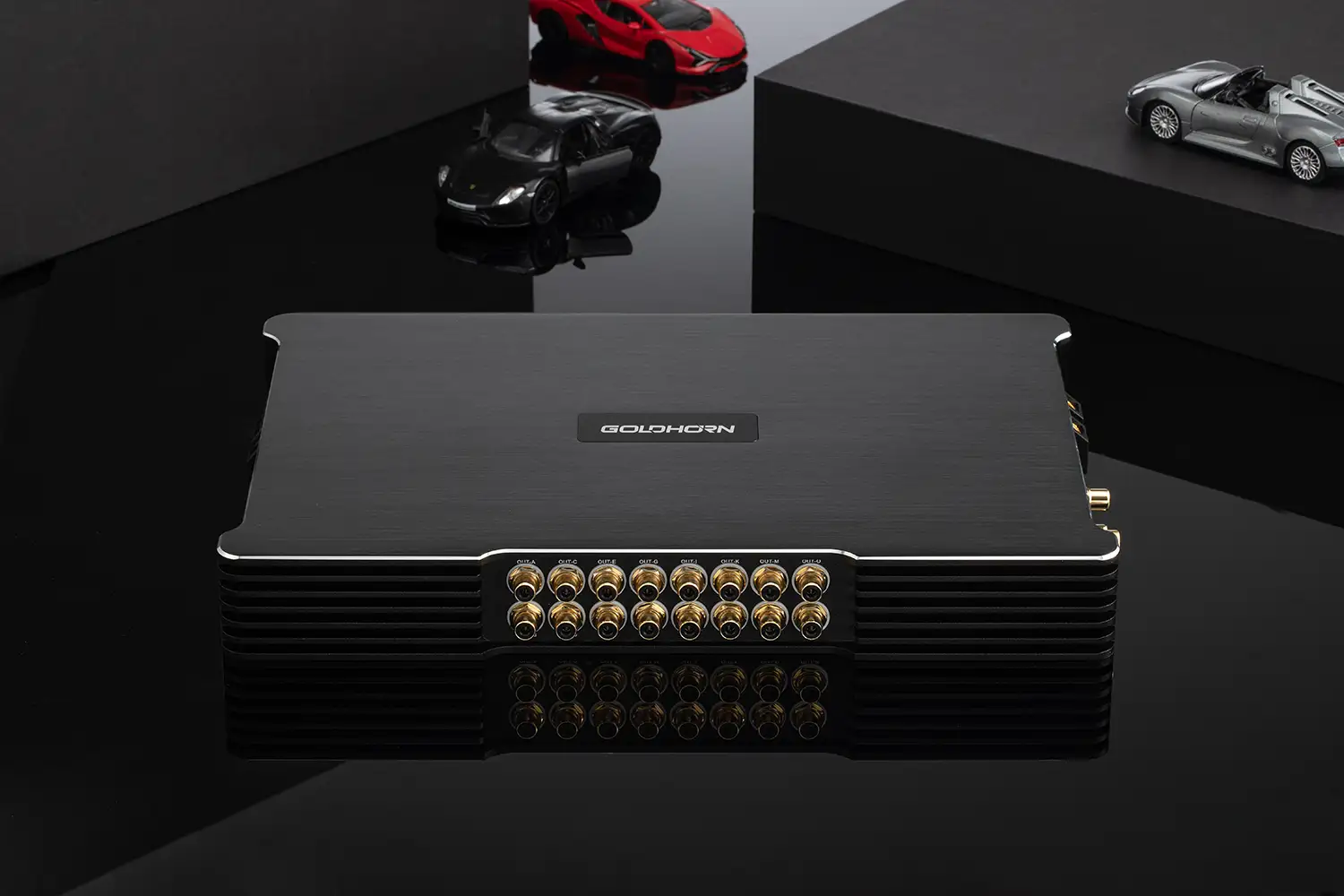

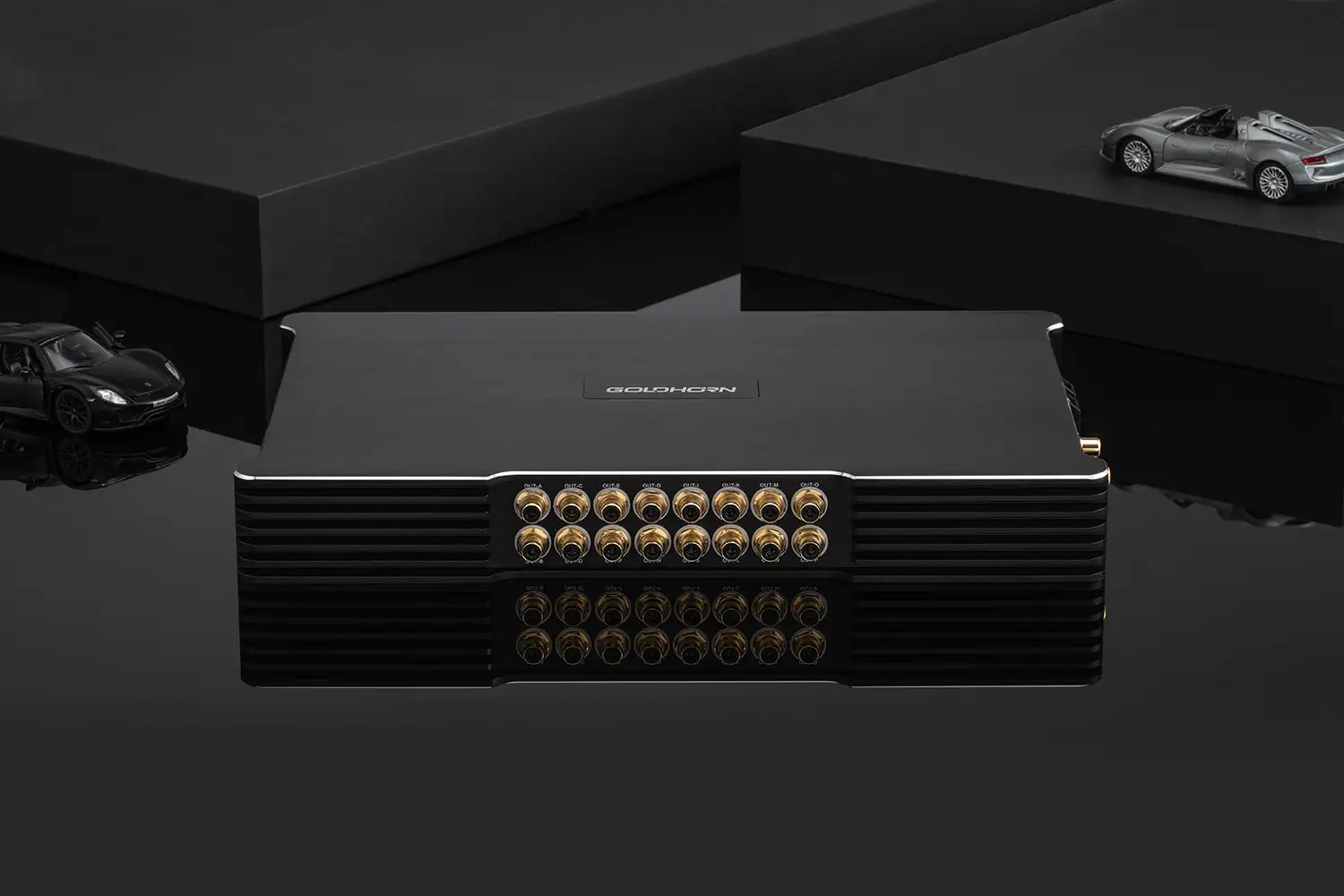

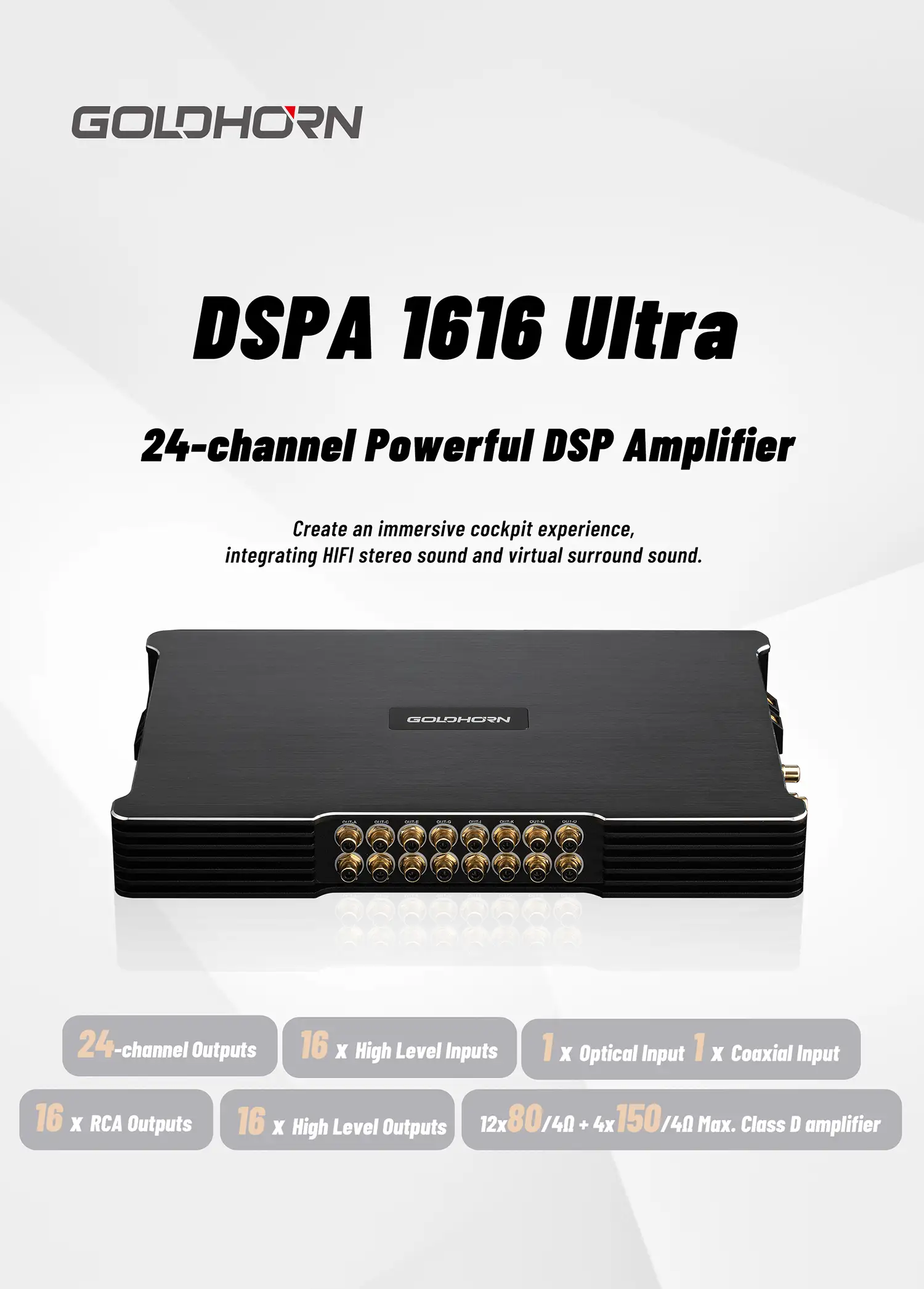

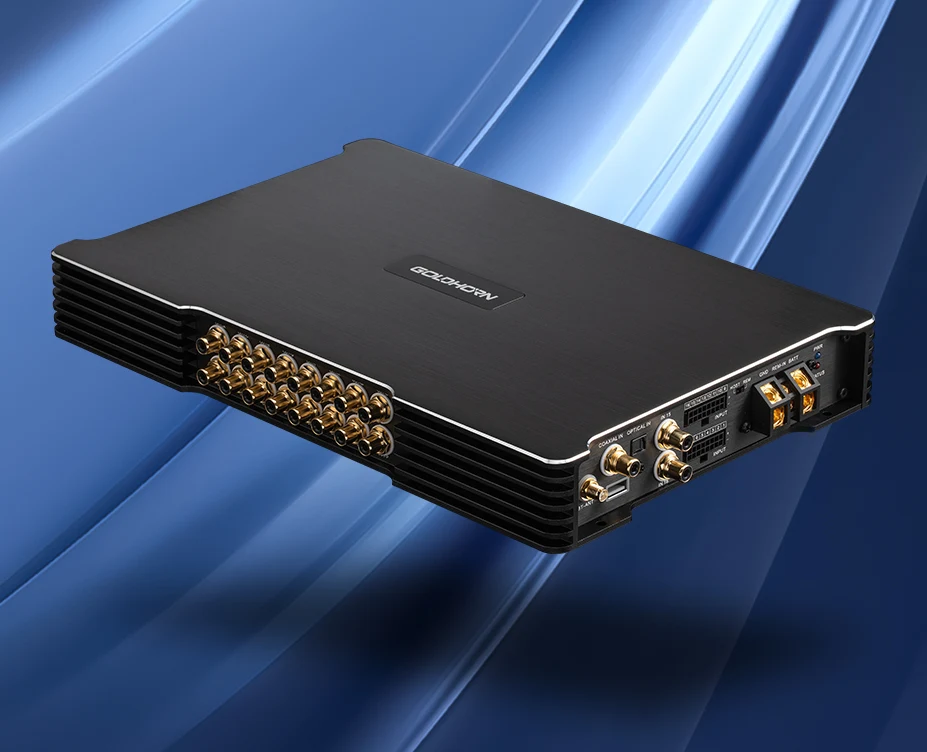

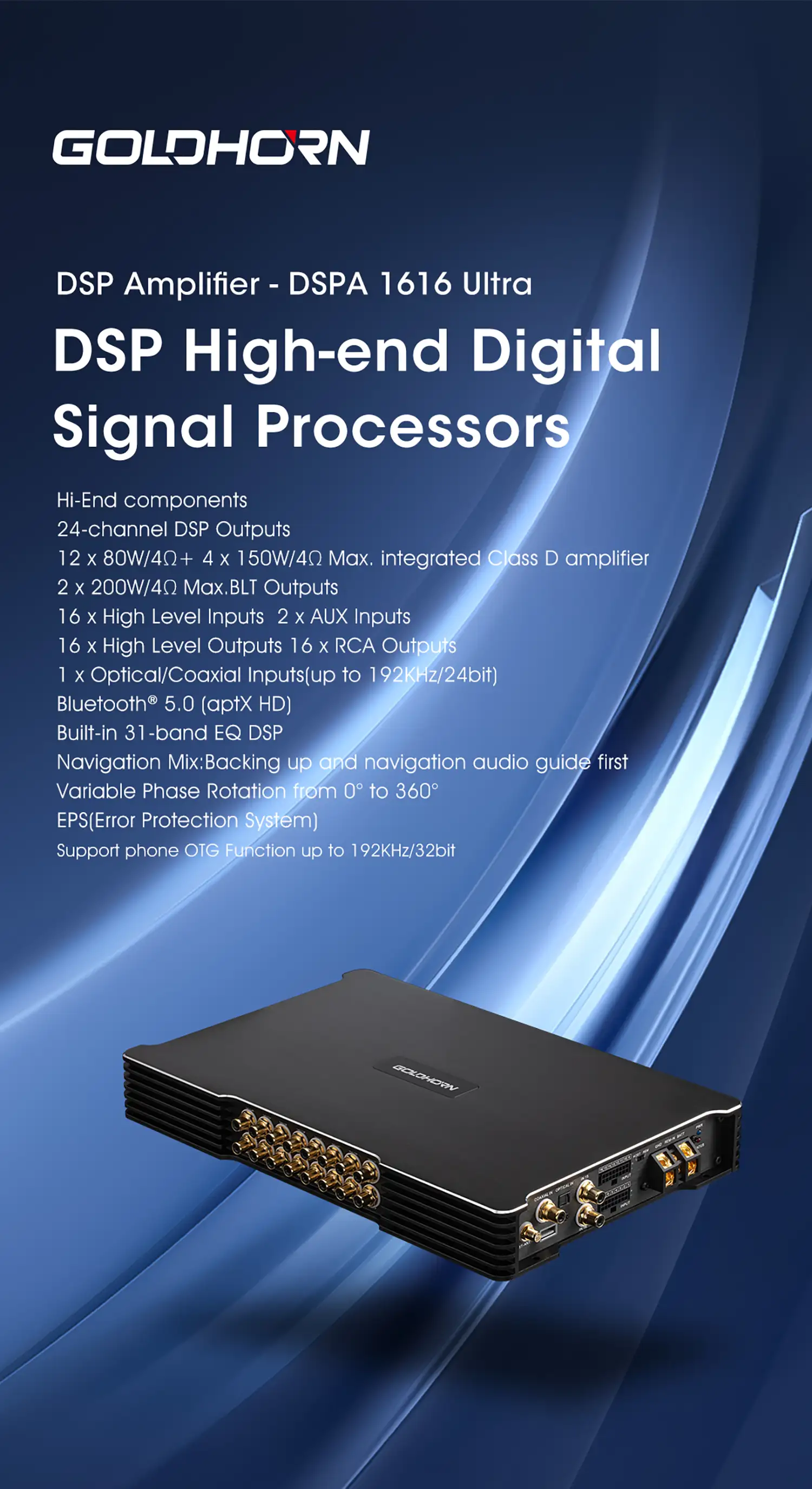

DSPA 1616 Ultra

16-Channel Advanced Amplifier with Built-in 24-Channel DSP

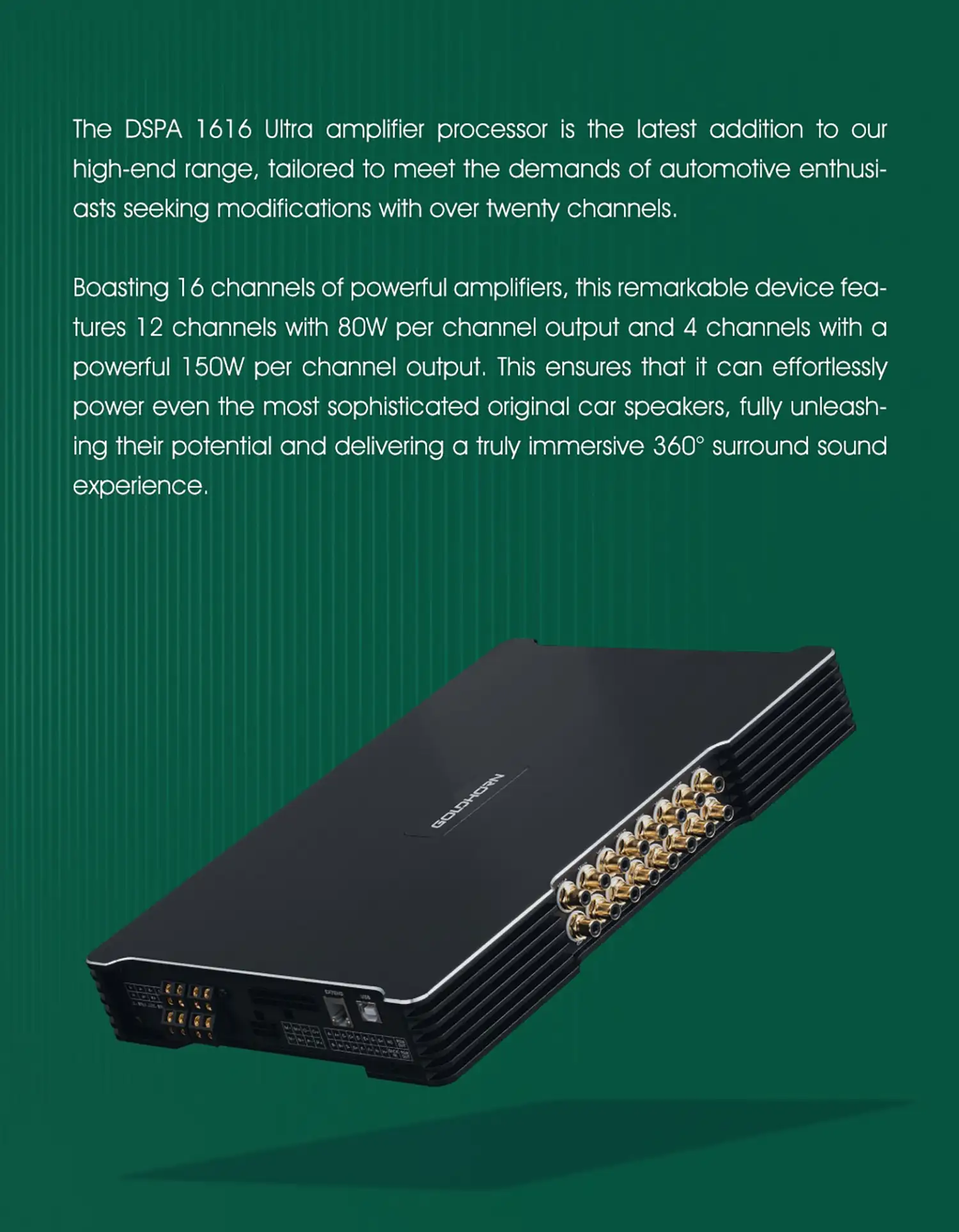

The Goldhorn DSPA 1616 Ultra amplifier processor is the latest addition to our high-end range, tailored to meet the demands of automotive enthusiasts seeking modifications with over twenty channels.

Boasting 16 channels of digital amplifiers, this remarkable device features 12 channels with 80W per channel output and 4 channels with a powerful 150W per channel output. This ensures that it can effortlessly power even the most sophisticated original car speakers, fully unleashing their potential and delivering a truly immersive 360° surround sound experience.

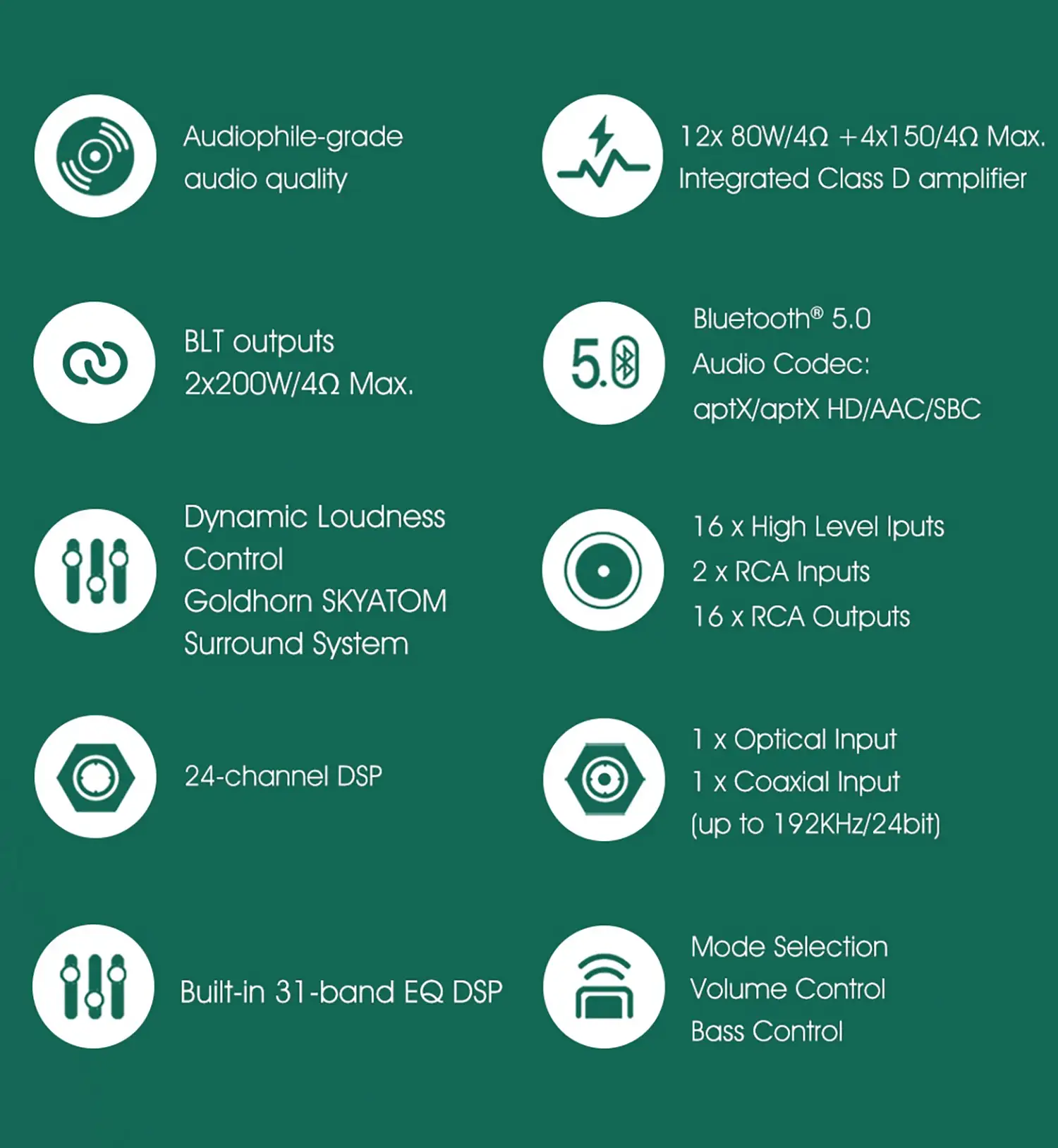

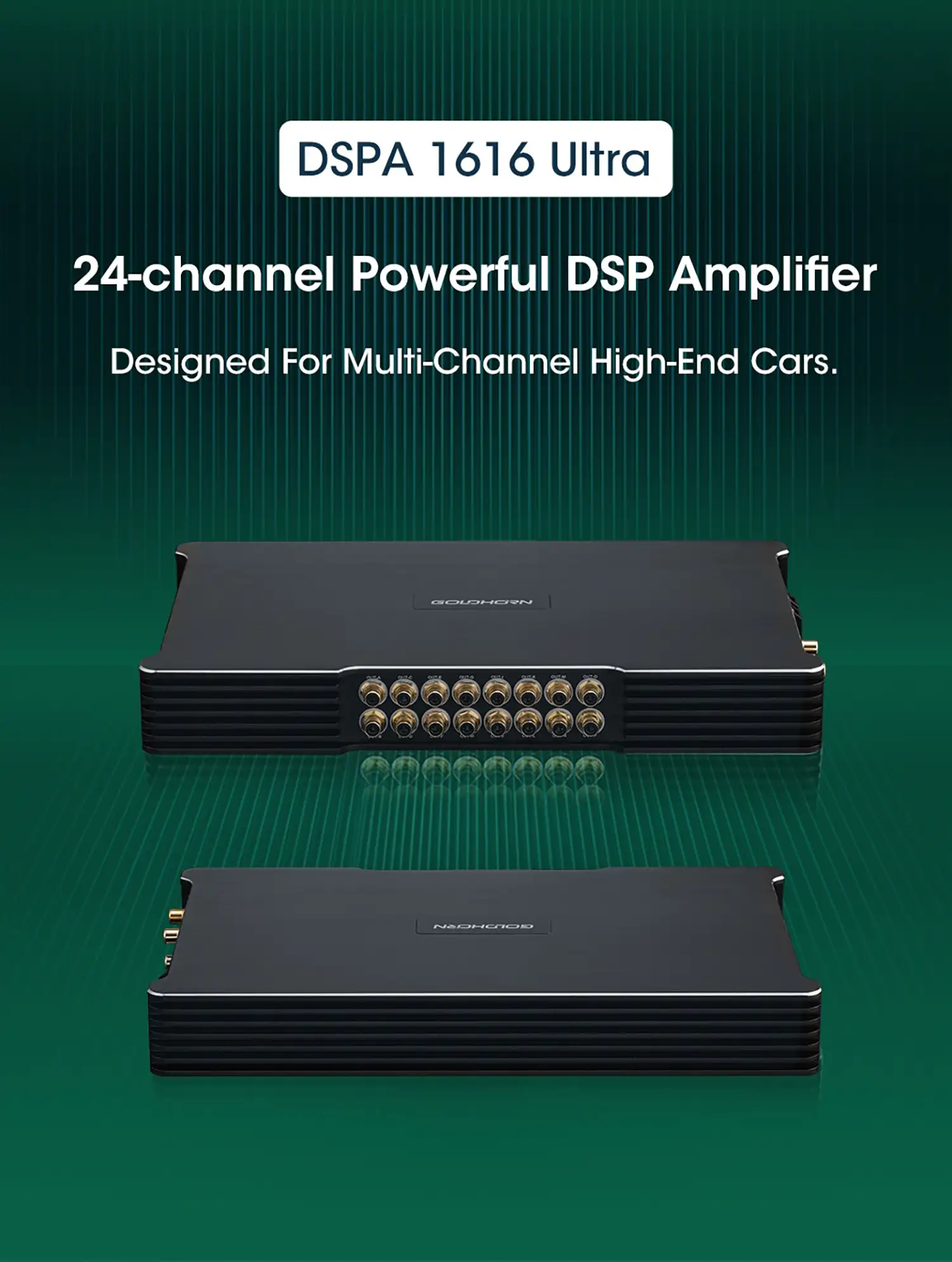

24-channel DSP outputs
12x80W/4Ω+4x150W/4Ω Max
Designed for multi-channel high-end car
16xHigh level inputs 2 x RCA inputs
16xHigh level outputs 16xRCA outputs

Qualcomm aptX HD

ADAU1463 ADI DSP-Chip

4 x PCM1840 ADC-Chip (192KHz/32bit)

2 x AK4458VN DAC-Chip (768KHz/32bit)

MC33078 Op Amp

Find A Dealer

View Specs

No items found.

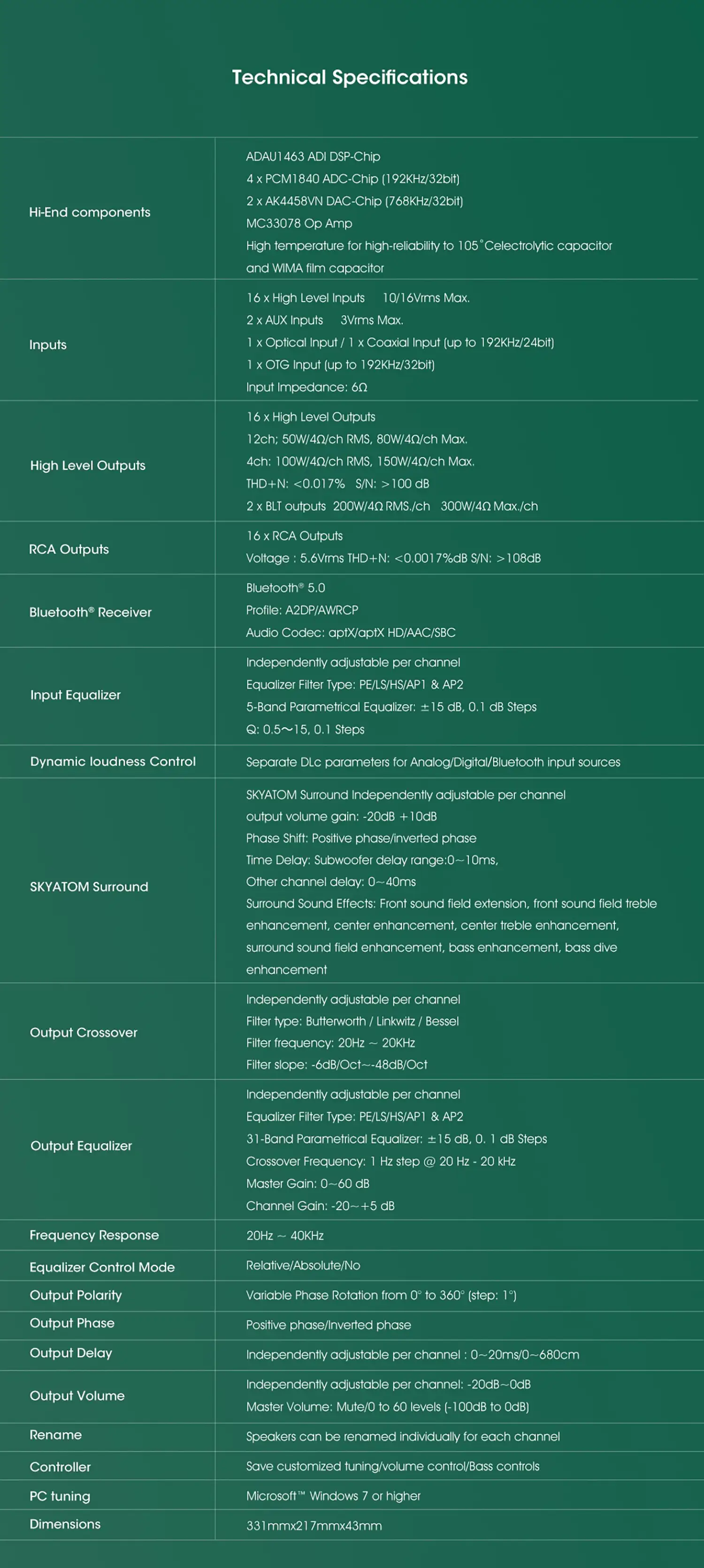

Hi-End Components

ADAU1463 ADI DSP-Chip 4 x PCM1840 ADC-Chip (192KHz/32bit) 2 x AK4458VN DAC-Chip (768KHz/32bit) MC33078 Op Amp High temperature for high-reliability to 105° Celectrolytic capacitor and WIMA film capacitor

Inputs

16 x High Level Inputs 10/16Vrms Max. 2 x RCA Inputs 3Vrms Max. 1 x Optical Input / 1 x Coaxial Input (up to 192KHz/24bit) 1 x OTG Input (up to 192KHz/32bit) Input Impedance: 6Ω

High Level Outputs

16 x High Level Outputs 12ch: 50W/4Ω/ch RMS, 80W/4Ω/ch Max. 4ch: 100W/4Ω/ch RMS, 150W/4Ω/ch Max. THD+N: <0.017% S/N: > 100 dB 2 x BLT outputs 200W/4Ω RMS./ch 300W/4Ω Max./ch

RCA Outputs

16 x RCA Outputs Voltage: 5.6Vrms THD +N: <0.0017%dB S/N: > 108dB

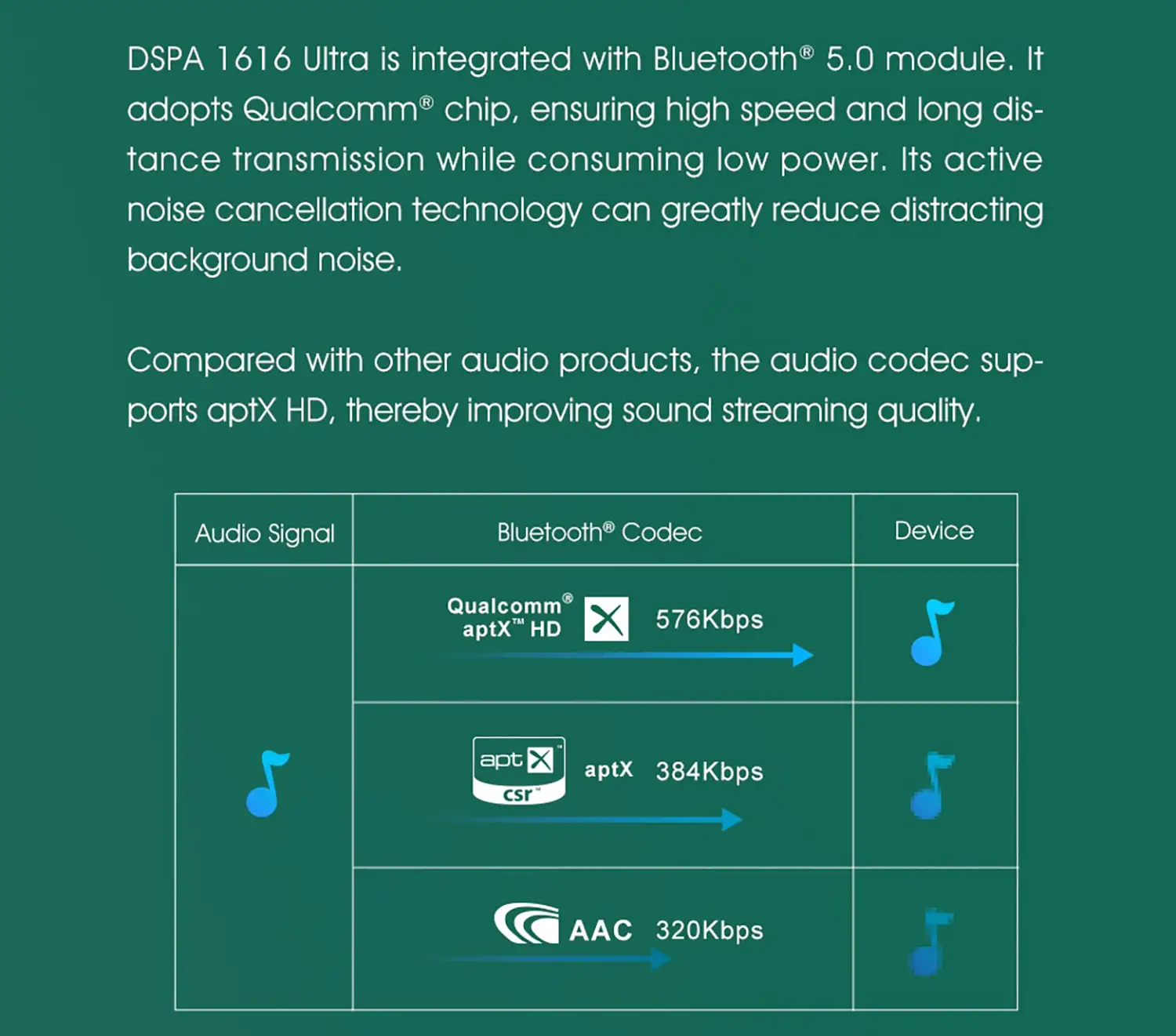

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AWRCP Audio Codec: aptX/aptX HD/AAC/SBC

Input Equalizer

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 5-Band Parametrical Equalizer: +/-15 dB, 0.1 dB Steps Q: 0.5~15, 0.1 Steps

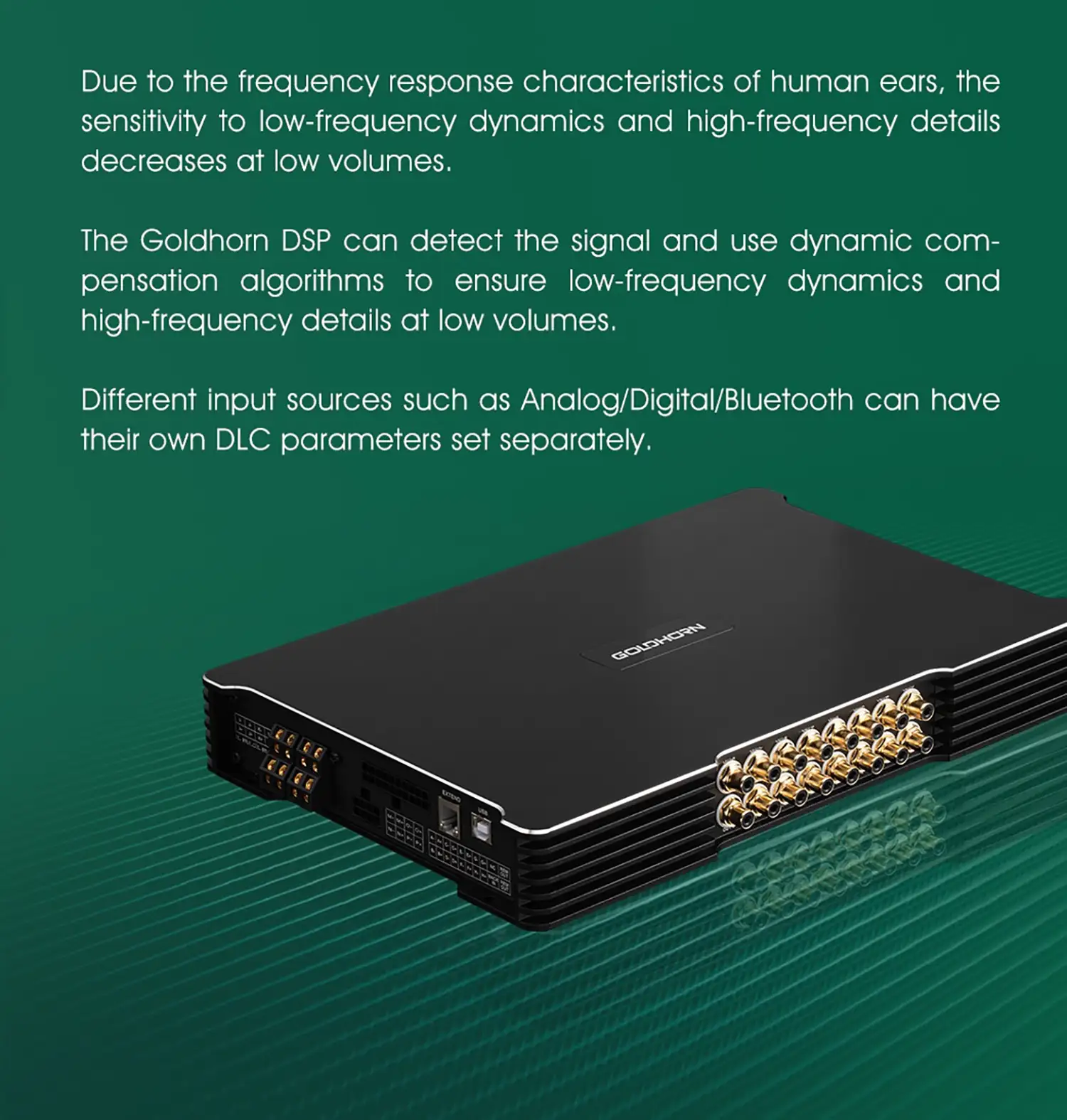

Dynamic Loudness Control

Separate DLC parameters for Analog/Digital/Bluetooth input sources

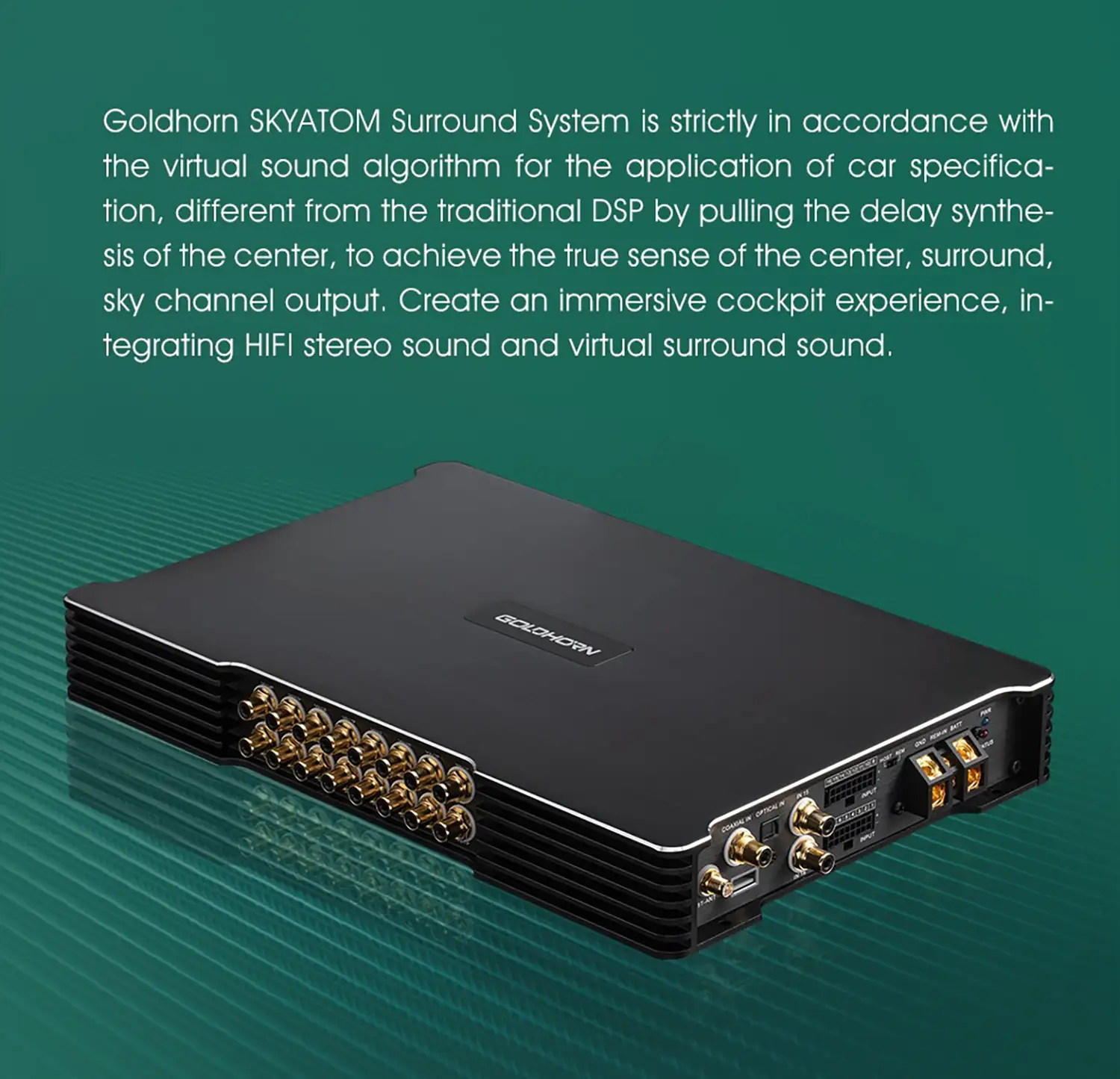

SKYATOM Surround

SKYATOM Surround Independently adjustable per channel output volume gain: -20dB + 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~ 10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, surround sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 31-Band Parametrical Equalizer: 15 dB, 0. 1 dB Steps Crossover Frequency: 1 Hz step @ 20 Hz - 20 kHz Master Gain: 0~60 dB Channel Gain: -20 ~ +5 dB
