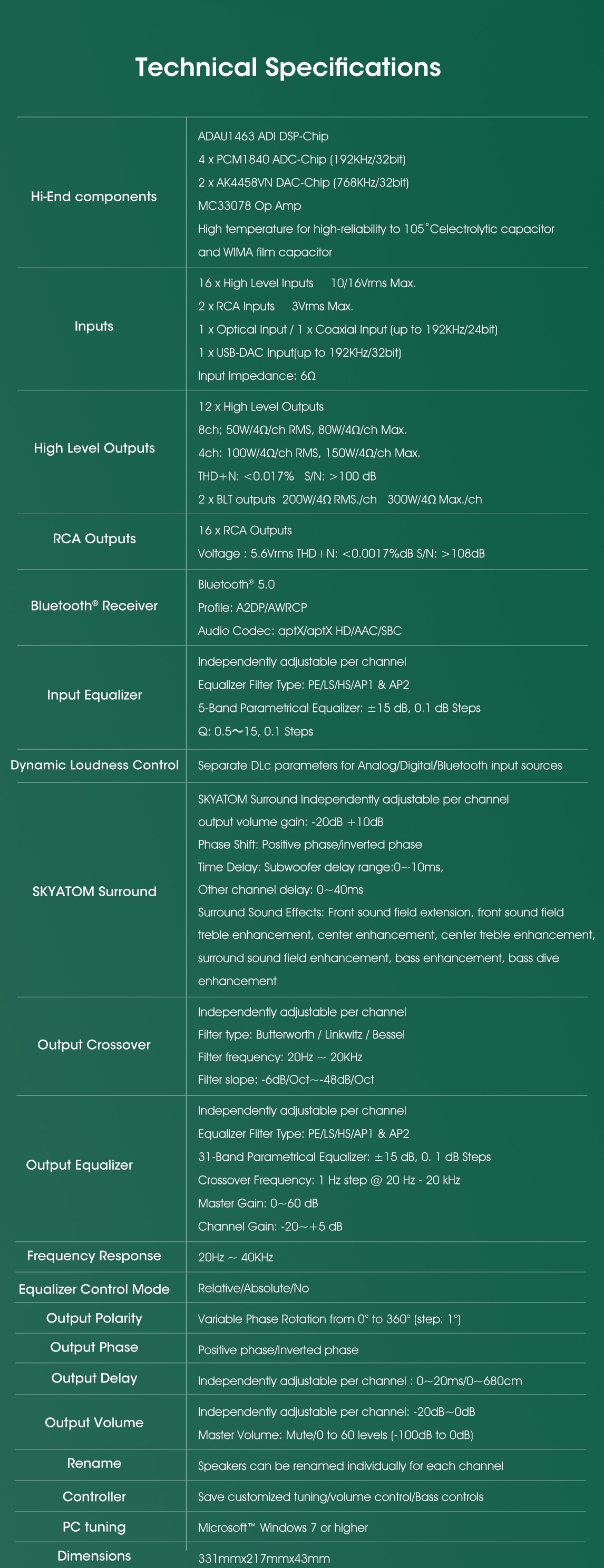

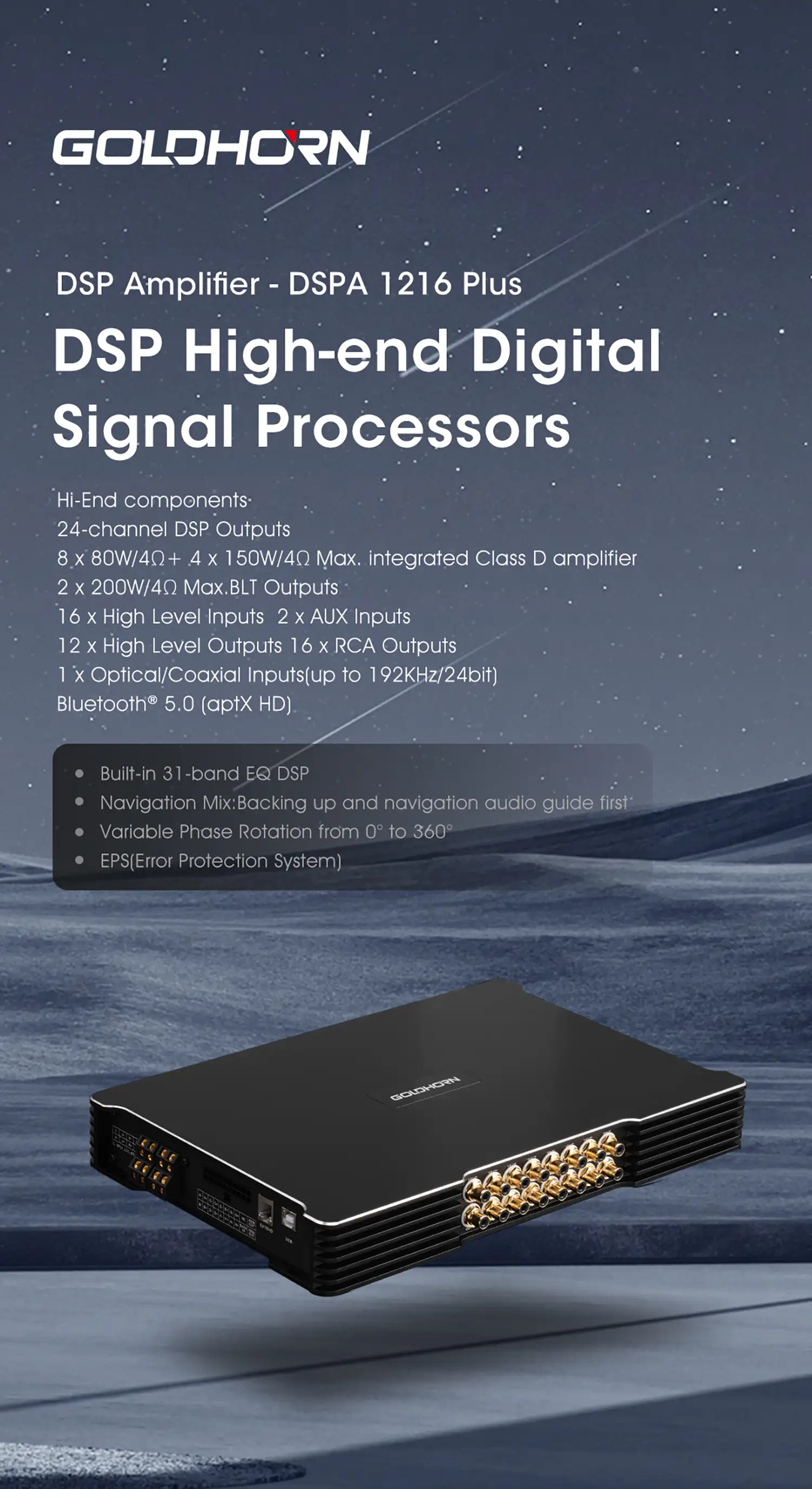

ADAU1463 ADI DSP-Chip 4 x PCM1840 ADC-Chip (192KHz/32bit) 2 x AK4458VN DAC-Chip (768KHz/32bit) MC33078 Op Amp High temperature for high-reliability to 105° Celectrolytic capacitor and WIMA film capacitor

16 x High Level Inputs 10/16Vrms Max. 2 x RCA Inputs 3Vrms Max. 1 x Optical Input / 1 x Coaxial Input (up to 192KHz/24bit) 1 x USB-DAC Input (up to 192KHz/32bit) Input Impedance: 6Ω

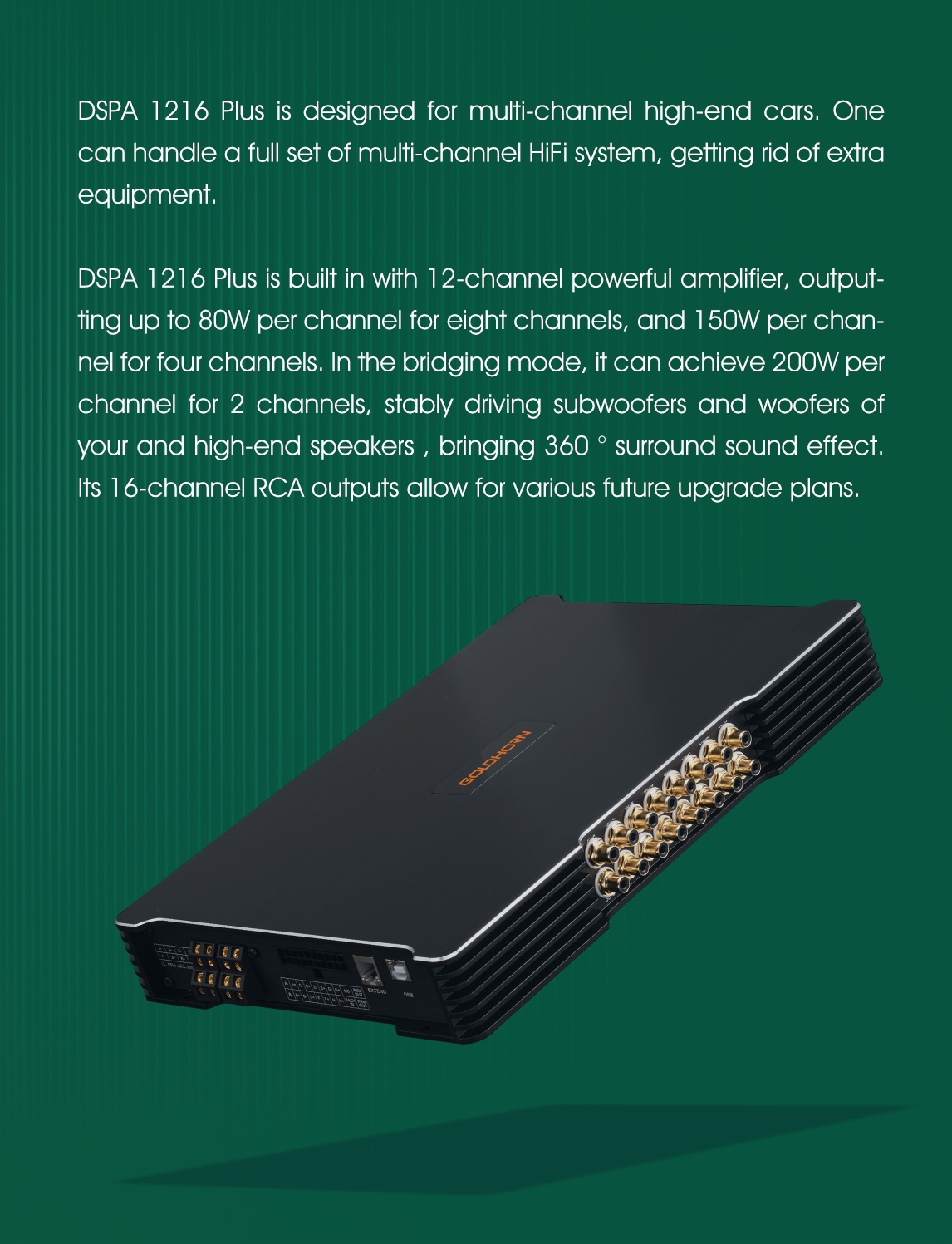

12 x High Level Outputs 8ch: 50W/4Ω/ch RMS, 80W/4Ω/ch Max. 4ch: 100W/4Ω/ch RMS, 150W/4Ω/ch Max. THD+N: <0.017% S/N: > 100 dB 2 x BLT outputs 200W/4Ω RMS./ch 300W/4Ω Max./ch

16 x RCA Outputs Voltage: 5.6Vrms THD +N: <0.0017%dB S/N: > 108dB

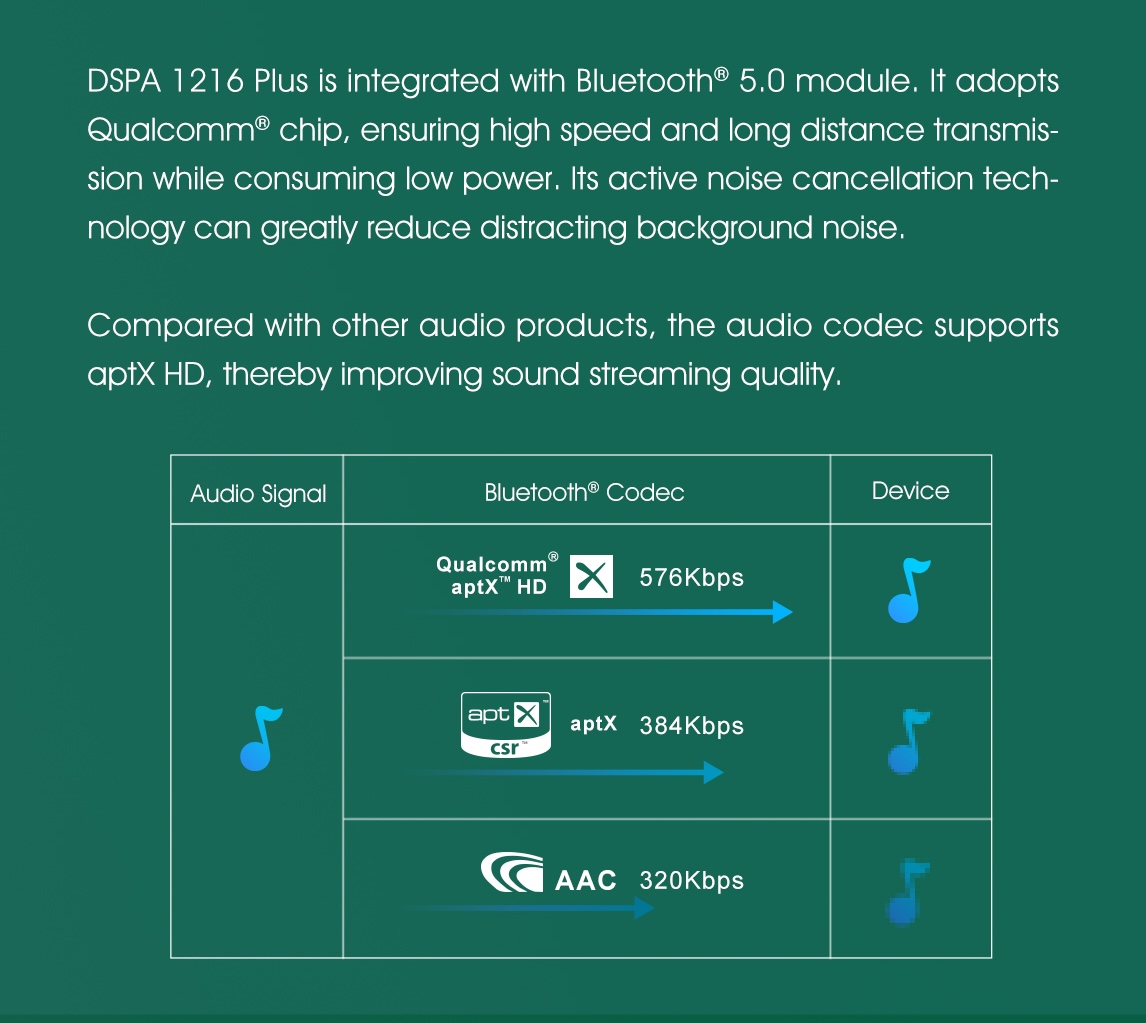

Bluetooth® 5.0 Profile: A2DP/AWRCP Audio Codec: aptX/aptX HD/AAC/SBC

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 5-Band Parametrical Equalizer: +/-15 dB, 0.1 dB Steps Q: 0.5~15, 0.1 Steps

Separate DLC parameters for Analog/Digital/Bluetooth input sources

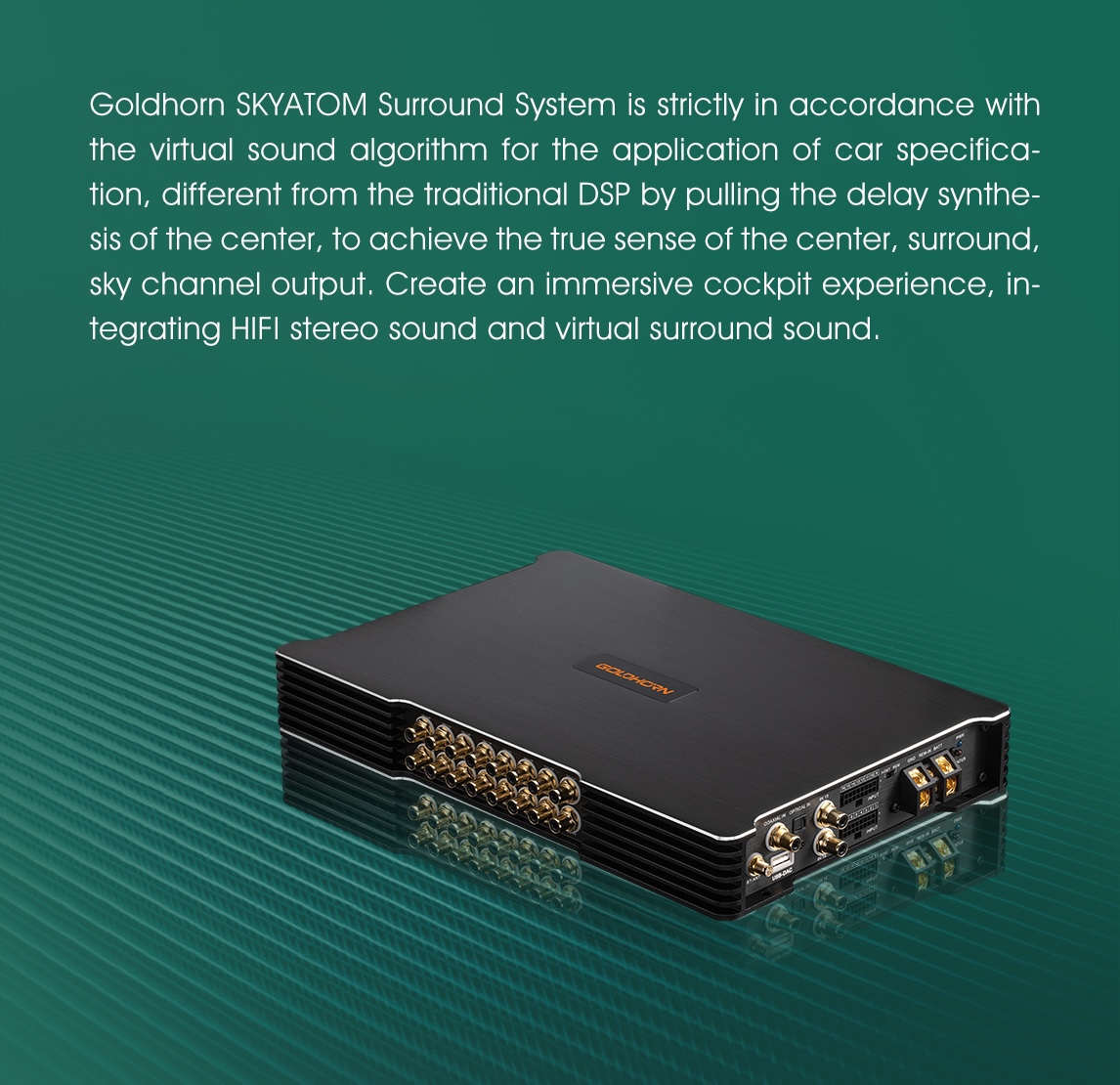

SKYATOM Surround Independently adjustable per channel output volume gain: -20dB + 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~ 10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, surround sound field enhancement, bass enhancement, bass dive enhancement

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Independently adjustable per channel Equalizer Filter Type: PE/LS/HS/AP1 & AP2 31-Band Parametrical Equalizer: 15 dB, 0. 1 dB Steps Crossover Frequency: 1 Hz step @ 20 Hz - 20 kHz Master Gain: 0~60 dB Channel Gain: -20 ~ +5 dB

Relative/Absolute/No

Variable Phase Rotation from 0° to 360° (step: 1°)

Positive phase/Inverted phase

Independently adjustable per channel : 0~20ms/0~680cm

Independently adjustable per channel: -20dB~0dB Master Volume: Mute/0 to 60 levels (-100dB to 0dB)

Speakers can be renamed individually for each channel

Save customized tuning/volume control/Bass controls

Microsoft™ Windows 7 or higher

331 mmx217mmx43mm
