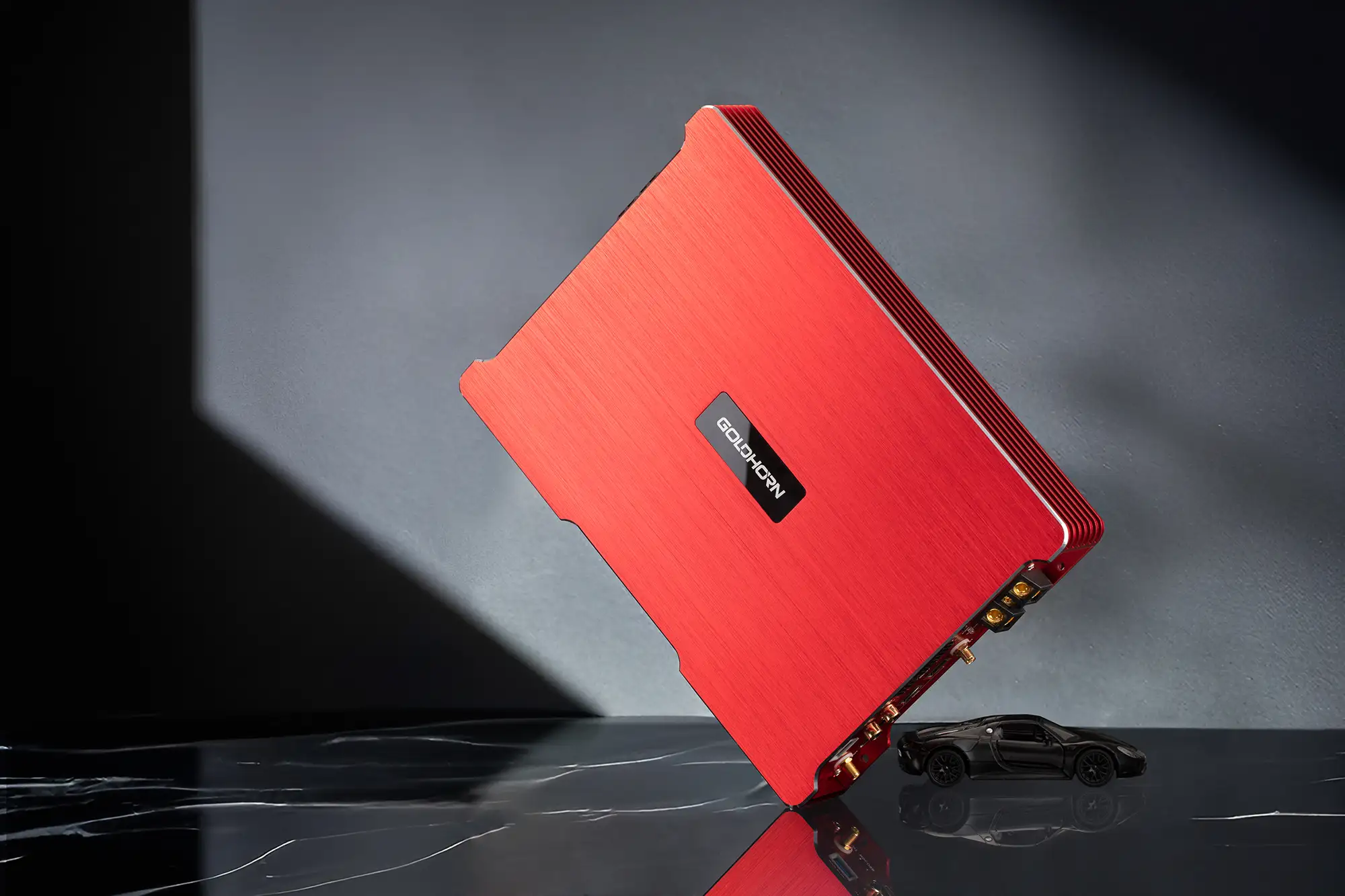

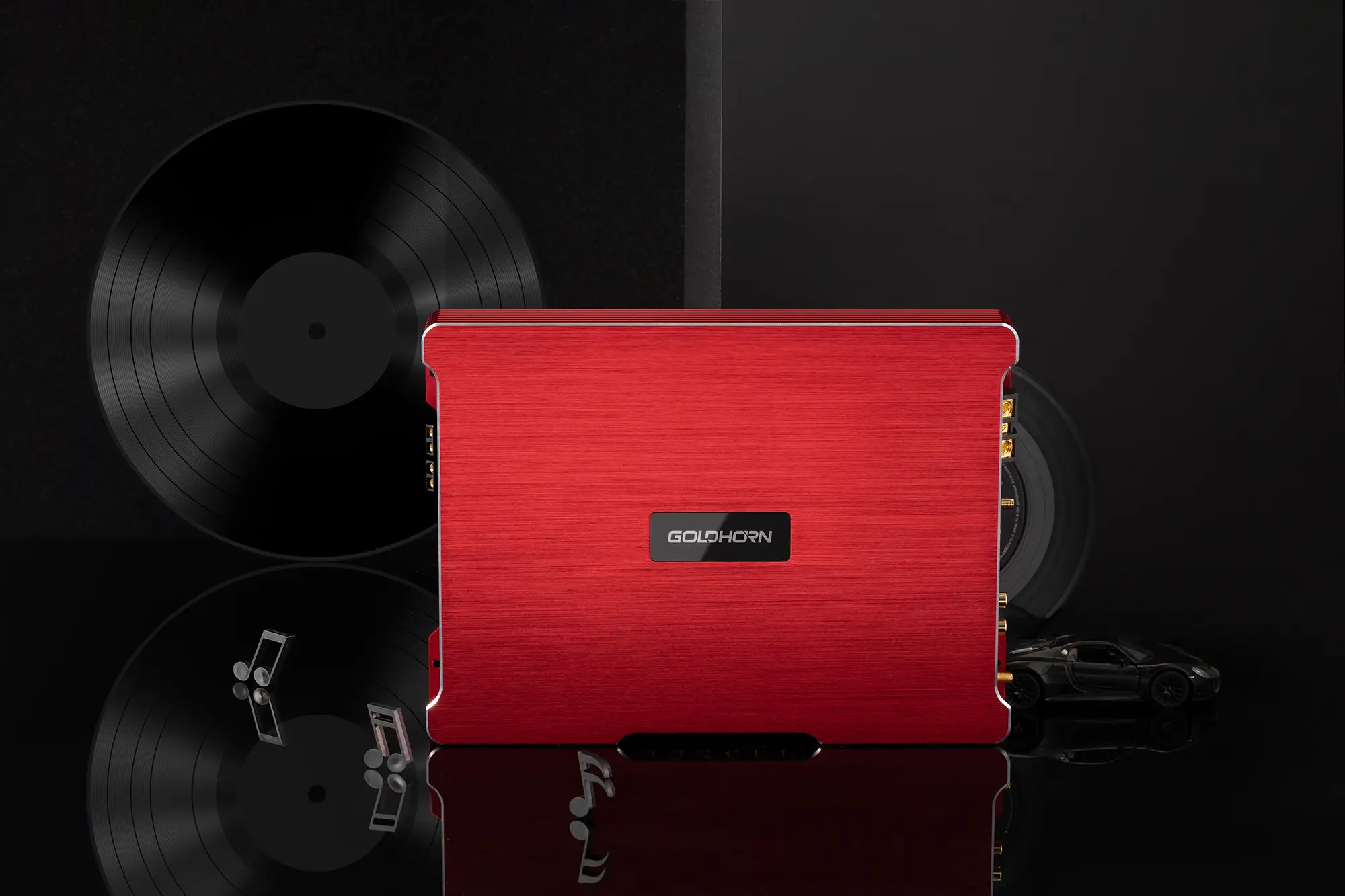

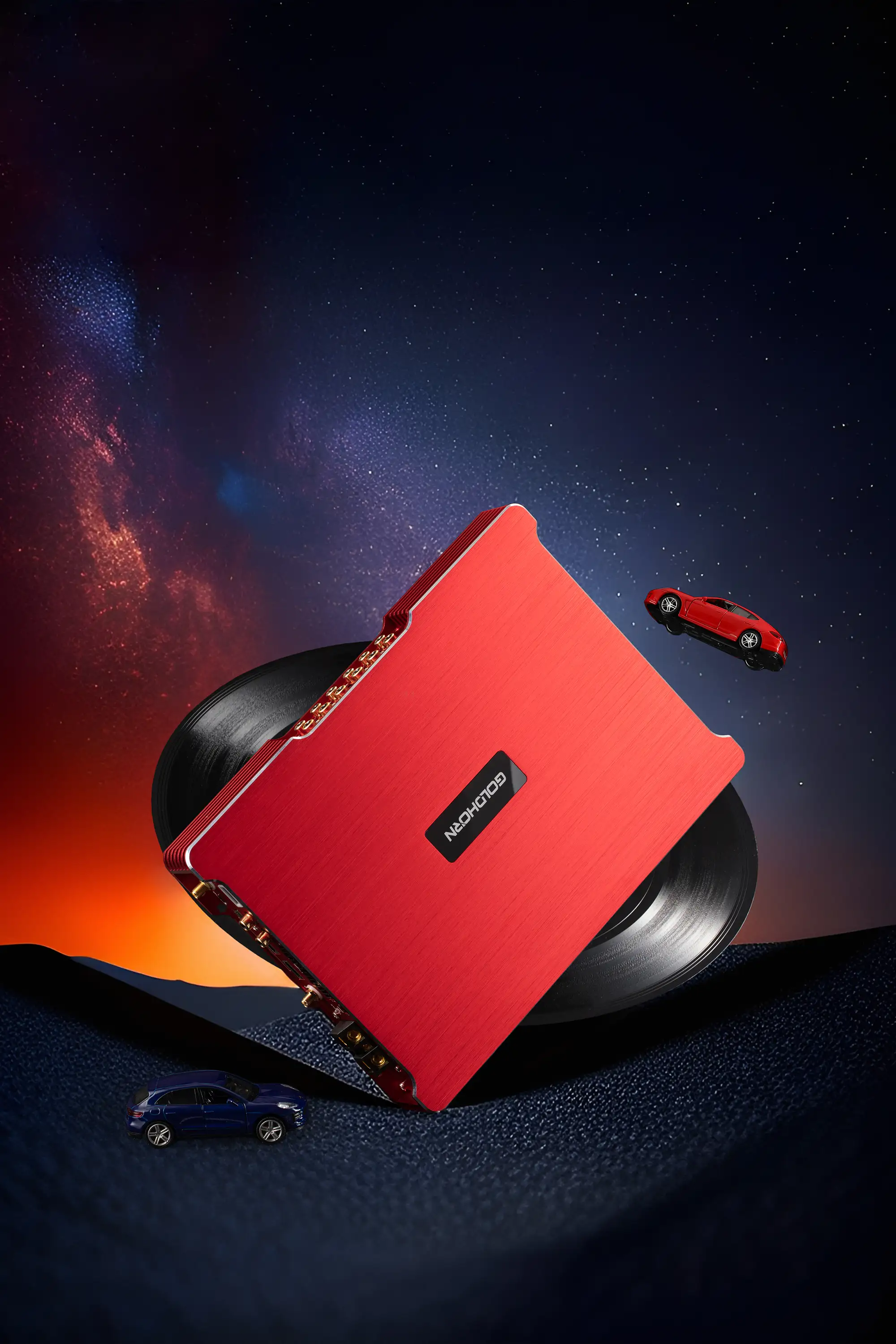

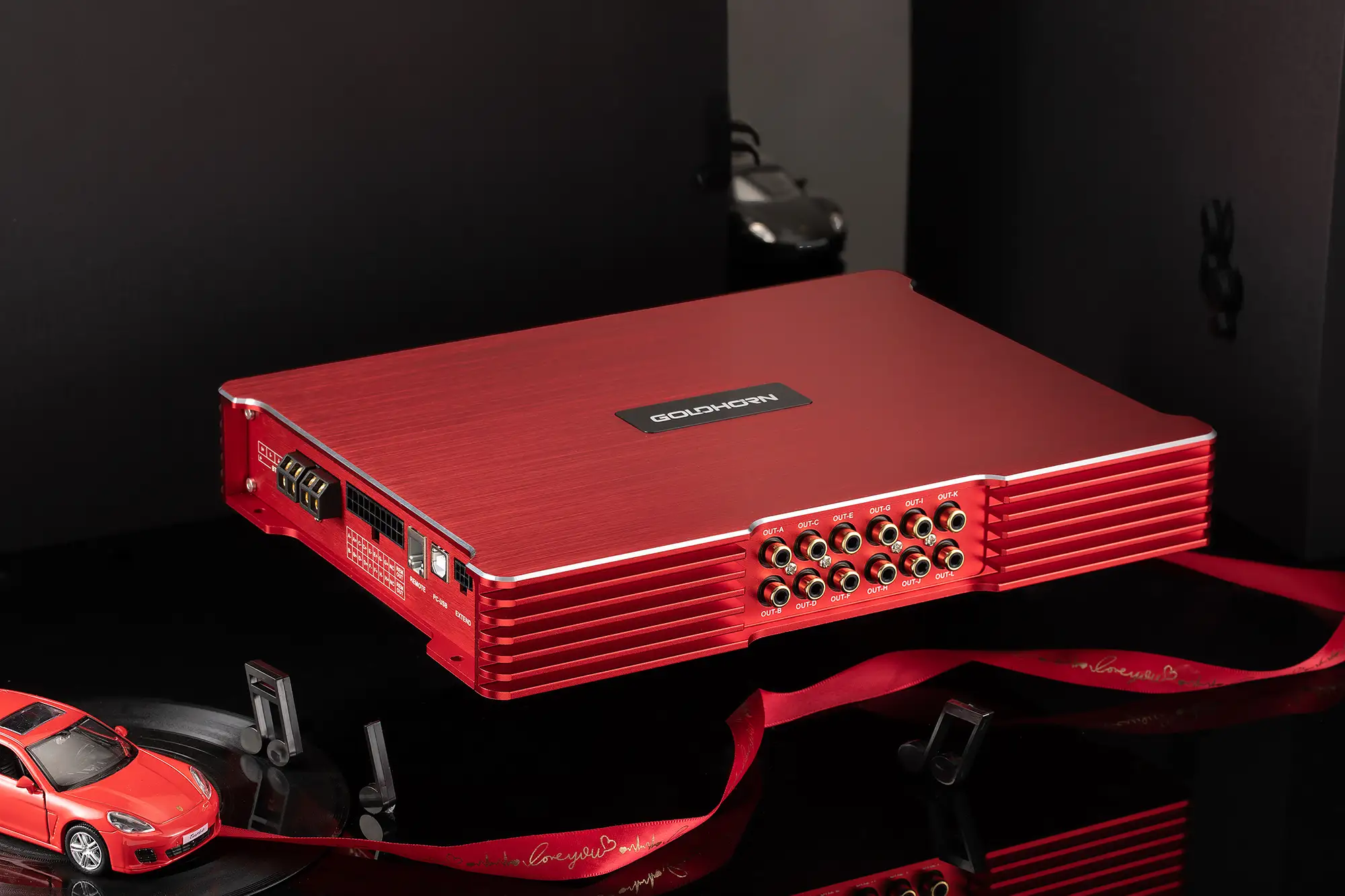

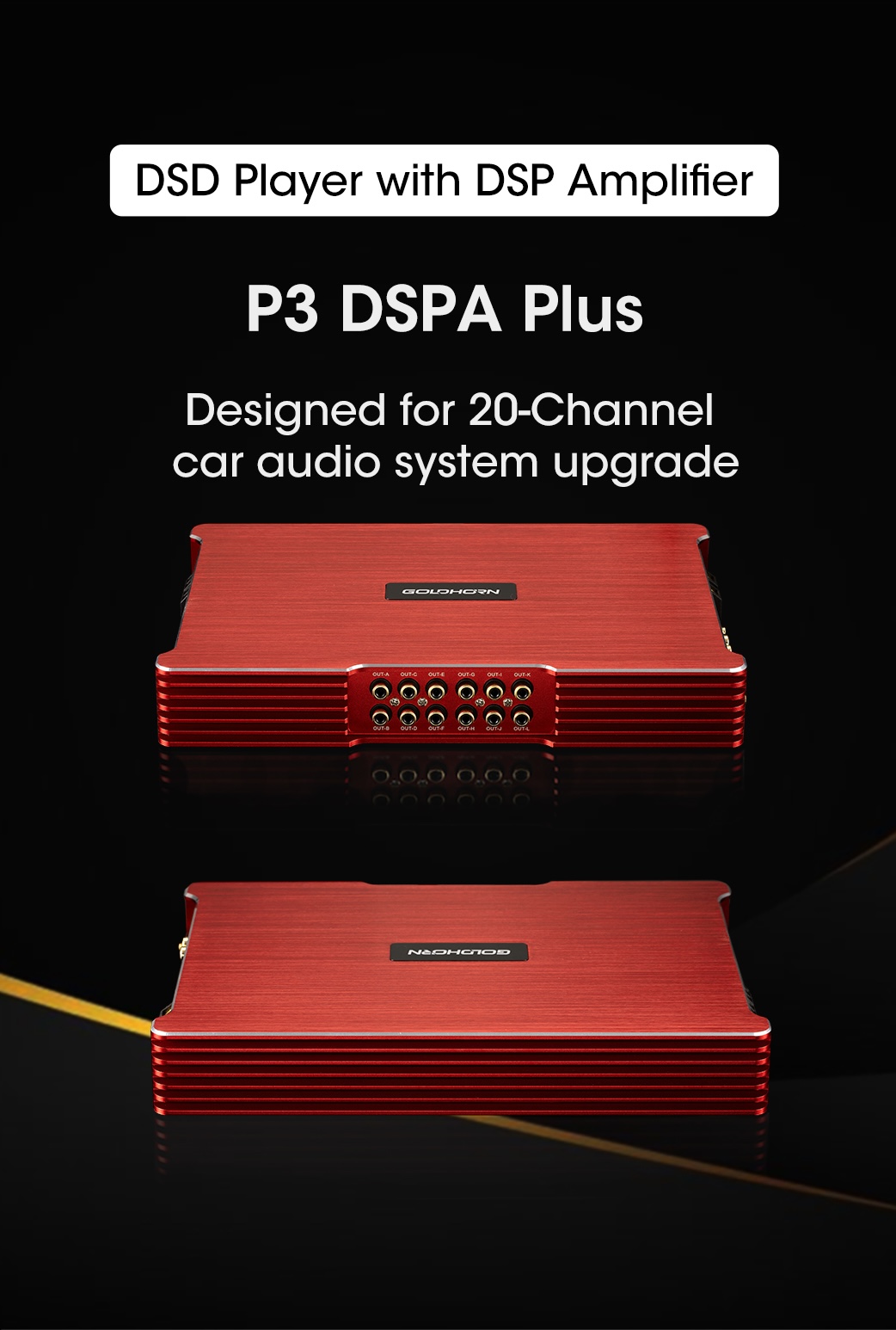

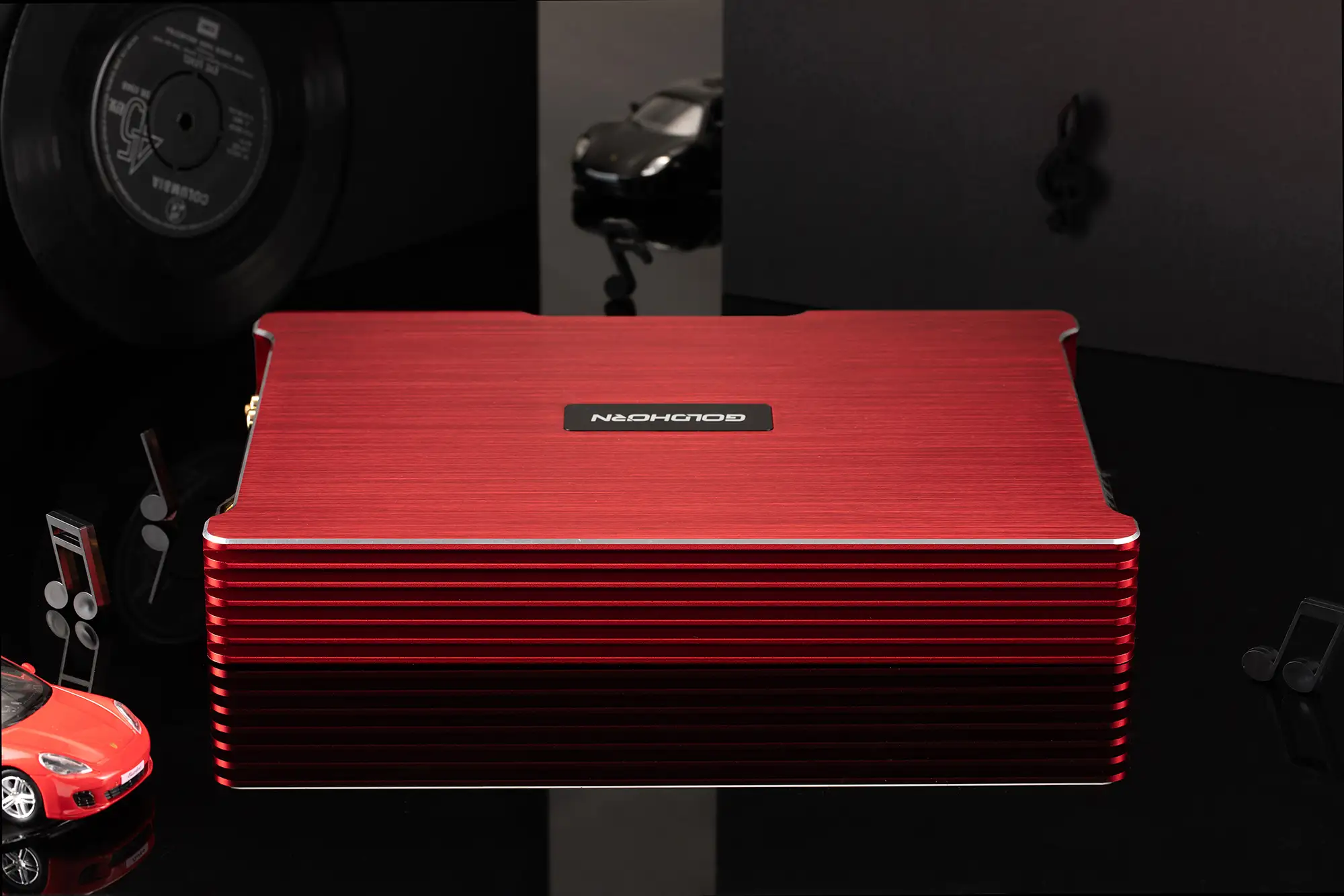

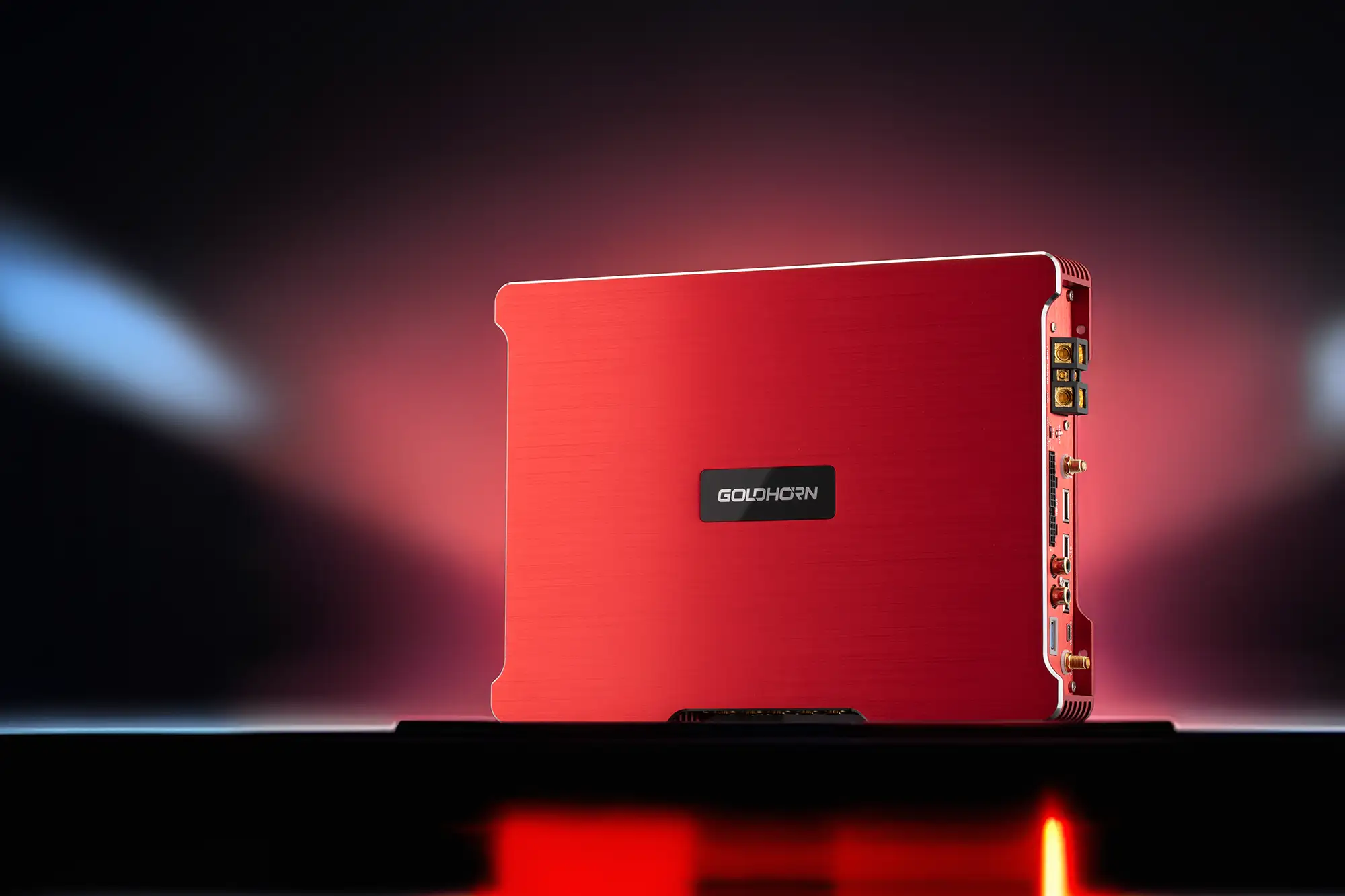

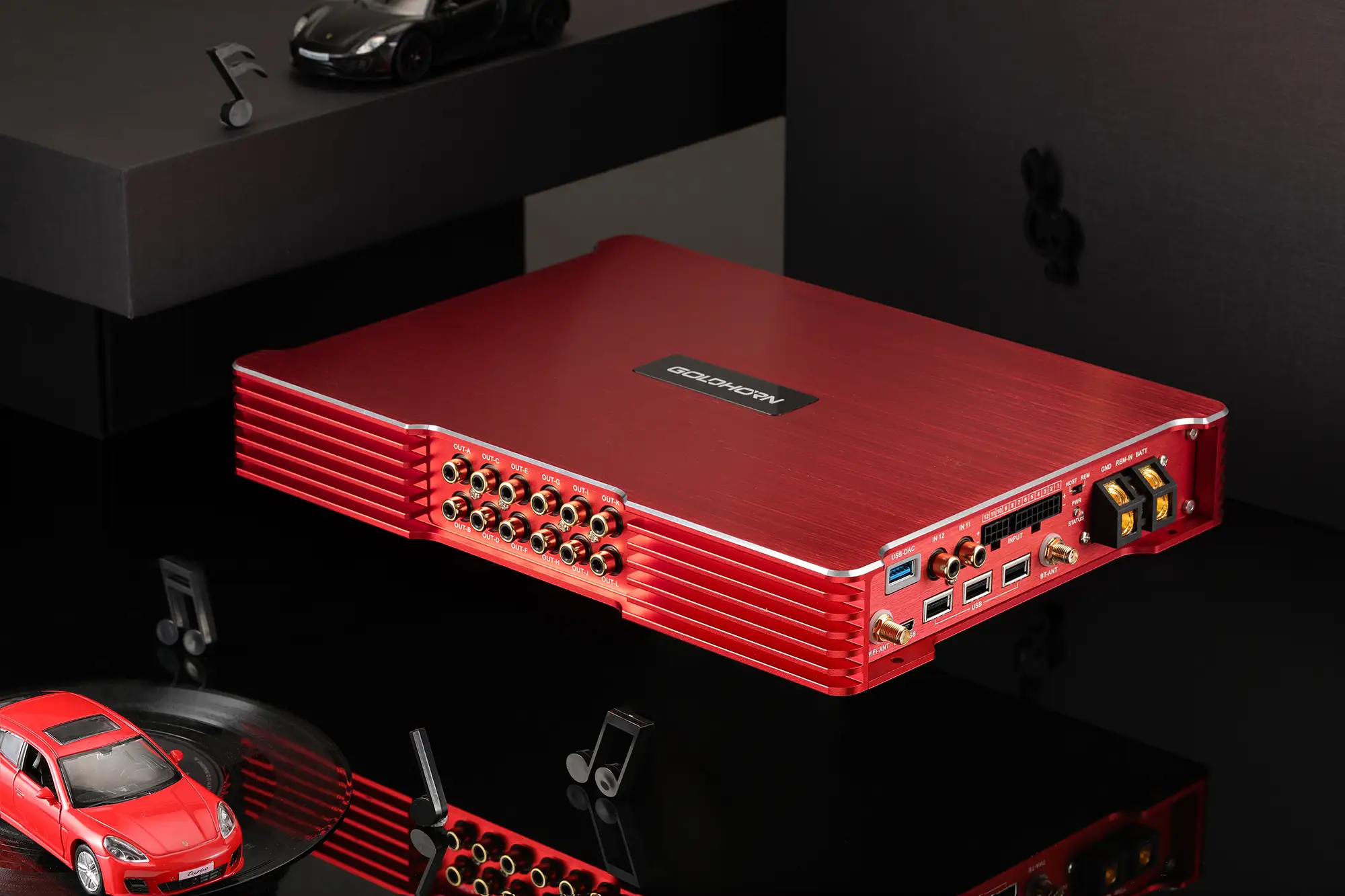

P3 DSPA Plus

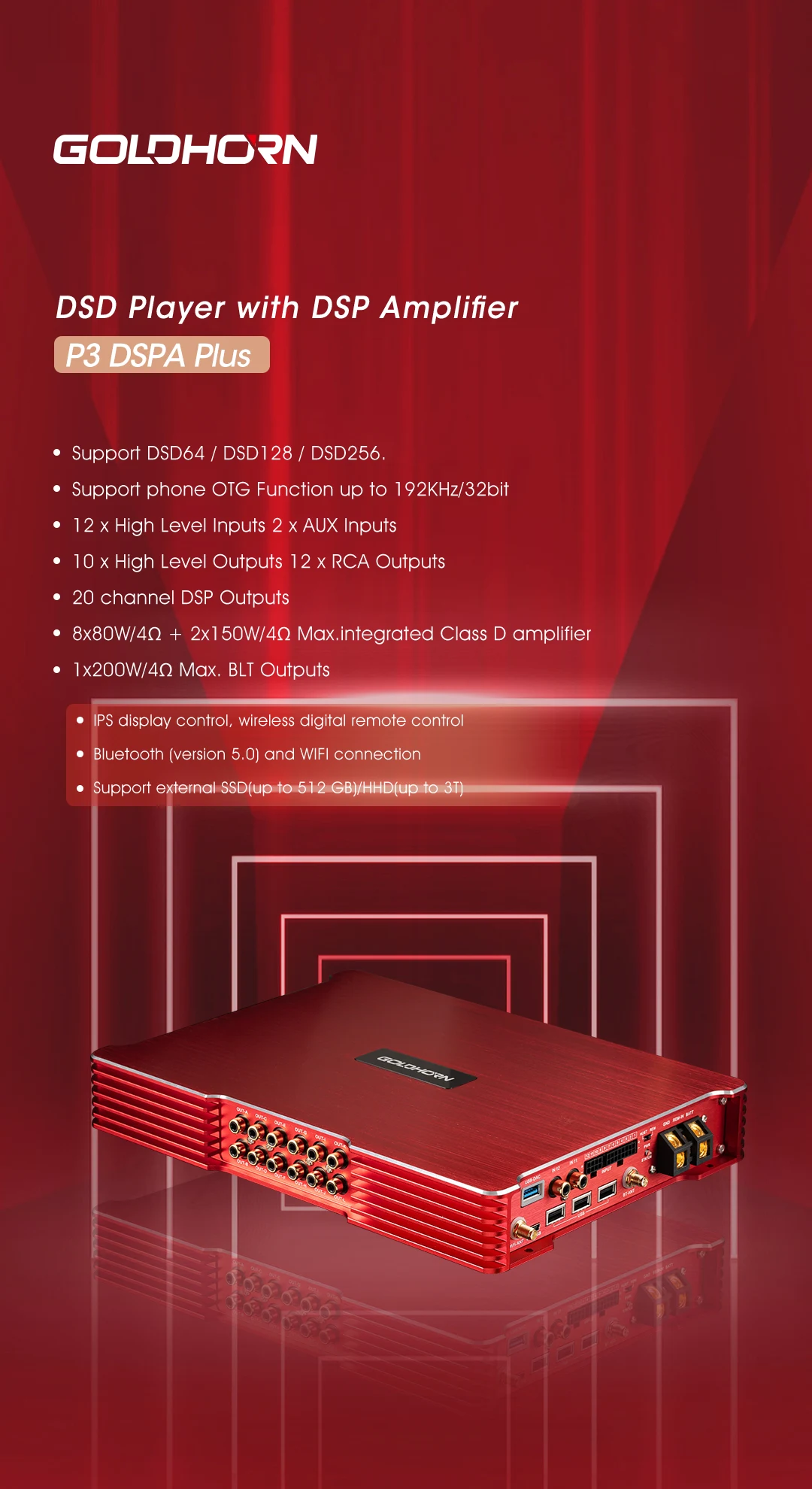

20-Channel Digital Signal Processor with DSD256 High Resolution Player and 10-Channel Class D Amplifier

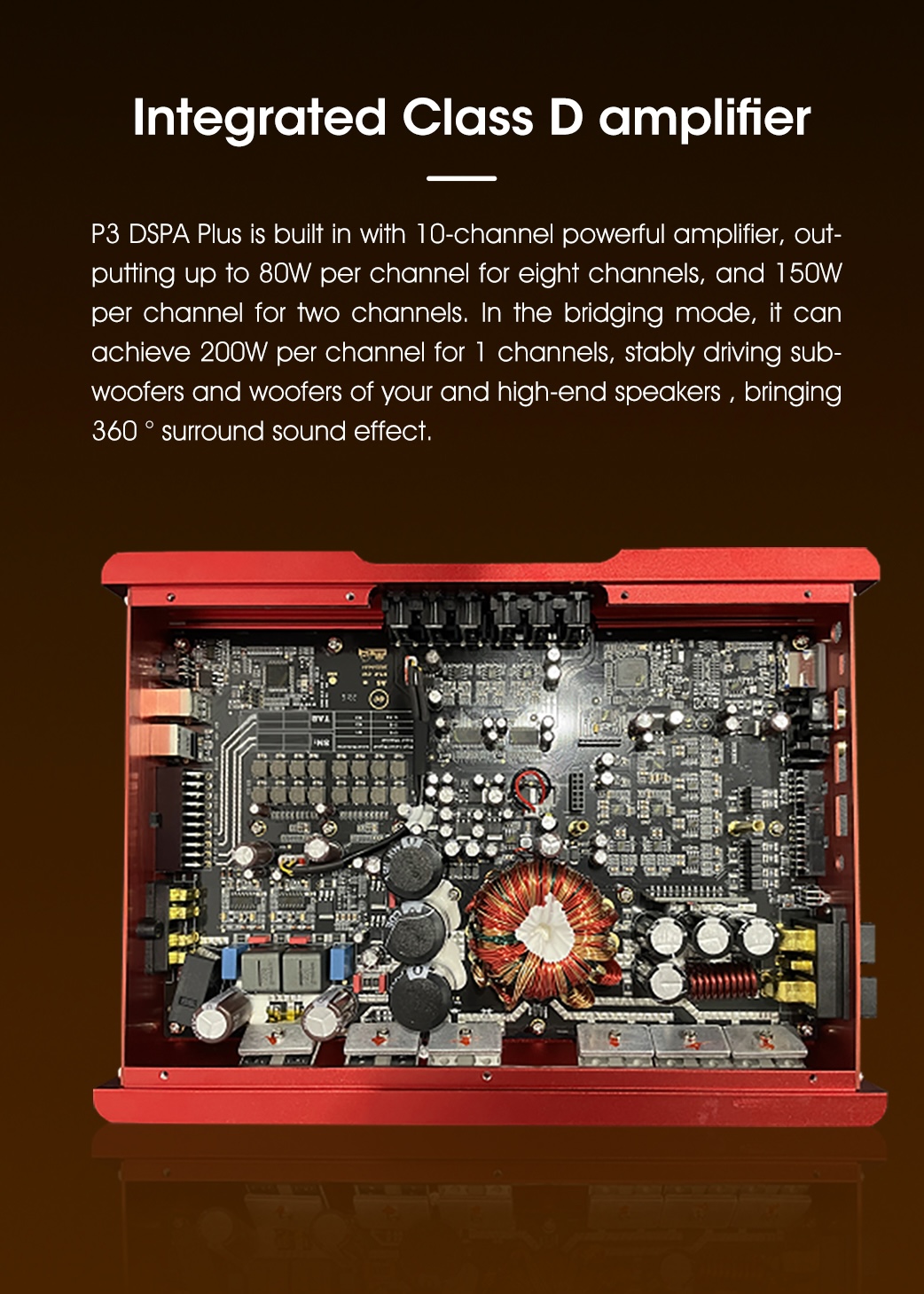

P3 DSPA Plus is an all-in-one digital player designed for 20 channel car audio sound. It features a 10-channel Class D amplifier, outputting up to 80W per channel for eight channels, and 150W per channel for two channels. P3 DSPA Plus has built-in professional DSP tuning, supporting 31-band EQ output independent adjustment and 5-band EQ/delay input pre-adjustment for clearer, layered sound

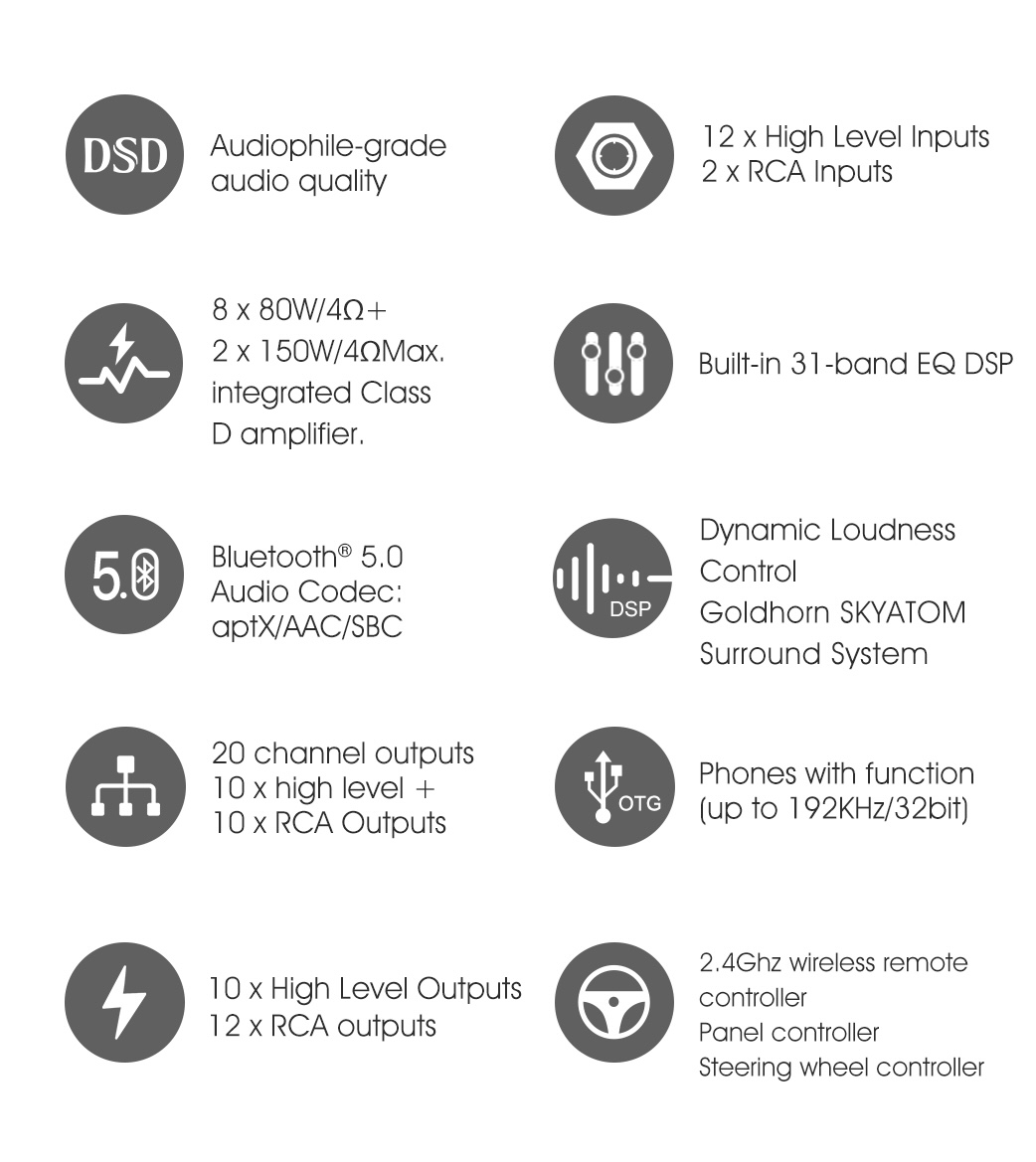

20-channel outputs

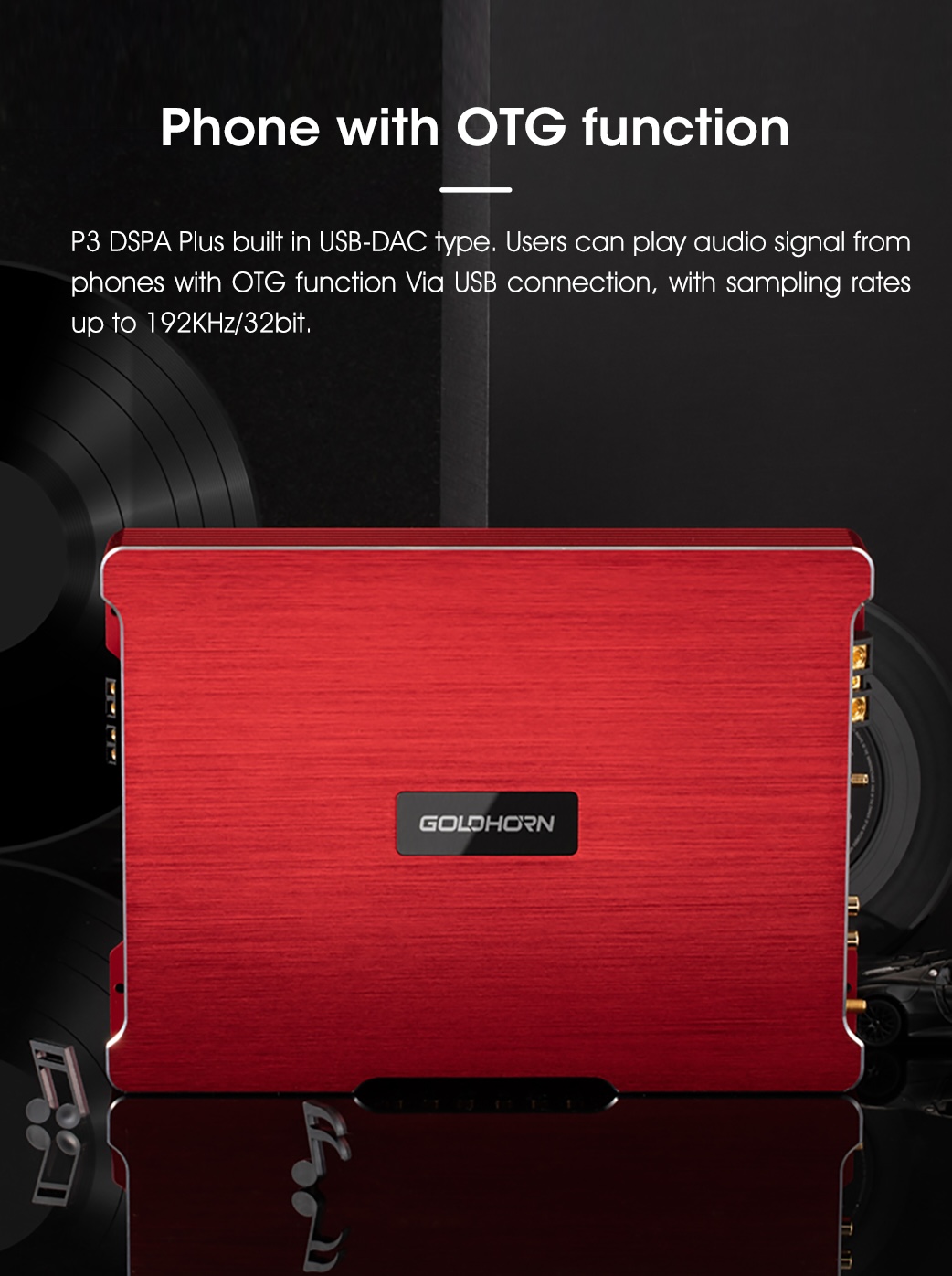

Phone OTG function
8x80W/4Ω+2x150W/4Ω Max.
Designed for multi-channel high-end car

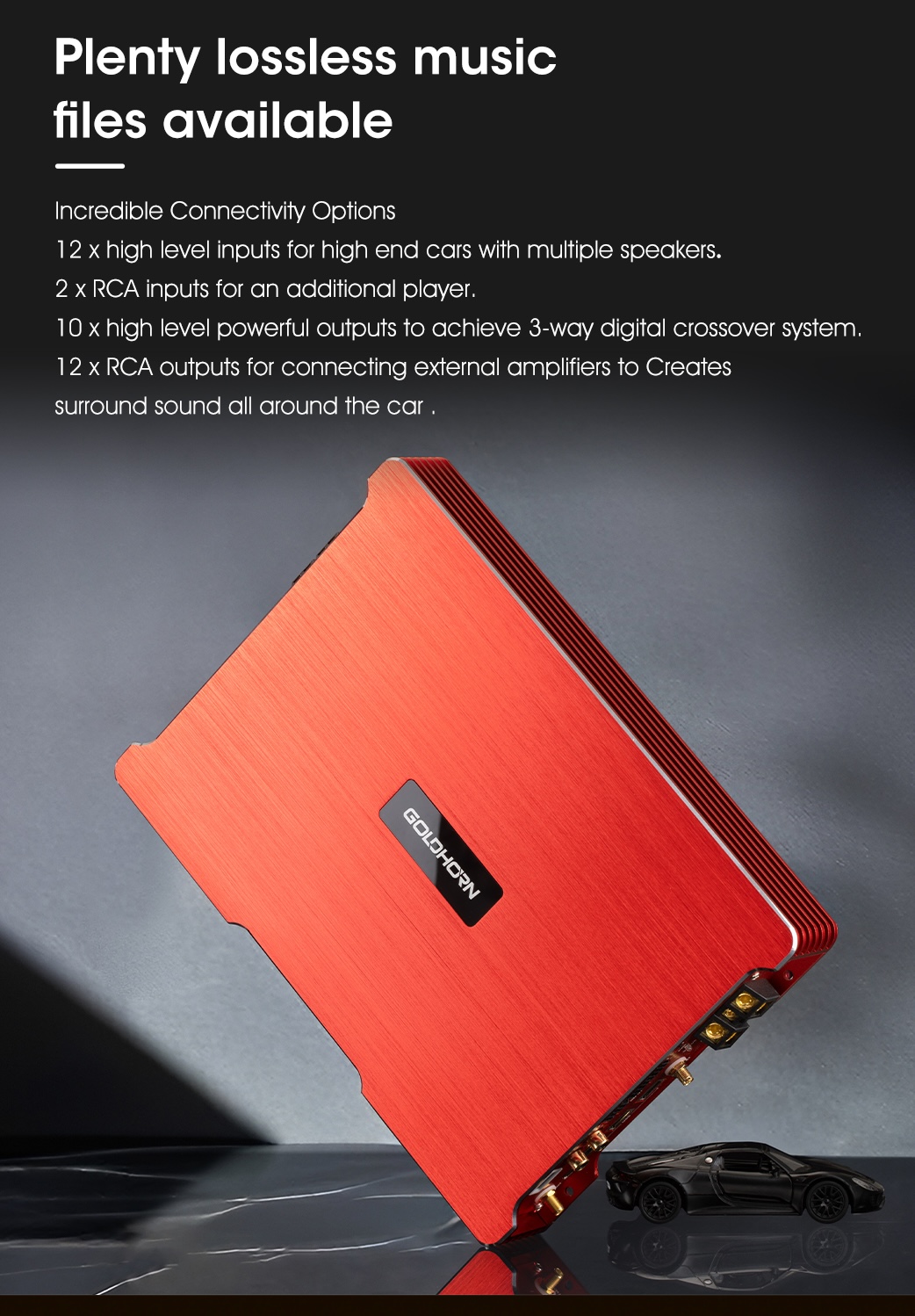

12xHigh level inputs 2xRCA inputs

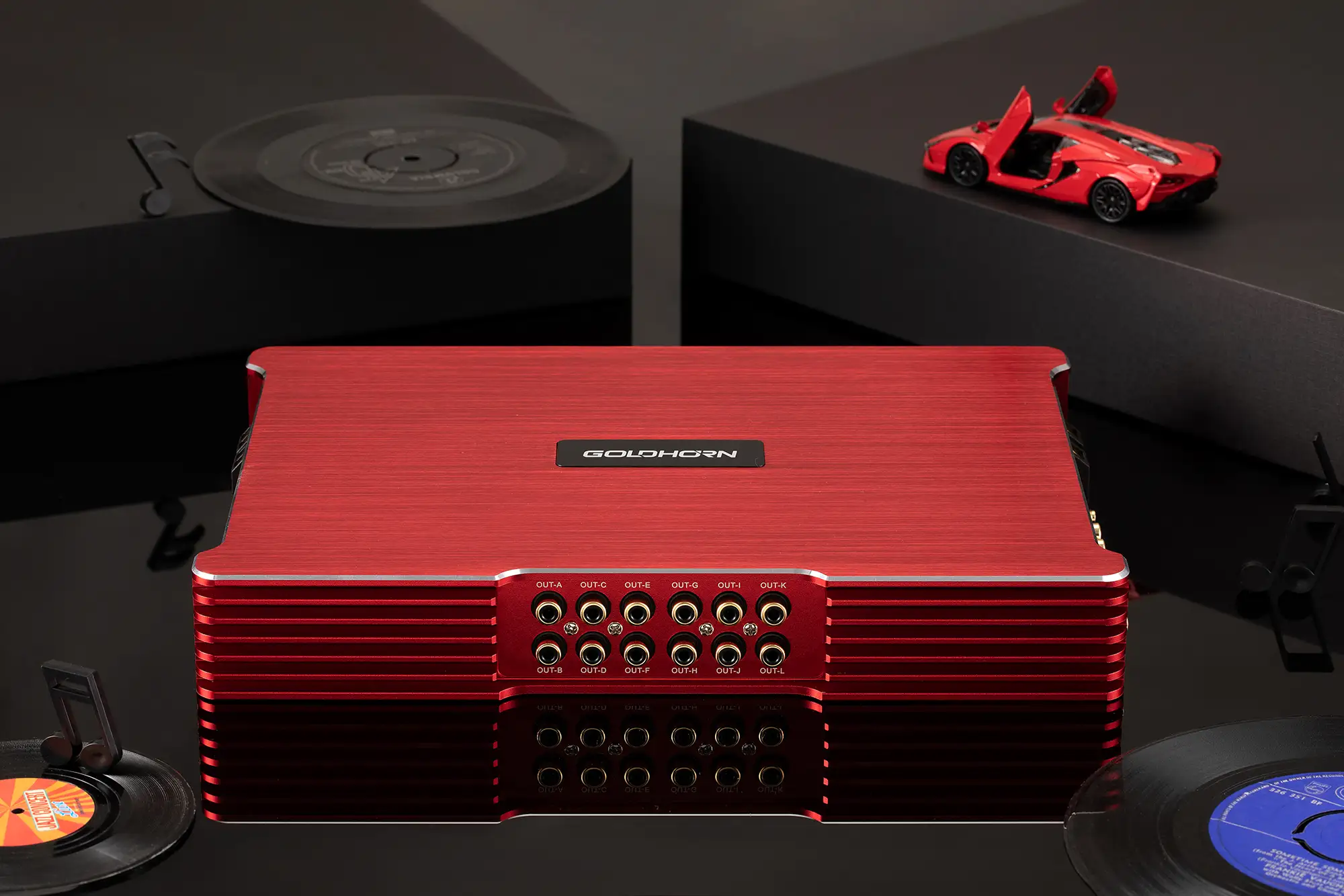

10xHigh level outputs 12xRCA outputs

Qualcomm aptX

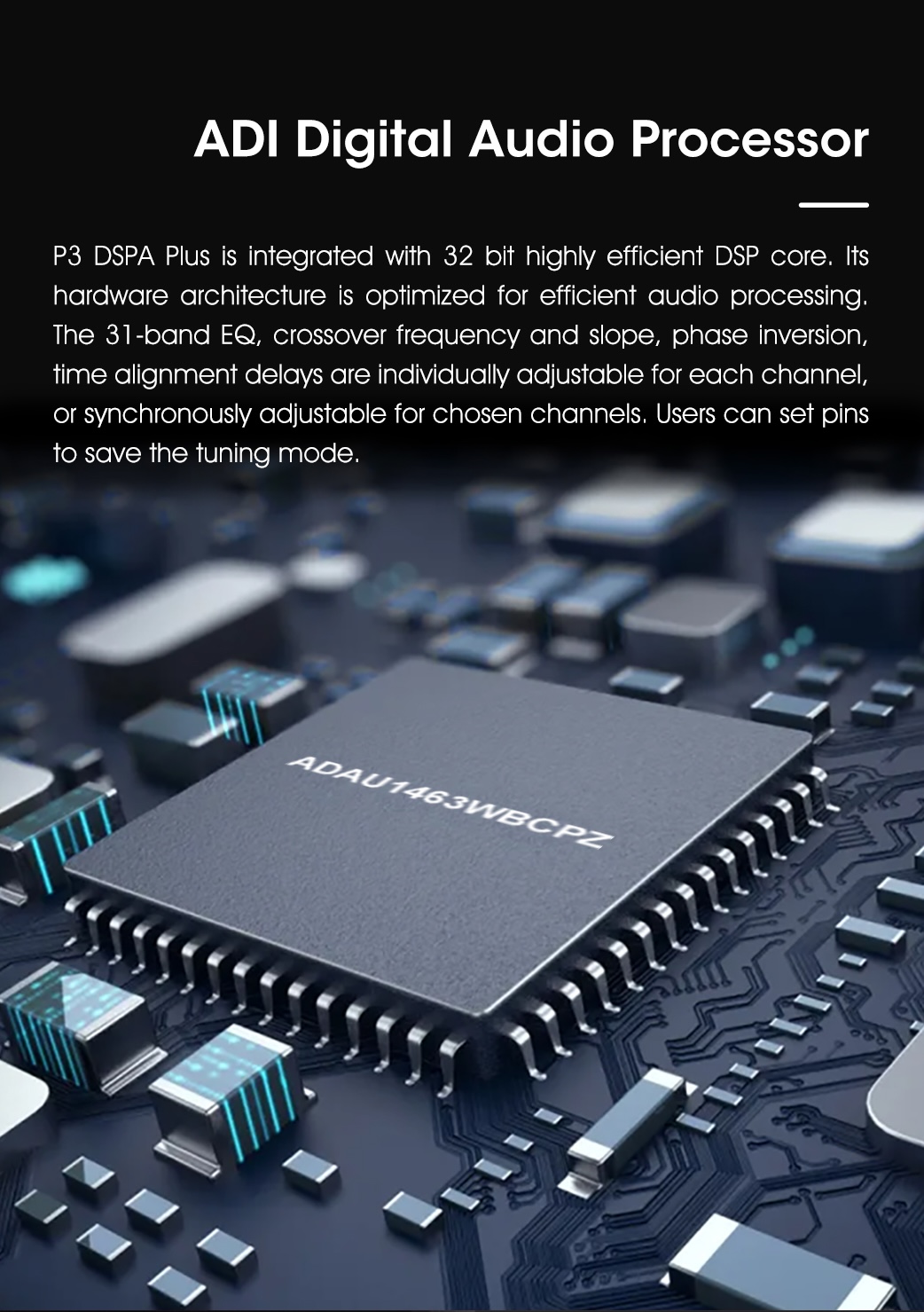

ADAU1463 ADI DSP-Chip

3 x PCM1840 ADC-Chip (192KHz/32bit)

2 x PCM1690 DAC-Chip (192KHz/24bit

MC33078 Op Amp

Find A Dealer

View Specs

No items found.

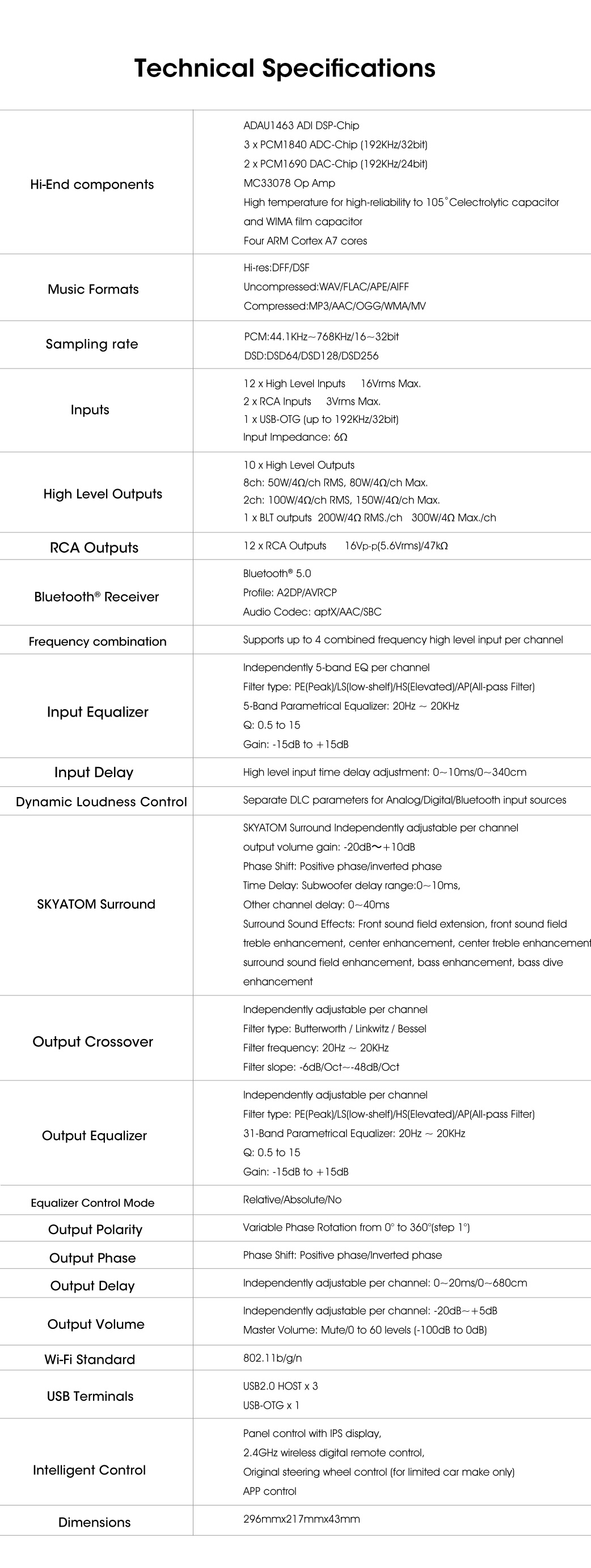

Voltage

11-16V

Turn-On

ACC/ high level inputs(IN 1+/IN 1-)

Hi-End Components

ADAU1463 ADI DSP-Chip 3 x PCM1840 ADC-Chip (192KHz/32bit) 2 x PCM1690 DAC-Chip (192KHz/24bit) MC33078 Op Amp High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps 4 x ARM Cortex A7 cores

Music Formats

Hi-res:DFF/DSF Uncompressed:WAV/FLAC/APE/AIFF Compressed:MP3/AAC/OGG/WMA/MV

Sampling rate

PCM:44.1KHz~768KHz/16~32bit DSD:DSD64/DSD128/DSD256

Inputs

12 x High Level Inputs 16Vrms Max. 2 x RCA Inputs 3Vrms Max. 1 x USB-OTG (up to 192KHz/32bit) Input Impedance: 6Ω

High Level Outputs

10 x High Level Outputs 8ch: 50W/4Ω/ch RMS, 80W/4Ω/ch Max. 2ch: 100W/4Ω/ch RMS, 150W/4Ω/ch Max. 1 x BLT outputs 200W/4Ω RMS./ch 300W/4Ω Max./ch

RCA Outputs

12 x RCA Outputs 16Vp-p(5.6Vrms)/47kΩ

DSP Outputs

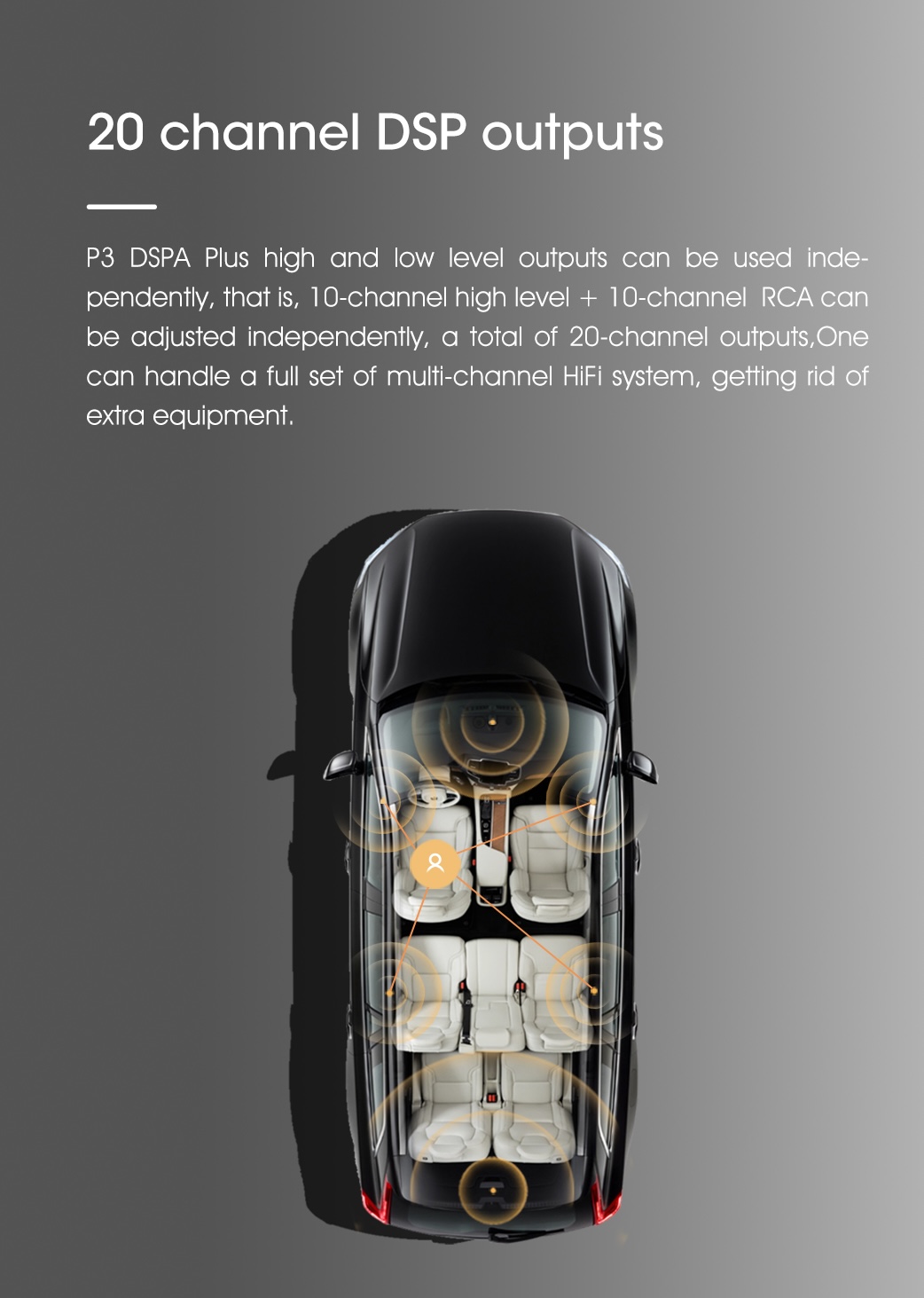

20 x DSP Outputs: 10 x high-level + 10 x RCA (2 RCA channels shared for high level and RCA )

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AVRCP Audio Codec: aptX/AAC/SBC

Input Equalizer

Independently 5-band EQ per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/AP(All-pass Filter) 5-Band Parametrical Equalizer: 20Hz ~ 20KHz Q: 0.5 to 15 Gain: -15dB to +15dB

Input Delay

High level input time delay adjustment: 0~10ms/0~340cm

Dynamic Loudness Control

Separate DLC parameters for Analog/Bluetooth input sources

SKYATOM Surround

6-channel input with independent adjustment output volume gain: -20dB～+10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, surround sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/AP(All-pass Filter) 31-Band Parametrical Equalizer: 20Hz ~ 20KHz Q: 0.5 to 15 Gain: -15dB to +15dB
