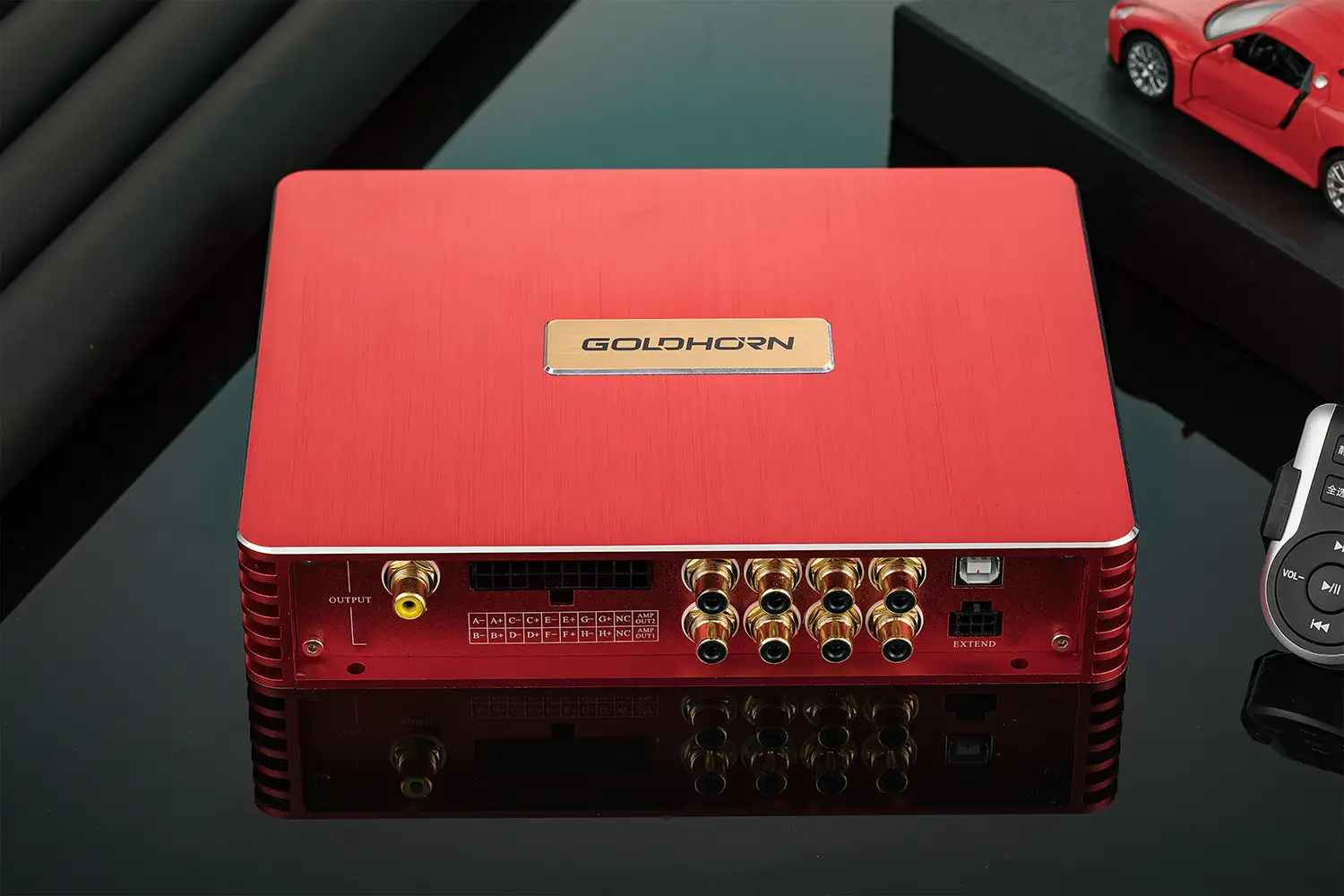

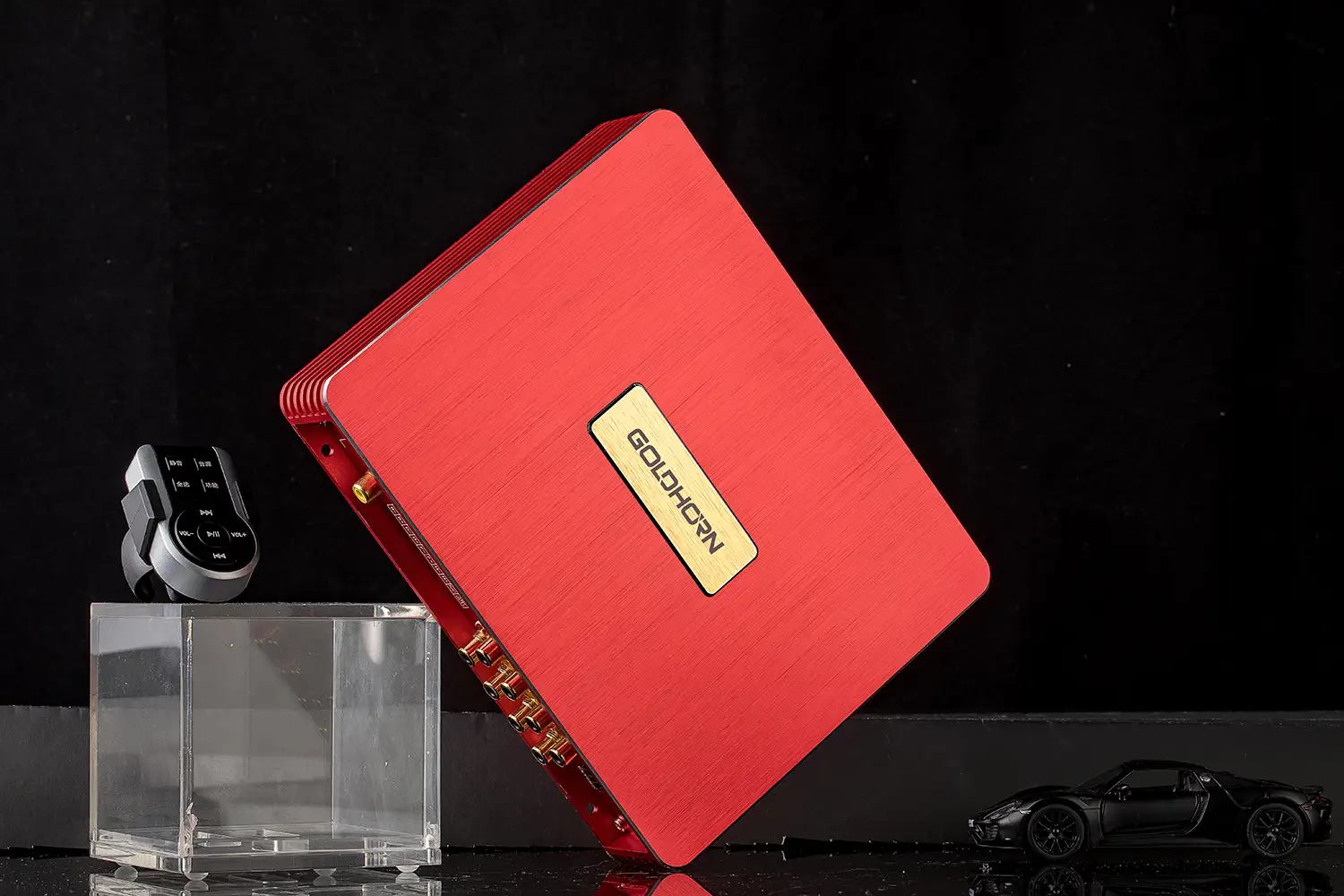

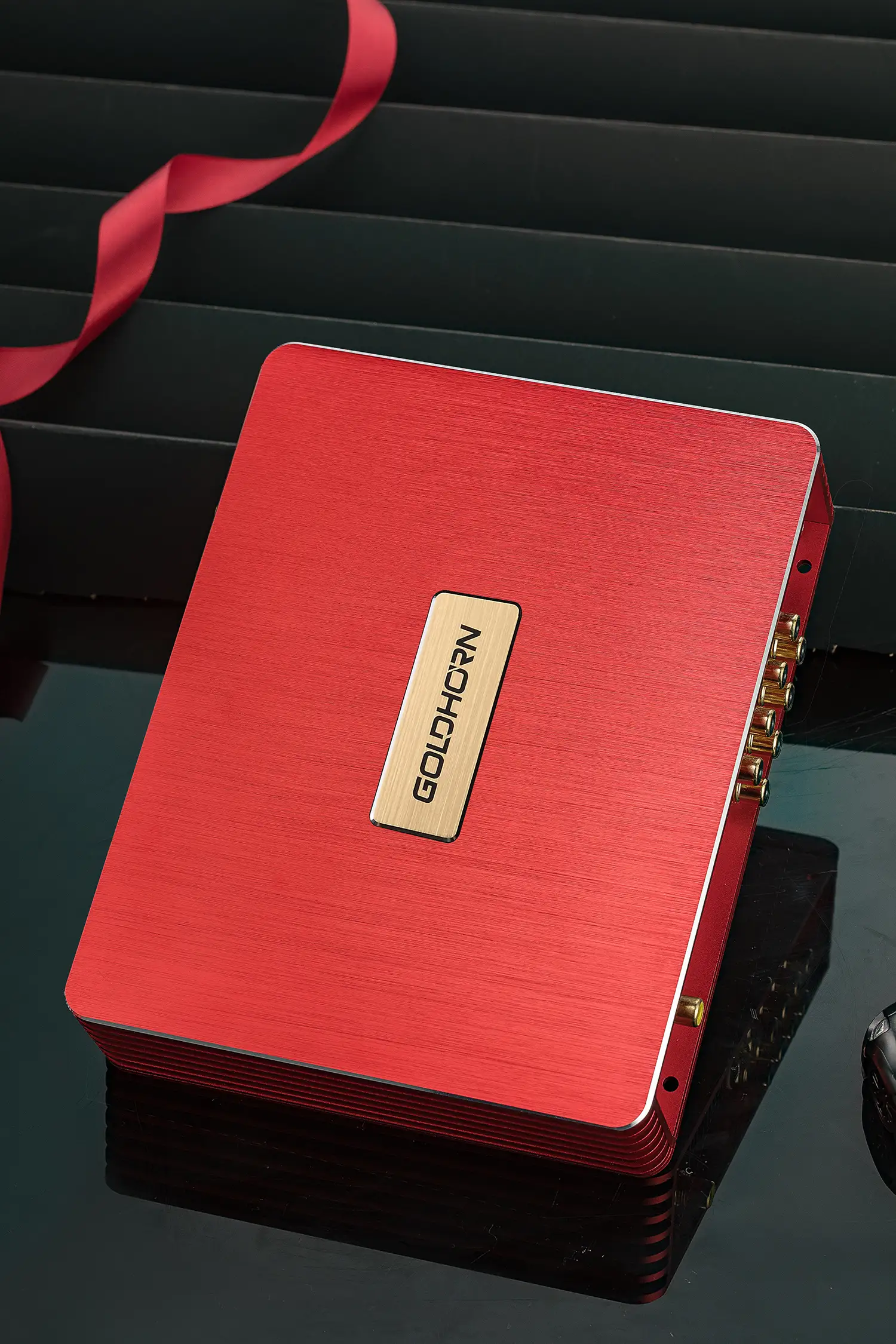

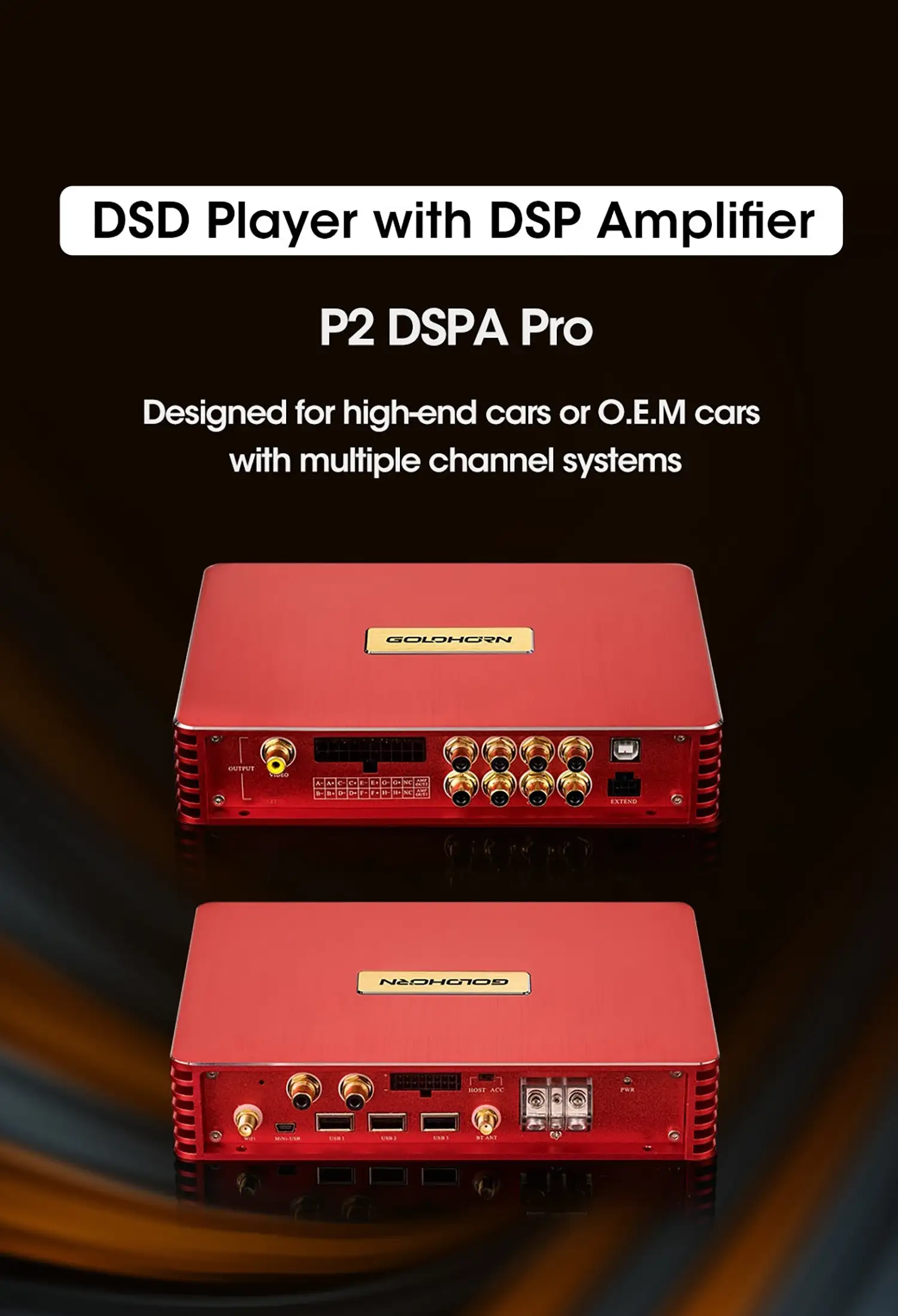

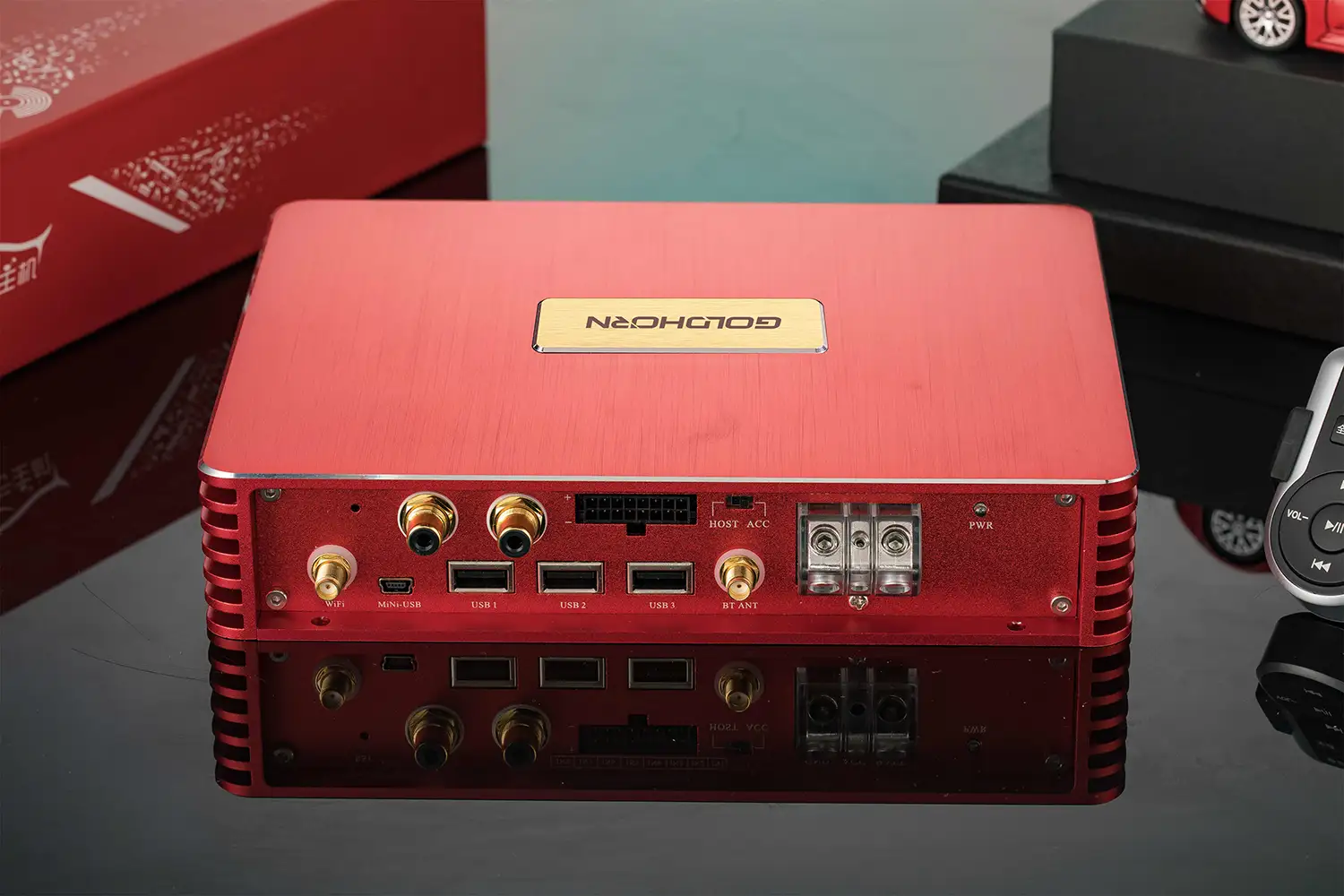

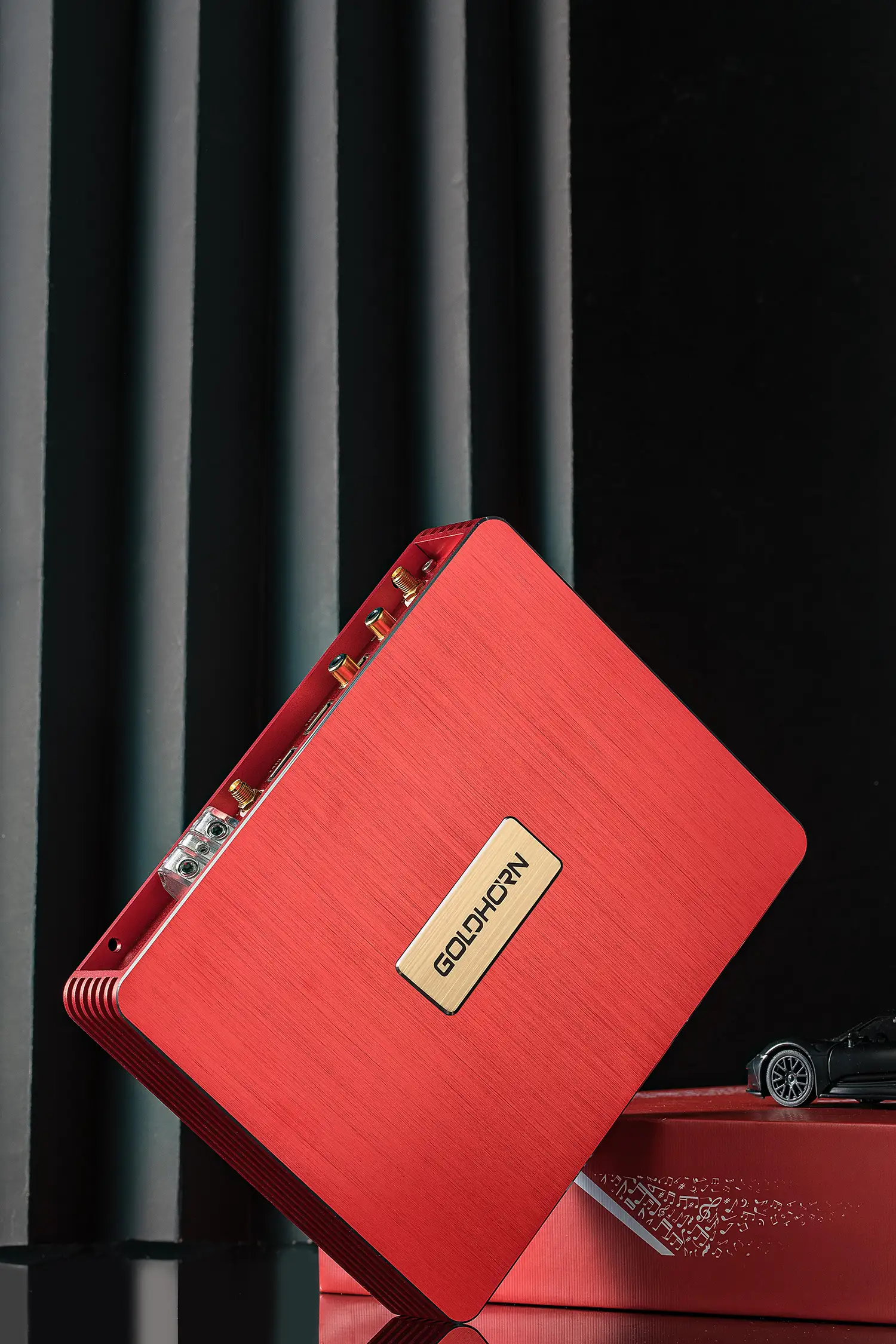

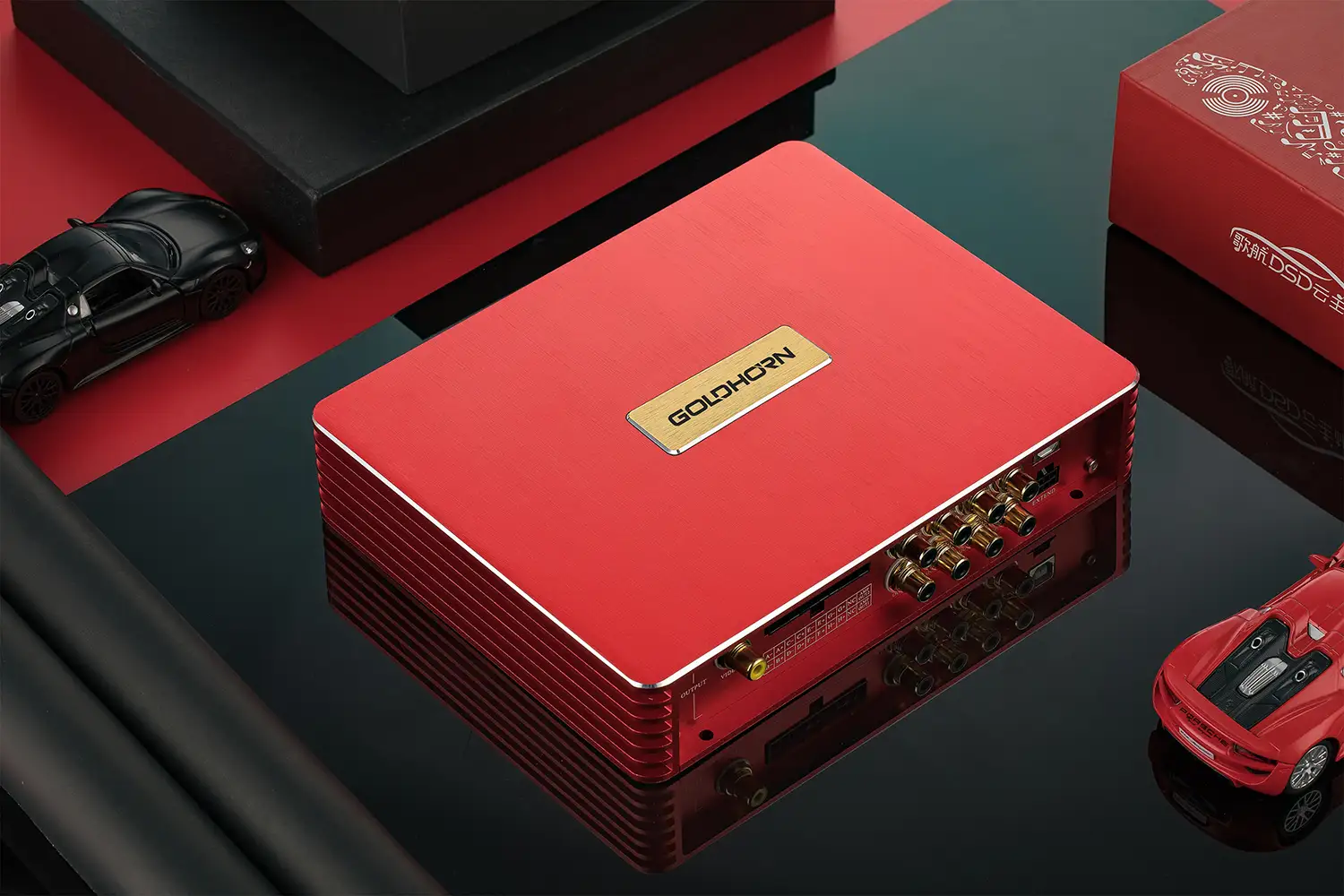

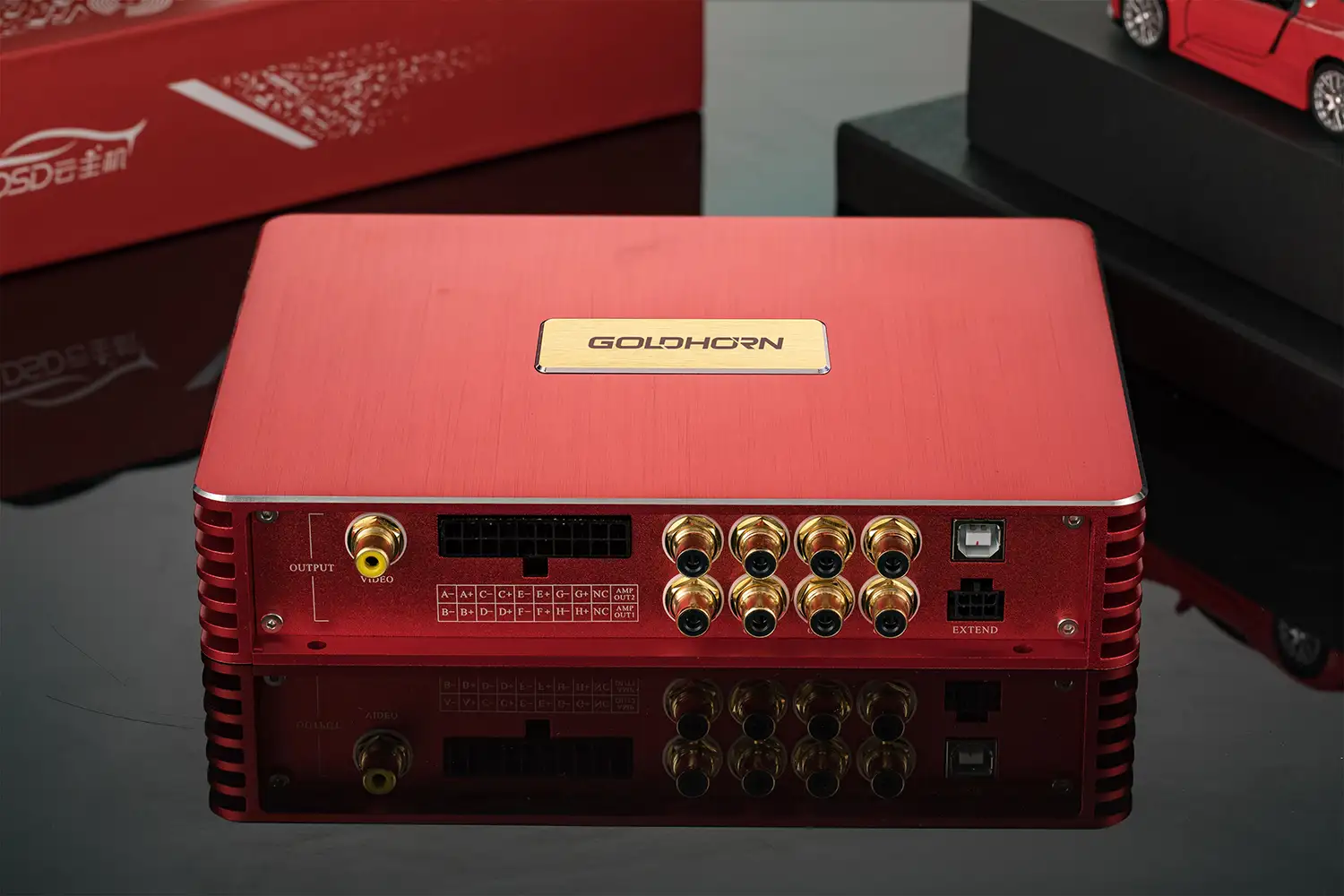

P2 DSPA Pro

8-Channel Digital Signal Processor with DSD256 High Resolution Player and 16-Channel Class D Amplifier

Goldhorn P2 DSPA PRO is specifically designed for high-end cars. P2 DSPA PRO is an all-round choice with an integrated 31-band EQ DSP module, a high power digital amplifier module and a Bluetooth® 5.0 player module.

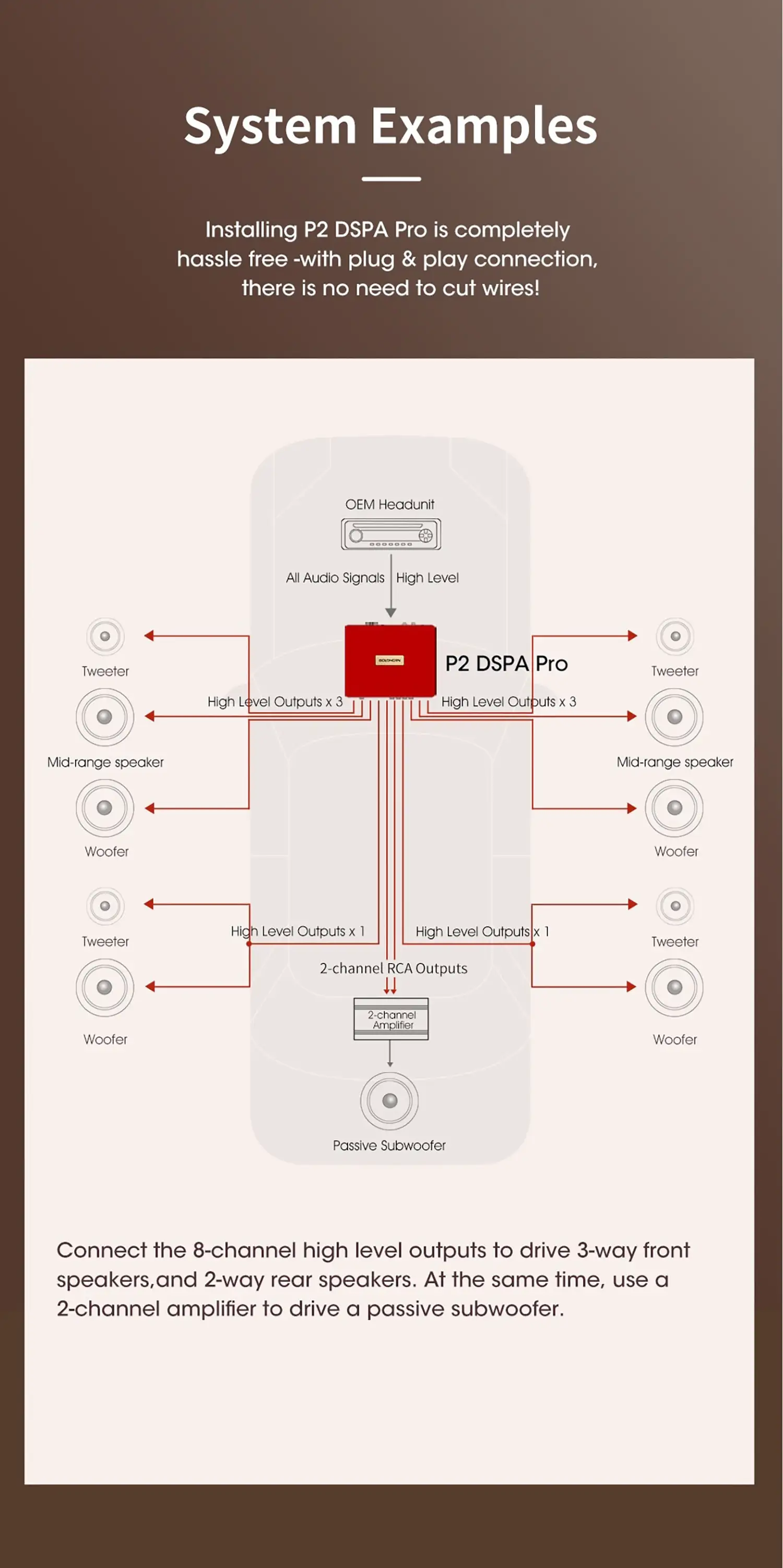

However, P2 DSPA PRO is more powerful and functional. It features 8-channel high level inputs, so it can perfectly match many high-end vehicles with multiple speakers. Its 8-channel Class D amplifier delivers up to 80 watts, so 3-way active crossover system can be easily achieved. Its 8-channel RCA outputs allow for a wide range of audio upgrade plans. Most importantly, installing P2 DSPA PRO is completely hassle free -with plug & play connection, there is no need to cut wires.

All-in-one Player
Powerful 8 x 80W/4Ω Max.

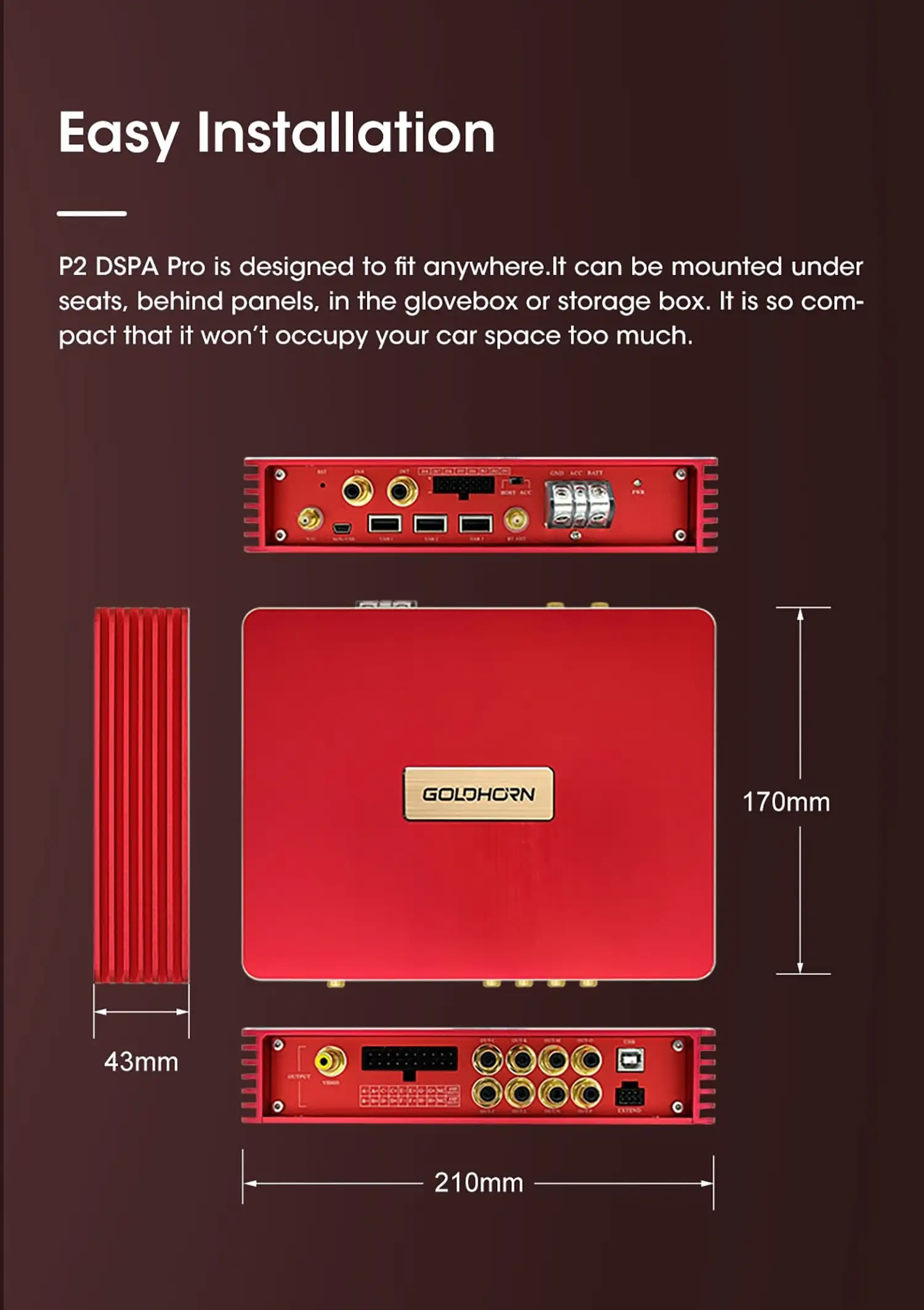

Easy Plug & Play connection

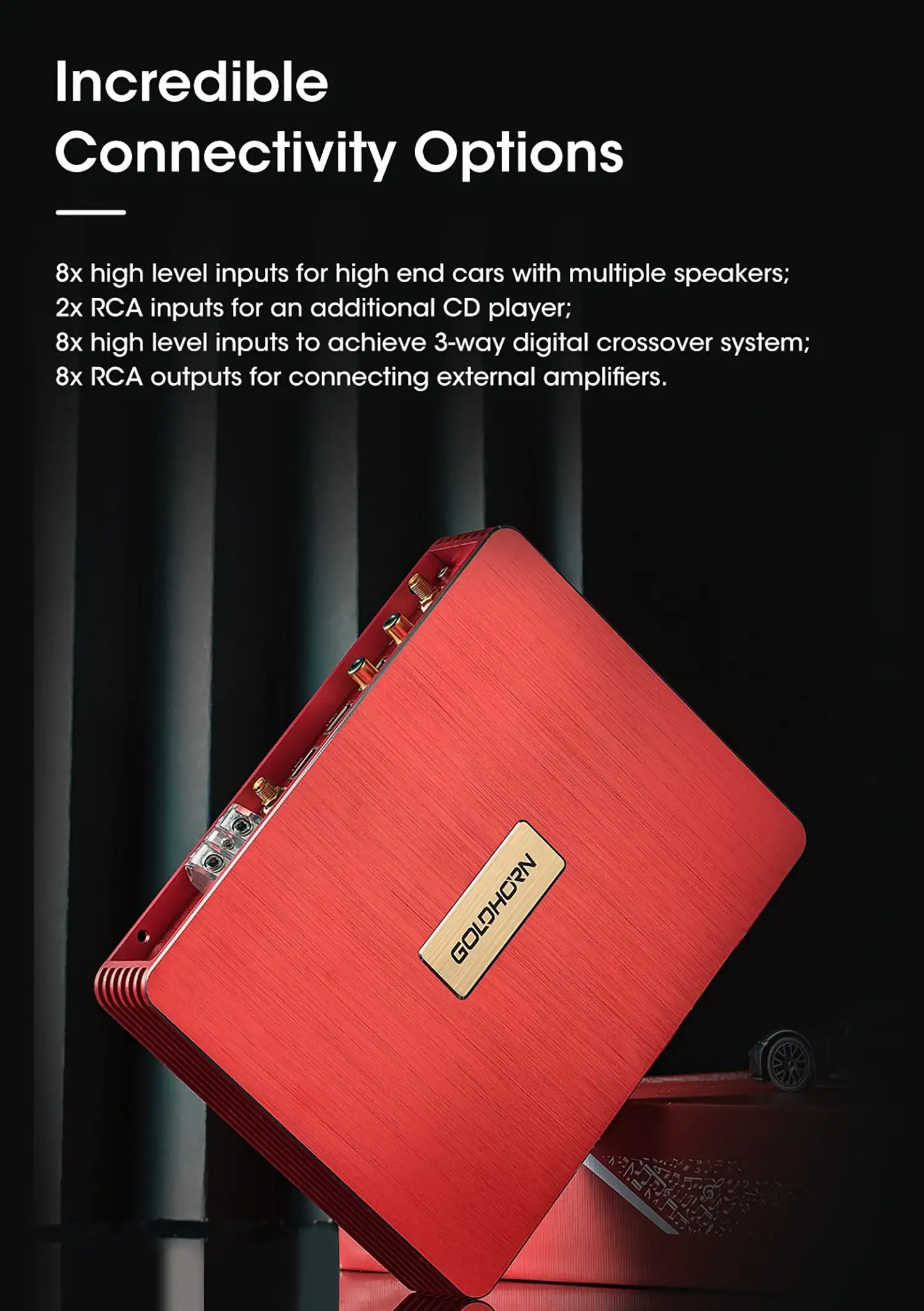

8 x RCA Outputs 8 x High Level Outputs
16 channel output
TI PCM1690 (24-bit/192kHz PCM)

Qualcomm aptX

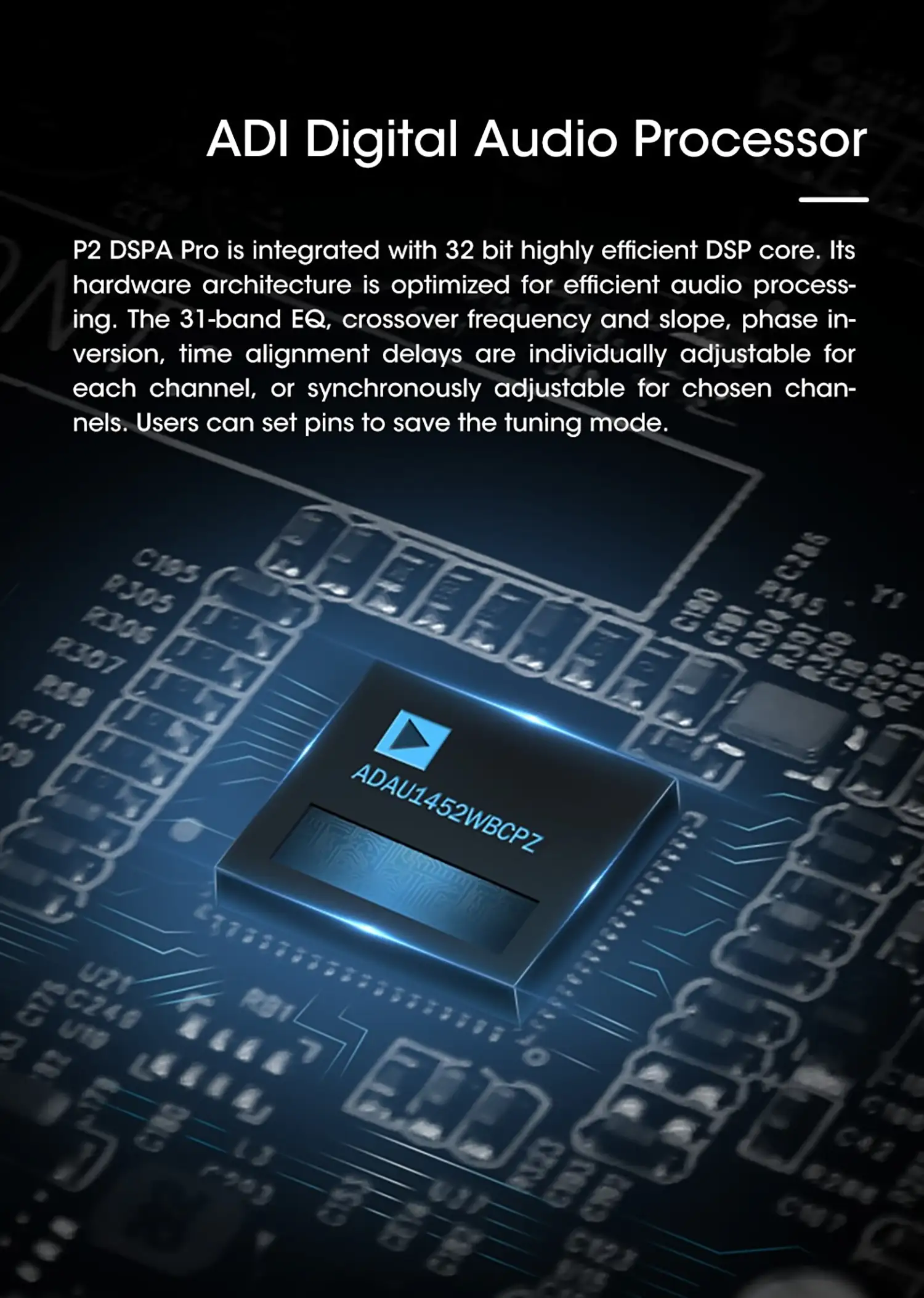

ADAU1452 ADI DSP-Chip

2 x PCM1840 ADC-Chip (192KHz/32bit)

PCM1690 DAC-Chip (192KHz/24bit)

NJM4580 & MC33078 Op Amp

Find A Dealer

View Specs

No items found.

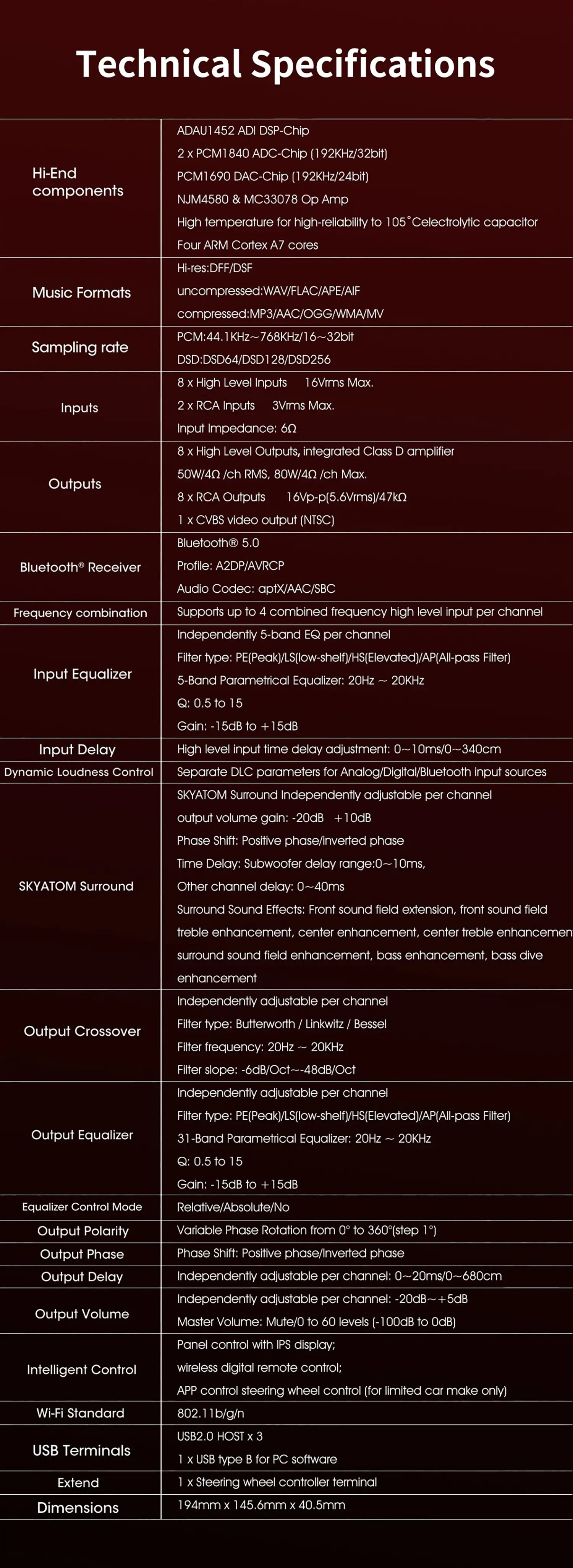

Hi-End Components

ADAU1452 ADI DSP-Chip 2 x PCM1840 ADC-Chip (192KHz/32bit) PCM1690 DAC-Chip (192KHz/24bit) NJM4580 & MC33078 Op Amp High temperature for high-reliability to 105° Celectrolytic capacitor Four ARM Cortex A7 cores

Music Formats

Hi-res:DFF/DSF Uncompressed:WAV/FLAC/APE/AIFF Compressed:MP3/AAC/OGG/WMA/MV

Sampling rate

PCM:44.1KHz~768KHz/16~32bit DSD:DSD64/DSD128/DSD256

Inputs

12 x High Level Inputs 16Vrms Max. 2 x RCA Inputs 3Vrms Max. Input Impedance: 6Ω

Frequency Combination

Supports up to 4 combined frequency high level input per channel

Outputs

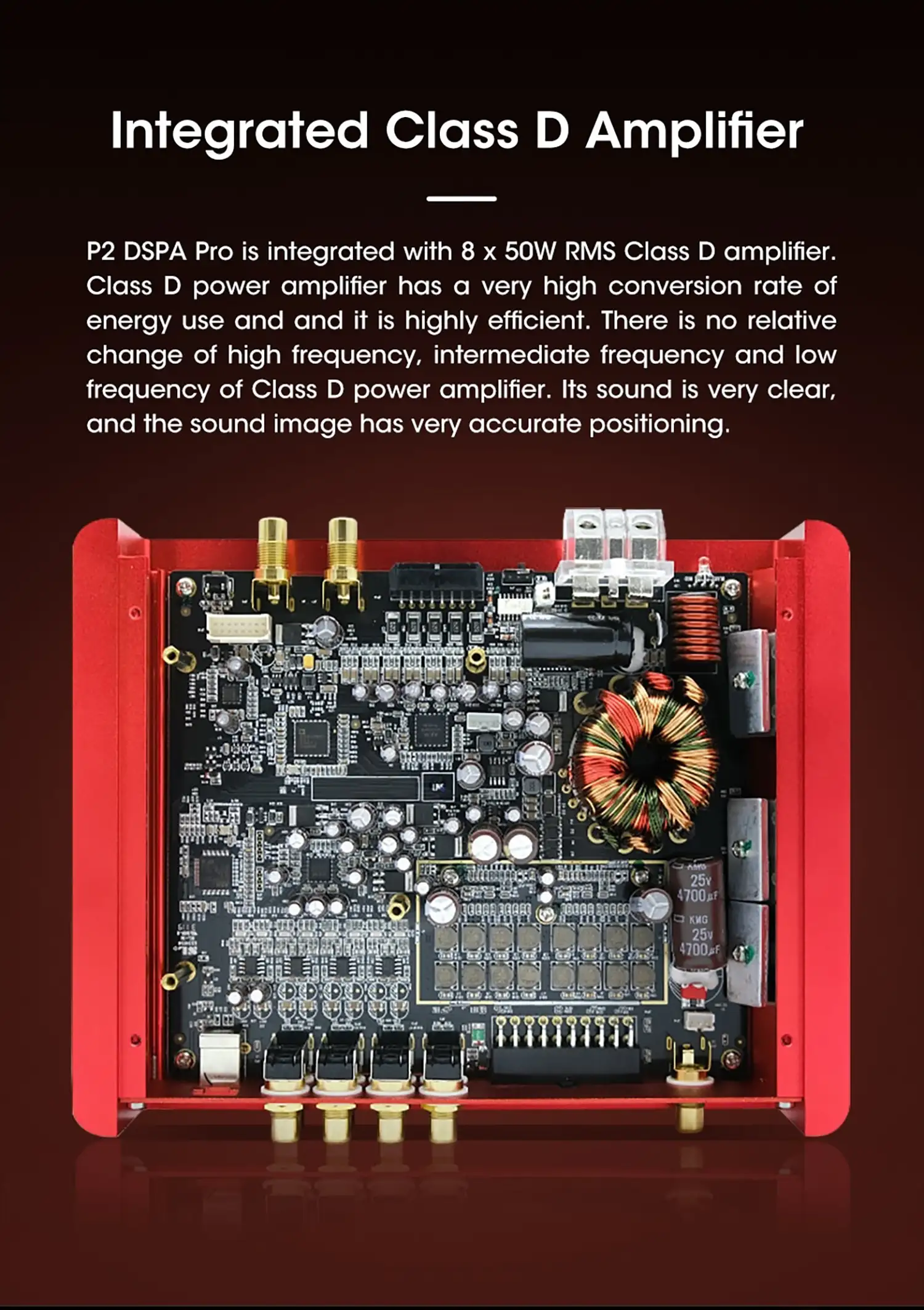

8 x High Level Outputs, integrated Class D amplifier 50W/4Ohm /ch RMS, 80W/4Ohm /ch Max. 8 x RCA Outputs 16Vp-p(5.6Vrms)/47kQ 1 x CVBS video output (NTSC)

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AVRCP Audio Codec: aptX/AAC/SBC

Input Equalizer

Independently 5-band EQ per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/AP(All-pass Filter) 5-Band Parametrical Equalizer: 20Hz ~ 20KHz Q: 0.5 to 15 Gain: -15dB to +15dB

Input Delay

High level input time delay adjustment: 0~10ms/0~340cm

Dynamic Loudness Control

Separate DLC parameters for Analog/Digital/Bluetooth input sources

SKYATOM Surround

SKYATOM Surround Independently adjustable per channel output volume gain: -20dB + 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~ 10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancemer surround sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/AP(All-pass Filter) 31-Band Parametrical Equalizer: 20Hz ~ 20KHz Q: 0.5 to 15 Gain: -15dB to +15dB
