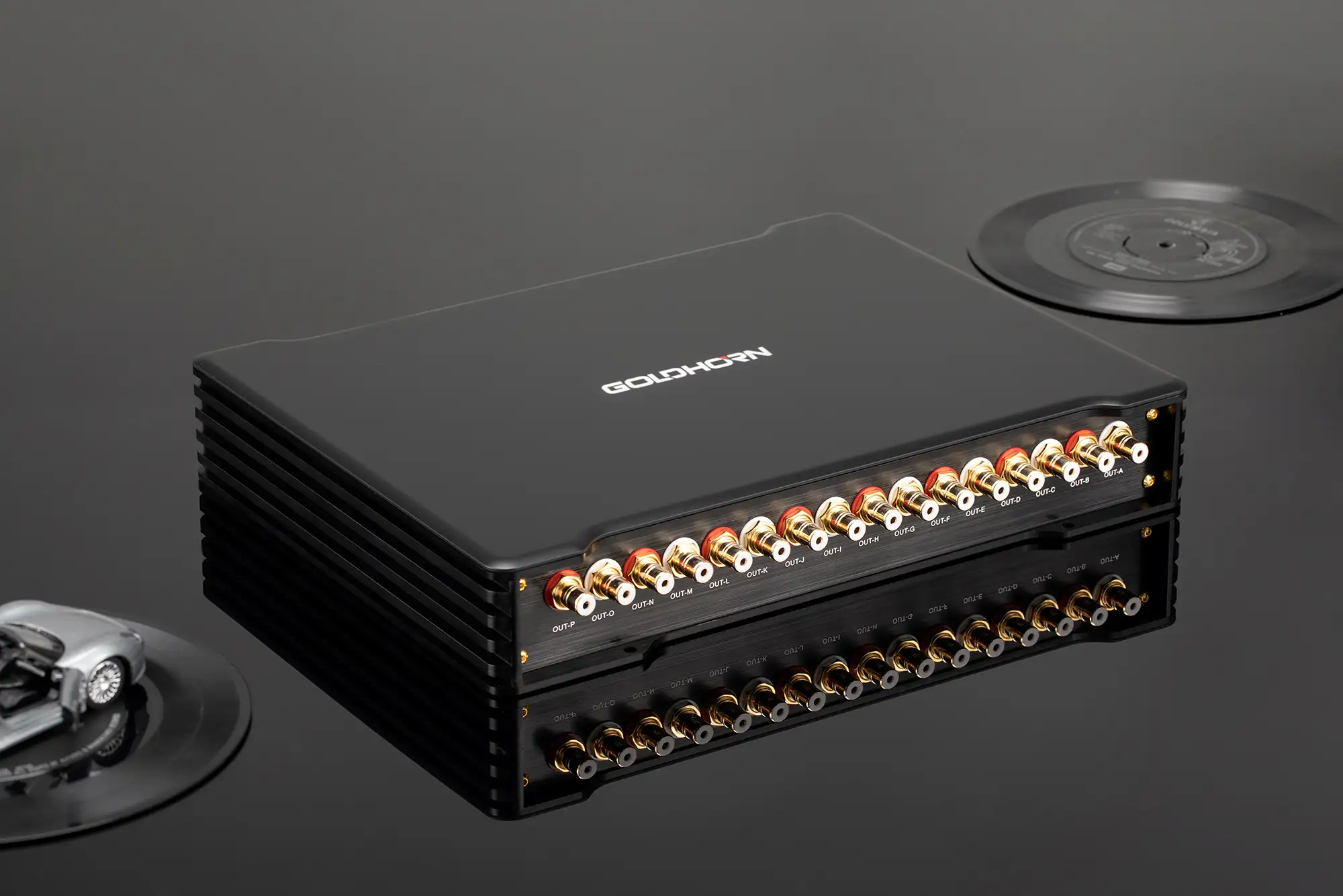

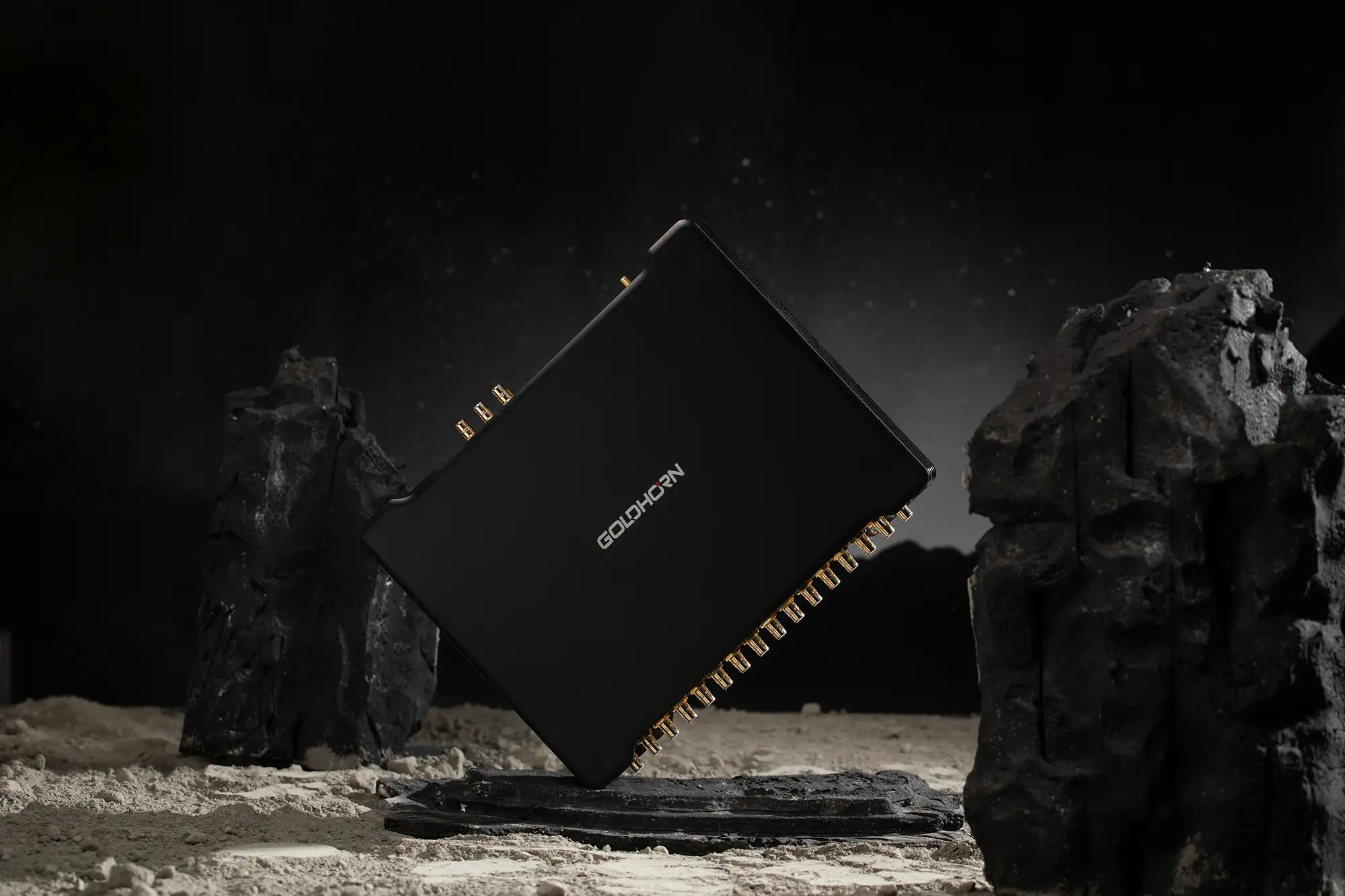

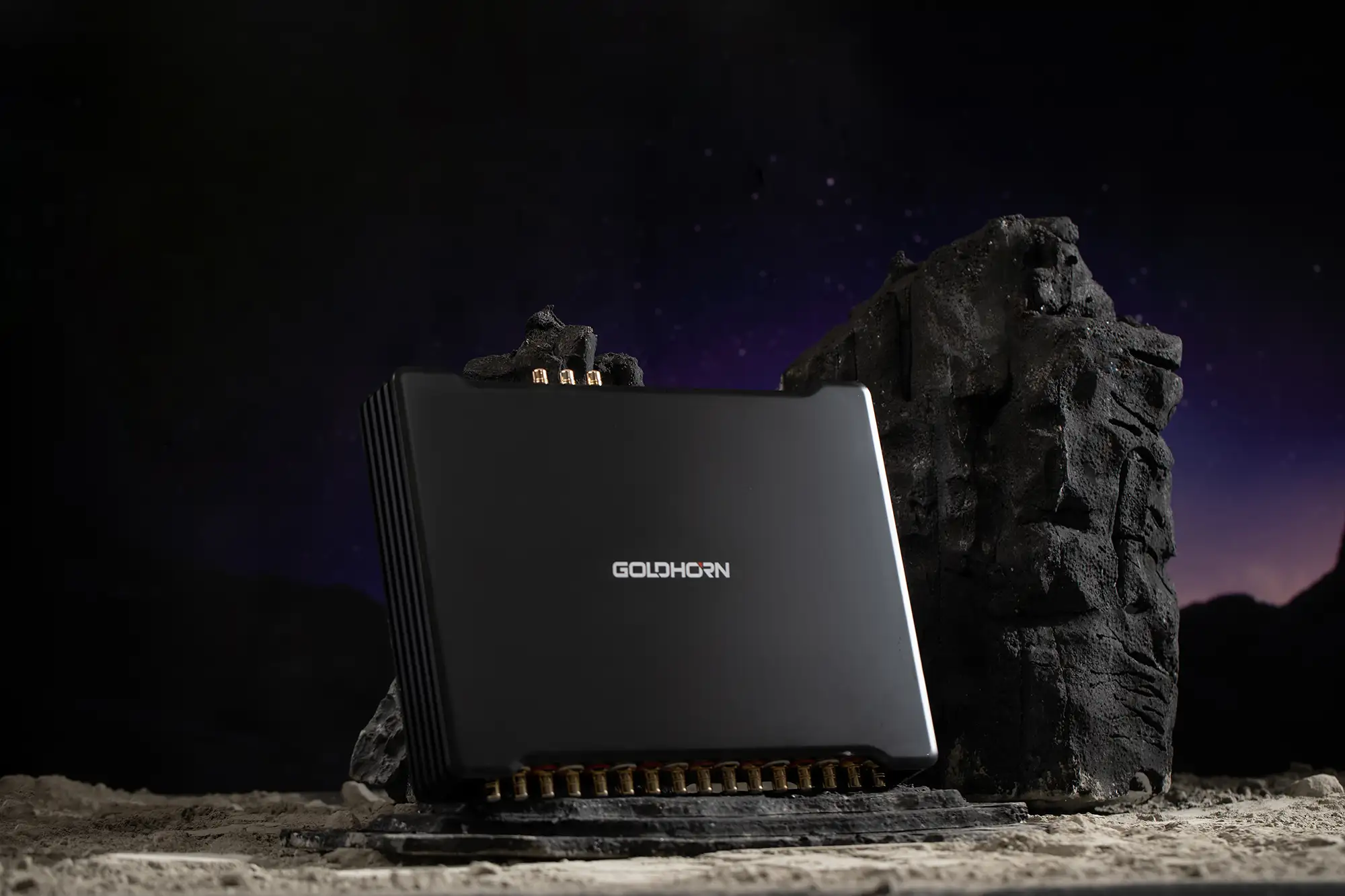

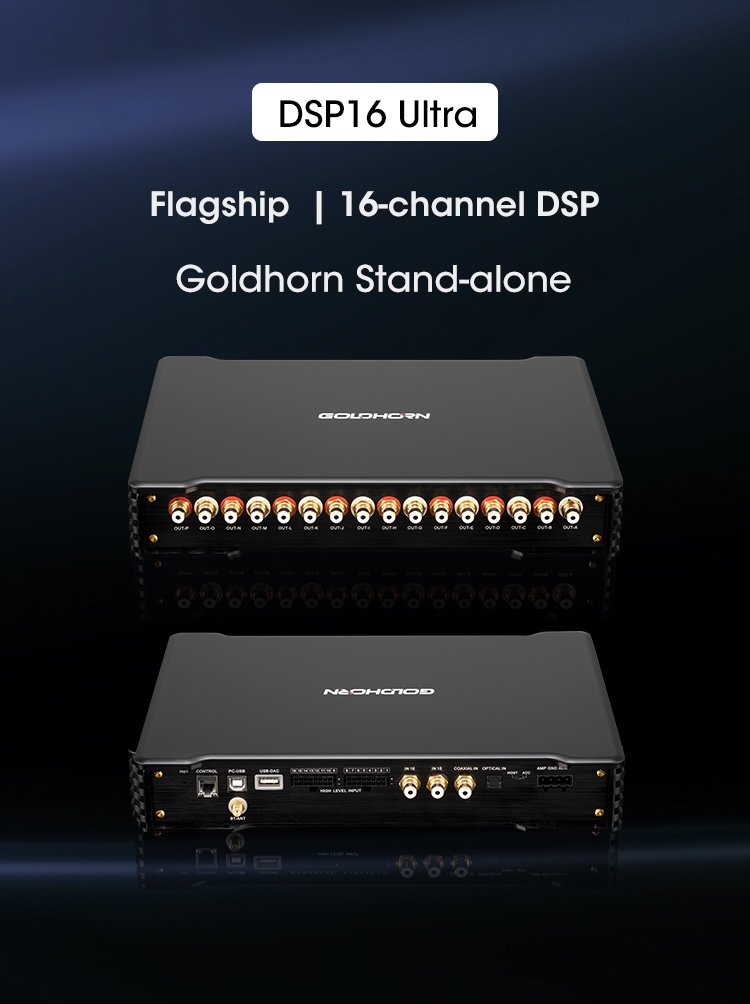

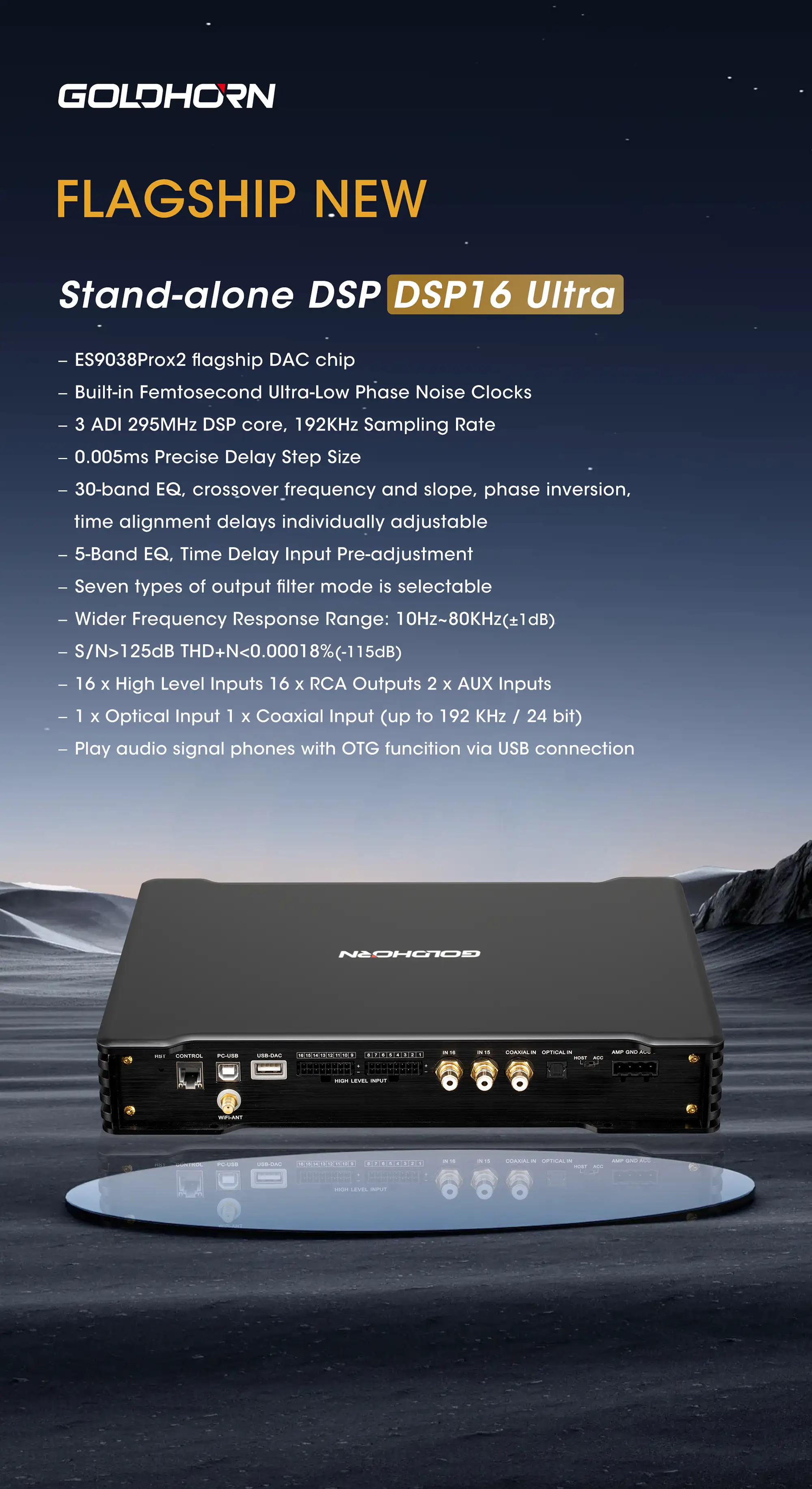

DSP 16 Ultra

High-End Digital Player

DSP16 Ultra is Goldhorn's flagship stand-alone DSP, dedicated to delivering the essence of pure music aesthetics. It features two ES9038Pro DAC chips and a powerful 3-core DSP processor, complemented by high-precision femtosecond clock system and ultra-precise 0.005msdelay, providing car owners with a mind-blowing music experience. DSP16 Ultra revolutionizes the way music is presented, whether it's the high-energy rock or the soothing beauty of classical tunes, DSP16 Ultra takes you on an enchanting musical journey.

2 x ES9038Pro DAC (32-bit / 768 kHz PCM)
femtosecond clock system
3-Core 295MHz ADI chip

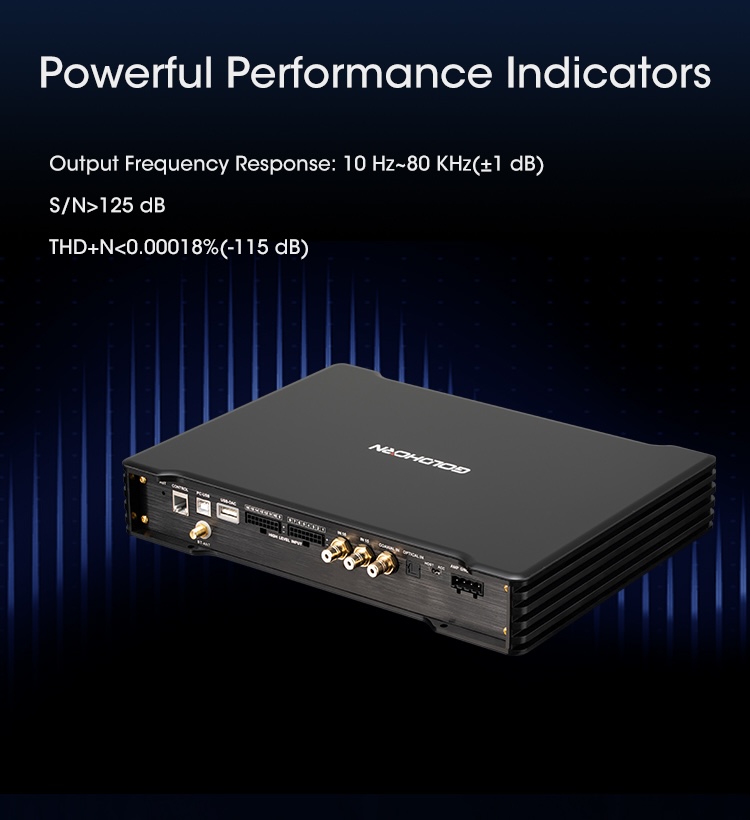

Output frequency response:10Hz~80KHz

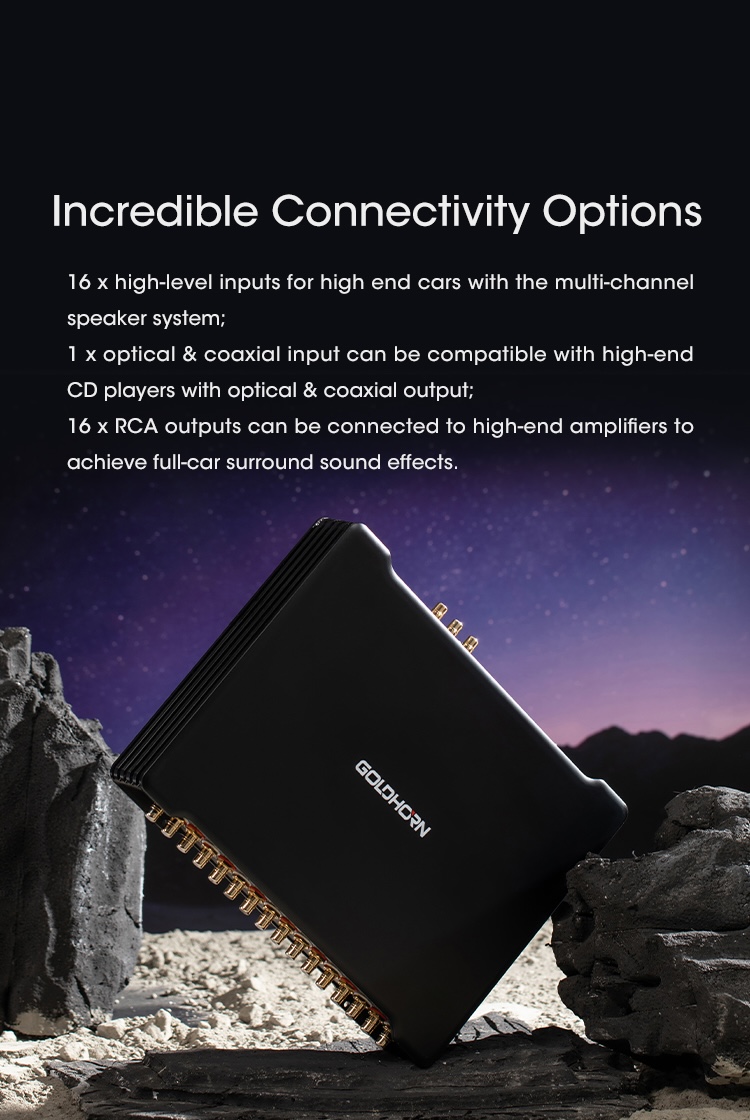

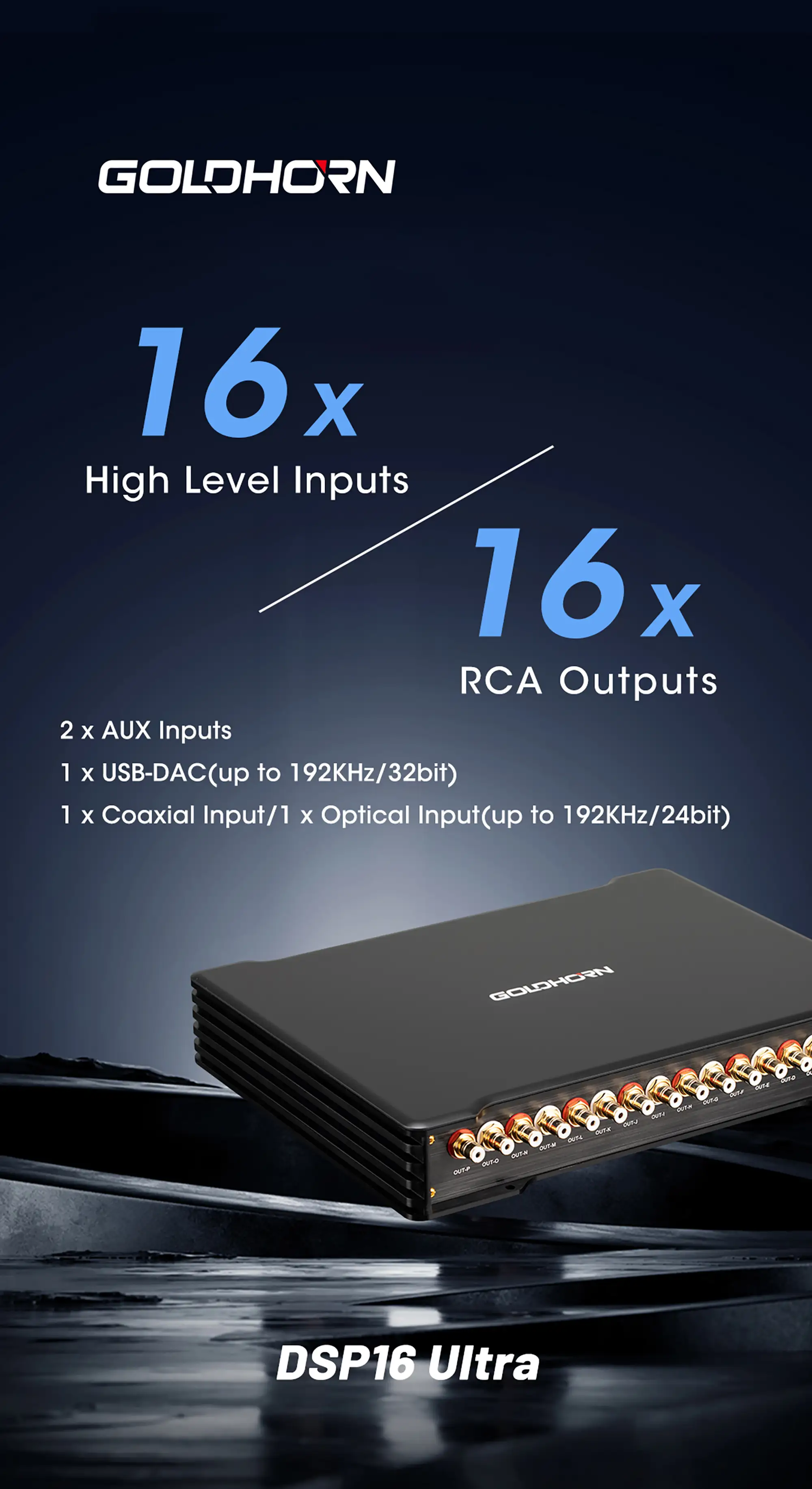

16 x High Level Inputs 16 x RCA Outputs
0.005ms delay step
Phone with OTG function

Femtosecond Clock Generator

Qualcomm aptX HD

3-Core 295MHz ADI Chip

ES9038Pro x 2(32bit/768KHz PCM)

AKM Hi-End 768KHz/32bit ADC, ESS Hi-End 768KHz/32bit DAC

Professional Op Amp

Find A Dealer

View Specs

No items found.

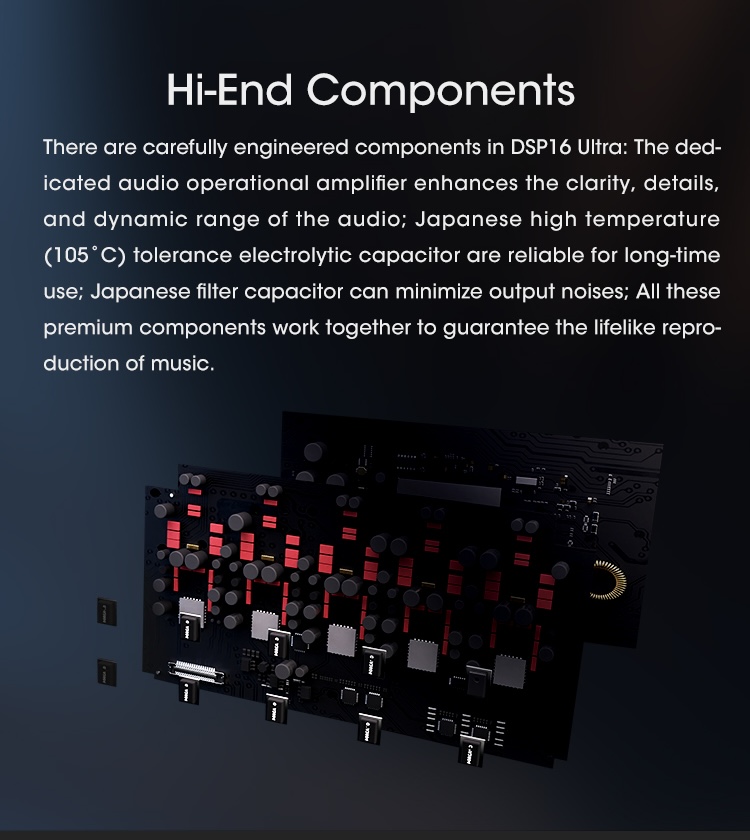

Hi-End Components

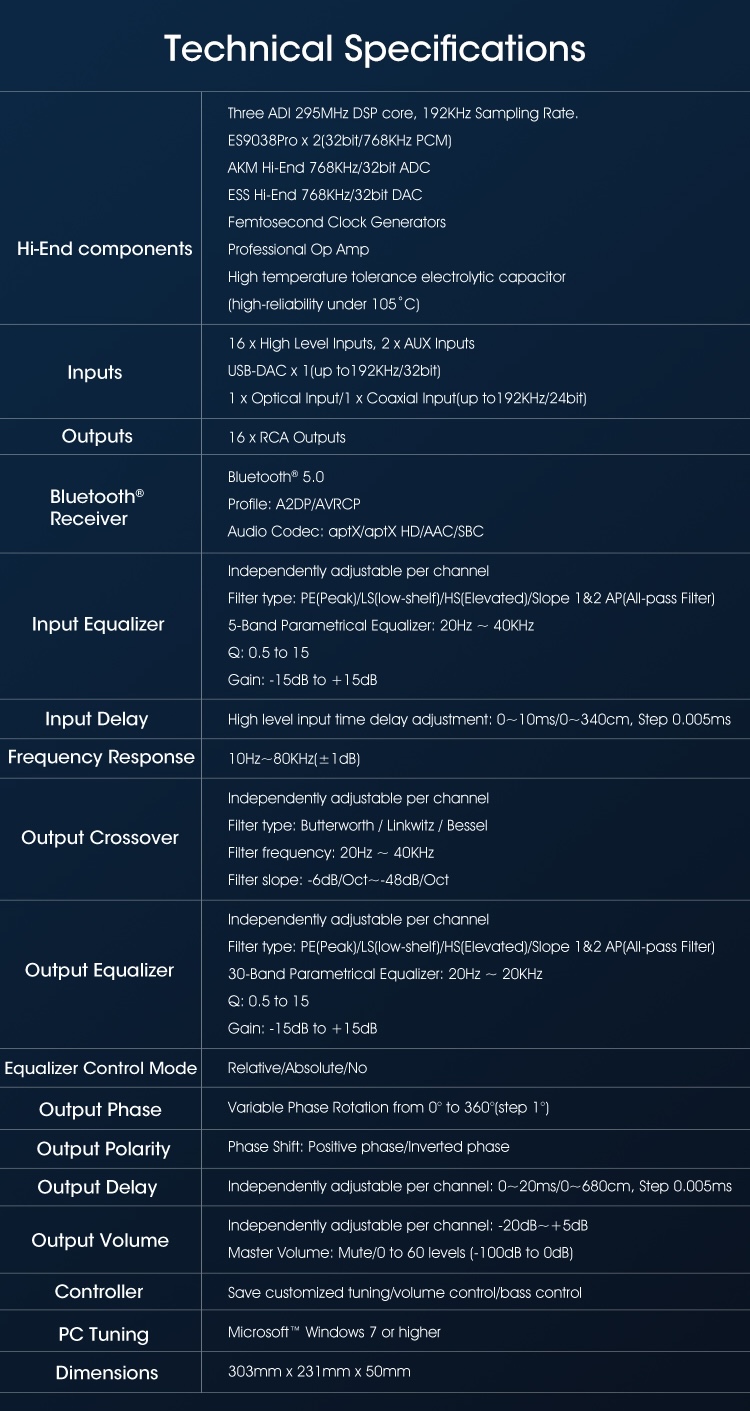

Three ADI 295MHz DSP core, 192KHz Sampling Rate. ES9038Pro x 2(32bit/768KHz PCM) AKM Hi-End 768KHz/32bit ADC ESS Hi-End 768KHz/32bit DAC Femtosecond Clock Generators Professional Op Amp High temperature tolerance electrolytic capacitor (high-reliability under 105°C)

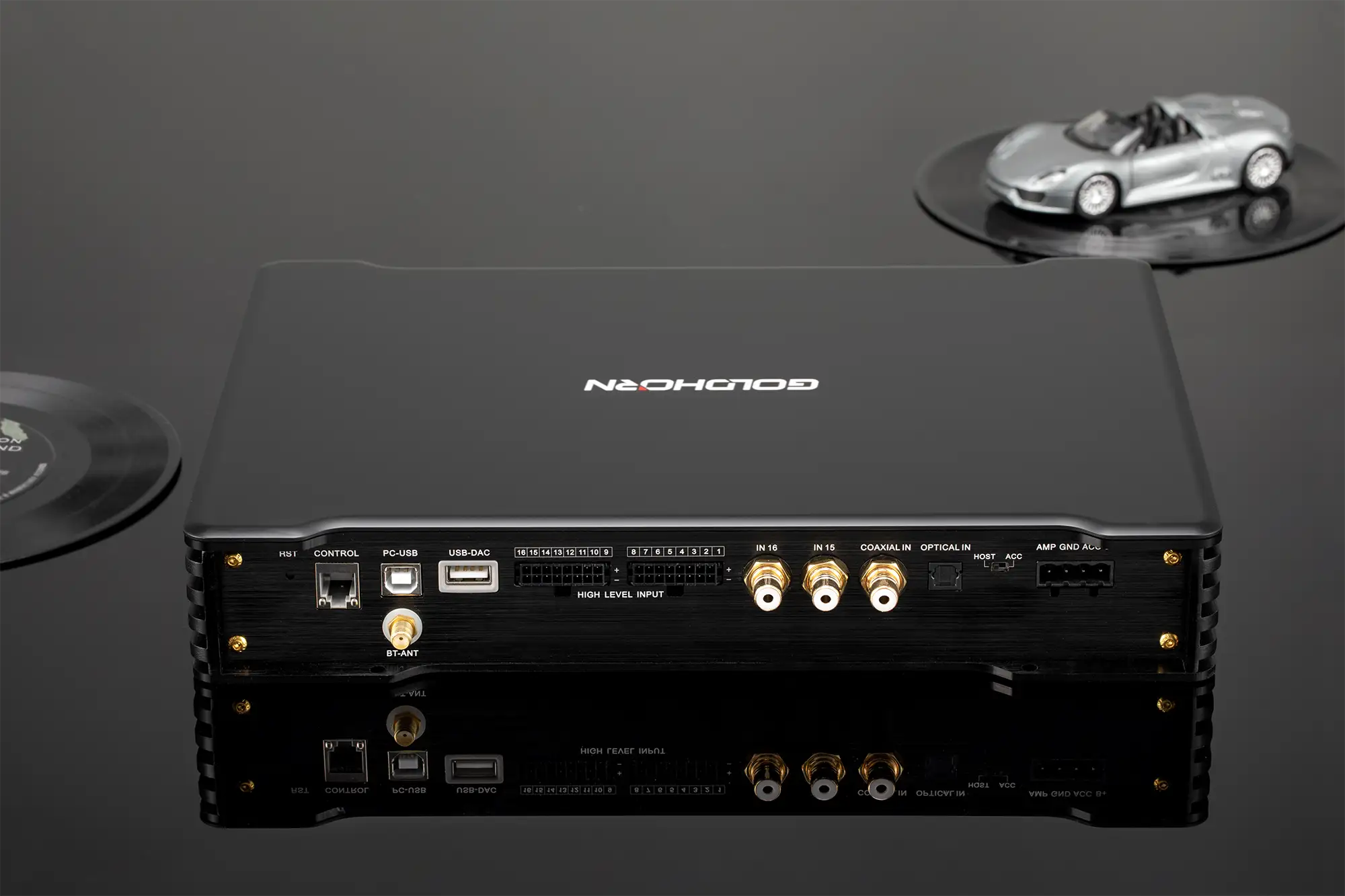

Inputs

16 x High Level Inputs, 2 x AUX Inputs USB-DAC x 1 (up to 192KHz/32bit) 1 x Optical Input/1 x Coaxial Input(up to 1 92KHz/24bit)

Outputs

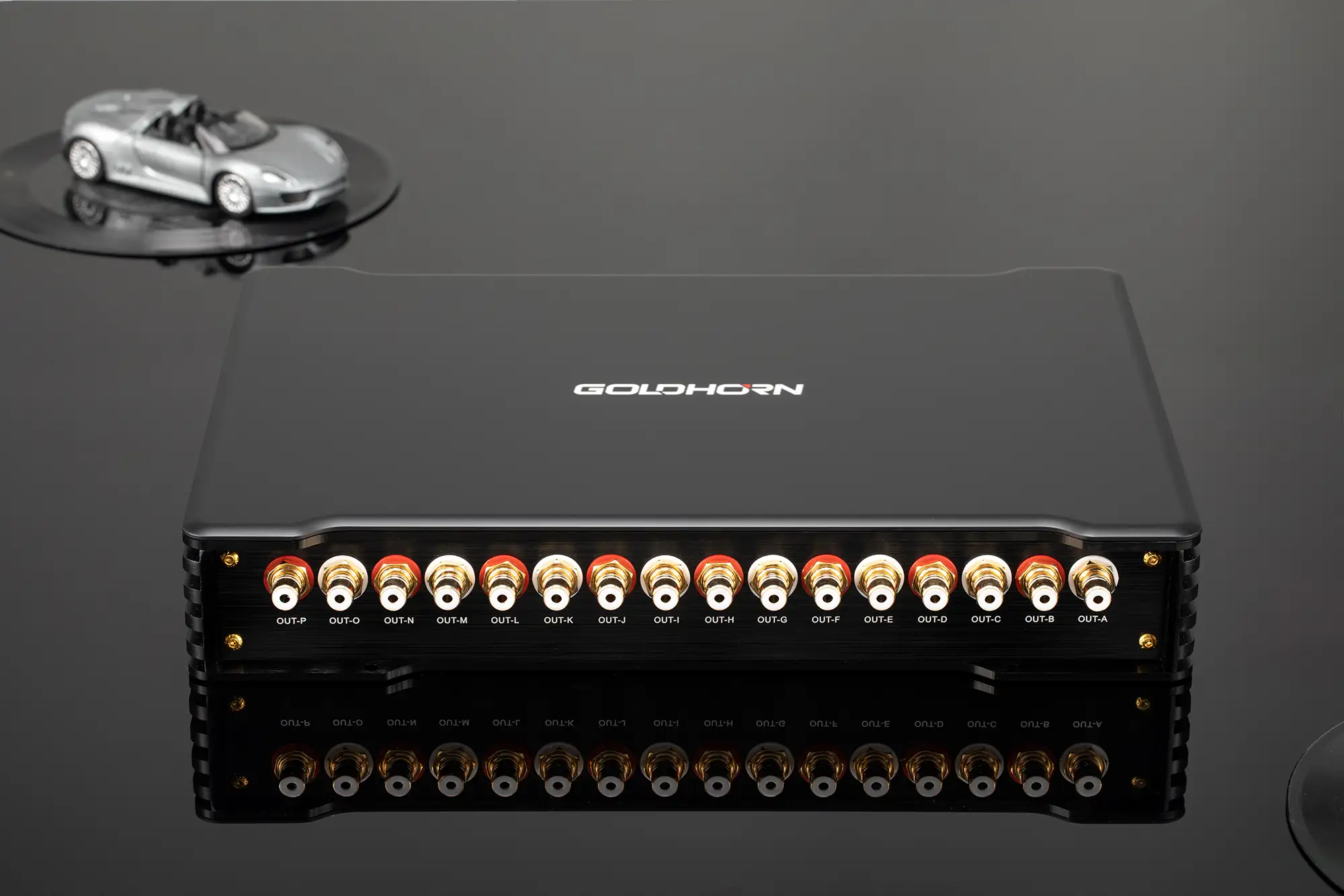

16 x RCA Outputs

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AVRCP Audio Codec: aptX/aptx HD/AAC/SBC

Input Equalizer

Independently adjustable per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/Slope 1&2 AP(All-pass Filter) 5-Band Parametrical Equalizer: 20Hz ~ 40KHz 2: 0.5 to 15 Gain: -15dB to + 15dB

Input Delay

High level input time delay adjustment: 0-- 10ms/0~340cm, Step 0.005ms

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 40KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/Slope 182 AP(All-pass Filter) 30-Band Parametrical Equalizer: 20Hz ~ 20KHz Q: 0.5 to 15 Gain: -15dB to + 15dB
