DSP 10

High-End Digital Player

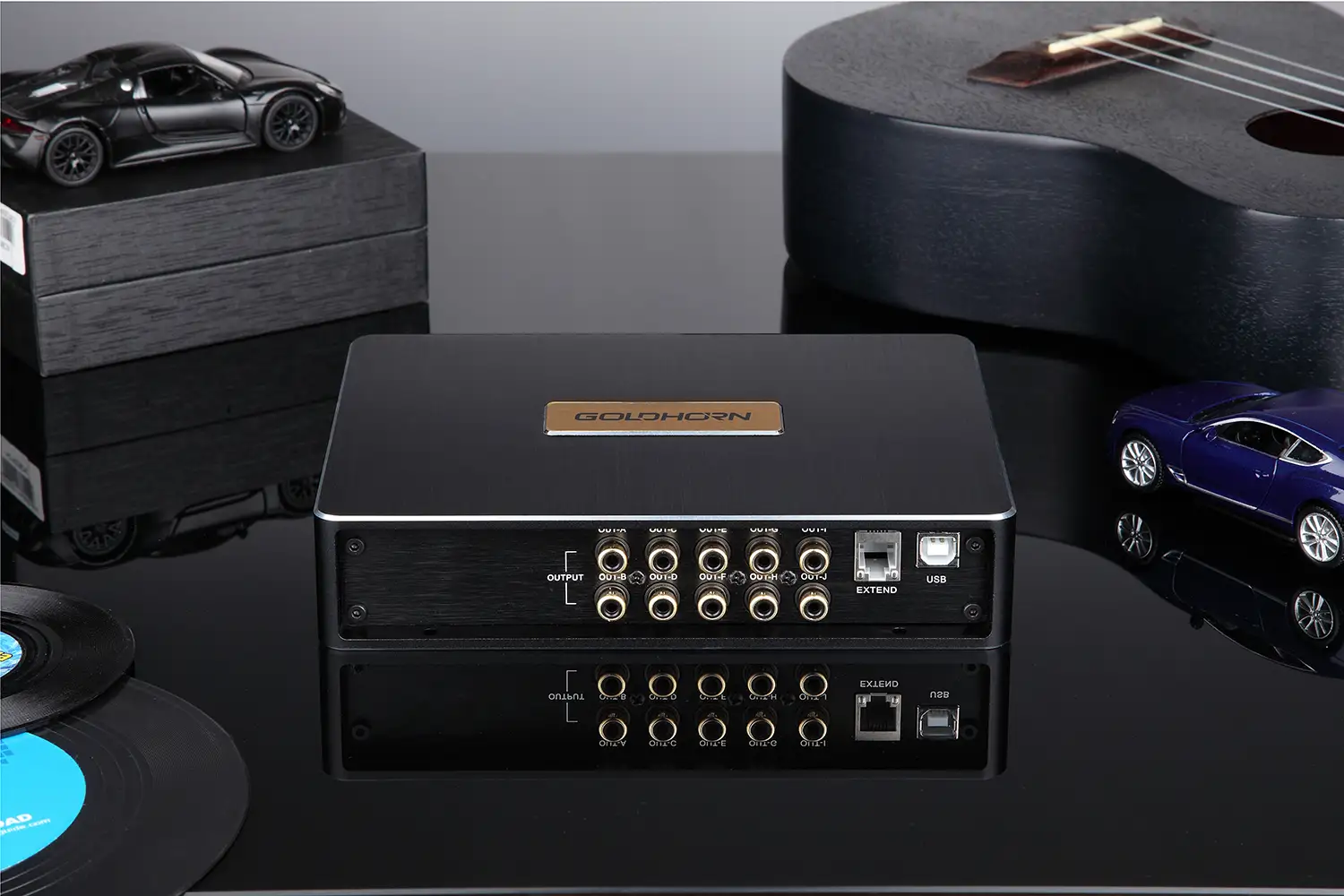

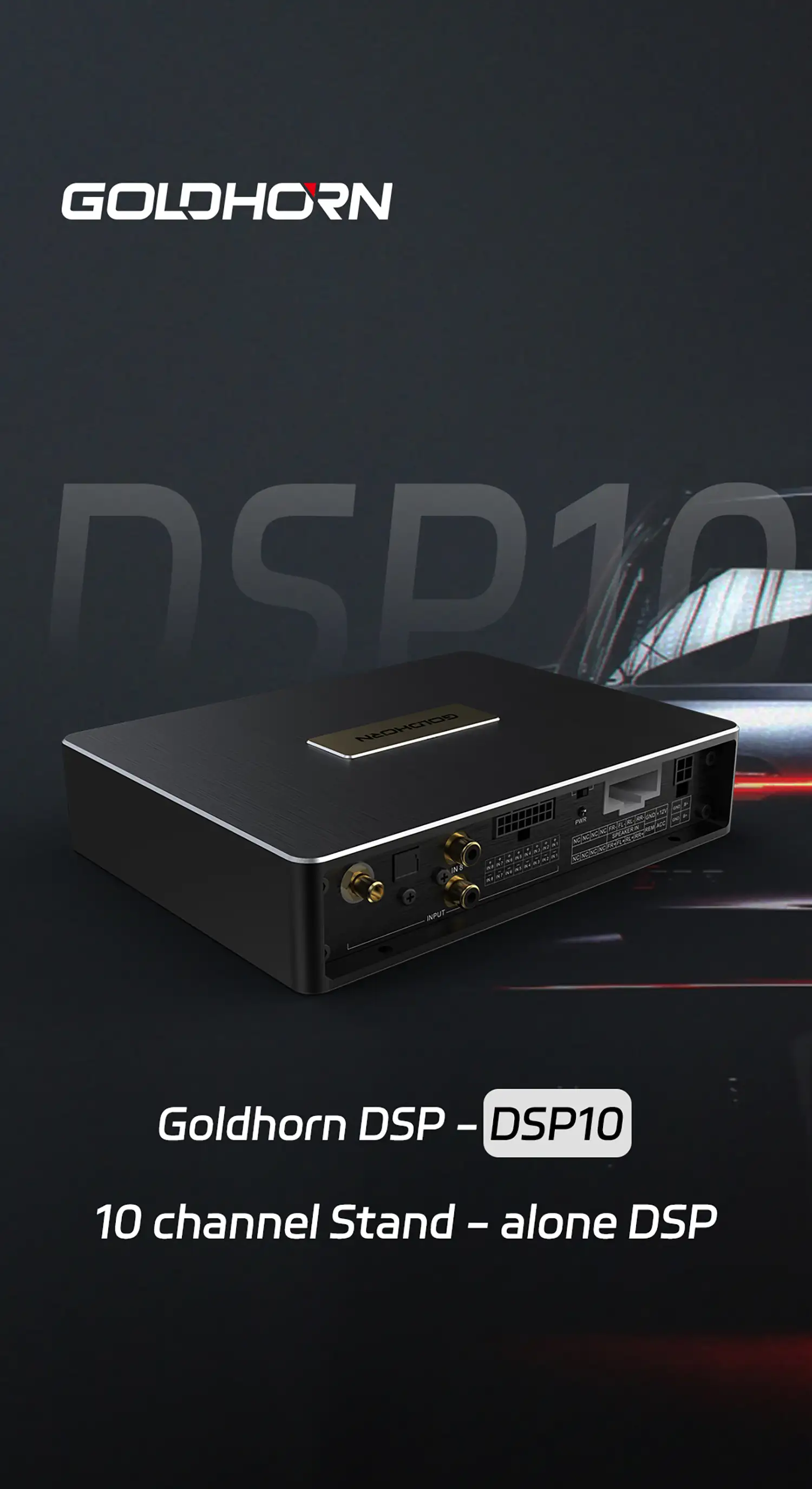

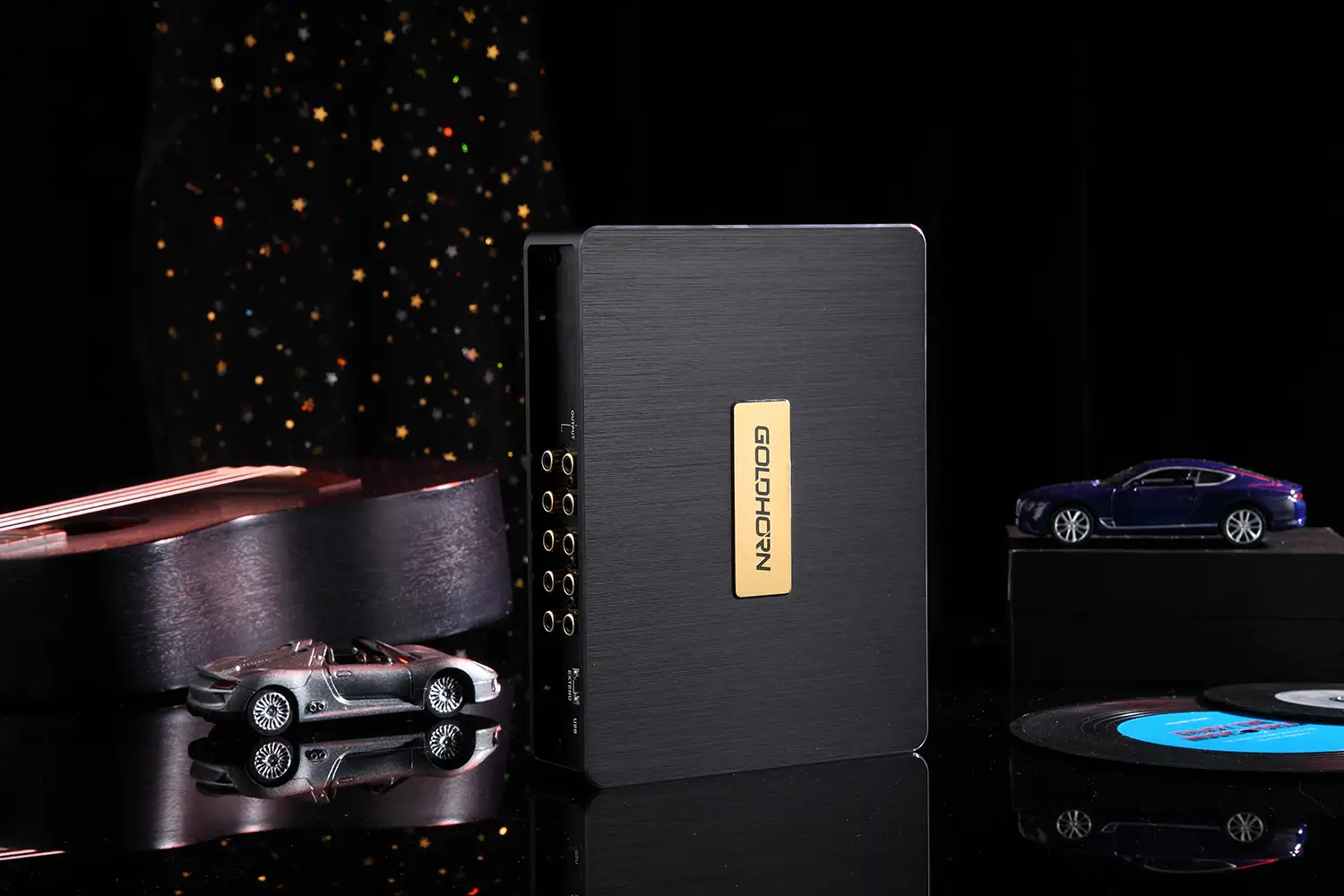

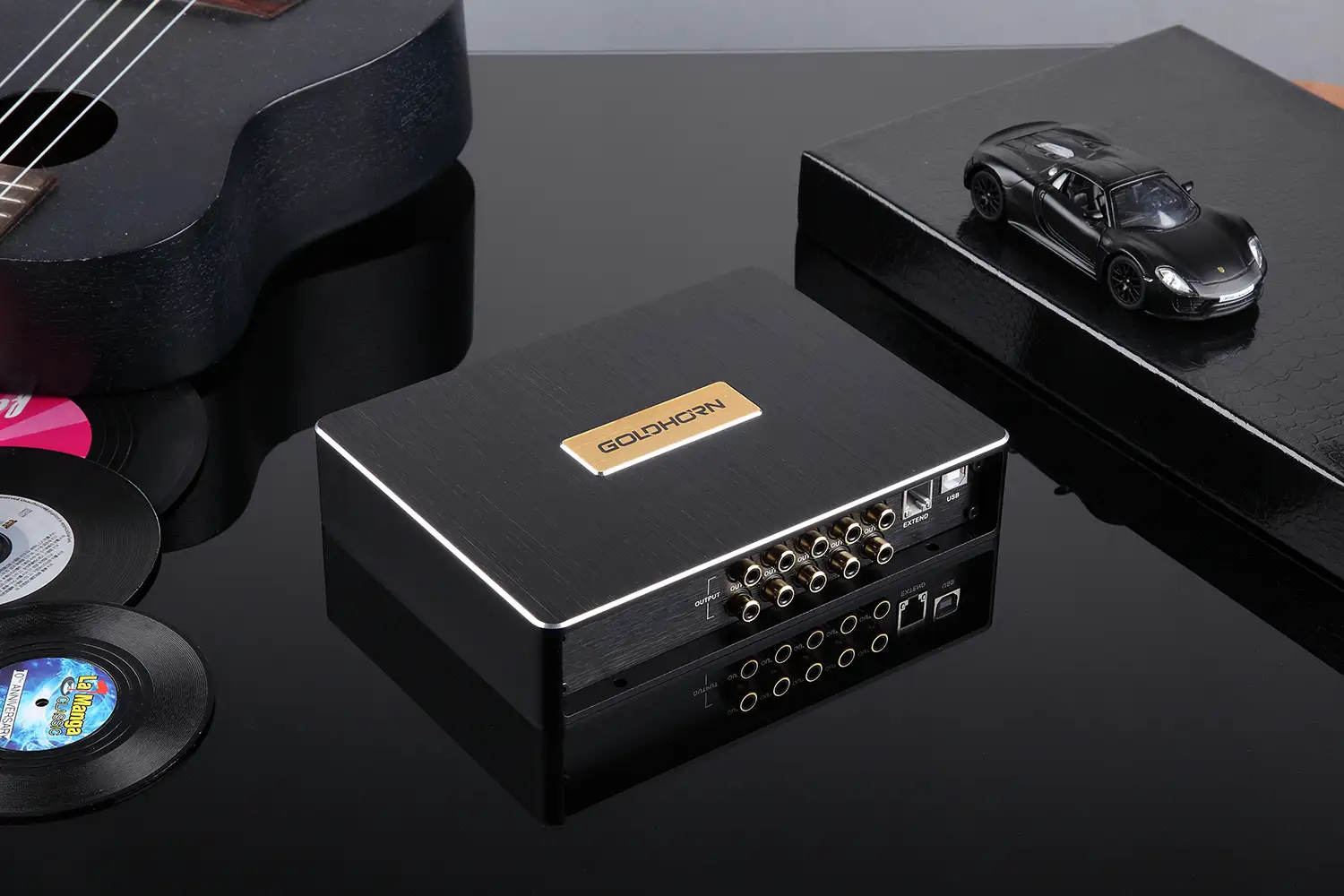

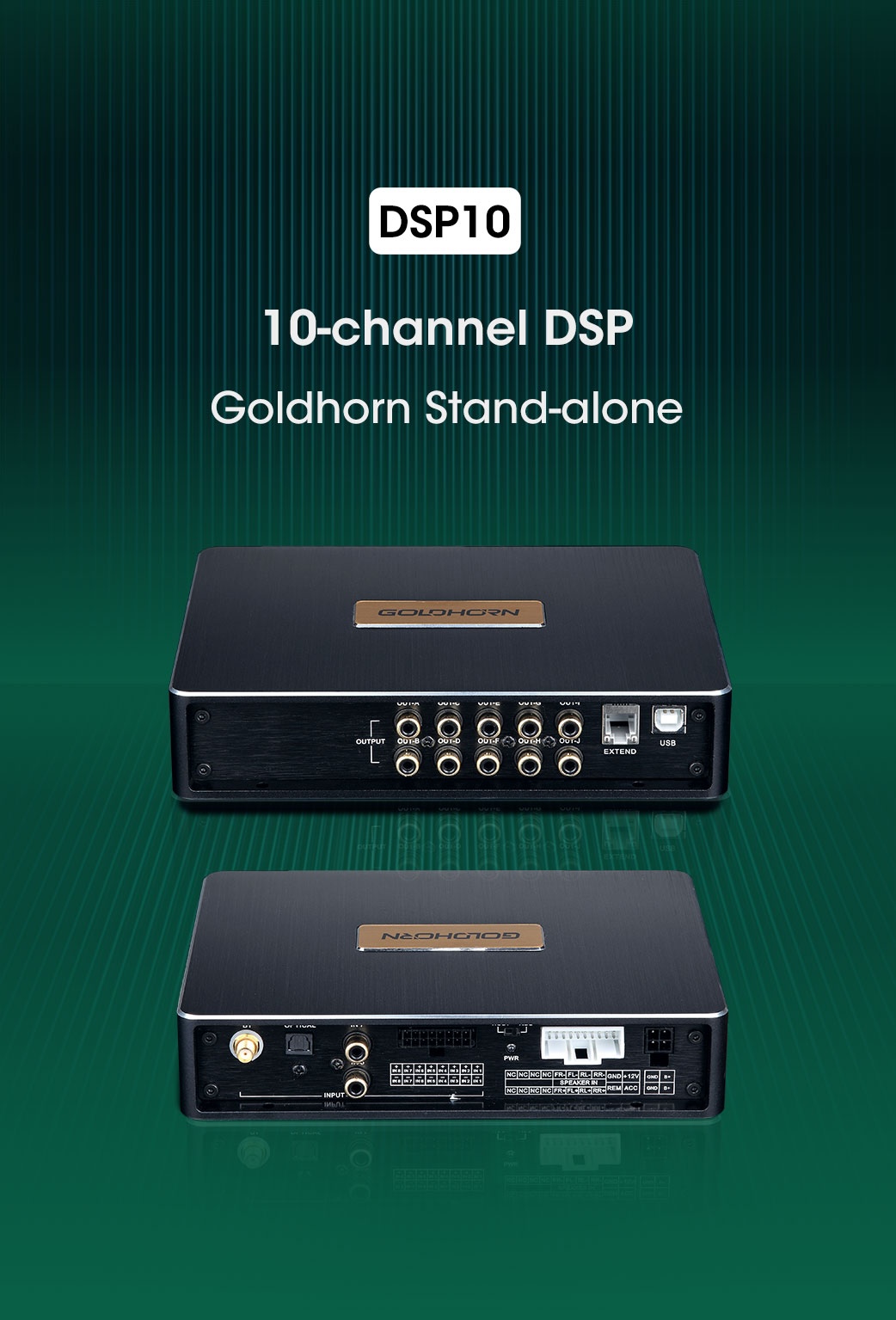

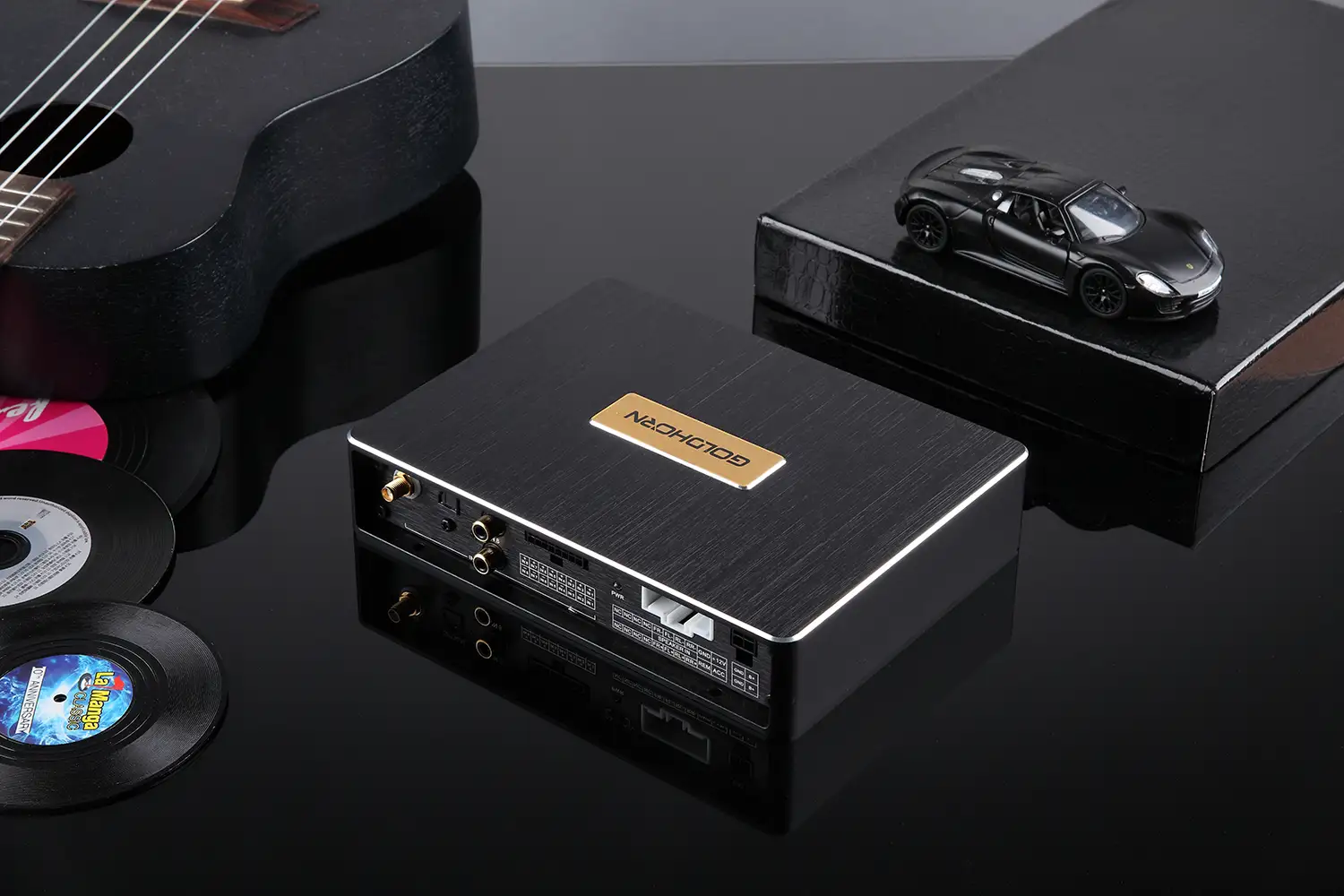

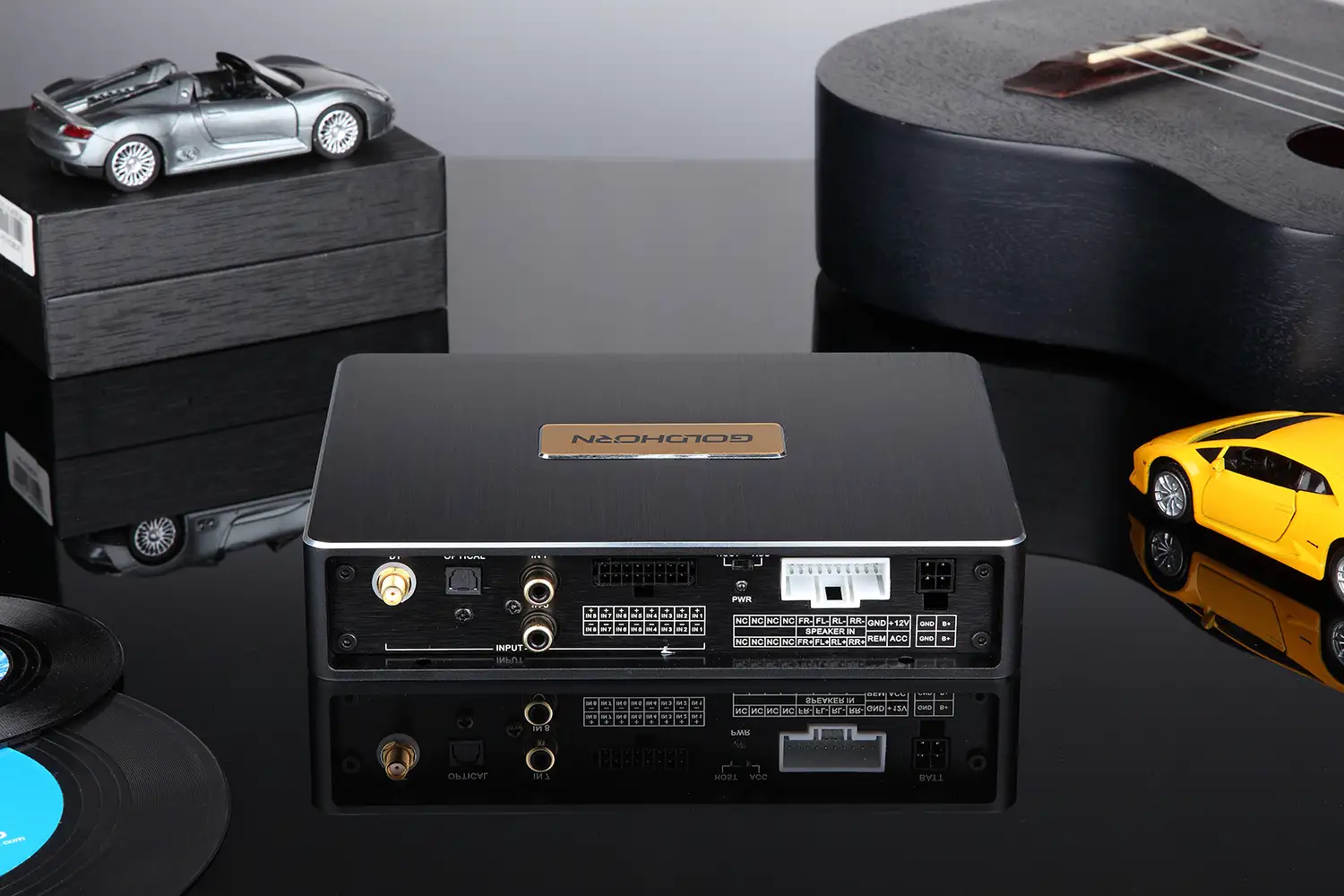

Goldhorn DSP10 is a 10-channel Stand-alone processor, optimised for mainstream vehicle audio modifications. With 8-channel high-level input and 10-channel RCA output, it ensures seamless integration.

Boasting powerful processing and adjustment capabilities, the DSP10 maintains audio clarity and dynamic range for a pure sound experience. Plus, it supports the Goldhorn SKYATOM Surround System for an immersive audio journey.

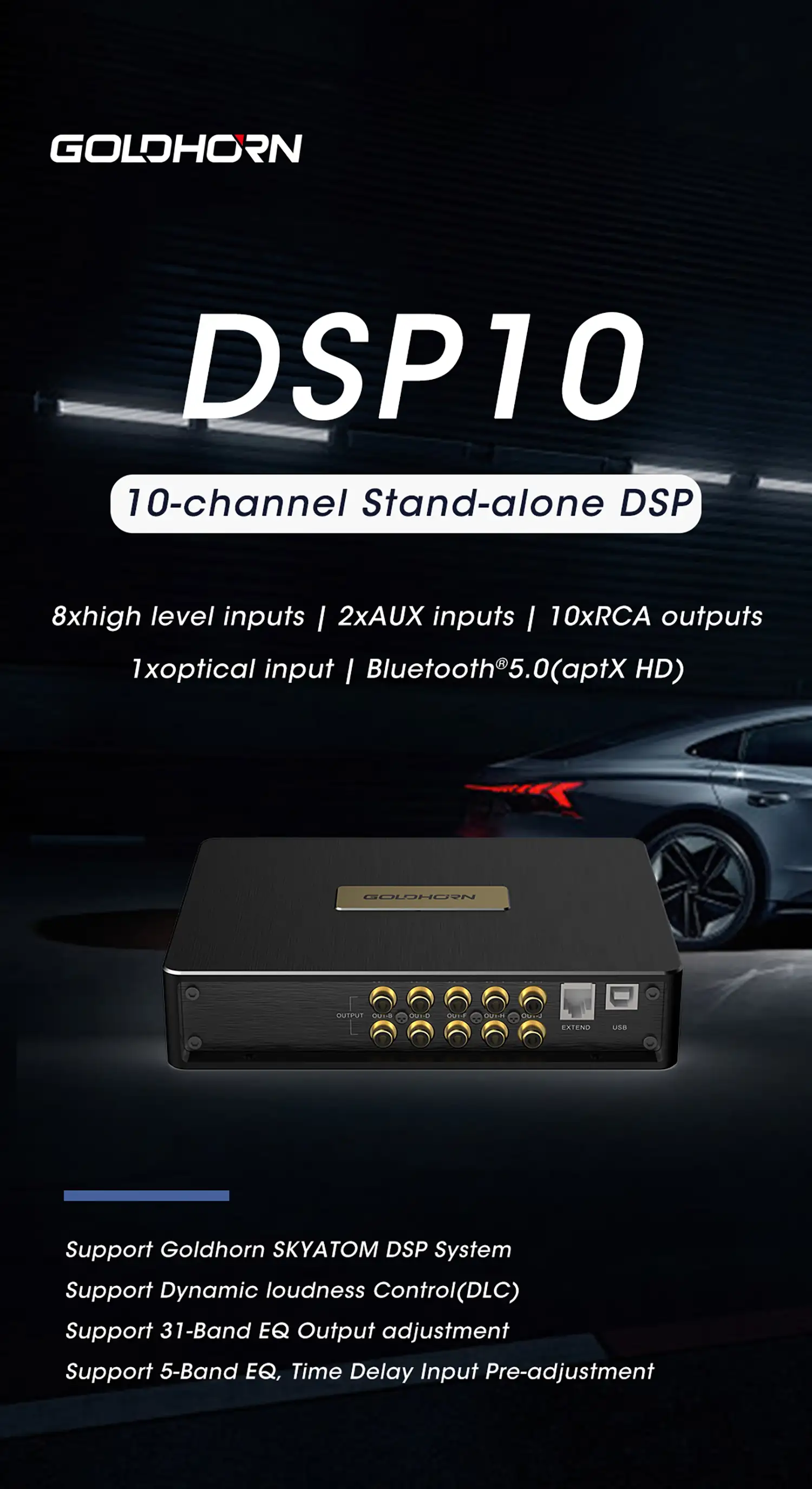

10 x RCA Outputs 8 x High Level Inputs
Bluetooth® 5.0 Audio Codec: aptX HD/aptX /AAC/SBC
Dynamic Loudness Control
Goldhorn SKYATOM Surround System

Qualcomm aptX HD

ADAU1 452 ADI DSP-Chip

2 x PCM1 840 ADC-Chip (TI Hi-End 192KHz/32bit ADC)

1 x PCM1690 DAC-Chip (TI Hi-End 192KHz/24bit DAC)

MC33078 Op Amp

Find A Dealer

View Specs

No items found.

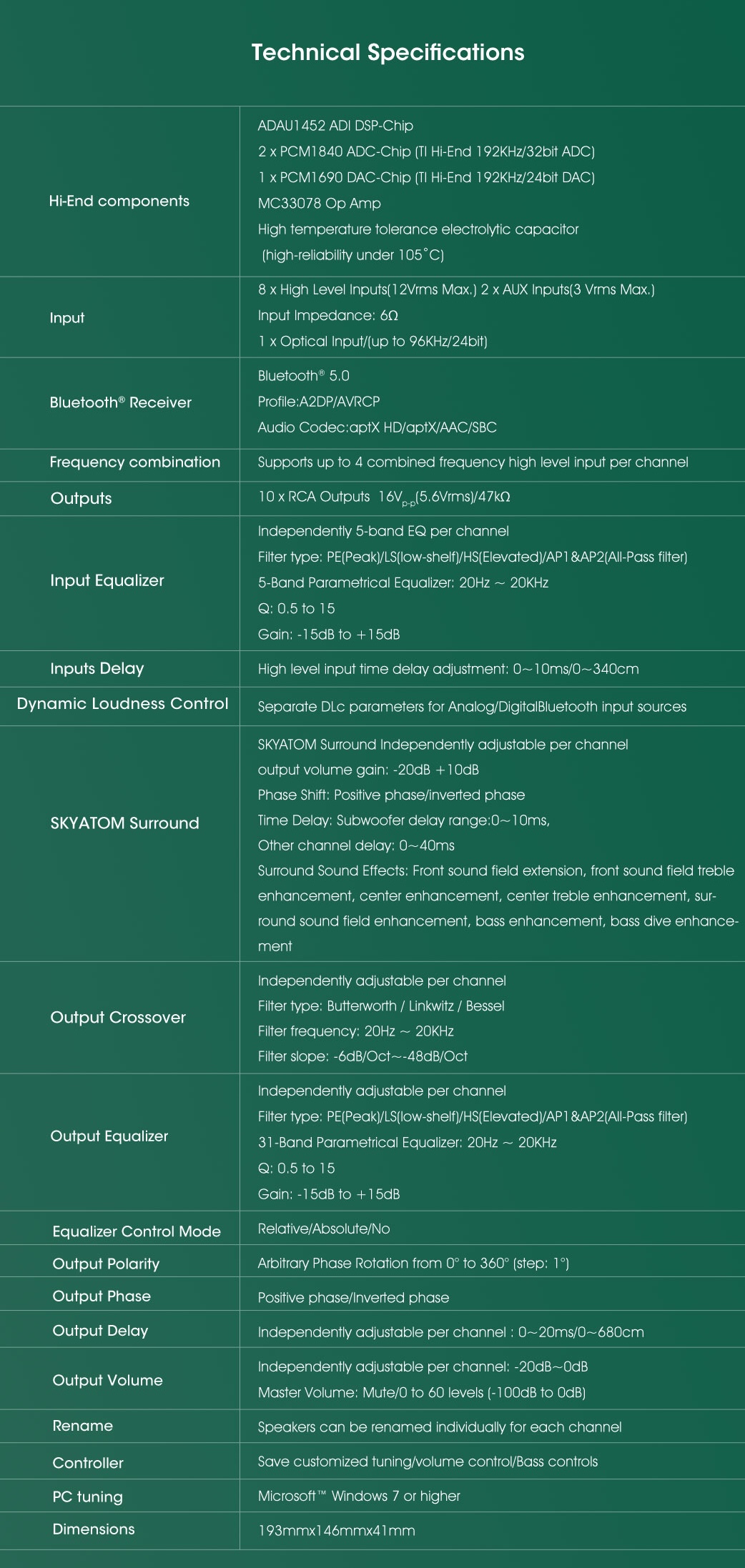

Hi-End Components

ADAU1 452 ADI DSP-Chip 2 x PCM1 840 ADC-Chip (TI Hi-End 192KHz/32bit ADC) 1 x PCM1690 DAC-Chip (TI Hi-End 192KHz/24bit DAC) MC33078 Op Amp High temperature tolerance electrolytic capacitor (high-reliability under 105°C)

Inputs

8 x High Level Inputs( 12Vrms Max.) 2 x AUX Inputs(3 Vrms Max.) Input Impedance: 60 1 x Optical Input/(up to 96KHz/24bit)

Frequency Combination

Supports up to 4 combined frequency high level input per channel

Outputs

10 x RCA Outputs 16Vpp(5.6Vrms)/47KQ

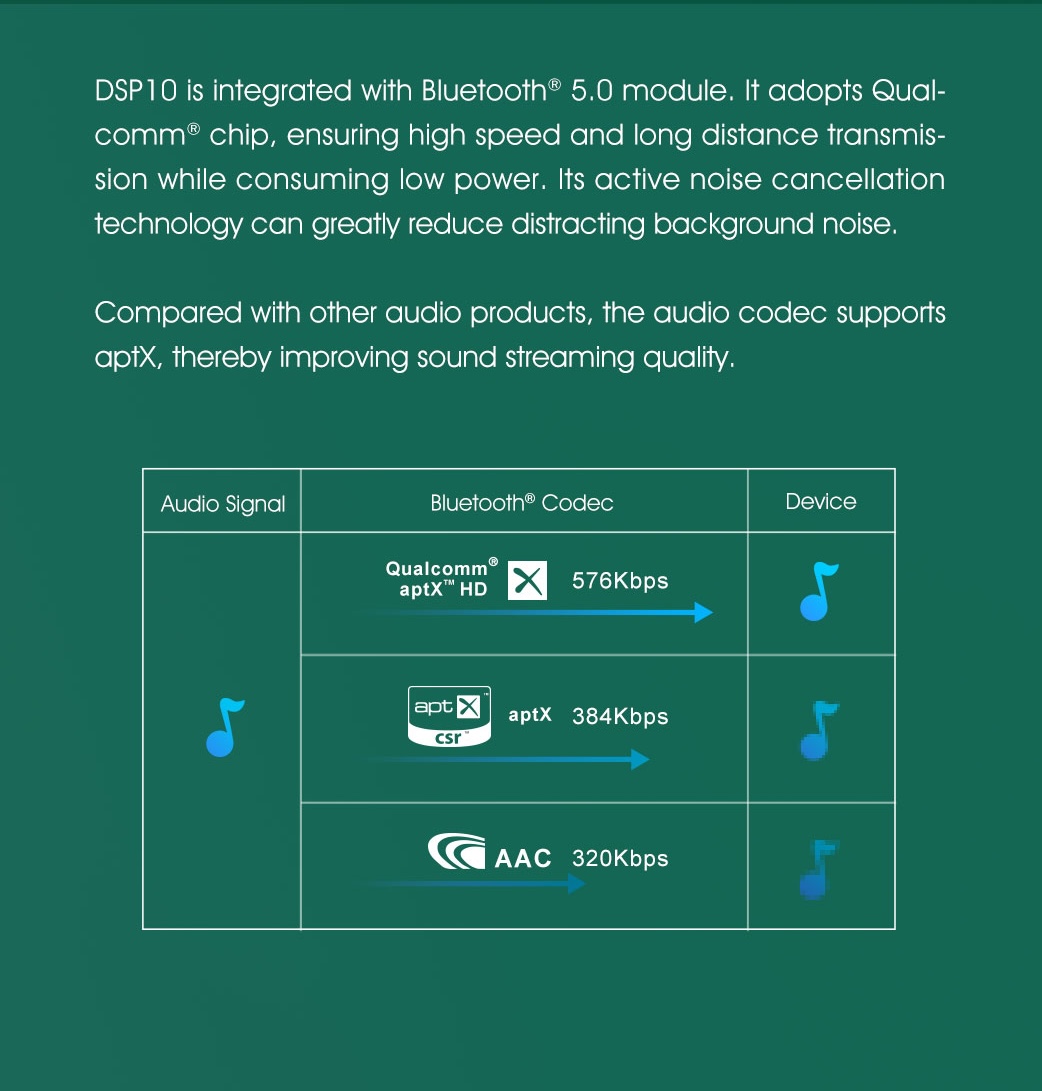

Bluetooth® Receiver

Bluetooth® 5.0 Profile: A2DP/AVRCP Audio Codec: aptX/aptx HD/AAC/SBC

Input Equalizer

Independently adjustable per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/Slope 1&2 AP(All-pass Filter) 5-Band Parametrical Equalizer: 20Hz ~ 20KHz 2: 0.5 to 15 Gain: -15dB to + 15dB

Input Delay

High level input time delay adjustment: 0-- 10ms/0~340cm

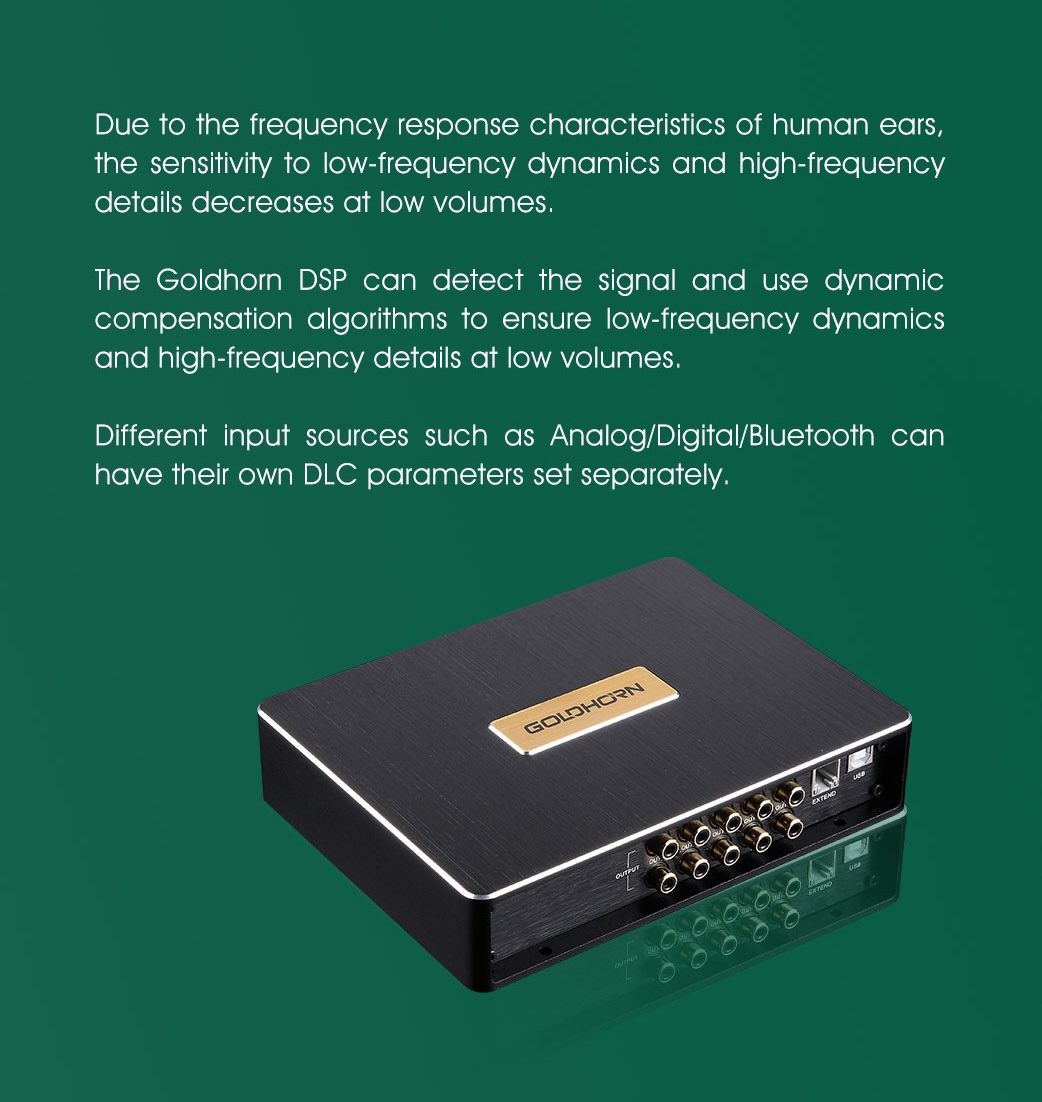

Dynamic Loudness Control

Separate DLc parameters for Analog/DigitalBluetooth input sources

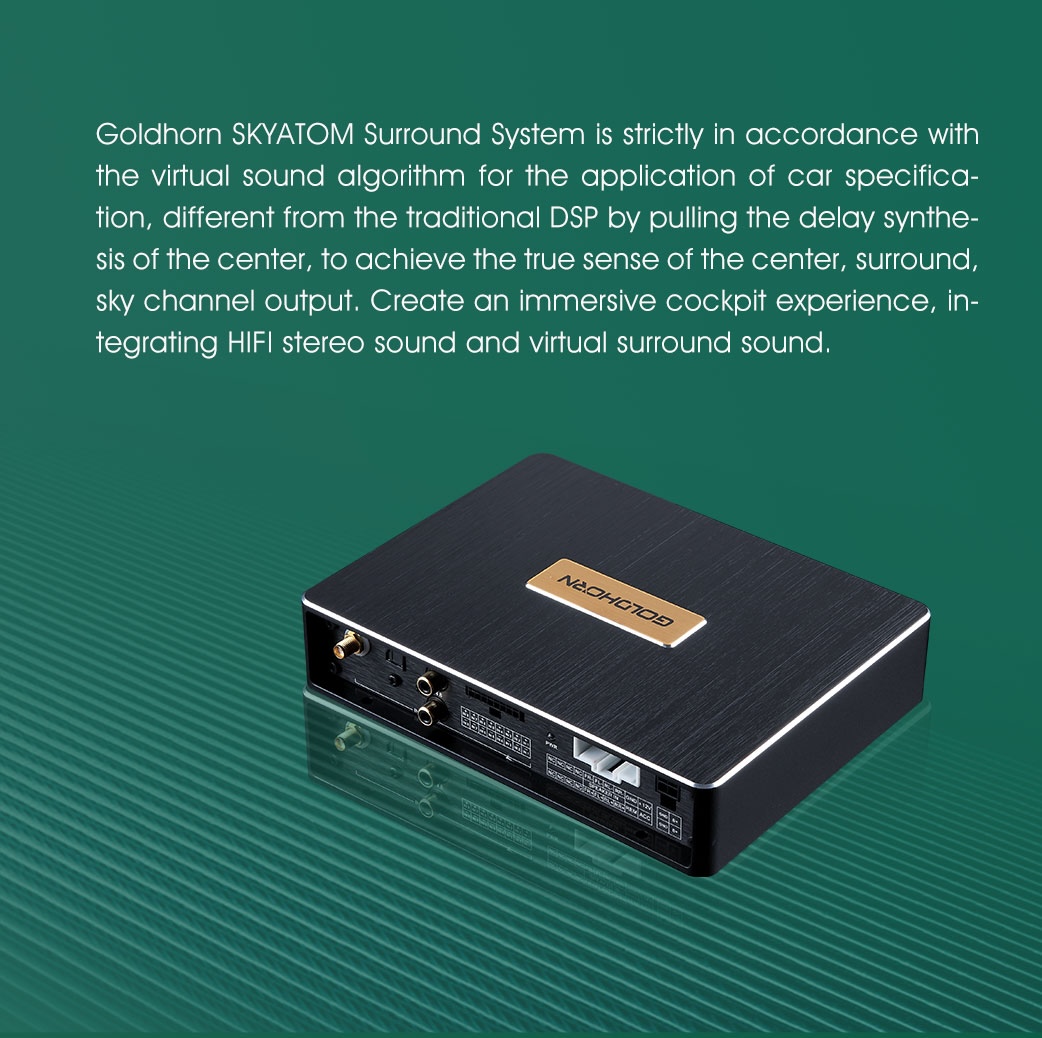

SKYATOM Surround

SKYATOM Surround Independently adjustable per channel output volume gain: -20dB + 10dB Phase Shift: Positive phase/inverted phase Time Delay: Subwoofer delay range:0~ 10ms, Other channel delay: 0~40ms Surround Sound Effects: Front sound field extension, front sound field treble enhancement, center enhancement, center treble enhancement, sur-round sound field enhancement, bass enhancement, bass dive enhancement

Output Crossover

Independently adjustable per channel Filter type: Butterworth / Linkwitz / Bessel Filter frequency: 20Hz ~ 20KHz Filter slope: -6dB/Oct~-48dB/Oct

Output Equalizer

Independently adjustable per channel Filter type: PE(Peak)/LS(low-shelf)/HS(Elevated)/AP1 &AP2(All-Pass filter) 31-Band Parametrical Equalizer: 20Hz ~ 20KHz Q: 0.5 to 15 Gain: -15dB to + 15dB
